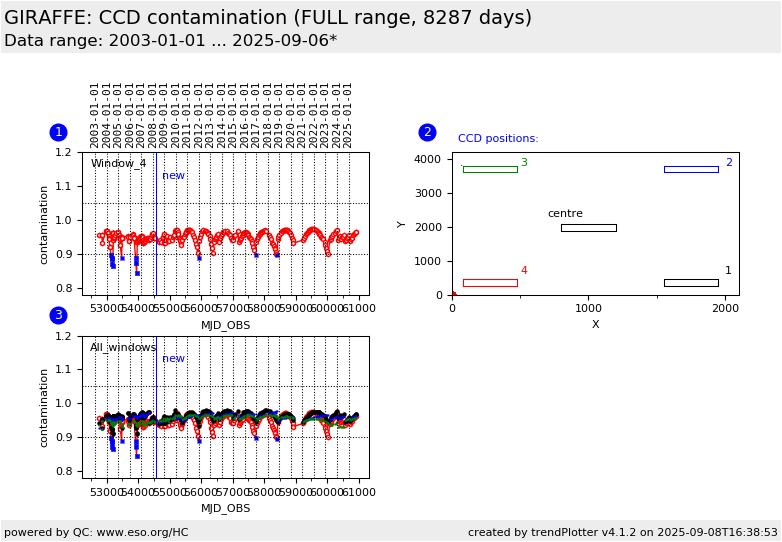

Plot 1
scores: not implemented
| | data source: | giraffe_ccd
(QC1 database) |
| dataset: | conta4 | • |
| average: | none |
| fixed thresholds: | 0.9...1.05 | fraction |
| N_data plotted: | 188 |
| [click on plot for closeup] |
Plot 2
scores: not implemented
| | data source: | giraffe_ccd
(QC1 database) |
| dataset: | conta4 | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 634 |
| [click on plot for closeup] |
Plot 3
scores: not implemented
| | data source: | giraffe_ccd
(QC1 database) |
dataset:
(numbers below apply to this dataset) | conta1 | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 188 |
| [click on plot for closeup] |
This is the trending plot for the monitoring of the GIRAFFE
detector noise parameters, derived from image flats. These data are taken
about monthly.
This plot trends the contamination measurements. The image flat with the
highest exposure time is taken, its flux is measured in the five windows
marked in plot 2, and normalized to the center (meaning the central box has
always intensity 1 in plot 3).
If contamination builds up,
the relative efficiency will go down. The GIRAFFE CCD has a typical
contamination pattern, with the lower left corner showing the strongest
effect. Its value is plotted red and emphasized by the connecting line.
A decontamination procedure should be applied when the red data start to
approach the value 0.9.
Other QC parameters related to detector properties
are trended in the same group.
