MIDI trending system: HEALTH CHECK report
Last update: 2012-01-25T10:05:31 (UT)
| now: 2026-04-18T15:47:45 (UT)
HELP USERS-GUIDE MORE
same group: HS SP_INTERF SP_PHOT
General news: NOTE: The Health Check and calChecker services have been moved to qcFlow. These pages are only maintained for comparison and will be removed in 2026.
MIDI news:
Report news:
DATE*: [?] 2015-02-27
report | NLT
2015-02-28
report | NLT
2015-03-01
report | NLT
2015-03-02
report | NLT
2015-03-03
report | NLT
2015-03-04
report | NLT
2015-03-05
no data | NLT
P...
Product quality:
products products products products products products no products
  last OPSLOG data:
2012-01-23*

last files ...
[an error occurred while processing this directive]
monitor
close window history: 2006 2007 2008 2009 2010   2011   HEALTH
  ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (2) MEDIAN 9.002720 microns VAL8.903,9.103 57 ArIII_r2 this | last_yr | all ArIII_R2
2 QC1DB yes (2) MEDIAN 10.544102 microns VAL10.444,10.644 57 SIV_r2 this | last_yr | all SIV_R2
3 QC1DB yes (2) MEDIAN 12.795500 microns VAL12.696,12.896 57 NeII_r2 this | last_yr | all NeII_R2
4 QC1DB yes (2) MEDIAN 8.935454 microns VAL8.835,9.035 57 ArIII_r3 this | last_yr | all ArIII_R3
5 QC1DB yes (2) MEDIAN 10.545591 microns VAL10.446,10.646 57 SIV_r3 this | last_yr | all SIV_R3
6 QC1DB yes (2) MEDIAN 12.759830 microns VAL12.66,12.86 57 NeII_r3 this | last_yr | all NeII_R3
7 QC1DB yes (2) MEDIAN 9.025288 microns VAL9.0,9.05 57 ArIII_r2 this | last_yr | all ArIII_R2
8 QC1DB yes (2) MEDIAN 10.466529 microns VAL10.442,10.492 57 SIV_r2 this | last_yr | all SIV_R2
9 QC1DB yes (2) MEDIAN 12.817815 microns VAL12.793,12.843 57 NeII_r2 this | last_yr | all NeII_R2
10 QC1DB yes (2) MEDIAN 9.047854 microns VAL9.023,9.073 57 ArIII_r3 this | last_yr | all ArIII_R3
11 QC1DB yes (2) MEDIAN 10.489000 microns VAL10.464,10.514 57 SIV_r3 this | last_yr | all SIV_R3
12 QC1DB yes (2) MEDIAN 12.840130 microns VAL12.815,12.865 57 NeII_r3 this | last_yr | all NeII_R3
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included

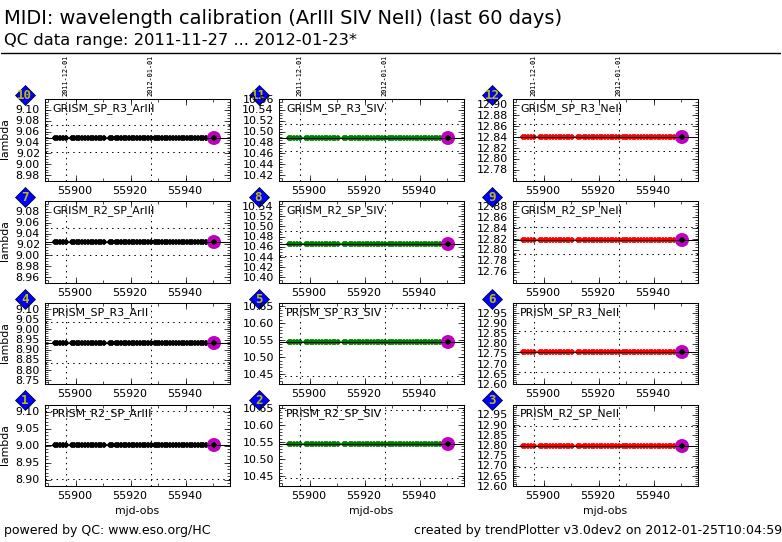

Plot 1
scores: 8|
data source:midi_wave
(QC1 database)
dataset:ArIII_r2
median:9.002720microns
fixed thresholds:8.903000...9.103000microns
N_data plotted:57
[click on plot for closeup]
Plot 2
scores: 8|
data source:midi_wave
(QC1 database)
dataset:SIV_r2
median:10.544102microns
fixed thresholds:10.444000...10.644000microns
N_data plotted:57
[click on plot for closeup]
Plot 3
scores: 8|
data source:midi_wave
(QC1 database)
dataset:NeII_r2
median:12.795500microns
fixed thresholds:12.696000...12.896000microns
N_data plotted:57
[click on plot for closeup]
Plot 4
scores: 8|
data source:midi_wave
(QC1 database)
dataset:ArIII_r3
median:8.935454microns
fixed thresholds:8.835000...9.035000microns
N_data plotted:57
[click on plot for closeup]
Plot 5
scores: 8|
data source:midi_wave
(QC1 database)
dataset:SIV_r3
median:10.545591microns
fixed thresholds:10.446000...10.646000microns
N_data plotted:57
[click on plot for closeup]
Plot 6
scores: 8|
data source:midi_wave
(QC1 database)
dataset:NeII_r3
median:12.759830microns
fixed thresholds:12.660000...12.860000microns
N_data plotted:57
[click on plot for closeup]
Plot 7
scores: 8|
data source:midi_wave
(QC1 database)
dataset:ArIII_r2
median:9.025288microns
fixed thresholds:9.000000...9.050000microns
N_data plotted:57
[click on plot for closeup]
Plot 8
scores: 8|
data source:midi_wave
(QC1 database)
dataset:SIV_r2
median:10.466529microns
fixed thresholds:10.442000...10.492000microns
N_data plotted:57
[click on plot for closeup]
Plot 9
scores: 8|
data source:midi_wave
(QC1 database)
dataset:NeII_r2
median:12.817815microns
fixed thresholds:12.793000...12.843000microns
N_data plotted:57
[click on plot for closeup]
Plot 10
scores: 8|
data source:midi_wave
(QC1 database)
dataset:ArIII_r3
median:9.047854microns
fixed thresholds:9.023000...9.073000microns
N_data plotted:57
[click on plot for closeup]
Plot 11
scores: 8|
data source:midi_wave
(QC1 database)
dataset:SIV_r3
median:10.489000microns
fixed thresholds:10.464000...10.514000microns
N_data plotted:57
[click on plot for closeup]
Plot 12
scores: 8|
data source:midi_wave
(QC1 database)
dataset:NeII_r3
median:12.840130microns
fixed thresholds:12.815000...12.865000microns
N_data plotted:57
[click on plot for closeup]
This plot

The wavelength day calibration consists in using the MIDI heated blackscreen and taking 3 exposures through different narrow-band filters [NeII], [SIV] and [ArIII] (having central wavelengths accurately measured in the laboratory by the manufacturer). An extra exposure is taken through a polycarbonic foil that has several absorption lines in its N-band spectrum. Exposures without filters and with closed shutter are also taken to process the exposures with filters. From the spectra obtained through the filters a fit of the lambda(X) function is performed. The procedure is performed for each setup (PRISM or GRISM, and SCI_PHOT or HIGH_SENS). The MIDI HIGH_SENS mode uses 2 windows on the detector (R1 and R2). The MIDI SCI_PHOT mode uses 4 windows (R1 to R4) We monitor here the stability of the dispersion by plotting the wavelength of a spectral channel given by the lambda(X) function computed by the reduction of the calibration data. The selected spectral channels corresponds to the expected central wavelength of the three narrow-band filters.


General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
