Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
0.369 |
ADU/pix/hr |
none | |
784 |
qc_dark_current |
all (full time range)
| DARK current averaged over all 32 detectors (ADU/pixel/hour) |
| 2 |
• | QC1DB |
MEDIAN |
0.245 |
ADU/pix/hr |
none | |
25074 |
qc_dark_current |
all (full time range)
| DARK current for each individual detector (ADU/pixel/hour) |
| 3 |
• | QC1DB |
MEDIAN |
108 |
part/cm2/hr |
none | |
784 |
qc_particle_rate |
all (full time range)
| particle rate averaged over all 32 detectors (particles/cm2/hour) |
| 4 |
■ | LOCAL |
none |
|
none |
none | |
837 |
det_id |
n/a |
score per detector:
GREEN = within the thresholds |
| 4 |
■ | LOCAL |
none |
|
none |
none | |
0 |
det_id |
n/a |
score per detector:
RED = beyond the thresholds |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1
scores: not implemented
| | data source: | omegacam_dark
(QC1 database) |
| dataset: | qc_dark_current | • |
| median: | 0.369 | ADU/pix/hr |
| thresholds: | none | |
| N_data plotted: | 784 |
| [click plot for closeup] |
Plot 2
scores: not implemented
| | data source: | omegacam_dark
(QC1 database) |
| dataset: | qc_dark_current | • |
| median: | 0.245 | ADU/pix/hr |
| thresholds: | none | |
| N_data plotted: | 25074 |
| [click plot for closeup] |
Plot 3
scores: not implemented
| | data source: | omegacam_dark
(QC1 database) |
| dataset: | qc_particle_rate | • |
| median: | 108 | part/cm2/hr |
| thresholds: | none | |
| N_data plotted: | 784 |
| [click plot for closeup] |
Plot 4
scores: not implemented
| | data source: | local data source
|
dataset:
(numbers below apply to this dataset) | det_id | ■ |
| average: | none |
| thresholds: | none |
| N_data plotted: | 837 |
| [click plot for closeup] |

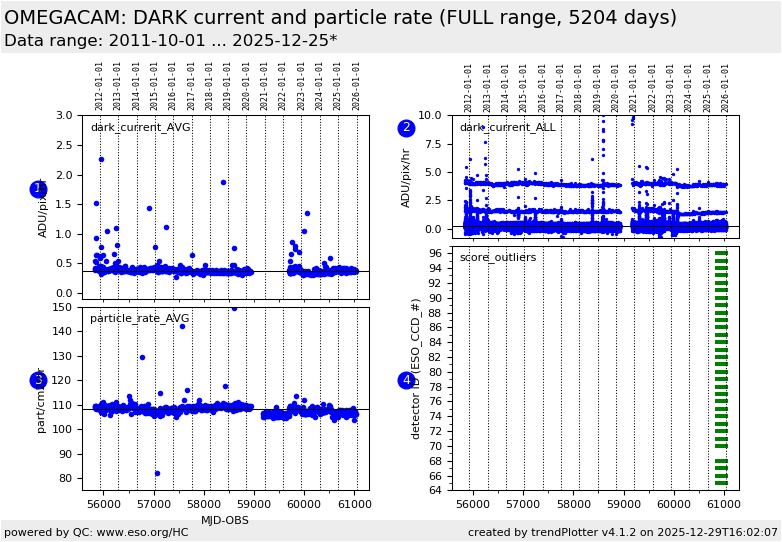

Trending plots for the detector dark current and particle rate.
QC parameters are derived from each of 32 detectors of OmegaCAM dark frames.
DB Name: omegacam_dark
Fits header: QC.DARK.CURRENT / QC.PARTICLE.RATE
QC1 DB: qc_dark_current / qc_particle_rate
Description:
The dark current and particle rate is measured from the pipeline product MEAN_DARK
Setup:
BIN.X / BIN.Y / READ.MODE / READ.SPEED = 1/1/normal/normal
These Health Check plots describe:
Fig. 1 dark_current_AVG: The dark current averaged over
all 32 detectors (in ADU/pixel/hour).
This plot is sensitive to any changes common to all detectors.
Fig. 2 gain_ALL: The dark current measured for each
individual detector (in ADU/pixel/hour). This plot is sensitive changes in individual
detectors.
Fig. 3 particle_rate_AVG: The dark frame particle rate
averaged over all 32 detectors (in particles/cm^2/hour).
Fig. 4 score_outliers: Scores of the dark current as measured for each of the 32 detectors.
Green = within the defined thresholds.
Red = beyond the defined thresholds.
OmegaCAM detector plane layout (detector_ID locations):
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
