SINFONI trending system: FULL report
HELP USERS-GUIDE MORE
Last update: 2016-09-17T20:10:38 (UT)
  | now: 2016-09-25T17:00:50 (UT) muc04 QC pipeline: sinfo-2.9.1 (installed 2016-07-04)
close window history: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015   2016   HEALTH FULL
  ... ... ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 11 ADU VAL0.0,25.0 2474 qc_darkmed_ave all (full time range) median dark level, as computed from the master dark
2 QC1DB MEDIAN 0.528 ADU VAL-3.0,4.0 2474 qc_darkmed_stdev all (full time range) standard deviation of median dark level
3 QC1DB MEDIAN 3.06 ADU VAL2.5,3.75 2474 qc_ron2 all (full time range) rms noise derived by subtracting 2 consecutive raw darks (normalized to DET.DIT = 1 second)
4 QC1DB MEDIAN 2.3 ADU VAL1.0,4.0 2483 qc_gaf_fpn all (full time range) fixed pattern noise as computed by fitting a Gaussian to the master dark histogram
5 QC1DB MEDIAN 1.02e+04 number VAL2000,20000 2474 qc_bpm_nbadpix all (full time range) number of pixels with a high dark current
6 QC1DB MEDIAN 0.0159 unitless none  2483 qc_oes1 all (full time range)
7 QC1DB MEDIAN -0.0193 unitless none  2483 qc_oes2 all (full time range)
8 QC1DB MEDIAN -0.0175 unitless none  2483 qc_oes3 all (full time range)
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_darkmed_ave
median:11ADU
fixed thresholds:0.0...25.0ADU
N_data plotted:2474
[click on plot for closeup]
Plot 2
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_darkmed_stdev
median:0.528ADU
fixed thresholds:-3.0...4.0ADU
N_data plotted:2474
[click on plot for closeup]
Plot 3
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_ron2
median:3.06ADU
fixed thresholds:2.5...3.75ADU
N_data plotted:2474
[click on plot for closeup]
Plot 4
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_gaf_fpn
median:2.3ADU
fixed thresholds:1.0...4.0ADU
N_data plotted:2483
[click on plot for closeup]
Plot 5
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_bpm_nbadpix
median:1.02e+04number
fixed thresholds:2000...20000number
N_data plotted:2474
[click on plot for closeup]
Plot 6
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_oes1
median:0.0159unitless
thresholds:none
N_data plotted:2483
[click on plot for closeup]
Plot 7
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_oes2
median:-0.0193unitless
thresholds:none
N_data plotted:2483
[click on plot for closeup]
Plot 8
scores: not implemented
data source:sinfoni_dark
(QC1 database)
dataset:qc_oes3
median:-0.0175unitless
thresholds:none
N_data plotted:2483
[click on plot for closeup]
This plot

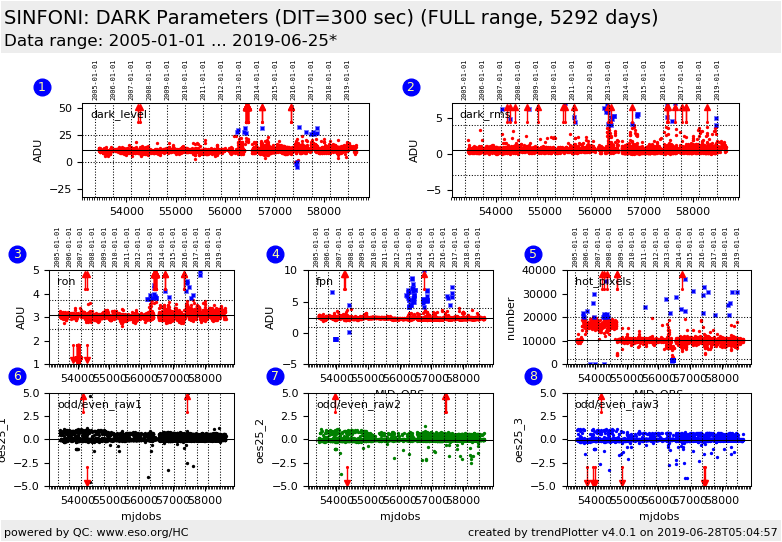

These are the trending plots for the SINFONI QC parameters derived from DARK frames.

These plots describe:

1. the median DARK level, as computed from each master dark frame.

2. the standard deviation of the median DARK level.

3. the root-mean-squared noise, as derived by subtracting two consecutive raw dark frames, computing a median standard deviation in
selected sub-windows, computing a median standard deviation in selected sub-windows in the difference image, and then normalizing to DET.DIT=1 second.

4. the fixed pattern noise, as computed by fitting a Gaussian to the histogram of the master dark frames. The fpn is simply the standard deviation of Gaussian.

5. the number of pixels with a high dark current.

6/7/8. the odd-even column stripes in the area of slitlet #25. If med(odd) = median of all odd columns in the area of slitlet #25
and med(even) = median of all even columns in the area of slitlet #25 then, this plot is defined as:
oes25 = 2 * (med(odd) - med(even)) / (med(odd) + med(even))
the plots show the effect for the first 3 raw files of the DARK

DARK current and RON higher than usual could be due to an increase of the detector temperature (INS.TEMP6.VAL), grating temperature (INS.TEMP13.VAL) or of the rack temperature (INS.TEMP6.VAL). Check also INS.SENS13.ST (Detector warm mode).

Find more information about SINFONI DARK frames here.

Other QC parameters related to detector properties (like dark level, linearity, gain, etc.) are also trended here.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
