VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-04-19T21:43:04 (UT)
  | now: 2014-04-20T08:06:00 (UT) muc07 QC pipeline: vcam-1.3.3 (installed 2014-03-19)
same group: MED_1.0011 RON12_1.0011 RMS_1.0011 STRIPE_1.0011   MED_120 RON12_120 RMS_120 STRIPE_120
General news:
VIRCAM news:
Report news:
DATE*: [?] 2014-04-13
report | NLT
2014-04-14
report | NLT
2014-04-15
report | NLT
2014-04-16
report | NLT
2014-04-17
report | NLT
2014-04-18
report | NLT
2014-04-19
report | NLT
P...
Product quality:
products products products products products products products
  last OPSLOG data:
2014-04-18*

last files ...
monitor

scores&comments | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • STRIPERMS(DET #15) = 105
  • REFERENCE frames
  • 2010-07-29: new detector scores: 0.001 40 ADU (the same for all 16 detectors)
  • 2010-07-29: new AVG scores: 2 12 ADU
  • 2010-07-29: new RMS scores: 2 10 ADU
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN 3.43 ADU VAL0.5,7 67 qc_stripe_rms this | last_yr | all STRIPE RMS, average over all 16 detectors
2 QC1DB yes (0) MEDIAN 3.13 ADU VAL0.001,15 1052 qc_stripe_rms this | last_yr | all STRIPE RMS, values of all detetcors
3 QC1DB yes (0) MEDIAN 1.08 ADU VAL0.1,5 67 qc_stripe_rms this | last_yr | all STRIPE RMS, stdev over all detectors
4 LOCAL no none   ADU none  1072 qc_stripe_rms n/a Score per Detector: Red = beyond thresholds
4 LOCAL no none   ADU none  0 qc_stripe_rms n/a Score per Detector: Green = within the thresholds
4 .LOCAL no none   ADU none  1072 qc_stripe_rms n/a Score per Detector: Green = within the thresholds
4 .LOCAL no none   ADU none  0 qc_stripe_rms n/a Score per Detector: Green = within the thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 8|
data source:vircam_dark
(QC1 database)
dataset:qc_stripe_rms
median:3.43ADU
fixed thresholds:0.5...7ADU
N_data plotted:67
[click on plot for closeup]
Plot 2
scores: not implemented
data source:vircam_dark
(QC1 database)
dataset:qc_stripe_rms
median:3.13ADU
fixed thresholds:0.001...15ADU
N_data plotted:1052
[click on plot for closeup]
Plot 3
scores: 8|
data source:vircam_dark
(QC1 database)
dataset:qc_stripe_rms
median:1.08ADU
fixed thresholds:0.1...5ADU
N_data plotted:67
[click on plot for closeup]
Plot 4
scores: not implemented
data source:local text file
dataset:
(numbers below apply to this dataset)
qc_stripe_rms
average:none
thresholds:none
N_data plotted:1072
[click on plot for closeup]
This plot

Trending plot for RMS of the stripe pattern.

QC parameter is derived from each detector of daily DARK frames.

Name:
Fits header: QC.STRIPERMS,
QC1 DB: qc_stripe_rms

Description:
RMS of the stripe pattern detected in the MASTER_DARK pipeline product. Thwe stripe pattern in the master drak is averaged over the raw input frames. The stripe pattern in the raw dark input frames is larger and variable.

Setup:
DET.DIT = 120 sec

DET.NDIT = 1

These plots describe:

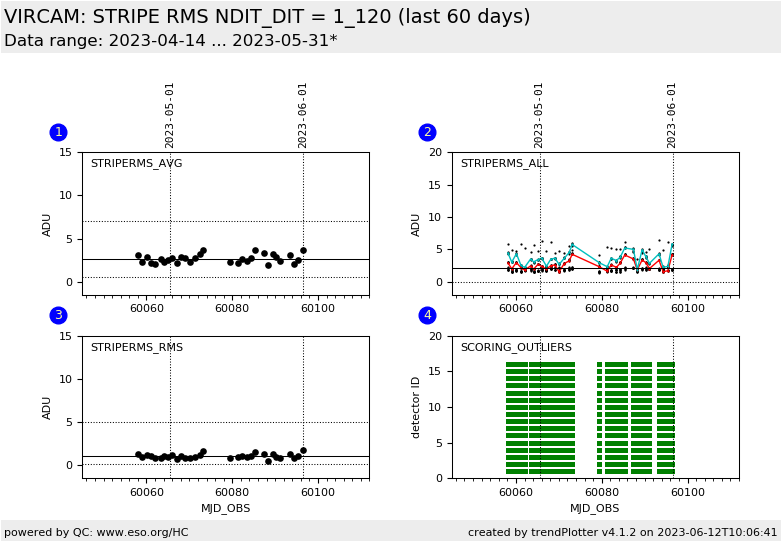

Fig. 1. Average view: The QC parameter averaged over all detectors. This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters. Green = within the acceptance thresholds. Red = beyond the acceptance thresholds.




General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
