Workflow information system for QC
Last update: 2011-10-15T14:51:39 (UT)
same group: dataflow_DAY dataflow_MONTH
close window history: 2005 2006 2007 2008 2009 2010   2011   2012   2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025   HEALTH
  ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEAN 26116.38086 MB none   92 dataflow_ALL this | last_yr | all 1. daily data volume (all VLT+VLTI, no survey cameras, compressed MBytes)
a) all data
1 •QC1DB none   MB none   92 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
1 •QC1DB none   MB none   92 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
2 •QC1DB MEAN 26116.38086 MB none   92 dataflow_ALL this | last_yr | all 2. Instruments with burst modes (SCI plus CAL, compressed MBytes)
a) all data
2 •QC1DB none   MB none   92 dataflow_ALL this | last_yr | all b) ISAAC only
2 •QC1DB none   MB none   92 dataflow_ALL this | last_yr | all c) NACO only
2 •QC1DB none   MB none   92 dataflow_ALL this | last_yr | all d) VISIR only
2 •QC1DB none   MB none   92 dataflow_ALL this | last_yr | all e) VLTI only (AMBER+MIDI+PACMAN)
3 •QC1DB MEAN 58718.53125 MB none   92 dataflow_ALL this | last_yr | all 3. VIRCAM@VISTA (compressed MBytes)
a) all VIRCAM data
3 •QC1DB none   MB none   92 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
3 •QC1DB none   MB none   92 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
4 •QC1DB MEAN 39916.87891 MB none   92 dataflow_ALL this | last_yr | all 4. OMEGACAM@VST (compressed MBytes)
a) all OMEGACAM data
4 •QC1DB none   MB none   92 dataflow_CAL this | last_yr | all b) CAL only (UT 0.40...0.99)
4 •QC1DB none   MB none   92 dataflow_SCI this | last_yr | all c) SCI only (UT 0.00...0.39)
*Data sources: QC1DB: QC1 database; LOCAL: local text file
Plot 1
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:26116.38086MB
thresholds:none
N_data plotted:92
[click on plot for closeup]
Plot 2
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:26116.38086MB
thresholds:none
N_data plotted:92
[click on plot for closeup]
Plot 3
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:58718.53125MB
thresholds:none
N_data plotted:92
[click on plot for closeup]
Plot 4
data source:dataflow_stat
(QC1 database)
dataset:
(numbers below apply to this dataset)		dataflow_ALL•
mean:39916.87891MB
thresholds:none
N_data plotted:92
[click on plot for closeup]

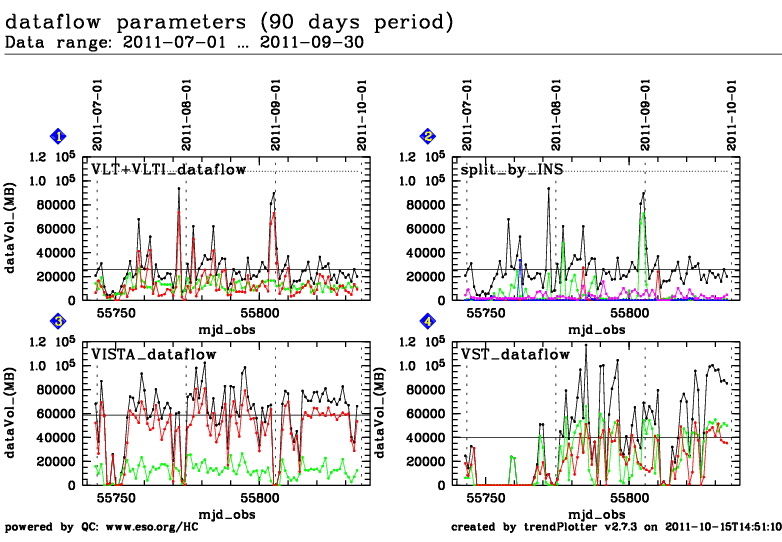

This plot

This plot visualizes the daily data volume, in compressed MBytes, created by VLT and VLTI (plots 1 and 2), by VISTA (plot 3) and by the VST (plot 4). The data volume is read from the ngas_files database table. It refers to compressed files and represents the data volume relevant for transfer. Since July 2008, VLT/VLTI data are transfered via the internet, before they were sent on disks. Since March 2012, the EVALSO fibre link serves all Paranal data (including VIRCAM and OMEGACAM) over the internet.

Plot 1: The data stream is divided into "ALL" data; "SCIENCE" (all data acquired between mjd.00 ... mjd.40), and "CALIBRATION" (all other data).

Plot 2: The data stream for instruments with burst modes. Peaks almost always refer to burst mode observations of a single instruments. That instrument can be identified in this plot.

Plots 3,4: As plot 1, the VIRCAM and OMEGACAM data streams are divided into ALL, SCIENCE and CALIBRATION.

Until 2011, the thin broken line in the history plots marks the data volume equivalent to a 10.0 Mbit/s continuous transfer (before EVALSO, this was the bandwidth for data transfer of the connection Paranal - Antofagasta).

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
