INTEGRATION RELEASE ALMA 5.0.2







Final tag and patches

Validation tests suite results

Lines of code graphs

Inline documentation

Unit tests report

Java Test coverage (based on COBERTURA) (NEW!)

Java duplicated classes

Channels and Events





1. Final tag and patches



The software has been tagged with ALMA-5_0_2_12.

This report is based on tests run on the following tags: ALMA-5_0_2-6, ALMA-5_0_2_9, ALMA-5_0_2-11, ALMA-5_0_2-12



2. Validation tests suite

To validate the software delivered for ALMA-5_0_2, the tests from the validation tests suite at the ITS twiki page have been run. The report with the results on the tests which has been run can be found at the twiki page ALMA-5_0_2 .



Considerations about running the system end-to-end

• SFI in simulation works in manual mode, but not always. This is probably due to problems with the CVR (even when the hardcoded values in CONTROL/Array is used), for which unfortunately a simulation does not exist.
• HG works
• OP never worked, the script has not been ported to the new software.



Short overview on the test cases run in the STEs:

Total number of test cases available	190
Total number of test cases executed	101
PASSED	78
FAILED	23
Total number of test cases not executed	89



Short overview on the Jira tickets dealt with in the STE (simulation):

Total number of Jira tickets about ALMA 5.0.2	16
Newly opened Jira tickets for ALMA 5.0.2	8
Old jira tickets still to be solved for ALMA 5.0.2	8



We are also collecting metrics on the test cases written and executed by ITS and the Jira tickets opened as a consequence of running the test cases. The metrics will be periodically updated. The available graphs are :

- number of test cases written and executed

- % of test cases passed and failed

- number of jira tickets opened running the test cases

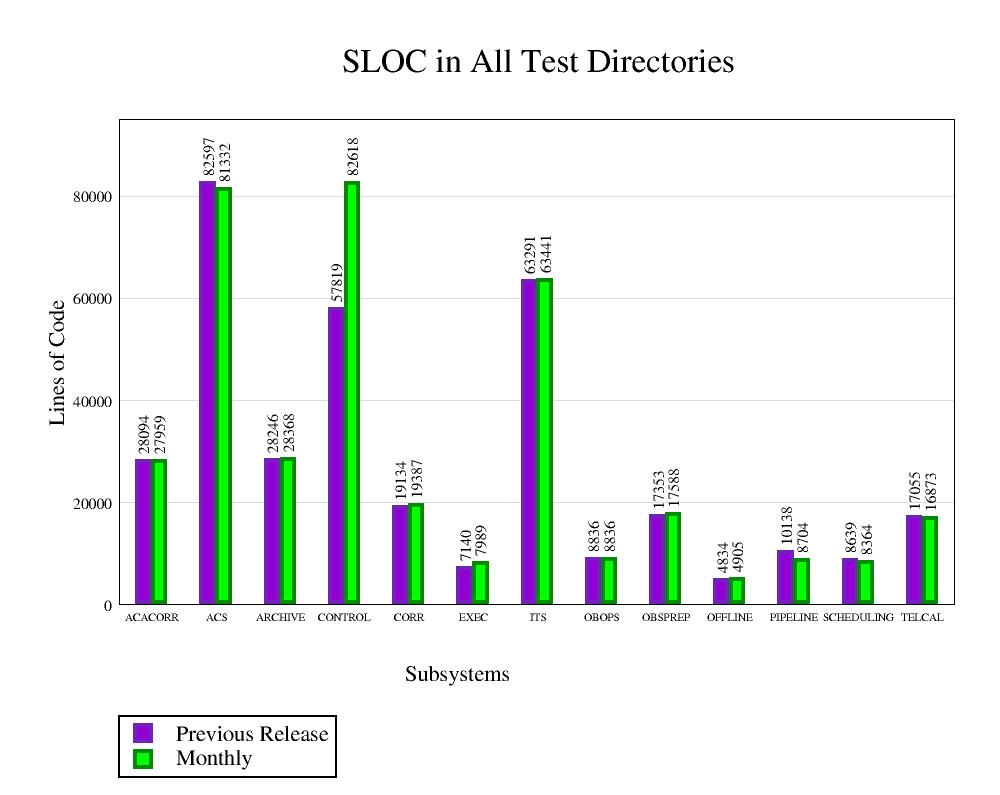

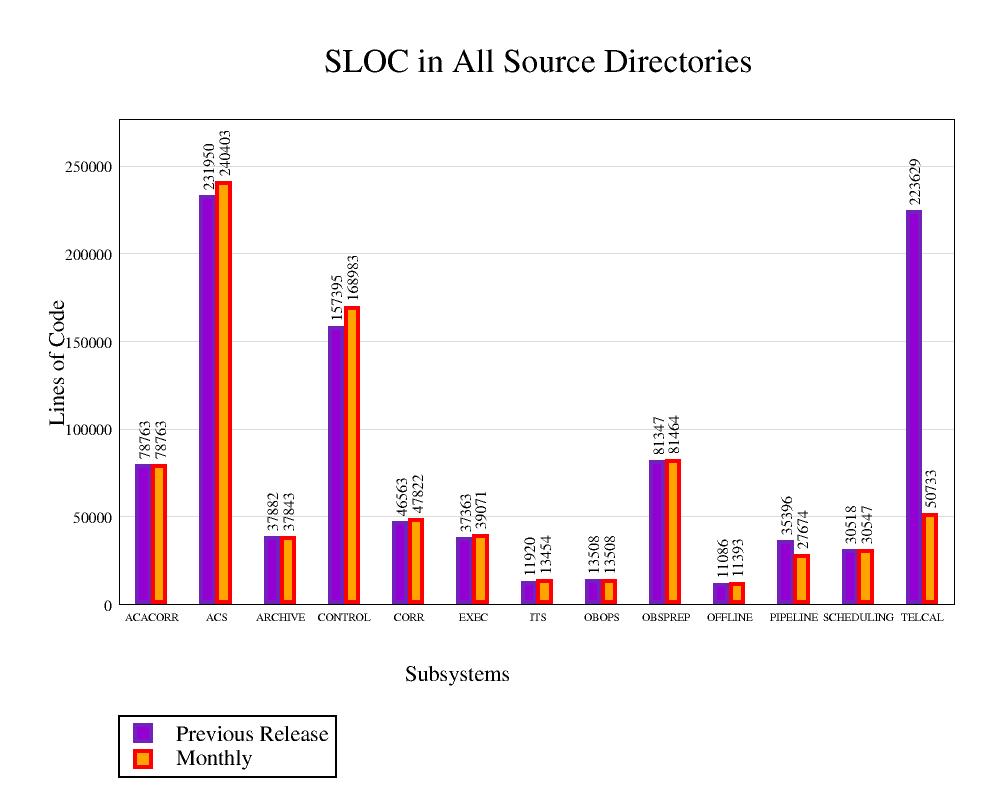

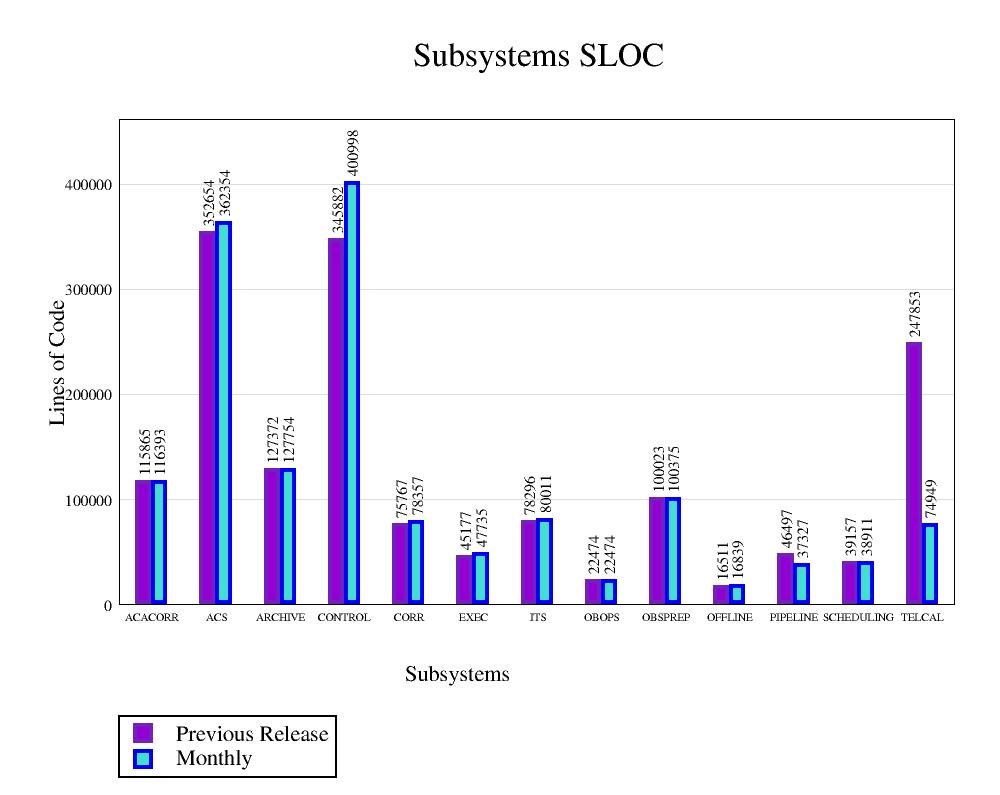

3. Subsystems SLOC:

Data here reported are compared with previous release ALMA 5.0.1



- on all the directories

- on src only

- on test only

- percentage test/src



SLOC detailed figures:



ACACORR

ACS

ARCHIVE

CONTROL

CORR

EXEC

ITS

OBOPS

OBSPREP

OFFLINE

PIPELINE

SCHEDULING

TELCAL





Note: Starting from Release R1.1 ITS and SE have used a common approach in calculating SLOC.







5. Inline Documentation





Modules inline	Global inline
ACACORR	ACACORR
ACS	ACS
ARCHIVE	ARCHIVE
CONTROL	CONTROL
CORR	CORR
EXEC ICD	EXEC ICD
ITS	ITS
OBOPS	OBOPS
OBSPREP	OBSPREP
OFFLINE	OFFLINE
PIPELINE	PIPELINE
SCHEDULING	SCHEDULING
TELCAL	TELCAL





6. Unit Tests



See the logs at this link.





7. Java Test Coverage



For the following SUBSYSTEMS, ACS, ARCHIVE, EXEC, OBOPS, OBSPREP, OFFLINE, PIPELINE, SCHEDULING, the coverage analysis with COBERTURA has been activated.



For information about the tool, have a look at the Cobertura official web site.





ACACORR

ACS

ARCHIVE

CONTROL (Missing data due to te44 disk corruption)

CORR

EXEC

ITS

OBOPS

OBSPREP

OFFLINE

PIPELINE

SCHEDULING

TELCAL







8. Java Duplicated Classes



See the list at this link.





9. Channels and Events



      See details at this link.
