Package: Transporter

Description:  Transporter and anchoring device status information.

Package name: trl

Inheritance:  LCU Server Framework <<SubSystem>>lsfSERVER

Controlled HW Devices:

• <<PLC Device>>transporter:lsfSERIAL
  • Database: attrlDB_PLC:lsfDB_PLC
  • Interface: plccom

Controlled SW Devices: None

Deployment:  Auxiliary LCU: attrlServer

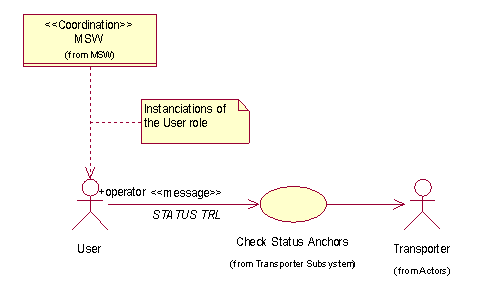

Use Case diagram:

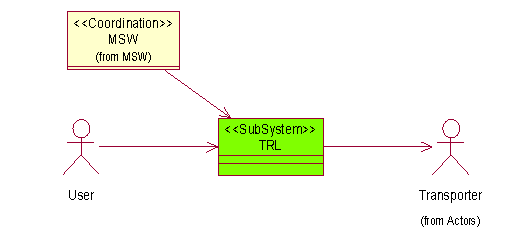

Class diagram:

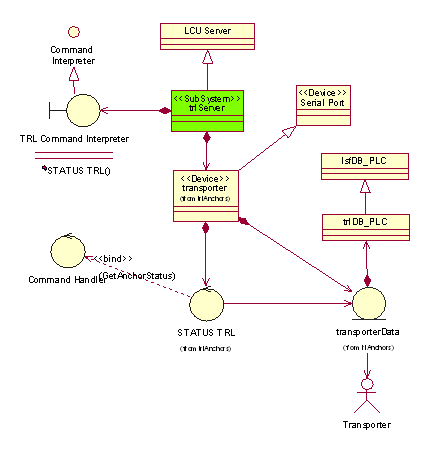

Architecture:

The LCU Software Device is instantiated from the LCU Server Framework lsf.
The sub-class <<SW Device>>attrlServer:lsfSERVER is composed of one instance of the serial communication class <<PLC Device>>transporter:lsfSERIAL.

The hardware is driven via the RS232 serial communication port /tyCo3 available on the LCU Transition Module.
The details of the communication protocol are described in the Siemens 3964 PLC User Manual [AD 29].

Command Definition Table:  attrlServer.cdt

Command Interpreter Table:  attrlServer.cit

Reuse from VLT TCS:  New package. The implementation of the communication protocol is provided by the VLT module plccom.
