Calibrator stars are typically measured immediately before and/or after the
science observation in order to determine both visibilities and phases of the
fringes. An exposure sequence on the calibrator target is normally accompanied
by an exposure on sky.
|

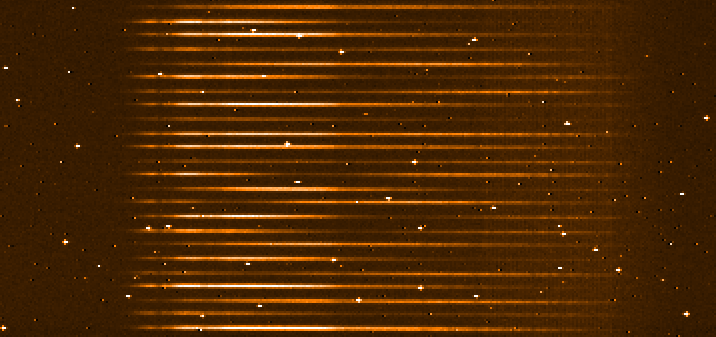

Calibrator. Medium resolution, combined polarimetry.
|
Visibility
QC1_parameters
Instrumental visibilities are calculated from a single calibrator observation.
FITS key |
QC1 database: table, name |
definition |
class* |
HC_plot** |
more docu |
QC.TF.VISAMP_FT12_P1.MED | gravity_vis..tf_visamp_ft12_p1 | transfer function visibility amplitude | HC | | [docuSys coming] |
QC.TF.VISAMP_SC12_P1.MED | gravity_vis..tf_visamp_sc12_p1 | transfer function visibility amplitude | HC | | [docuSys coming] |
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one. |
Same for baselines 13, 14, 23, 24, and 34. Only P1 beam in case of split
polarimetry.
Trending
The QC1 parameters are trended for FT and SC and for the six combinations of
resolution and polarimetry mode. Results from ATs and UTs are monitored
separately.
Scoring&thresholds Visibility
Scoring is not implemented.
History
No particular events.
Algorithm Visibility
Pipeline recipe. Visibility amplitudes of the transfer function, averaged over
wavelength.
Closure phase
QC1_parameters
FITS key |
QC1 database: table, name |
definition |
class* |
HC_plot** |
more docu |
QC.T3PHI_FT123_P1.AVG | gravity_vis..t3_phi_ft123_p1 | T3 phi in degrees | HC | | [docuSys coming] |
QC.T3PHI_SC123_P1.AVG | gravity_vis..t3_phi_sc123_p1 | T3 phi in degrees | HC | | [docuSys coming] |
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one. |
Same for triangles 124, 134, and 234. Only P1 beam in case of split
polarimetry.
Trending
Results from ATs and UTs are monitored
separately.
Scoring&thresholds Closure phase
Scoring is not implemented.
History
No particular events.
Algorithm Closure phase
Pipeline recipe: sum of the phases of three baselines inside a triangle. For
the four telescope triangles 123, 124, 134, and 234, and for FT and SC,
averaged over wavelength.
Phase difference
QC1_parameters
FITS key |
QC1 database: table, name |
definition |
class* |
HC_plot** |
more docu |
QC.PHASE_POLDIFF_FT12 | gravity_vis..phasediff_ft12 | phase difference of the polarimetric beams | HC | | [docuSys coming] |
QC.PHASE_POLDIFF_SC12 | gravity_vis..phasediff_sc12 | phase difference of the polarimetric beams | HC | | [docuSys coming] |
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one. |
Same for baselines 13, 14, 23, 24, and 34. Only in case of split
polarimetry.
Trending
The QC1 parameters are trended for FT and SC and for split polarimetry.
Results from ATs and UTs are monitored separately.
Scoring&thresholds Phase difference
Scoring is not implemented.
History
No particular events.
Algorithm Phase difference
Pipeline recipe. Average phase difference of the two polarimetric beams.
Transmission
QC1_parameters
FITS key |
QC1 database: table, name |
definition |
class* |
HC_plot** |
more docu |
QC.TF.TRANS_FT1 | gravity_vis..trans_ft1 | total transmission from target to detector (%) for FT | HC | | [docuSys coming] |
QC.TF.TRANS_SC1 | gravity_vis..trans_sc1 | total transmission from target to detector (%) for SC | HC | | [docuSys coming] |
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter
**There might be more than one. |
Same for telescopes 2, 3, and 4.
Trending
The QC1 parameters are trended for FT and SC and for the six combinations of
resolution and polarimetry mode. Results from ATs and UTs are monitored
separately.
Scoring&thresholds Transmission
Scoring is not implemented.
History
No particular events.
Algorithm Transmission
Pipeline recipe. Total transmission from target to detector (in per cent) for
FT and SC, respectively, and from the four inputs. Note that input 1
corresponds to AT4 or UT4, input 2 to AT3 or UT3, etc.
|
