Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 16:06:26
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2c
Passband U
Total Exposure Time (seconds) 47096
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #877
Right Ascension (hh:mm:ss.s) 03:32:31.3
Declinaton (dd:mm:ss.s) -27:48:42
Interval between First/Last Contributing Frames (days) 33.91
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.03
PSF Distortion (rms) 0.04
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X -8233.0
Reference Pixel: Y 4541.0
Photometry
Number of nights with independent zeropoints 4
Zeropoint of Product (Vega magnitudes) 22.205
Zeropoint Error (Zp error) 0.015
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 16:06:26
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2c
Passband U
Total Exposure Time (seconds) 47096
General Properties
Right Ascension (decimal degrees) 53.1303
Declination (decimal degrees) -27.8119
Galactic Longitude, l 223.5842
Galactic Latitude, b -54.4262
Total Exposure Time (seconds) 47096
Number of Contributing Frames 12
First Contributing Frame MJD 51844.1688
Lsat Contributing Frame MJD 51878.0742
First Contributing Frame Civil Date 2000-10-27
Last Contributing Frame Civil Date 2000-11-30
Interval between First/Last Contributing Frames (days) 33.91
Number of Photometric Contributing Frames 11
Number of Rejected Frames 0
Number of Stacked Frames 12
Effective Gain 119388.4
Effective Non-linearity N/A
Effective Saturation N/A

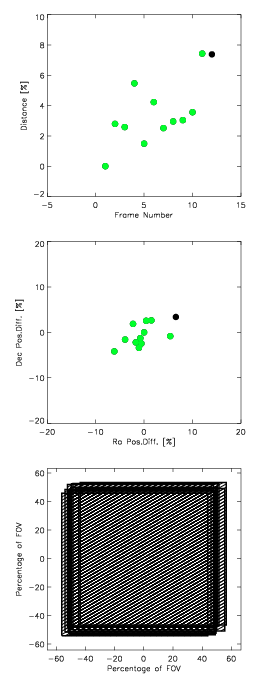

Area of maximum overlap in stacked image (arcmin2) 909.3
Fraction of instrument FOV of area of stacked image with maximum overlap 0.8
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 28.265 27.515 27.075 26.765 26.515
2.0 27.555 26.805 26.365 26.055 25.805
3.0 27.305 26.555 26.115 25.805 25.555
4.0 26.755 26.005 25.565 25.255 25.015
5.0 26.435 25.675 25.235 24.925 24.685
6.0 26.055 25.295 24.855 24.545 24.305

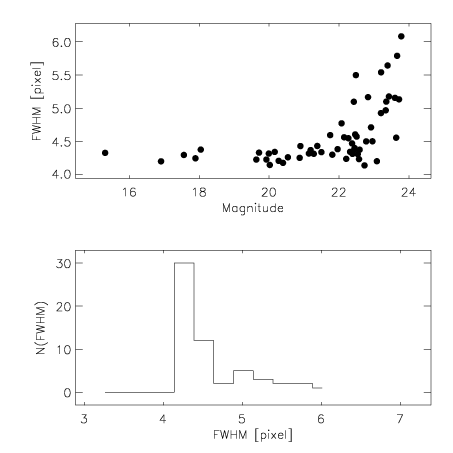

PSF
Measured Seeing (arcsec) 1.028
Measured Seeing (pixels) 4.317

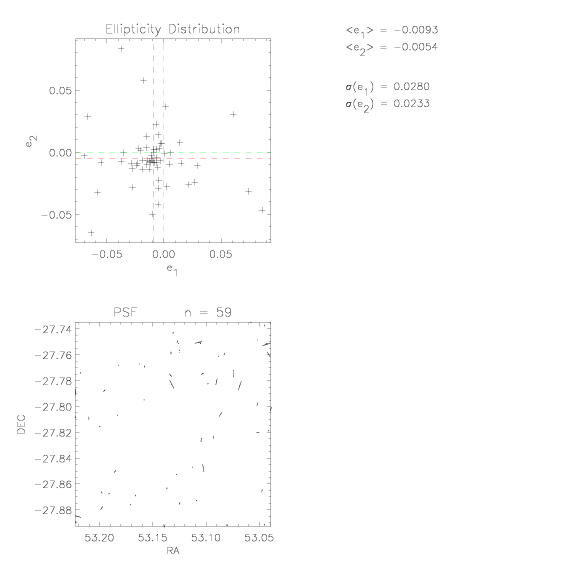

PSF Distortion along X-axis (E-W), e1 -0.009
PSF Distortion along Y-axis (N-S), e2 -0.005
PSF Distortion rms 0.036
Pixel Distribution
Mean Count (ADU) 0.001
Standard Deviation of Count (ADU) 0.242
Mean Sigma-Clipped Background Count (ADU) -0.0
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.001
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 16:06:26
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2c
Passband U
Total Exposure Time (seconds) 47096

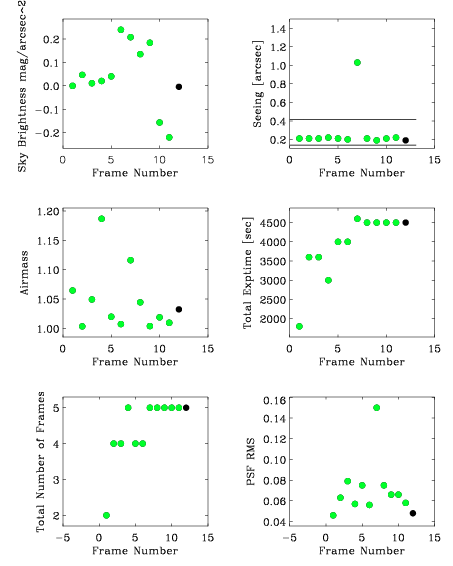

Stack Blocks (SB)
Number of Original Frames Input 12
Number of Photometric Frames 11
Number of Rejected Frames 0
Number of Stacked Frames 12
Mean Airmass of Contributing Frames 1.05
Mean Seeing of Contributing Frames (arcsec) 0.276
Mean of rms PSF Distortions of Contributing Frames 0.07
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 22.17
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 53.1316 -27.8094 U 51844.1687499 2000-10-27 1.0645125627 1799.835
2 53.1209 -27.8215 U 51844.2179217 2000-10-27 1.00352442193 3599.671
3 53.1343 -27.7954 U 51844.2738128 2000-10-27 1.04923798054 3599.67
4 53.1652 -27.814 U 51844.3277786 2000-10-27 1.18659517817 2999.573
5 53.1268 -27.8164 U 51845.1813463 2000-10-28 1.0198613928 3999.671
6 53.1072 -27.8181 U 51845.2375209 2000-10-28 1.0072825144 3999.671
7 53.1282 -27.8229 U 51845.2881511 2000-10-28 1.11610350492 4599.587
8 53.1174 -27.7991 U 51876.0751789 2000-11-28 1.04442391274 4499.59
9 53.141 -27.7949 U 51876.1358357 2000-11-28 1.00392820345 4499.589
10 53.125 -27.8281 U 51877.0919404 2000-11-29 1.01884758857 4499.598
11 53.0934 -27.8324 U 51877.1502106 2000-11-29 1.00965387418 4499.589
12 53.1724 -27.7908 U 51878.0741827 2000-11-30 1.03244183057 4499.589
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #877 0.238 2 GSC2.2 PHOTOM C
2 WFI #877 0.238 4 GSC2.2 PHOTOM B
3 WFI #877 0.238 4 GSC2.2 PHOTOM B
4 WFI #877 0.238 5 GSC2.2 PHOTOM B
5 WFI #877 0.238 4 GSC2.2 PHOTOM B
6 WFI #877 0.238 4 GSC2.2 PHOTOM B
7 WFI #877 0.238 5 GSC2.2 PHOTOM B
8 WFI #877 0.238 5 GSC2.2 PHOTOM B
9 WFI #877 0.238 5 GSC2.2 PHOTOM B
10 WFI #877 0.238 5 GSC2.2 PHOTOM B
11 WFI #877 0.238 5 GSC2.2 PHOTOM A
12 WFI #877 0.238 5 GSC2.2 - B
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.21 0.046 21.63 N/A
2 0.21 0.063 21.72 N/A
3 0.21 0.079 21.65 N/A
4 0.22 0.057 21.58 N/A
5 0.21 0.075 21.69 N/A
6 0.2 0.056 21.9 N/A
7 1.03 0.15 21.8 N/A
8 0.21 0.075 21.55 N/A
9 0.19 0.066 21.62 N/A
10 0.21 0.066 21.33 N/A
11 0.22 0.058 21.27 N/A
12 0.19 0.048 21.99 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
2 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
3 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
4 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
5 51844.625 2000-10-27 N/A 22.32 0.002 0.587 0.092
6 51844.625 2000-10-27 N/A 22.32 0.002 0.587 0.092
7 51844.625 2000-10-27 N/A 22.32 0.002 0.587 0.092
8 51875.625 2000-11-27 N/A 21.99 0.028 0.48 0.028
9 51875.625 2000-11-27 N/A 21.99 0.028 0.48 0.028
10 51876.625 2000-11-28 N/A 22.05 0.049 0.48 0.049
11 51876.625 2000-11-28 N/A 22.05 0.049 0.48 0.049
12 51878.0741827 2000-11-30 N/A 22.06 -2.0 0.48 -2.0
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 -9127.0 4096.0 54.1 -27.8
2 TAN DEFAULT GSC2.2 -8843.0 4279.0 54.1 -27.8
3 TAN DEFAULT GSC2.2 -8528.0 4155.0 54.1 -27.8
4 TAN DEFAULT GSC2.2 -8406.0 4341.0 54.1 -27.8
5 TAN DEFAULT GSC2.2 -8632.0 4459.0 54.1 -27.8
6 TAN DEFAULT GSC2.2 -9361.0 4410.0 54.1 -27.8
7 TAN DEFAULT GSC2.2 -9212.0 4317.0 54.1 -27.8
8 TAN DEFAULT GSC2.2 -8992.0 4033.0 54.1 -27.8
9 TAN DEFAULT GSC2.2 -8699.0 3965.0 54.1 -27.8
10 TAN DEFAULT GSC2.2 -8882.0 4466.0 54.1 -27.8
11 TAN DEFAULT GSC2.2 -9336.0 4541.0 54.1 -27.8
12 TAN DEFAULT GSC2.2 -8233.0 3901.0 54.1 -27.8
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 16:06:26
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2c
Passband U
Total Exposure Time (seconds) 47096
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 467 9.65 19.5
USNO Blue boxes 1172 8.8 18.2
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.06 22.36 0.0 0.62 0.074 1.83
2 1.0 22.36 0.0 0.62 0.074 1.77
3 1.05 22.36 0.0 0.62 0.074 1.82
4 1.19 22.36 0.0 0.62 0.074 1.97
5 1.02 22.32 0.0 0.59 0.092 1.74
6 1.01 22.32 0.0 0.59 0.092 1.72
7 1.12 22.32 0.0 0.59 0.092 1.83
8 1.04 21.99 0.03 0.48 0.028 1.59
9 1.0 21.99 0.03 0.48 0.028 1.56
10 1.02 22.05 0.05 0.48 0.049 1.57
11 1.01 22.05 0.05 0.48 0.049 1.56
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
12 1.03 22.06 -2.0
Relative Photometry

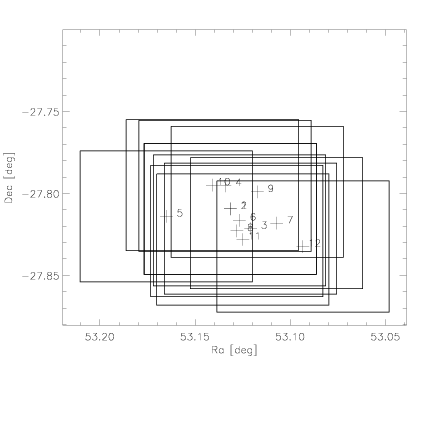

Overlap Information
Number of Fields 1
Number of Overlaps 12
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 53 0.45 0.287 23.04
2 1,3 113 0.482 0.172 17.25
3 1,4 110 0.463 0.153 18.43
4 1,5 58 0.478 0.115 13.64
5 1,6 47 0.387 0.1 19.9
6 1,7 137 0.414 0.107 15.0
7 1,8 106 0.407 0.119 18.43
8 1,9 149 0.265 0.136 16.91
9 1,10 121 0.272 0.144 16.89
10 1,11 131 0.285 0.135 16.36
11 1,12 118 0.278 0.135 9.48

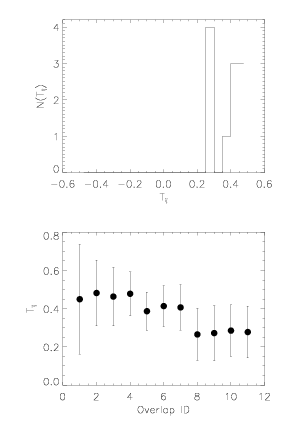

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.38
Standard Deviation 0.088
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 22:06:52
User eisdata
Session 70531
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2c
Passband U
Total Exposure Time (seconds) 47095.633
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
