SW-MR plots

This section shows the plots in the SWS1-MR mode, scanning the whole [0.9-2.5] $\mu $m range. For completeness, some regions of order overlap are plotted through adjacent filters / orders, and some spectra in J are shown through the Js filter instead of the J filter.

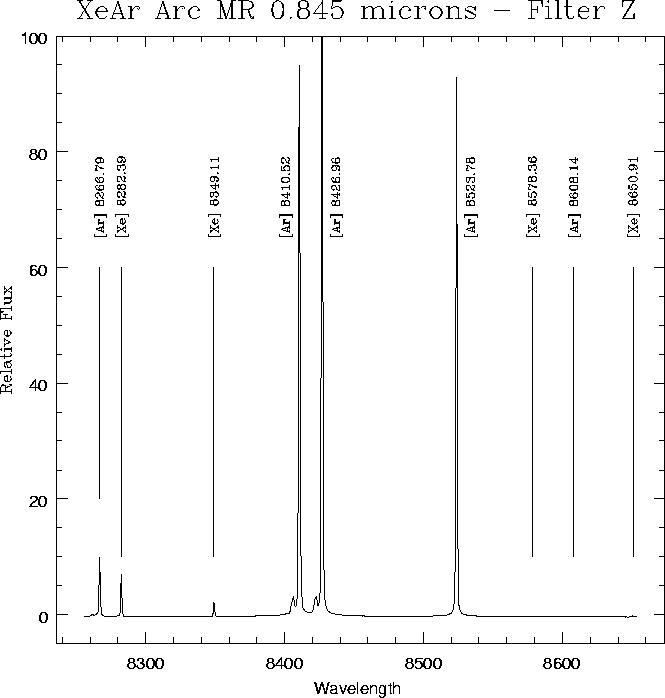

Figure: Ar and Xe lines in SWS1-MR mode, Z band, 0.845 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Z_0.845_MR.ps,width=16.cm}
\end{center}\end{figure}

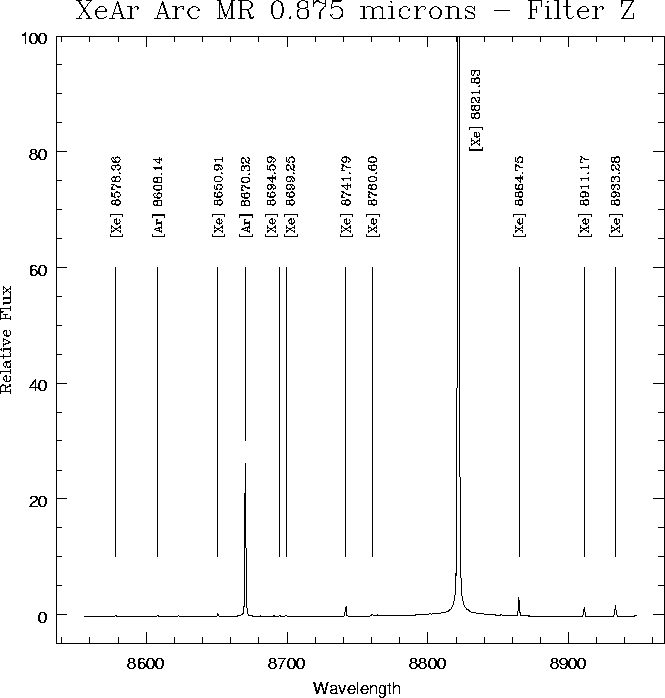

Figure: Ar and Xe lines in SWS1-MR mode, Z band, 0.875 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Z_0.875_MR.ps,width=16.cm}
\end{center}\end{figure}

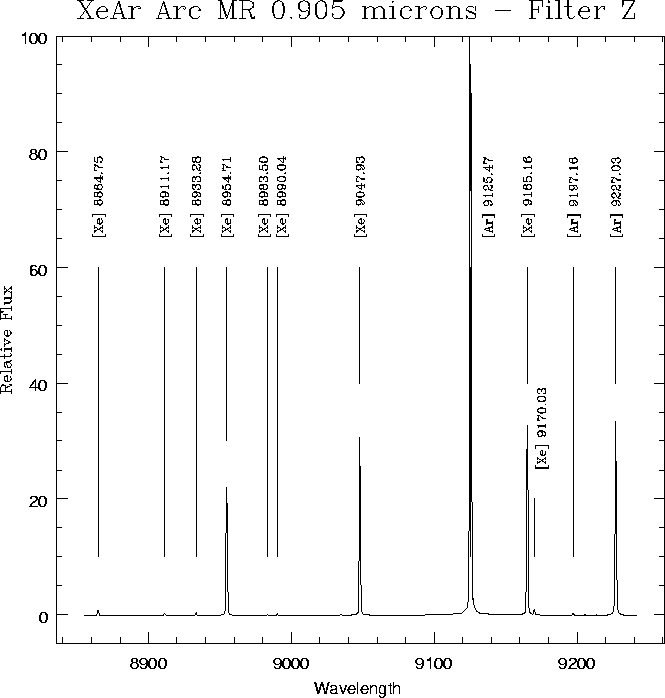

Figure: Ar and Xe lines in SWS1-MR mode, Z band, 0.905 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Z_0.905_MR.ps,width=16.cm}
\end{center}\end{figure}

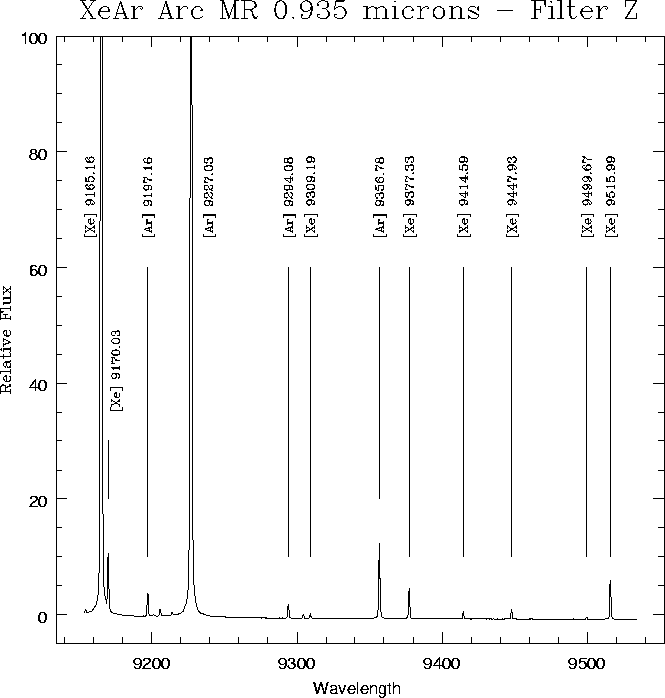

Figure: Ar and Xe lines in SWS1-MR mode, Z band, 0.935 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Z_0.935_MR.ps,width=16.cm}
\end{center}\end{figure}

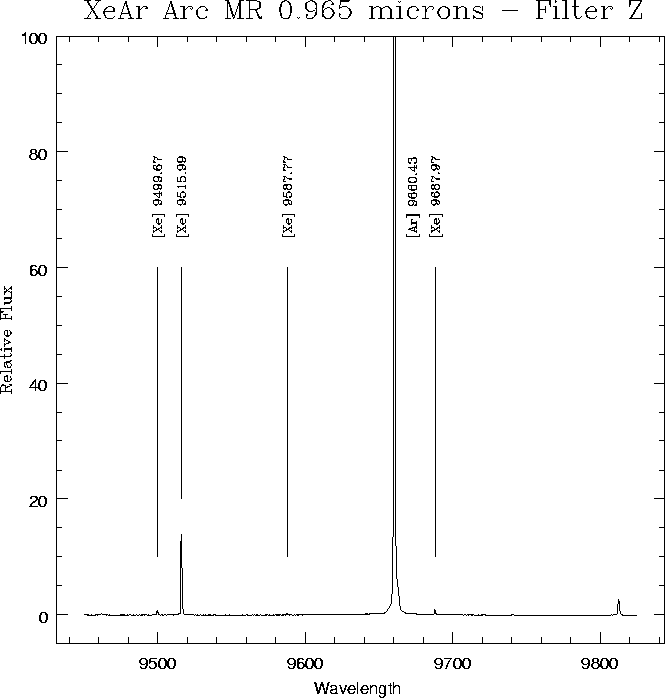

Figure: Ar and Xe lines in SWS1-MR mode, Z band, 0.965 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Z_0.965_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SZ band, 0.980 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SZ_0.980_MR.ps,width=16.cm}
\end{center}\end{figure}

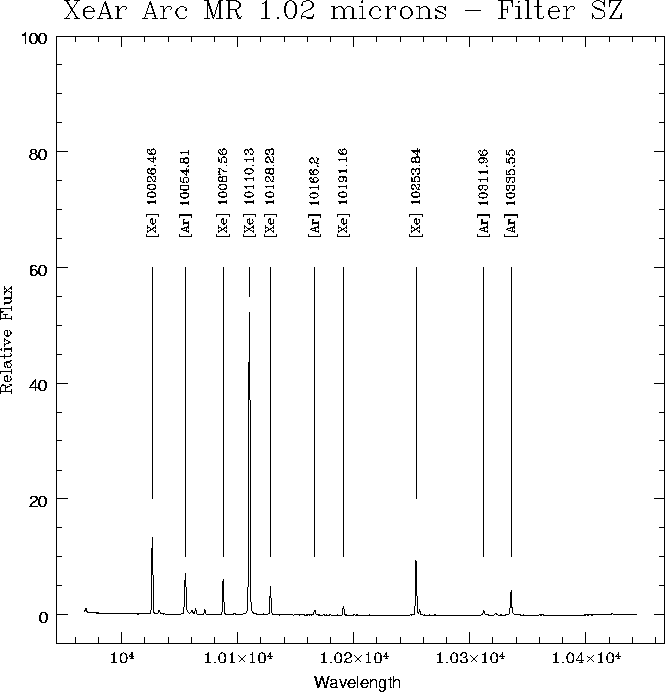

Figure: Ar and Xe lines in SWS1-MR mode, SZ band, 1.02 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SZ_1.02_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SZ band, 1.06 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SZ_1.06_MR.ps,width=16.cm}
\end{center}\end{figure}

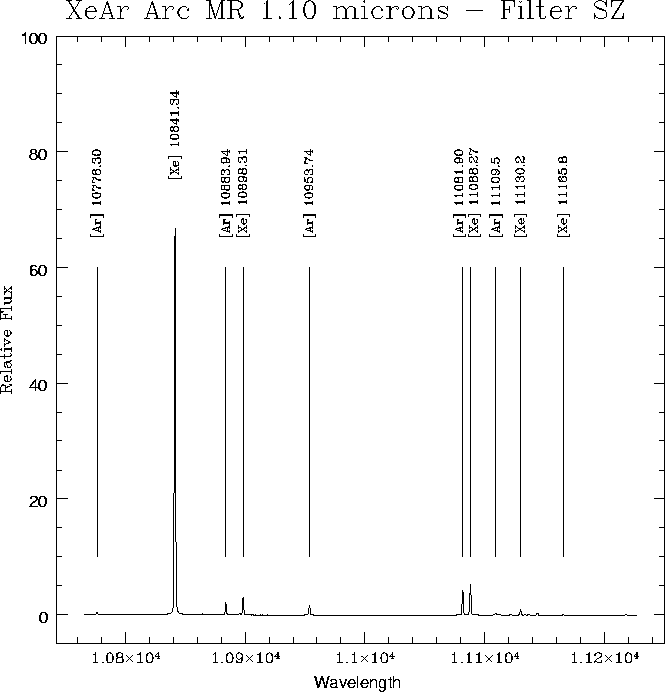

Figure: Ar and Xe lines in SWS1-MR mode, SZ band, 1.10 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SZ_1.10_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SZ band, 1.14 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SZ_1.14_MR.ps,width=16.cm}
\end{center}\end{figure}

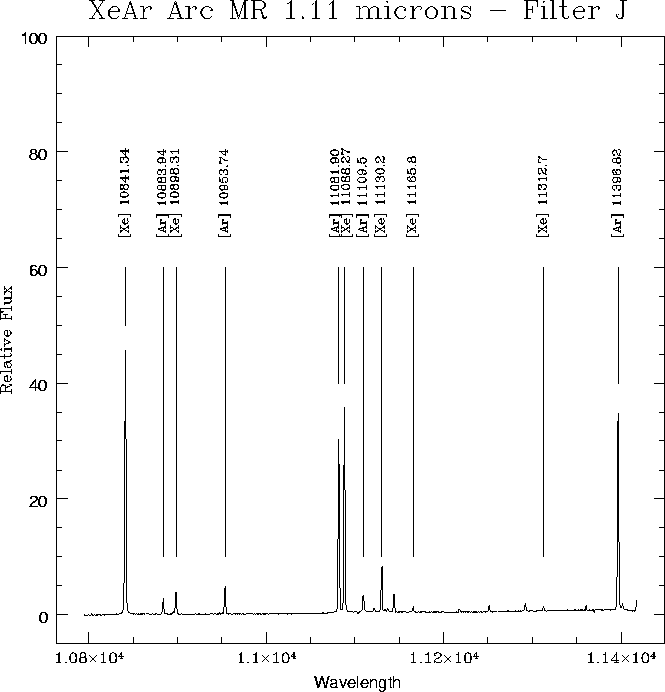

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.11 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/J_1.11_MR.ps,width=16.cm}
\end{center}\end{figure}

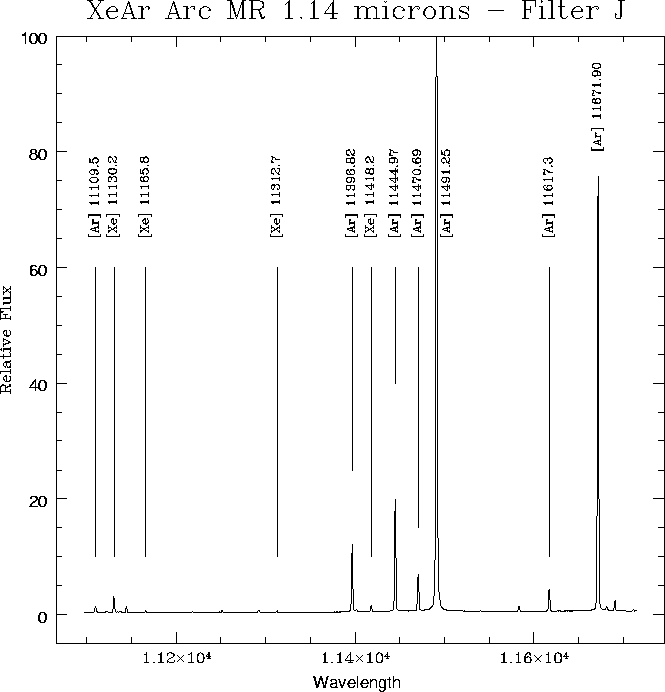

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.14 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/J_1.14_MR.ps,width=16.cm}
\end{center}\end{figure}

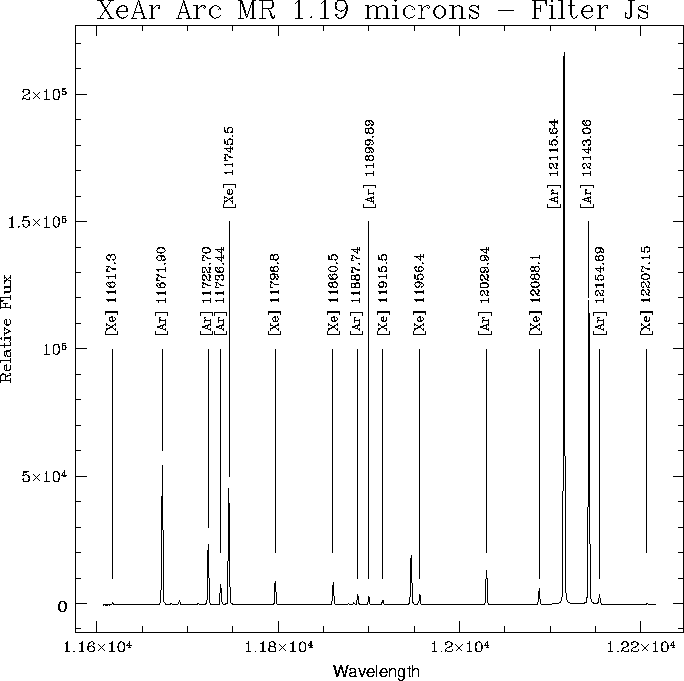

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.19 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Js_1.19_MR.ps,width=16.cm}
\end{center}\end{figure}

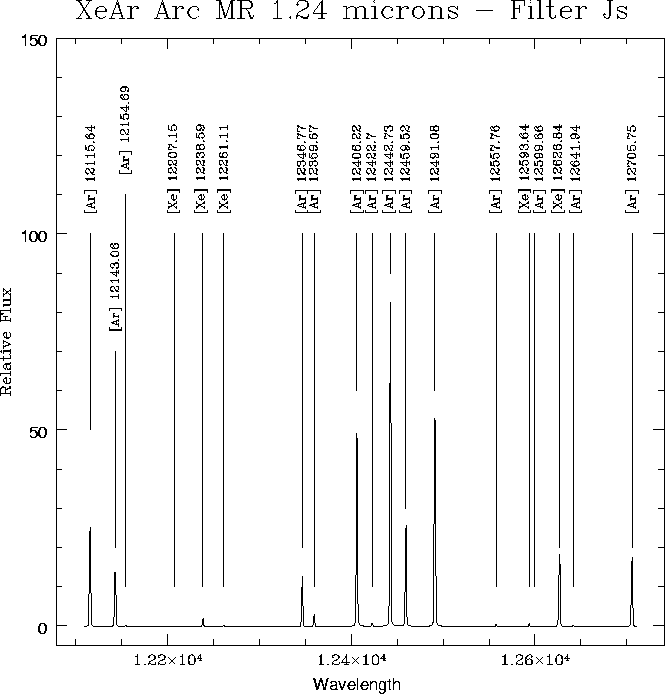

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.24 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Js_1.24_MR.ps,width=16.cm}
\end{center}\end{figure}

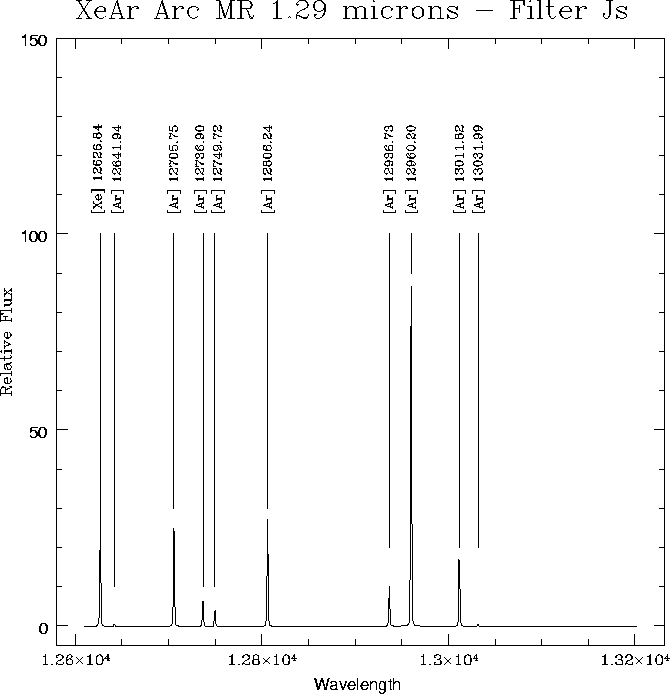

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.29 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Js_1.29_MR.ps,width=16.cm}
\end{center}\end{figure}

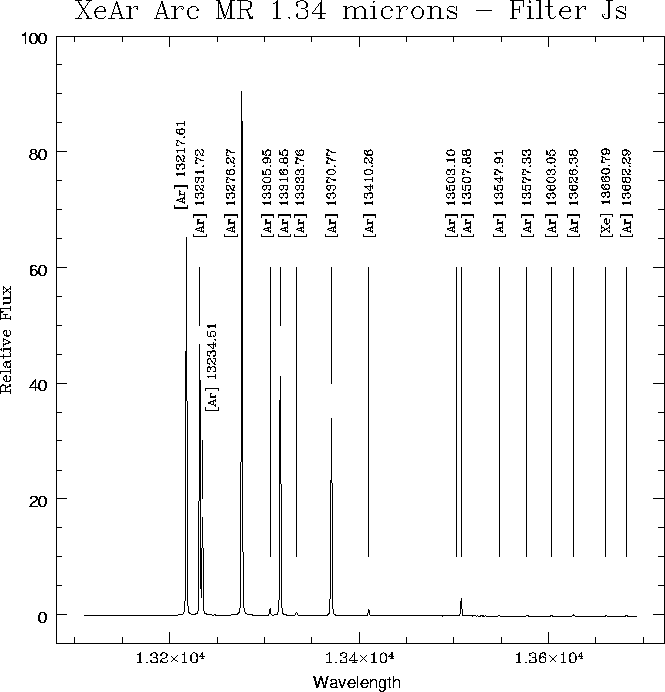

Figure: Ar and Xe lines in SWS1-MR mode, J band, 1.34 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/Js_1.34_MR.ps,width=16.cm}
\end{center}\end{figure}

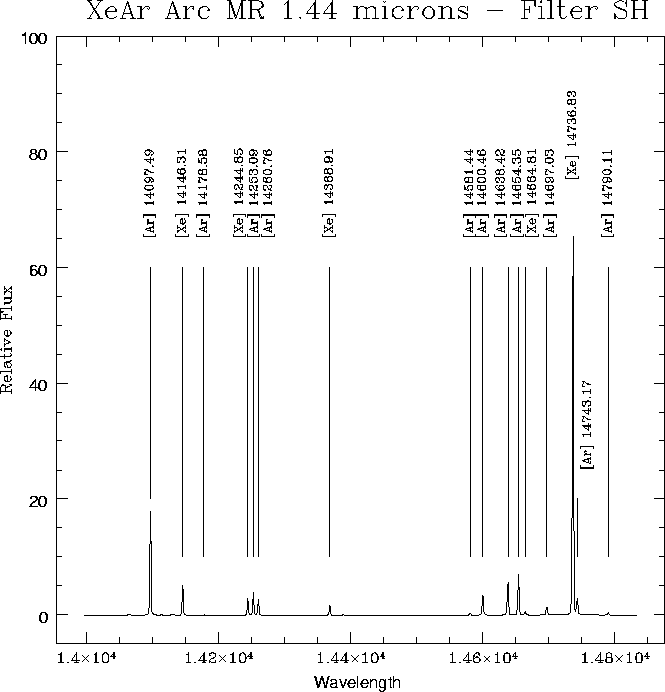

Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.44 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.44_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.51 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.51_MR.ps,width=16.cm}
\end{center}\end{figure}

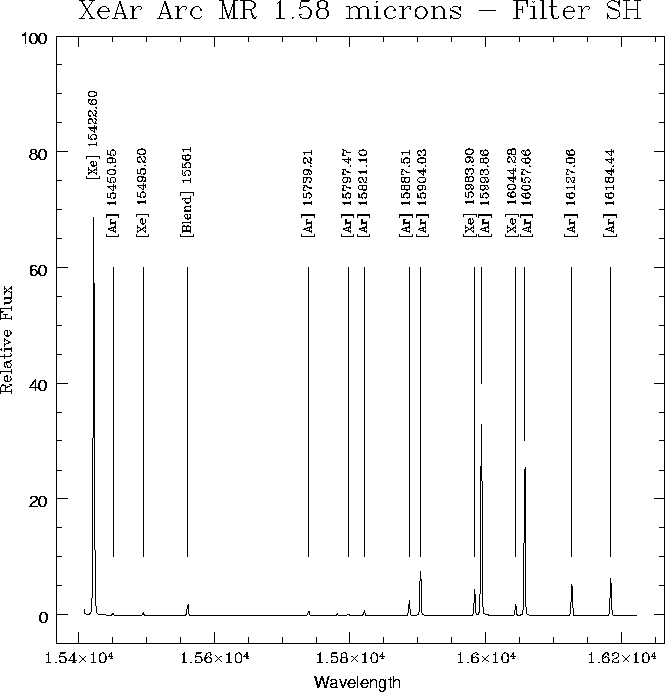

Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.58 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.58_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.65 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.65_MR.ps,width=16.cm}
\end{center}\end{figure}

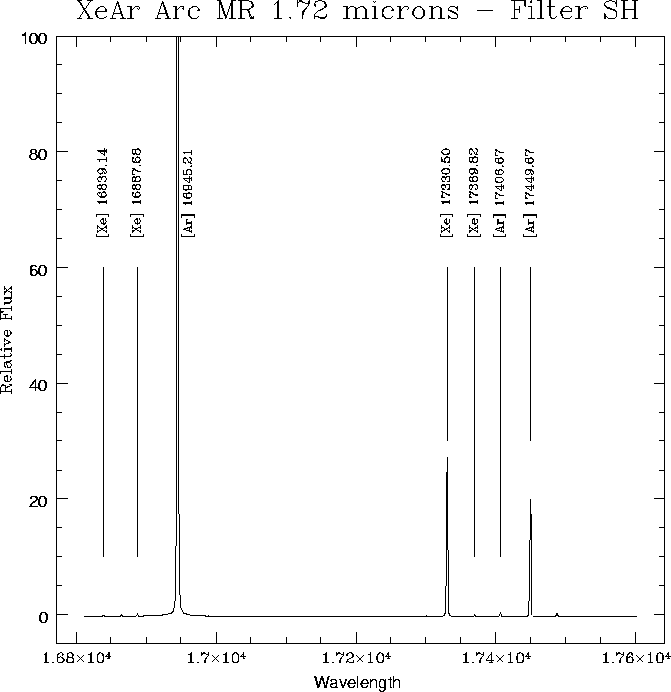

Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.72 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.72_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SH band, 1.79 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SH_1.79_MR.ps,width=16.cm}
\end{center}\end{figure}

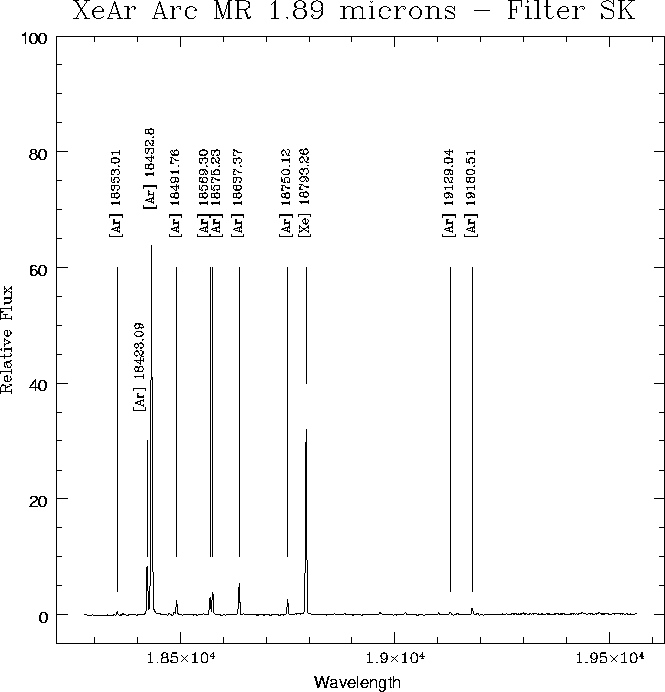

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 1.89 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_1.89_MR.ps,width=16.cm}
\end{center}\end{figure}

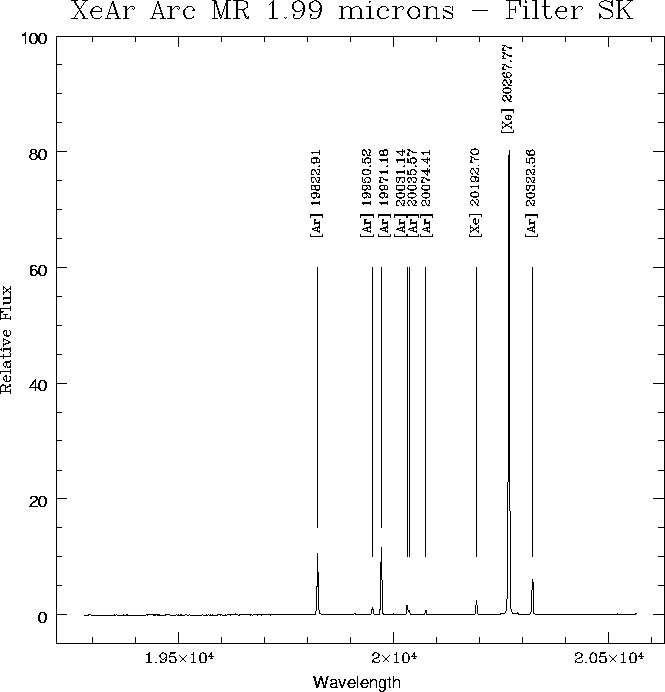

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 1.99 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_1.99_MR.ps,width=16.cm}
\end{center}\end{figure}

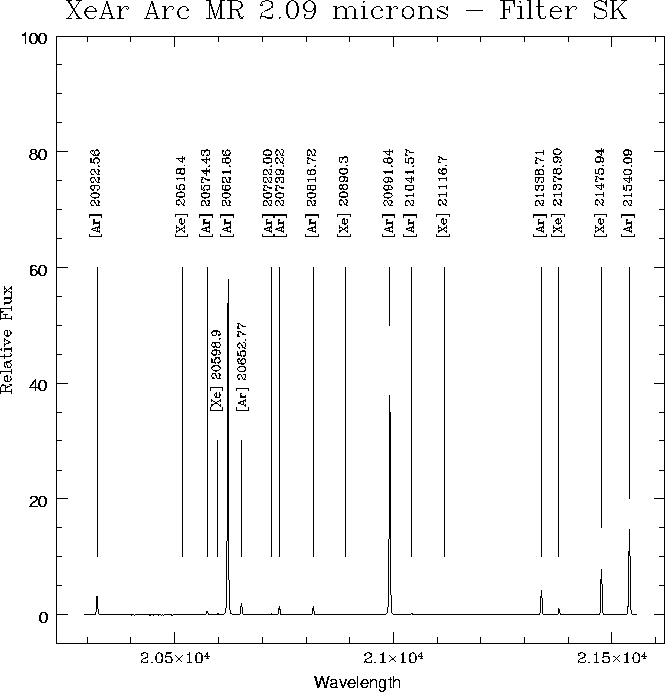

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 2.09 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_2.09_MR.ps,width=16.cm}
\end{center}\end{figure}



Figure: Ar and Xe lines in SWS1-MR mode, SK band, 2.19 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_2.19_MR.ps,width=16.cm}
\end{center}\end{figure}

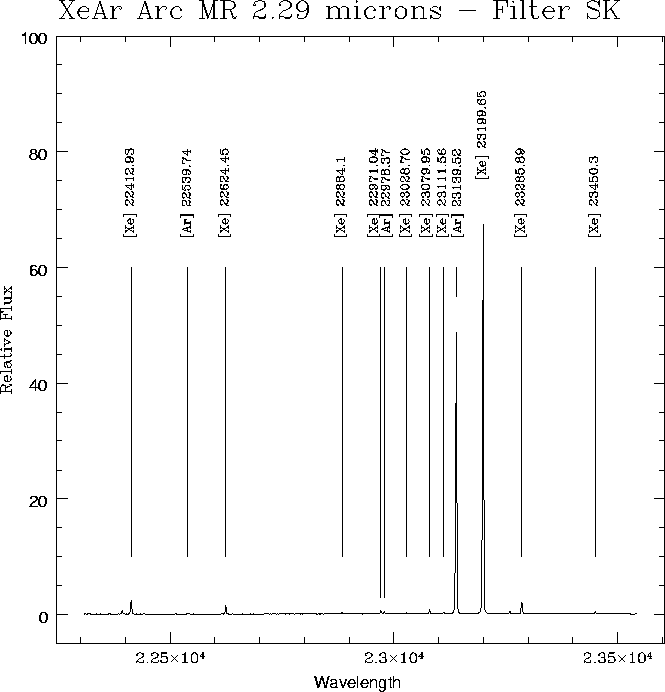

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 2.29 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_2.29_MR.ps,width=16.cm}
\end{center}\end{figure}

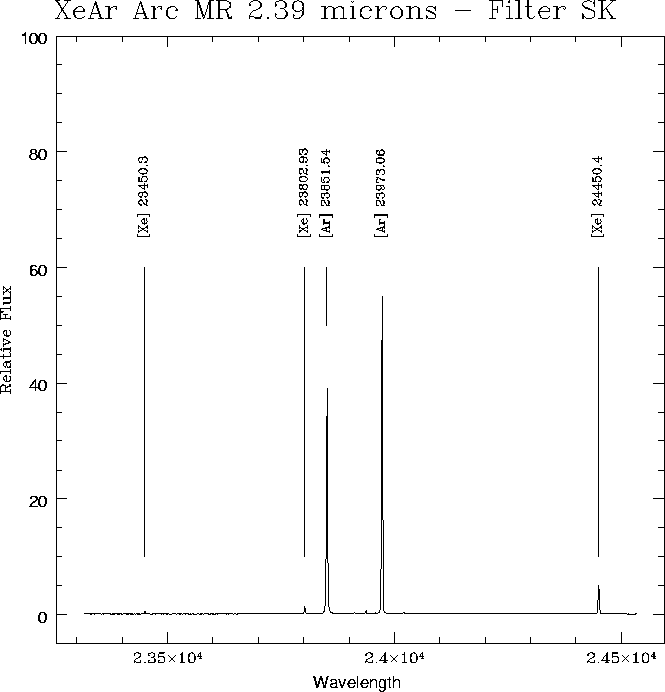

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 2.39 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_2.39_MR.ps,width=16.cm}
\end{center}\end{figure}

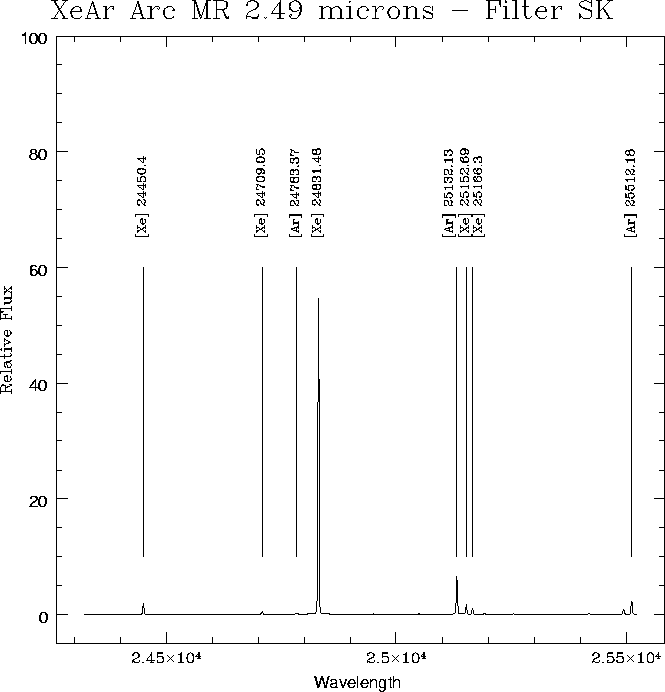

Figure: Ar and Xe lines in SWS1-MR mode, SK band, 2.49 $\mu $m
\begin{figure}\begin{center}
\psfig{figure=hr/SK_2.49_MR.ps,width=16.cm}
\end{center}\end{figure}
