FORS 2 Upgrade
- CCD System |
|
|
CCD Specifications and Format
| Type: |
MIT/LL CCID-20, backside illuminated,
AR coated |
| CCD Names and
serial numbers: |
"Thor", SN 14-5-3 (= Master)
"Belenos", SN 14-5-6 (= Slave) |
| Number of
photosensitive pixels: |
[H] 2048, [V] 4096
plus 2 x 10 pixels of over- and prescan) |
| Number of ports: |
2 |
| Pixel size: |
15 x 15 microns |
| Overall rating: |
Science grade |

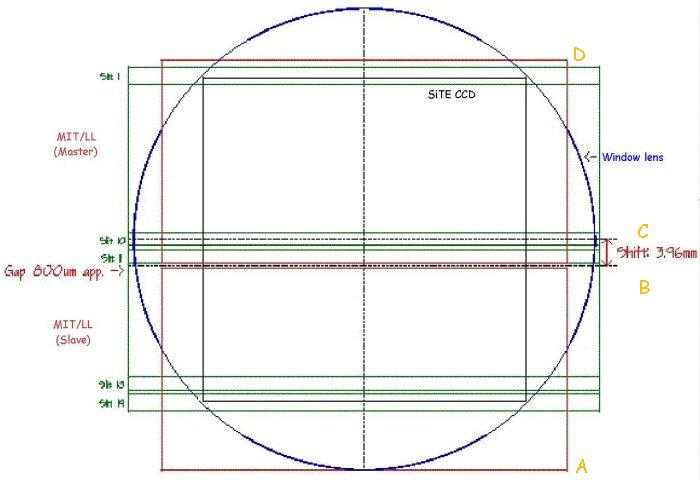

Geometrical layout in the instrument
detector plane, showing the
window lens,
the dimension of the former 2k x 2k SiTE CCD,
the mosaic of the two
2k x 4k MIT/LL CCDs and
part of the
slitlet layout.
Also shown are the readout ports:
A and
B for the slave CCD,
C and
D for the master
CCD. |
