CCD Test report

EEV 44-82
CCD name : Bruce
Serial number : 7173-3-1
Type : Backside, Single layer AR Pixel size 15x15 µm
Number of photosensitive pixels 2048 x 4102 [HxV]
Number of outputs : 2
Overall rating : Science

Tested on March 2000

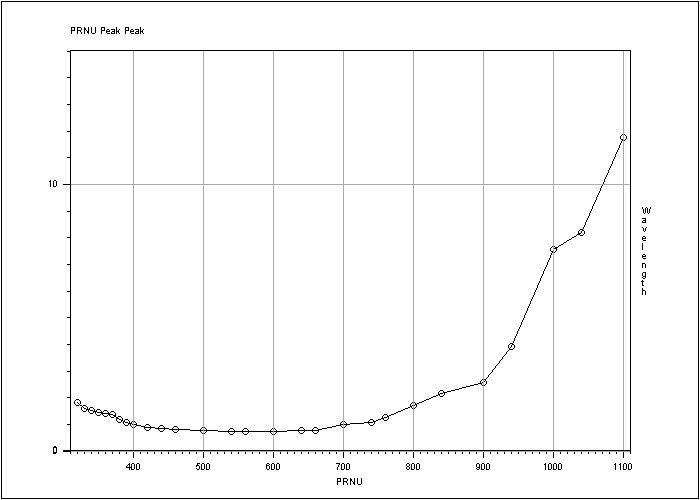

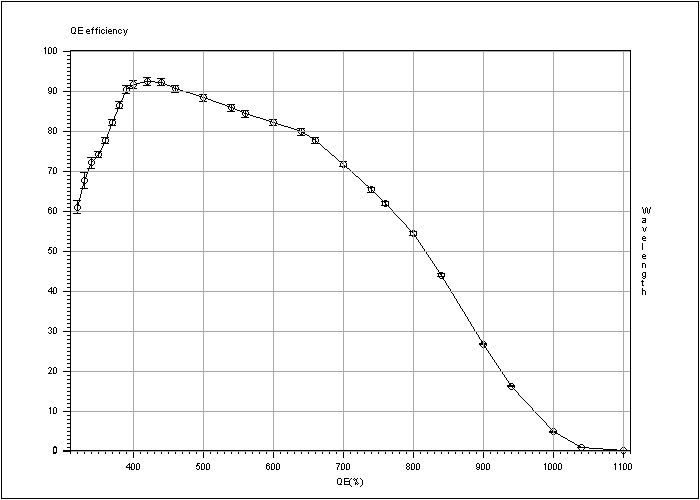

Quantum Efficiency, PRNU


Clock mode: read 350kps LR stripe512
Conversion Factor=   1.8586e-/ADU  ±0.006116     for 23011.2ADU
RMS noise        =   4.0441e-      ±0.3508

CCD temperature : -140Cº


Window area is : X1= 59 X2= 1066 Y1= 9 Y2= 510
Bandwidth 5nm

Wav.       PRNU rms%       QE%
320        1.7             60.8     ±1.7
330        1.5             67.5     ±1.9
340        1.4             71.9     ±1.4
350        1.4             74.0     ±0.7
360        1.4             77.6     ±0.7
370        1.3             82.0     ±0.8
380        1.1             86.3     ±0.8
390        1.0             90.3     ±0.9
400        0.9             91.5     ±0.9
420        0.8             92.2     ±0.9
440        0.8             92.1     ±0.9
460        0.7             90.4     ±0.9
500        0.7             88.2     ±0.8
540        0.7             85.7     ±0.8
560        0.7             84.1     ±0.8
600        0.7             81.9     ±0.8
640        0.7             79.6     ±0.7
660        0.7             77.5     ±0.7
700        0.9             71.5     ±0.6
740        1.0             65.2     ±0.5
760        1.2             61.7     ±0.5
800        1.6             54.3     ±0.4
840        2.1             43.9     ±0.3
900        2.5             26.6     ±0.2
940        3.9             16.1     ±0.12
1000       7.5             4.65     ±0.03
1040       8.1             0.8      ±0.005
1100       11.7            0.09     ±0.0006



Cosmetic defects



flat field

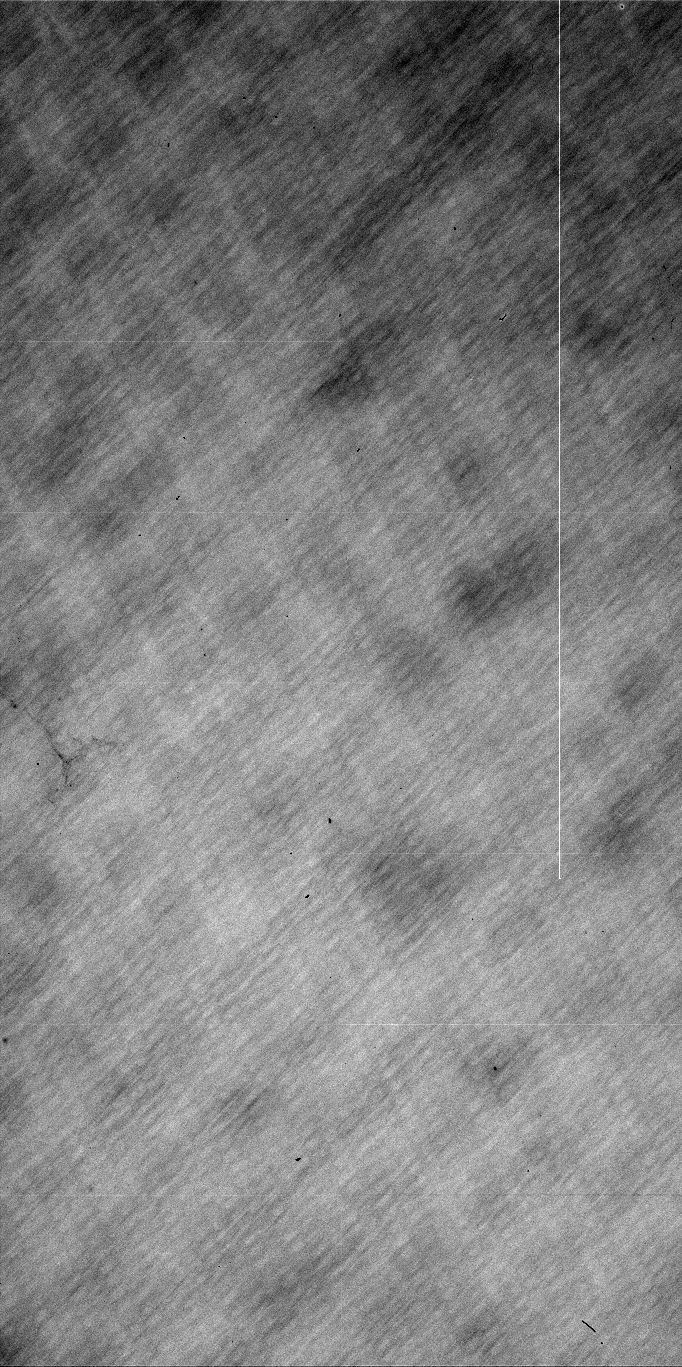

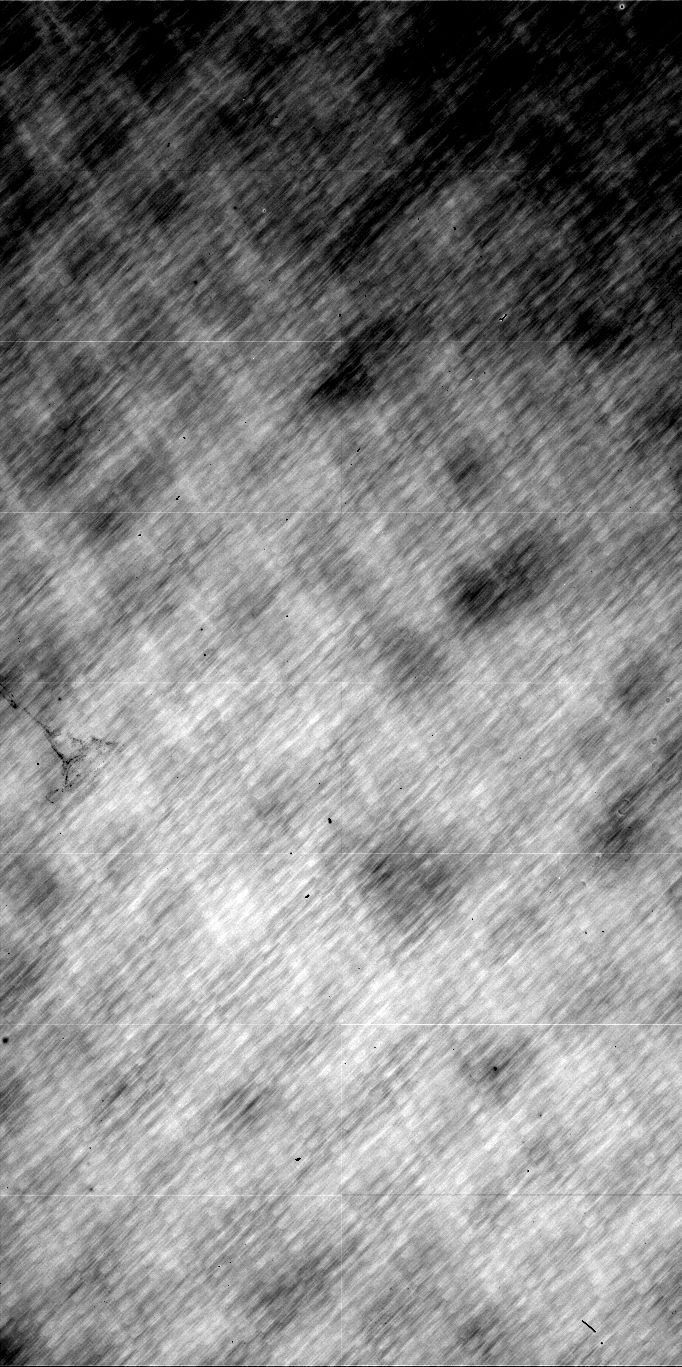

350nm (UV), bandwidth 5nm

High level

Low level

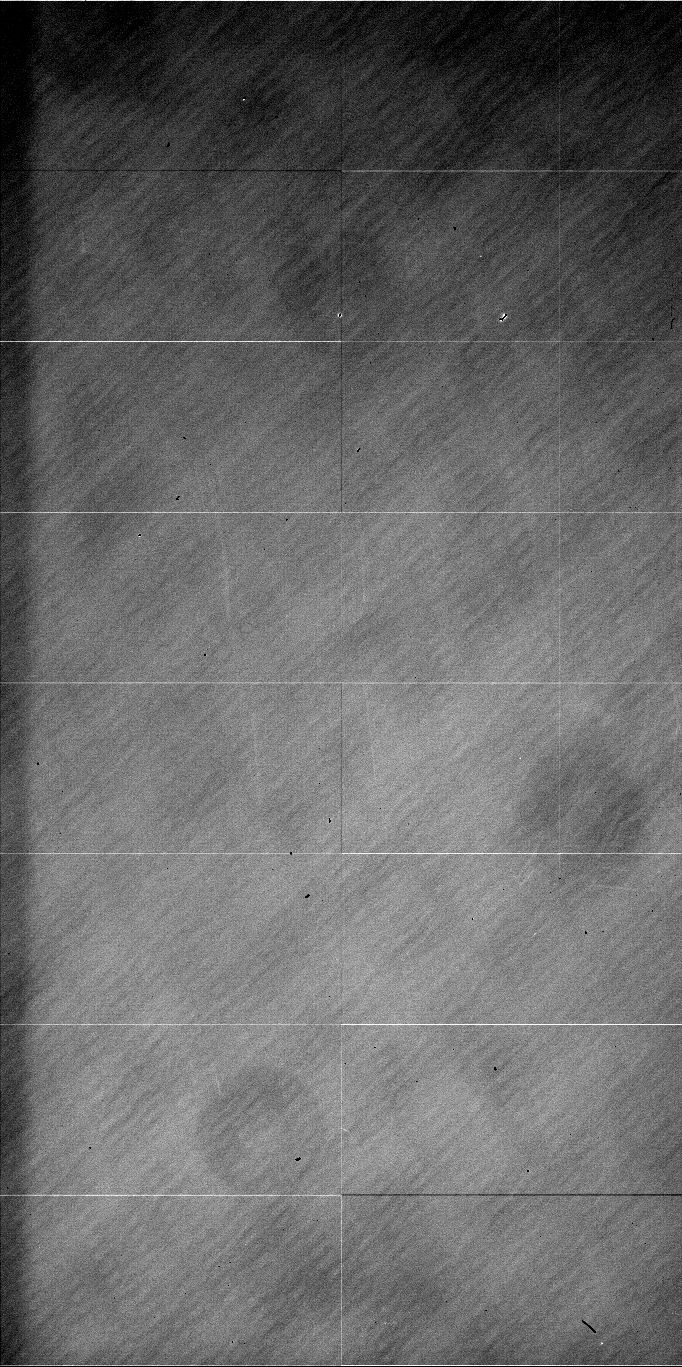

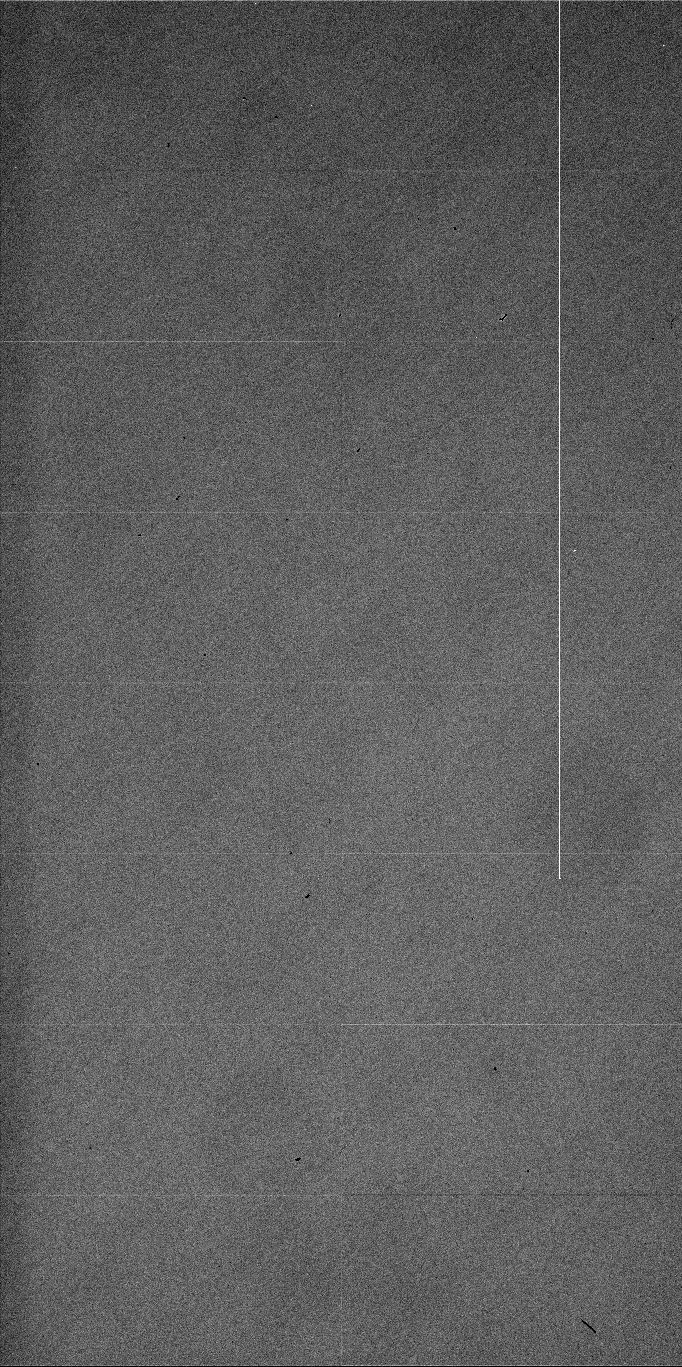

600 nm, bandwidth 5nm

High level

Low level

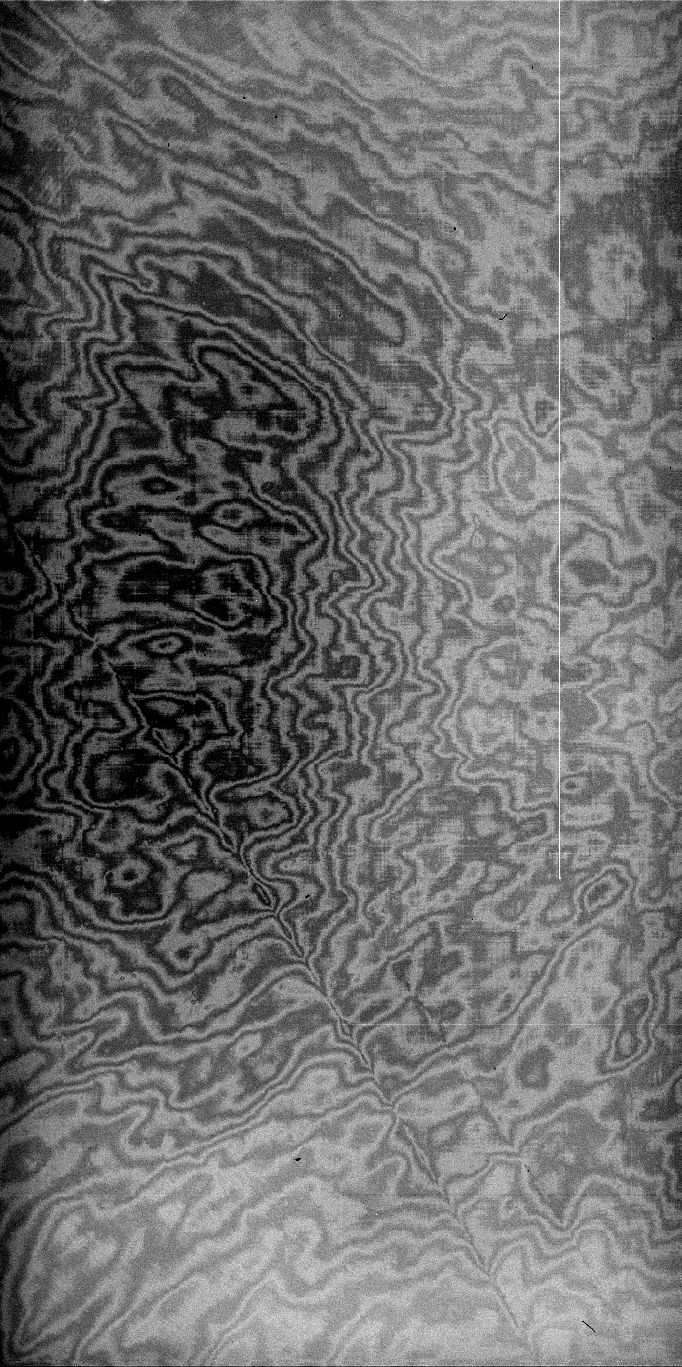

900 nm, bandwidth 5nm

High level

Low level

Type of defect	Location (x,y)	Number of pixels affected
Hot pixel	x=1680, y=1466	2500*3

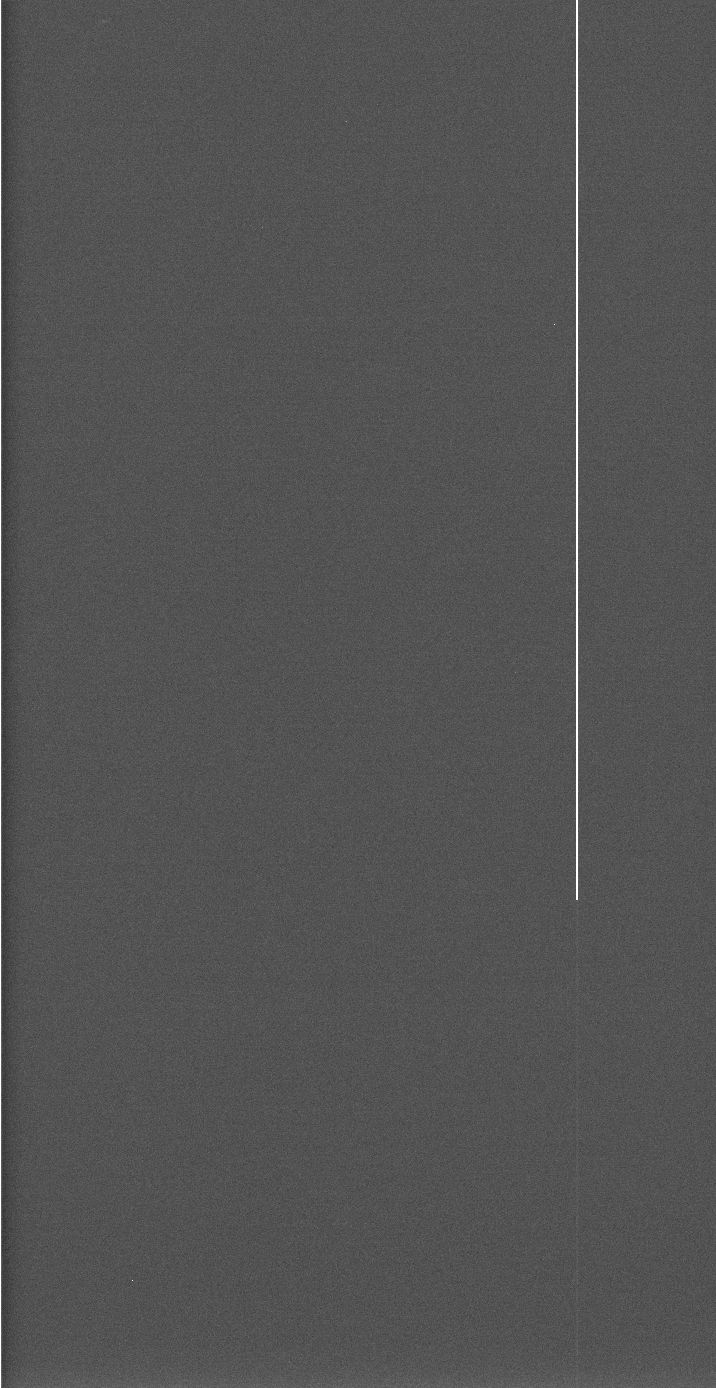

Bias

Type of defect	Location	Number of pixels affected
Hot pixel	x=1680, y=1466	2500*3

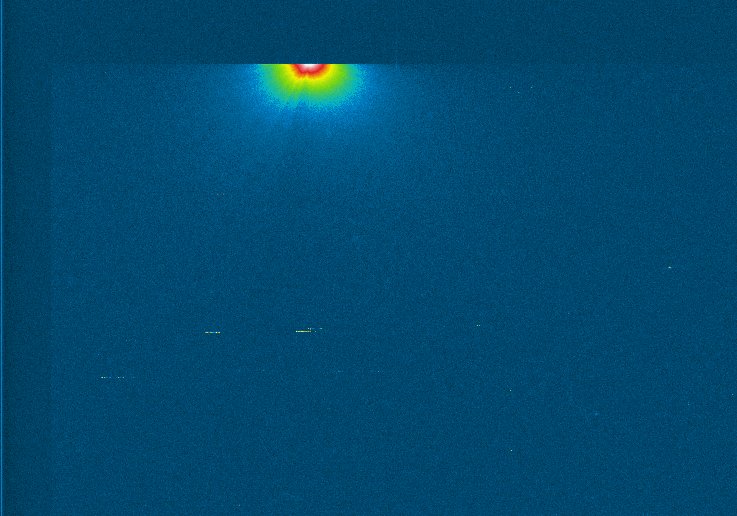

Long exposure dark image

A glowing in the top is visible, nothing related with amplifier glowing. It looks like charge injection on the top of the device

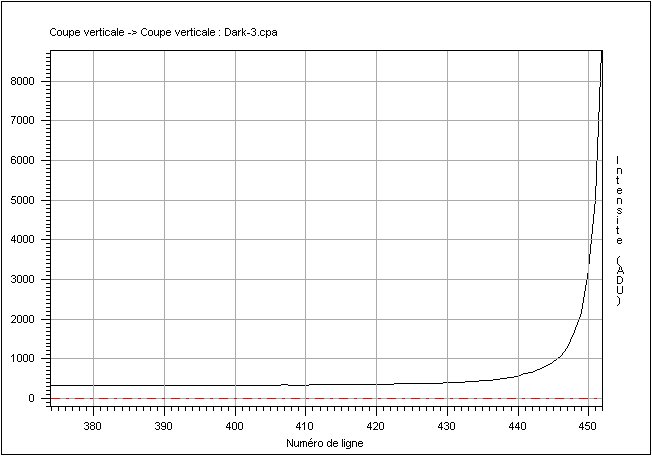

Cross section of this effect (ADUs):

Type of defect	Location	Number of pixels affected
Hot pixel	x=1680, y=1466	2500*3
Glowing	Upper left	----

Readout noise/Conversion factor





Read out speed: 166kps
Left readout port
Conversion Factor=   1.722e-/ADU  ±0.006     for 27149.6ADU
RMS noise        =   3.84e-       ±0.28

Readout speed: 166kps
Right readout port
Conversion Factor=   1.721e-/ADU  ±0.006     for 27065.1ADU
RMS noise        =   4.19e-       ±0.30

Read out speed: 350kps
Left readout port
Conversion Factor=   1.867e-/ADU  ±0.006     for 26889.9ADU
RMS noise        =   4.08e-       ±0.35

Read out speed: 350kps
Right readout port
Conversion Factor=   1.864e-/ADU  ±0.006     for 26832.2ADU
RMS noise        =   4.58e-       ±0.39




Linearity (TDI method)

 not done

Dark current




not done



Charge Transfer Efficiency (CTE)




Horizontal CTE = 0.9999988
Vertical CTE   = 0.9999997
