Cosmetics

Low level flat field images ( 4000 e- ) were taken in the lab at ESO with an ultra-uniform illumination, at 550 nm with a bandwidth of 5 nm. The Photo Response Non Uniformity (PRNU) is photon noise limited in this range.

Fringing starts after 750 nm, strength depending strongly to the bandwidth.

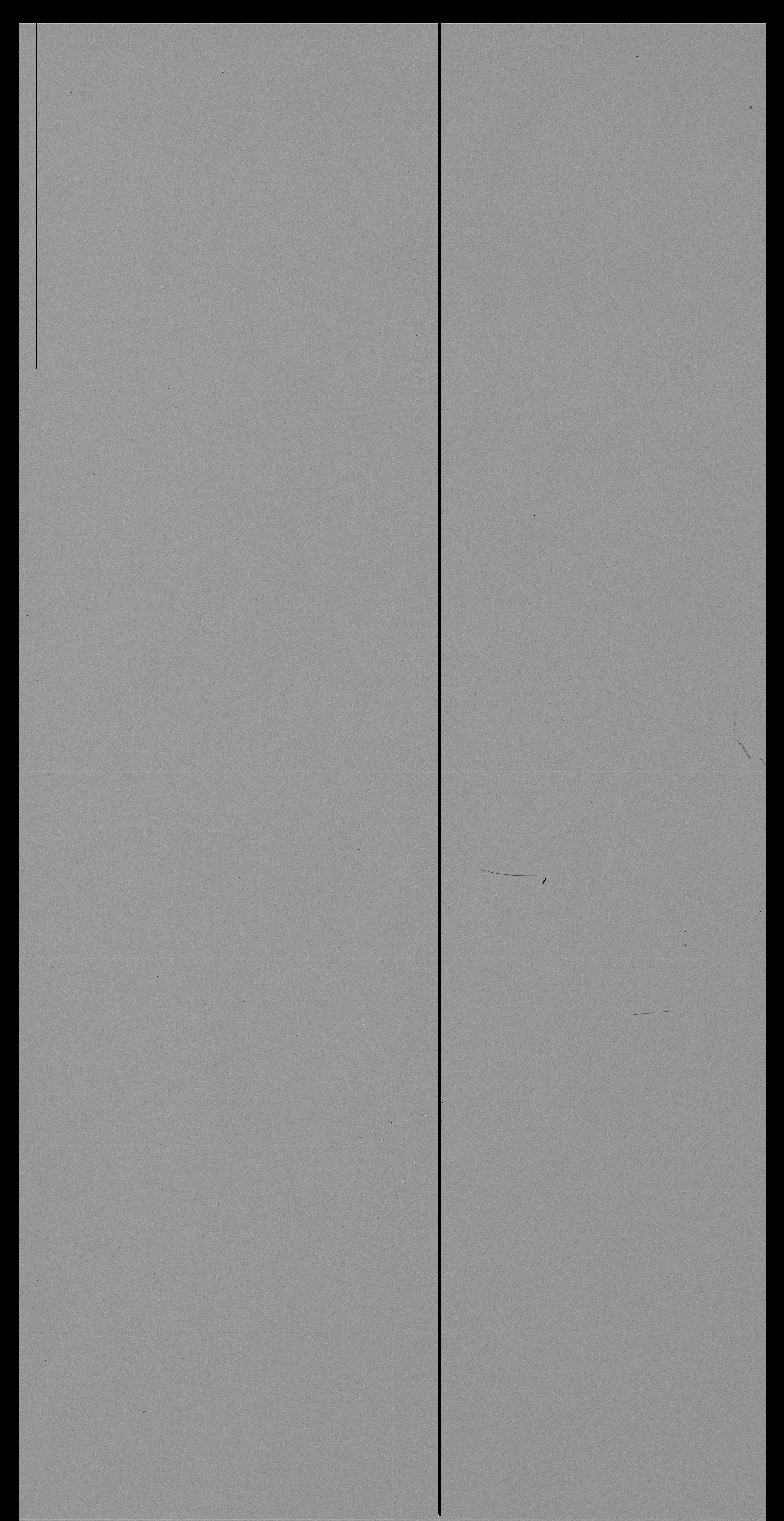

EDITH
CCD # 50

Cosmetics of EDITH

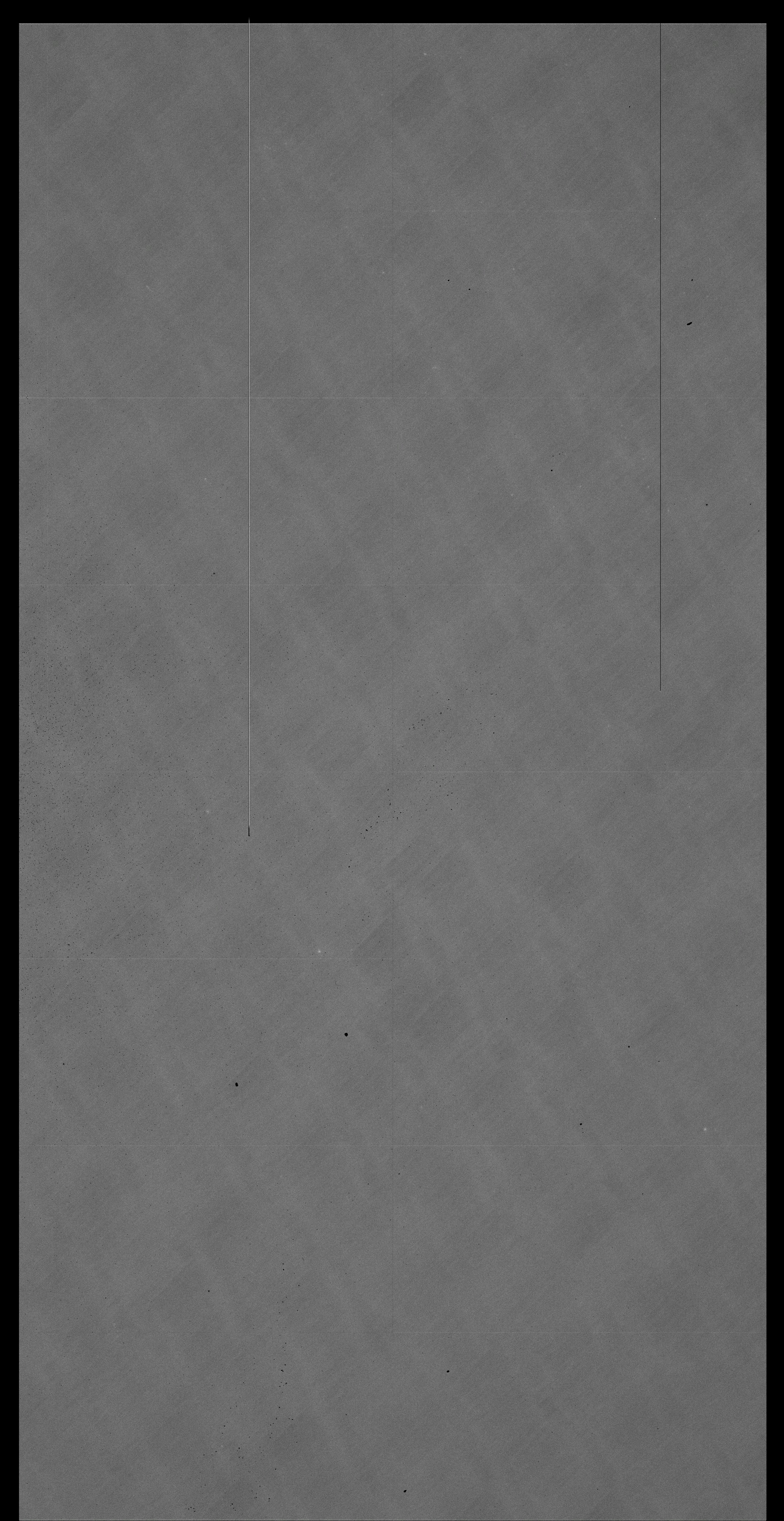

 ELLA
CCD # 51

Cosmetics of ELLA

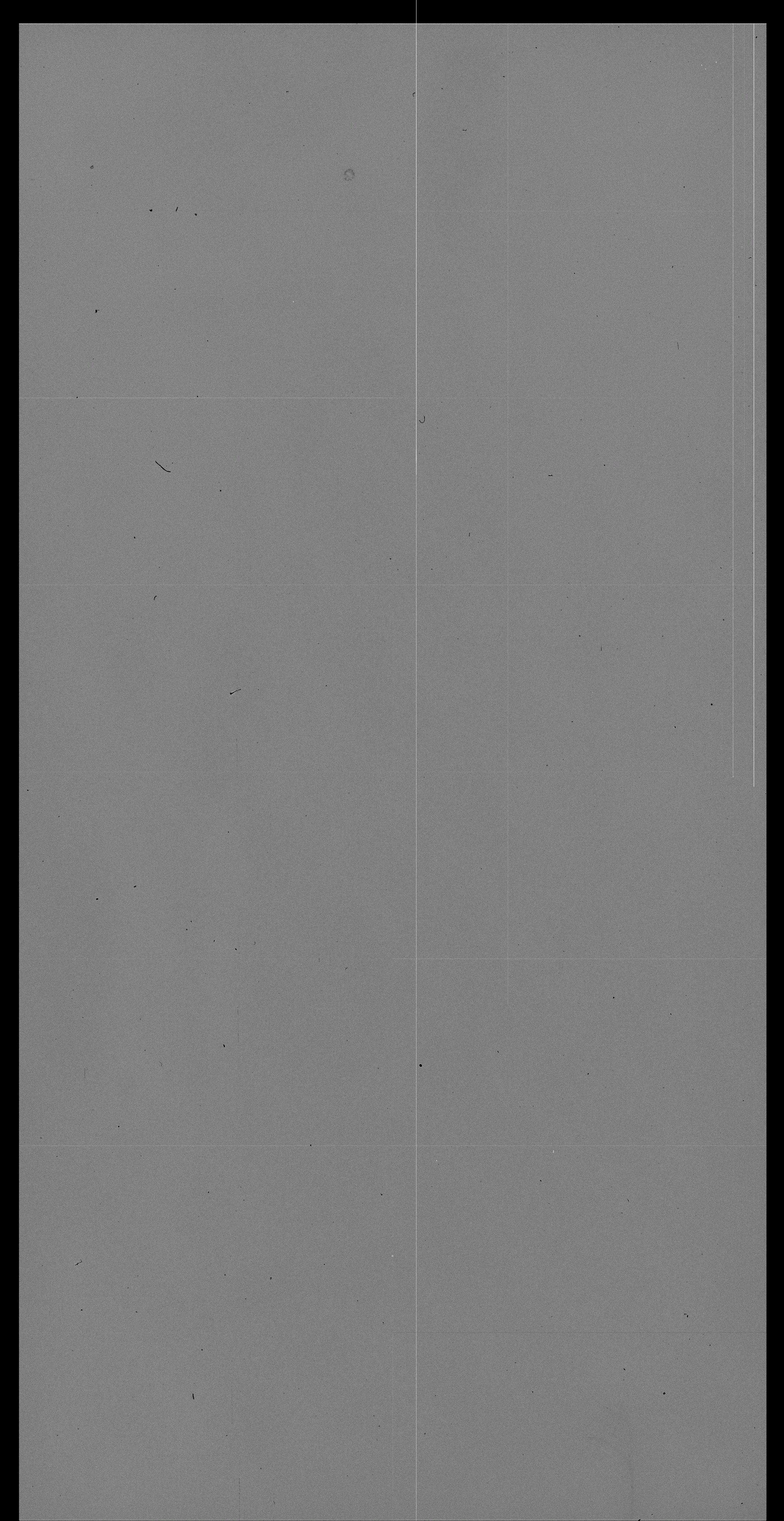

 FRANKIE
CCD # 52

Cosmetics of FRANKIE

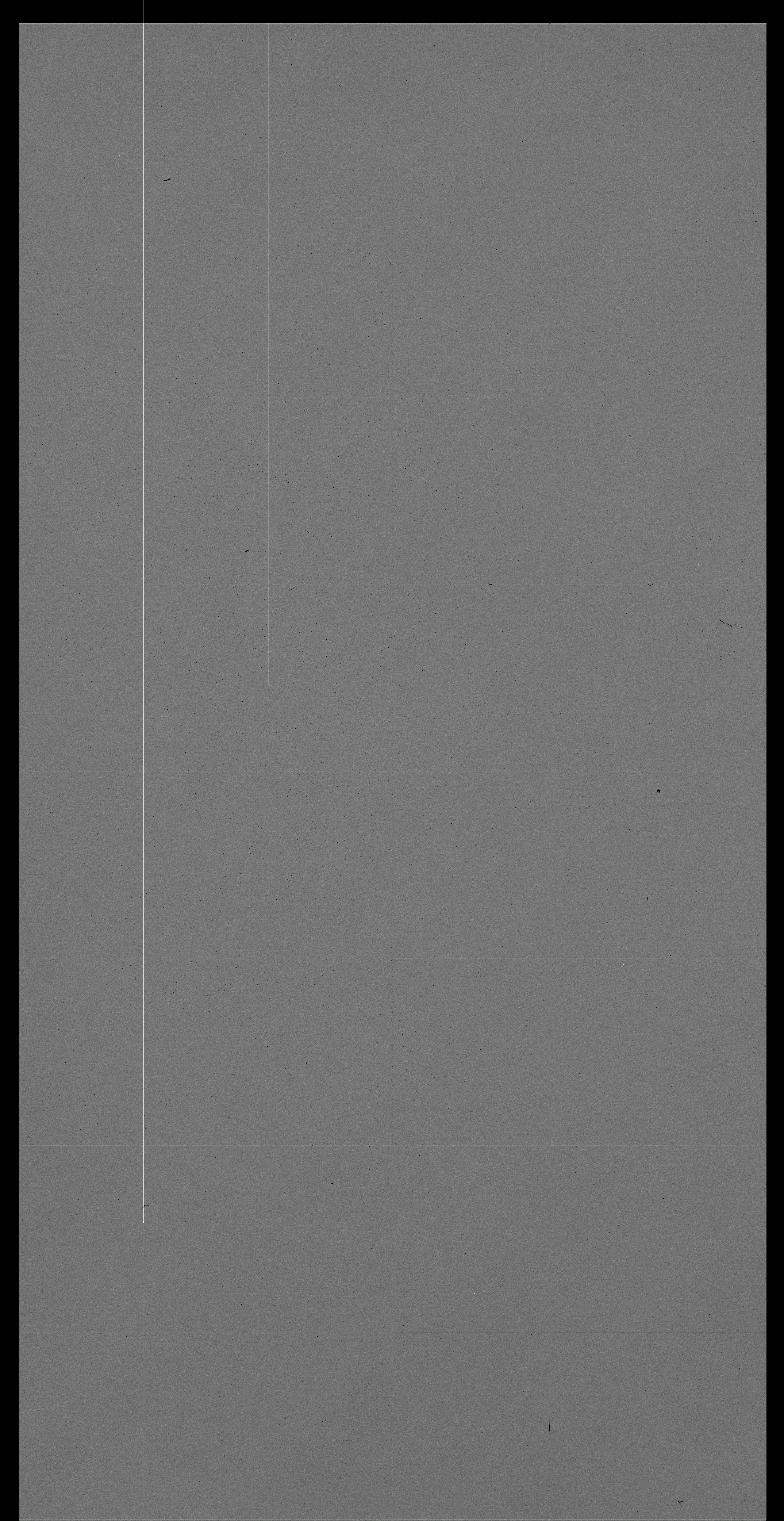

 MICHAEL
CCD # 53

Cosmetics of MICHAEL

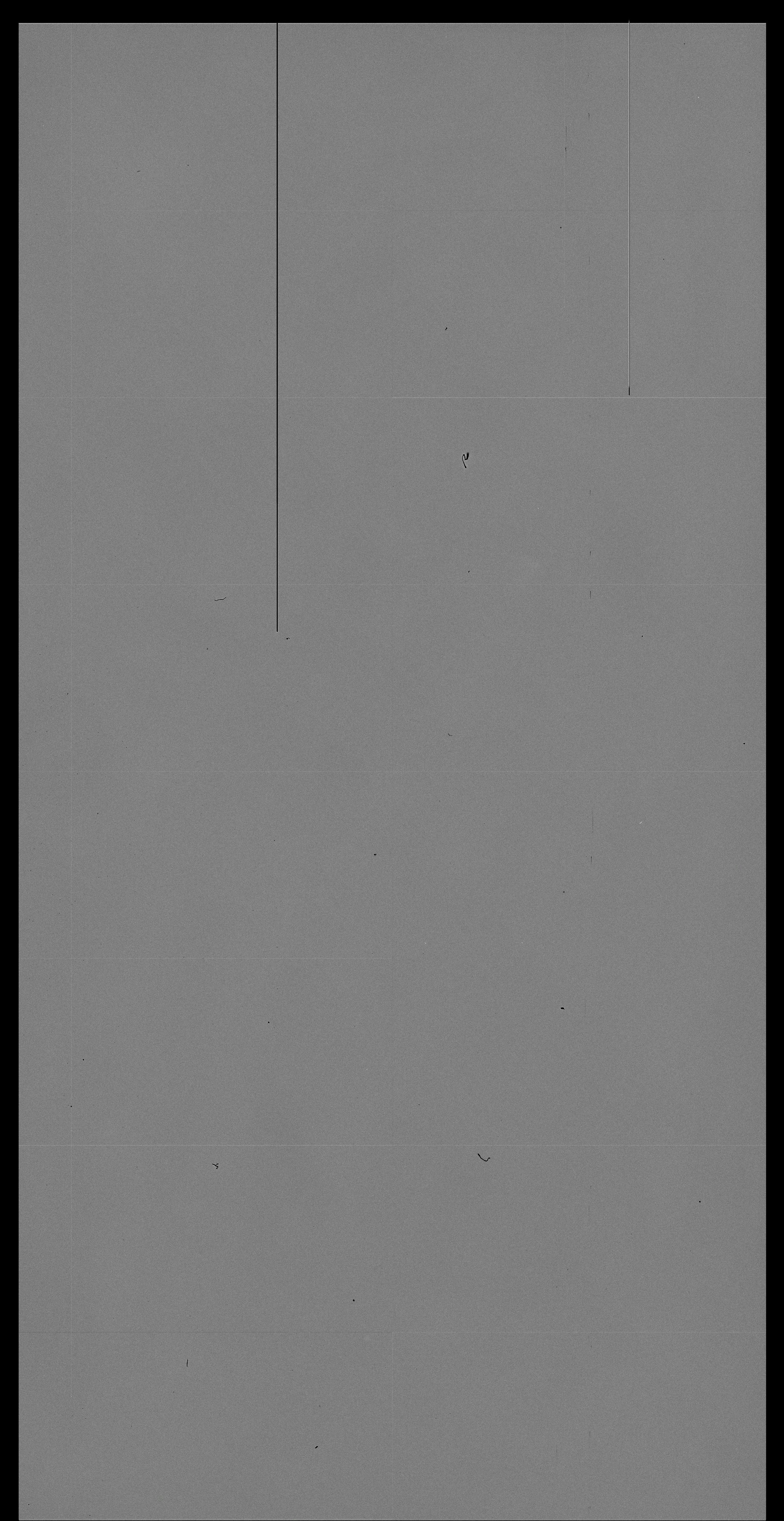

BOY GEORGE
CCD # 57

Cosmetics of BOY GEORGE

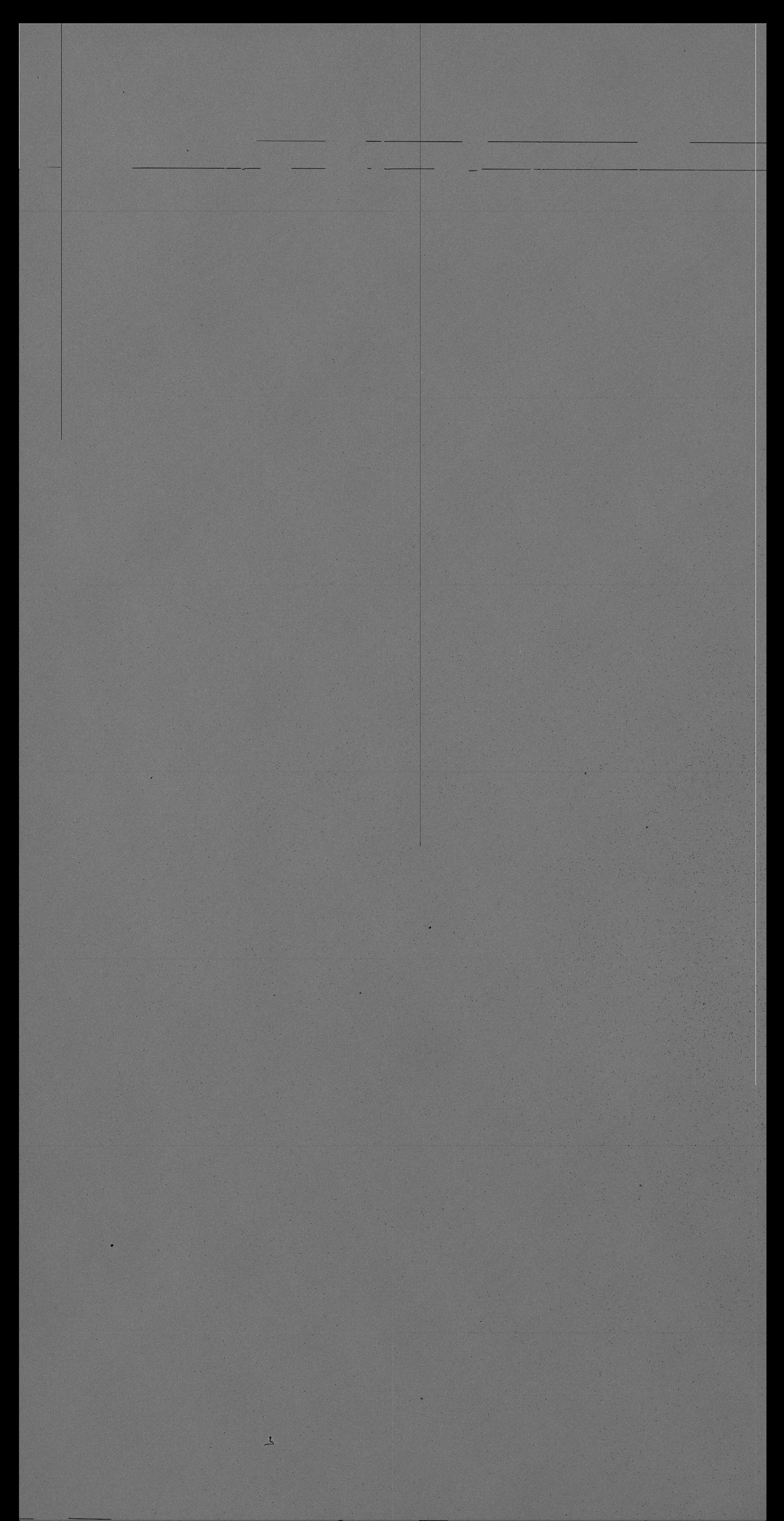

 PRISCILLA
CCD # 56

Cosmetics of PRISCILLA

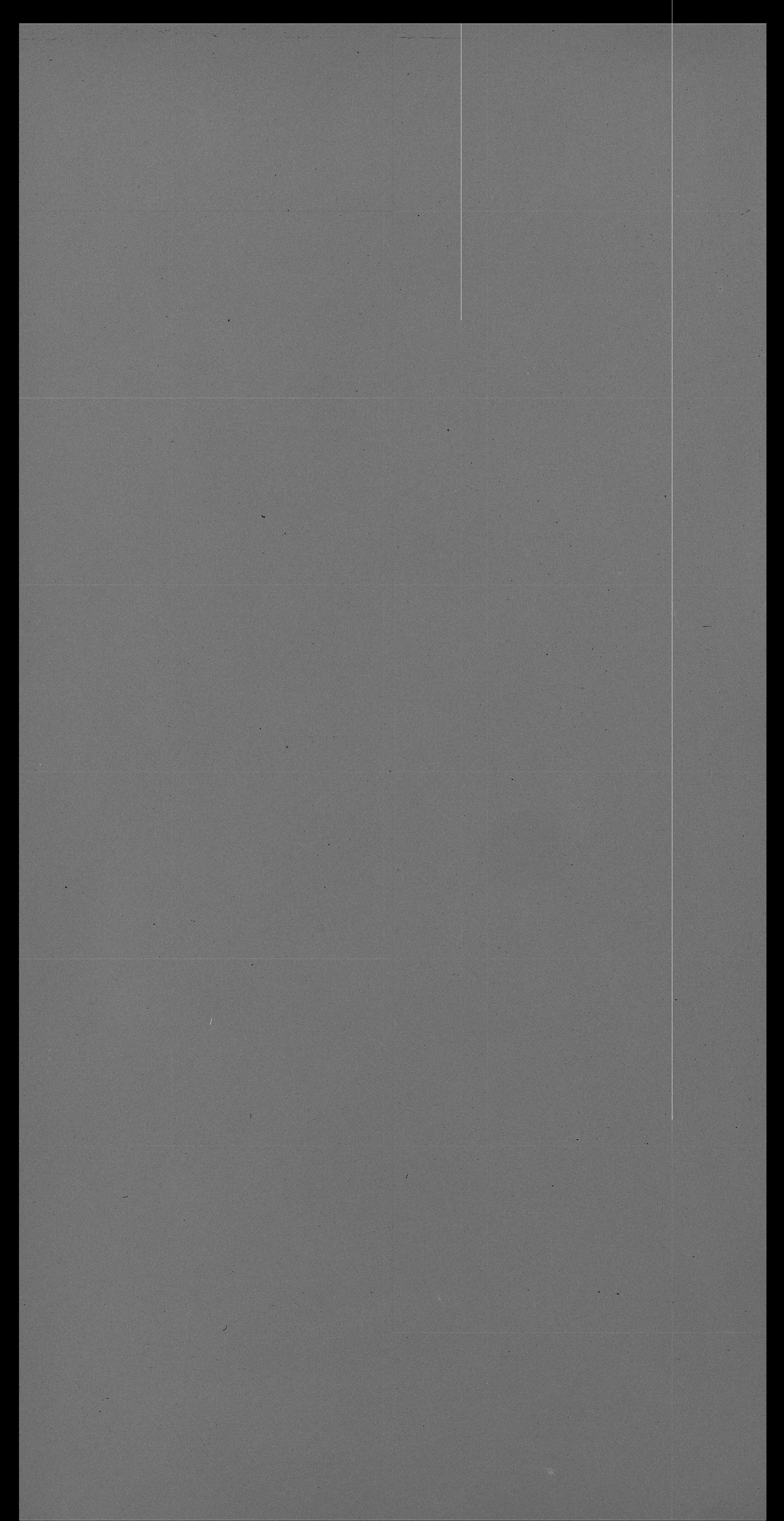

 ELTON
CCD # 55

Cosmetics of ELTON

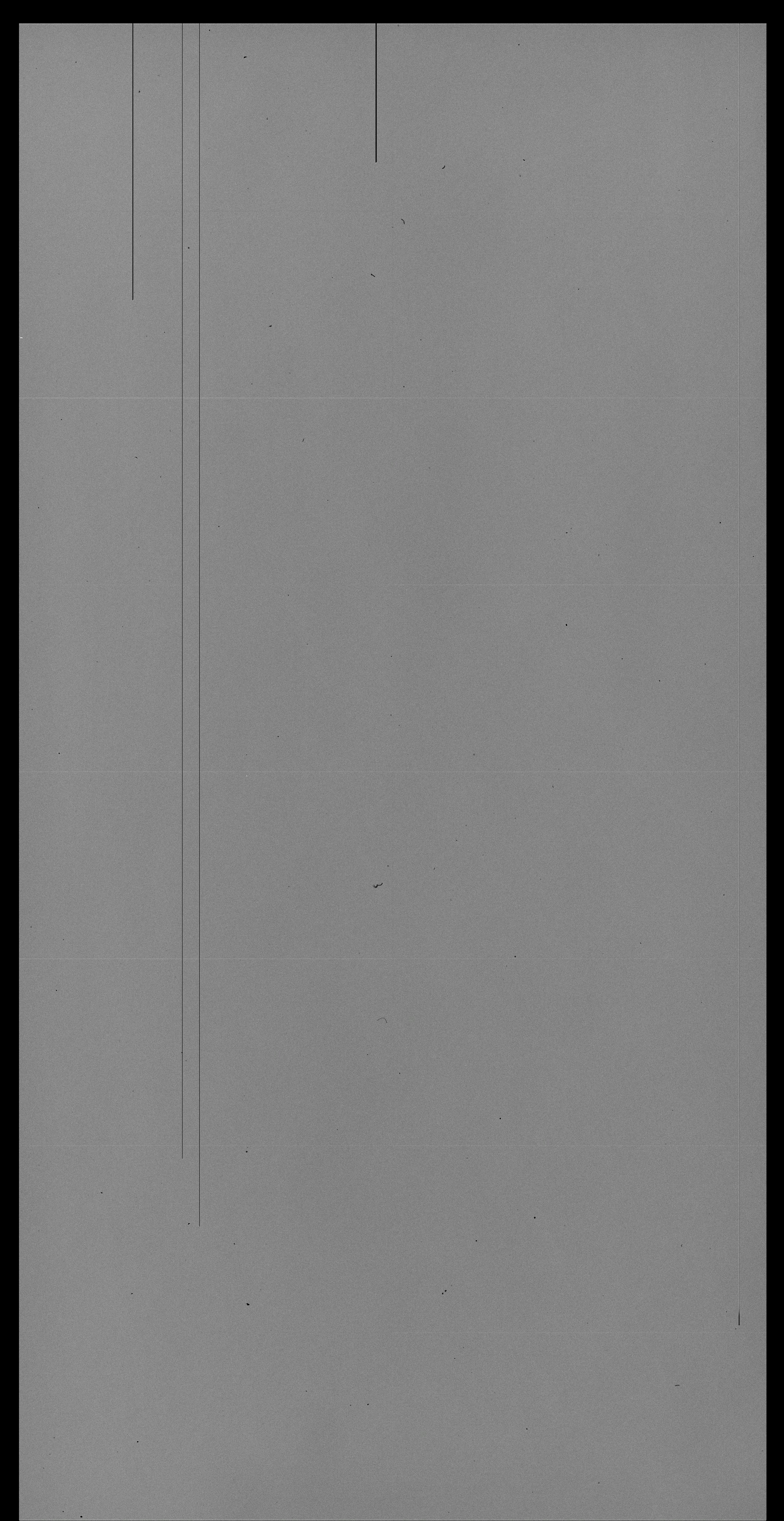

 NINA
CCD # 54

Cosmetics of NINA
