Image gallery

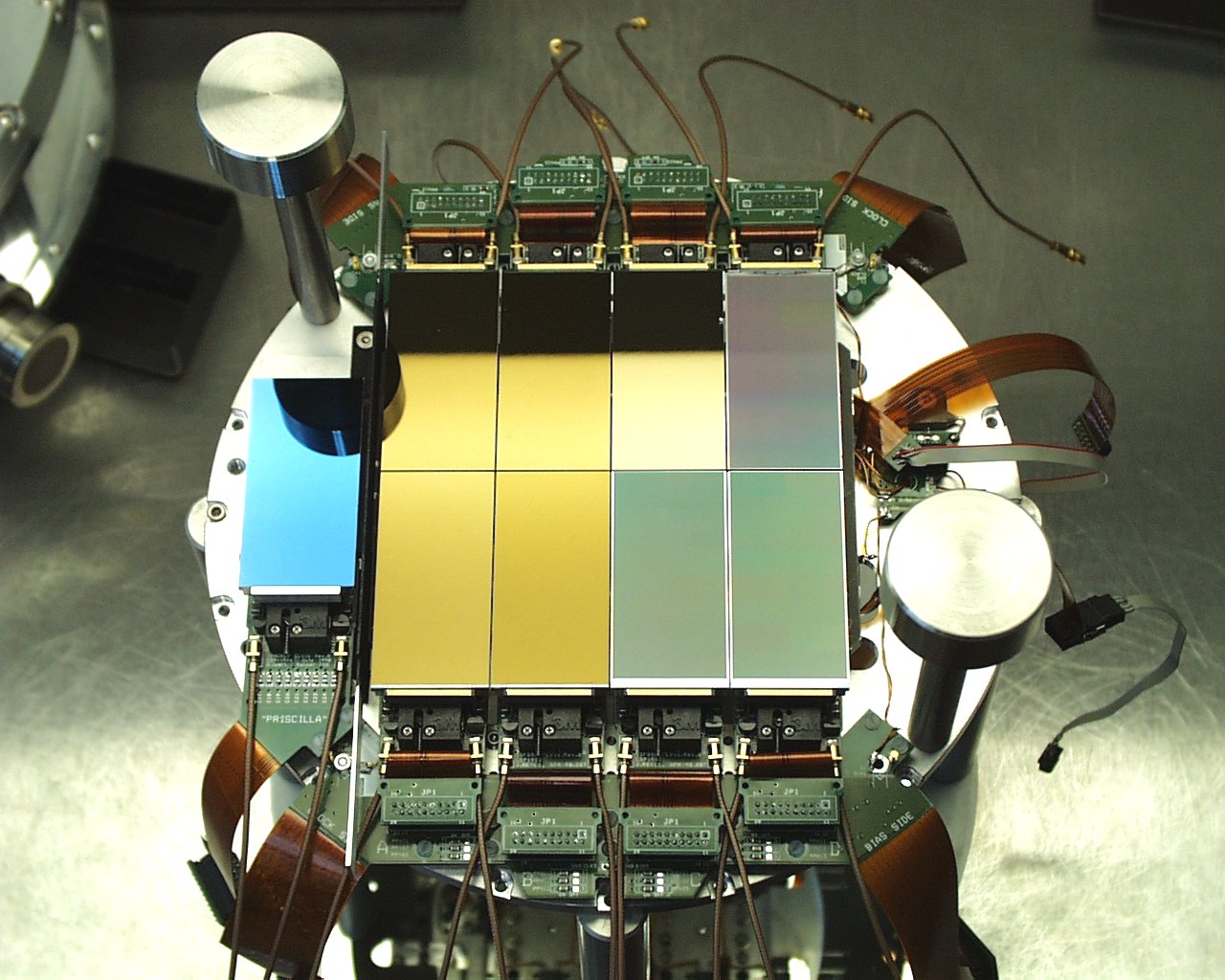

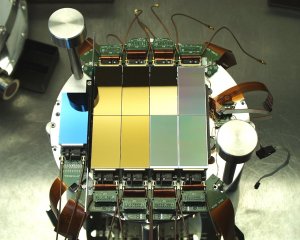

WFI installed at ESO testbench
WFI installed at the ESO testbench, for testing. All CCDs are visible, including the tracker chip.

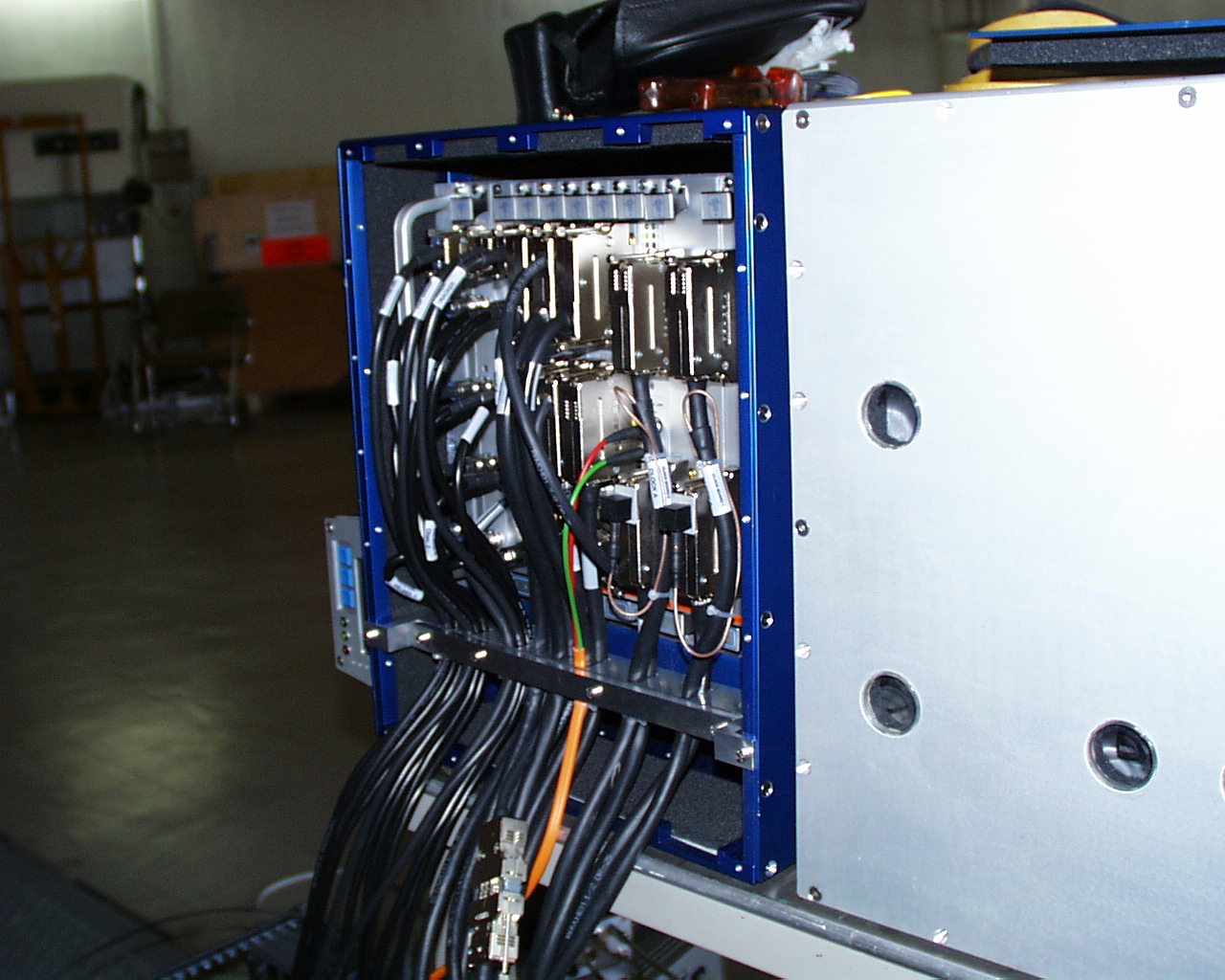

FIERA detector head electronics
FIERA detector head electronics

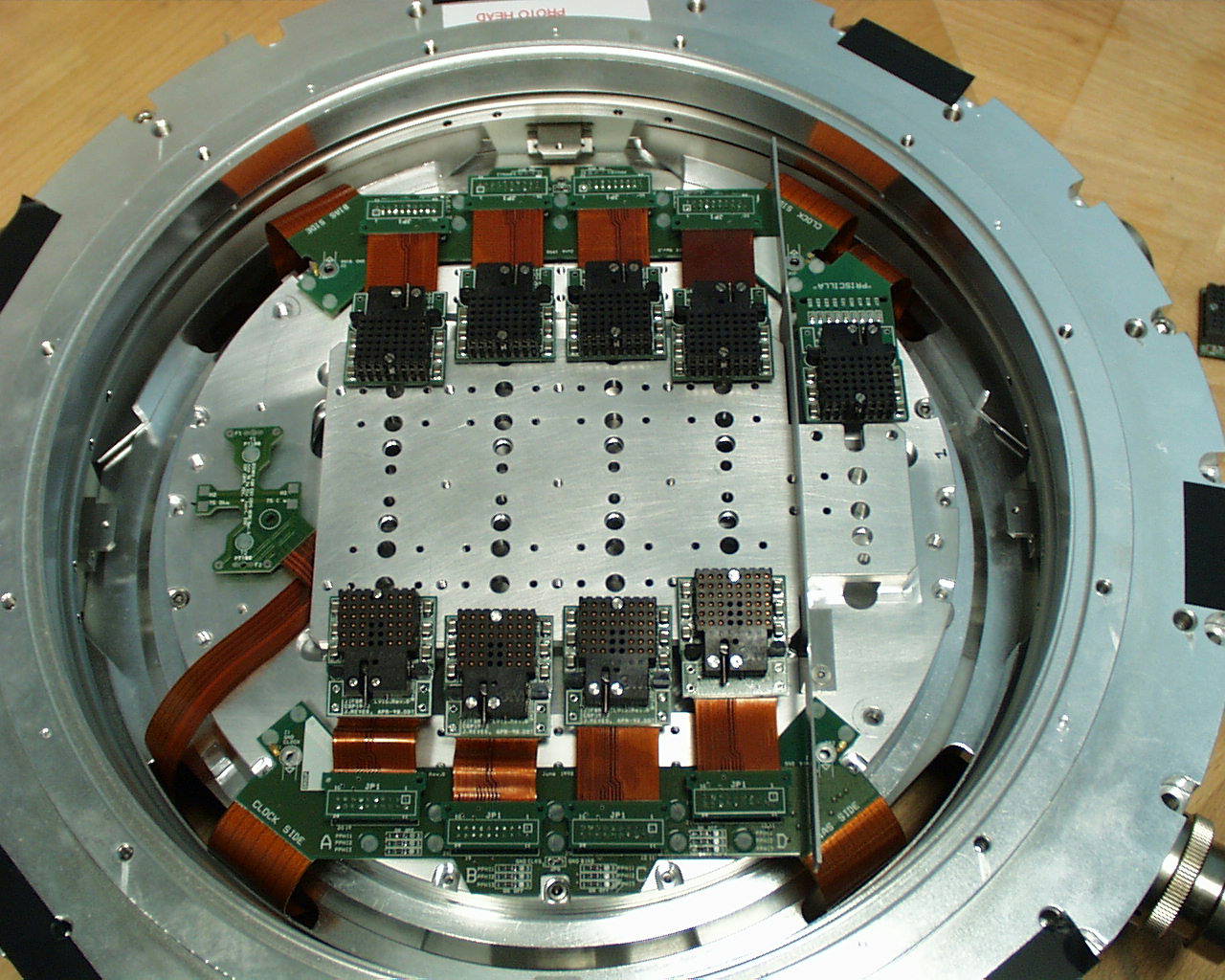

All mechanical samples installed into the plate for testing
All mechanical samples installed into the plate for testing

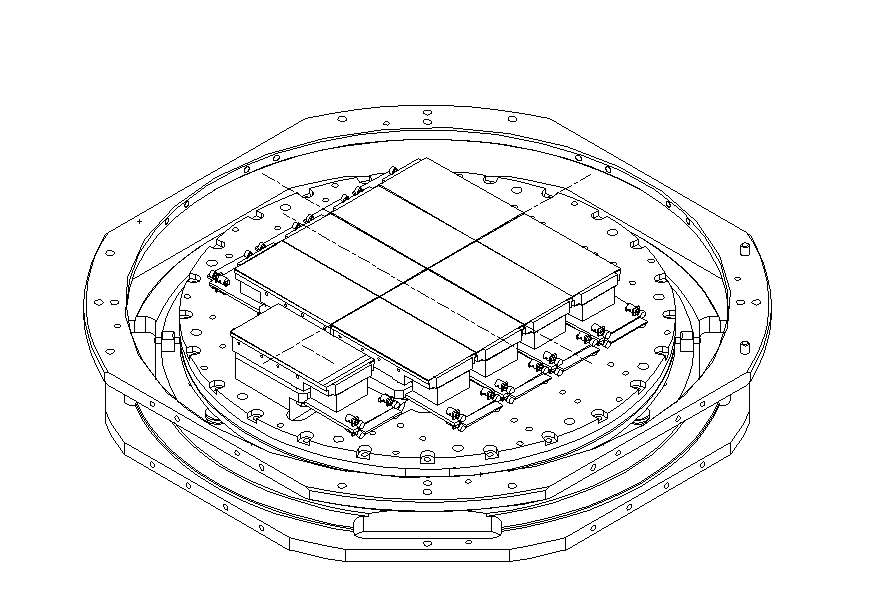

Mechanical overview
Mechanical overview





3 mechanical samples installed into the plate
3 mechanical samples installed into the plate




A close-up view of the previous image, showing board, flex rigid
A close-up view of the previous image, showing board, flex rigid

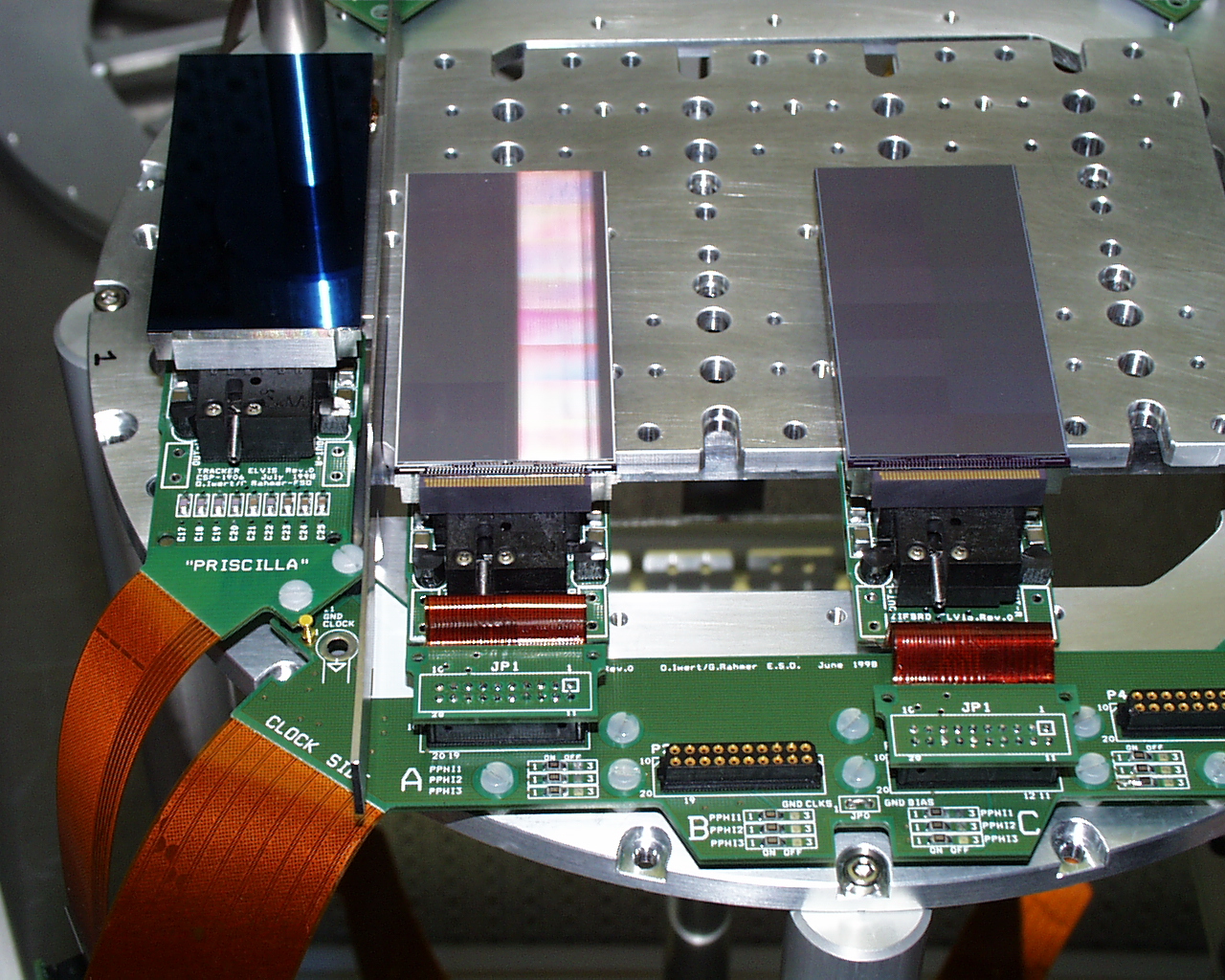

Dummy head, showing the ZIF-socket and all the wiring
Dummy head, showing the ZIF-socket and all the wiring

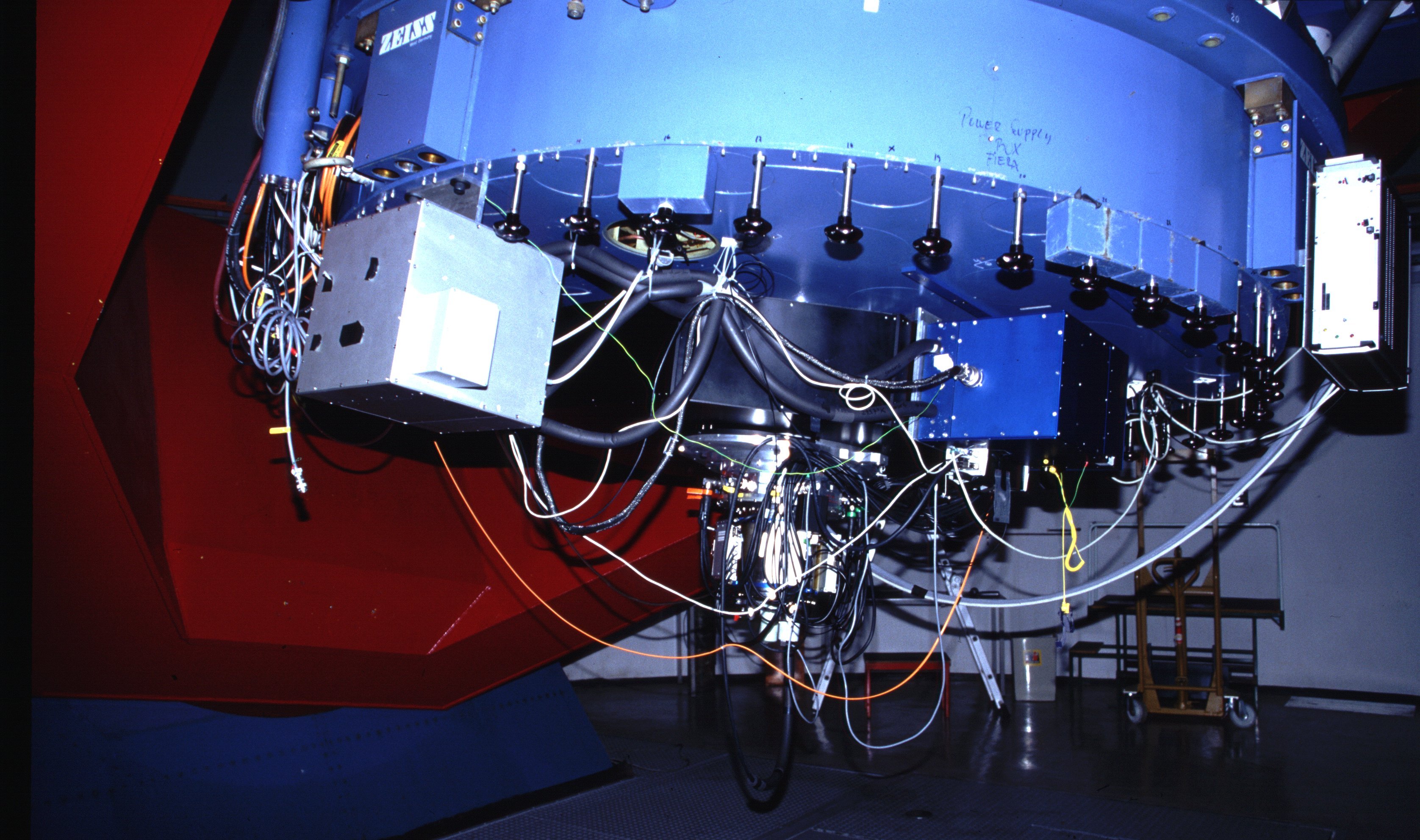

WFI installed at the MPG / ESO 2.2 m Telescope
WFI installed at the MPG / ESO 2.2 m Telescope
