Wide Field Imager |
||||
|
|
|
Wide Field Imager |
||||
|
| The following measurements are made with the
ESO testbench. The operating temperature was - 95 °C. |

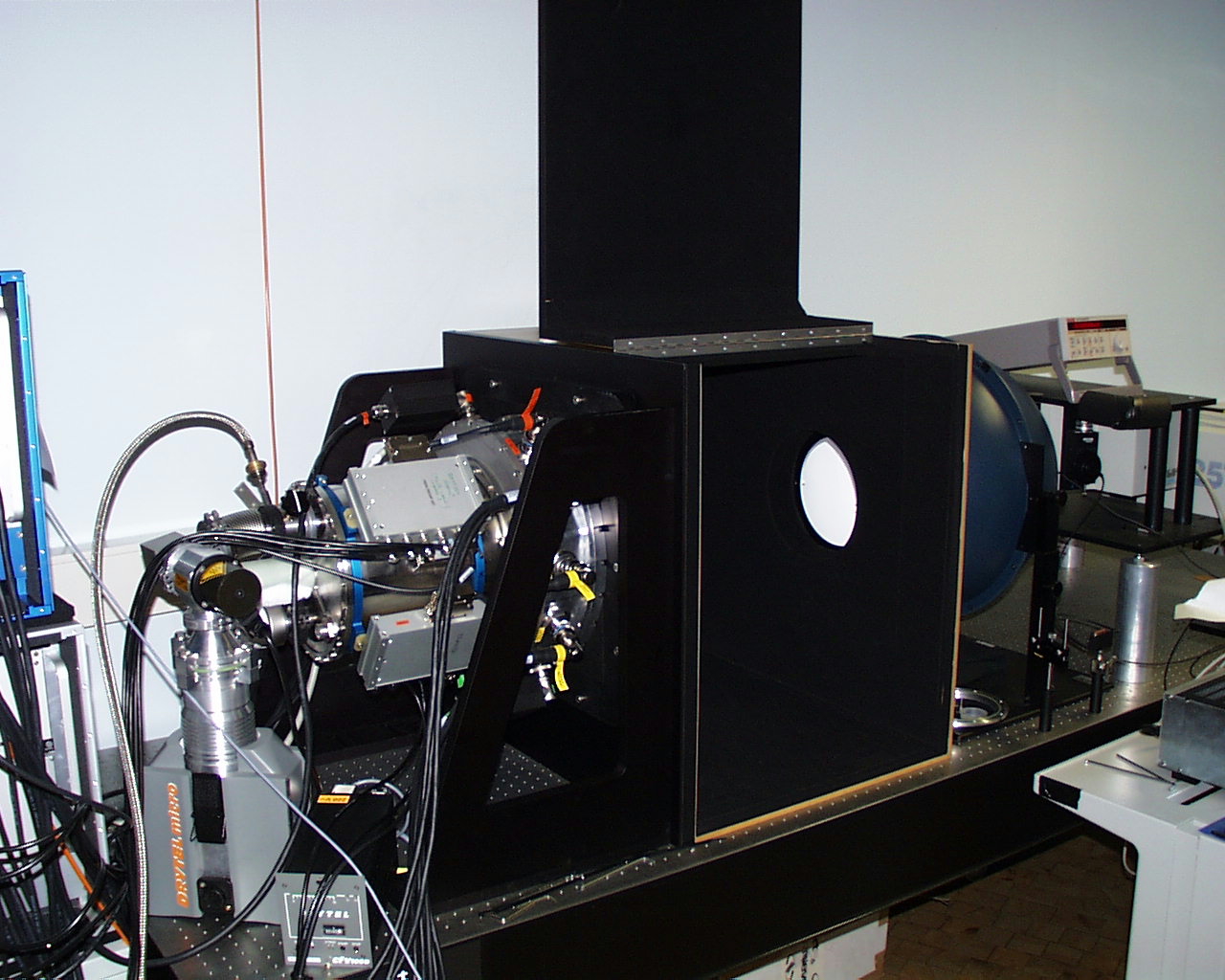

 WFI attached to the ESO testbench. |

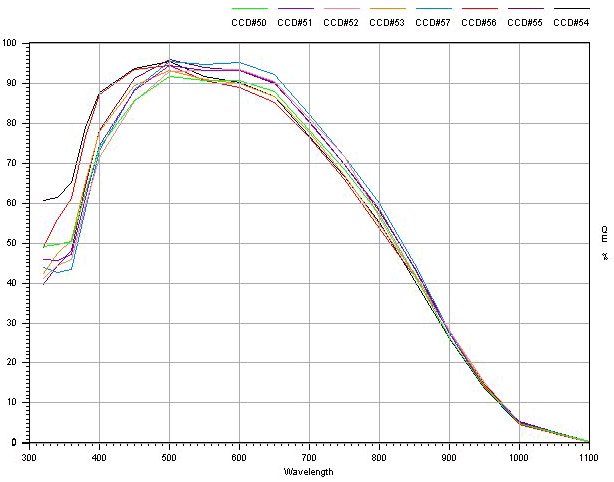

 Overall quantum efficiency |
In the U-band the differences in the quantum efficiencies of the CCDs are not negligible.

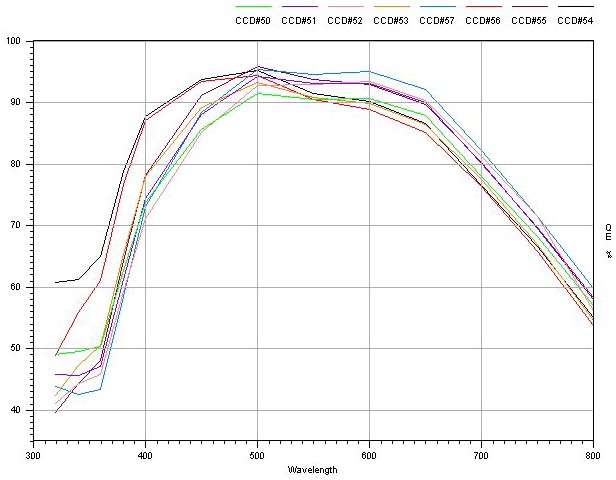

 Close up of the range 300 - 800 nm |
