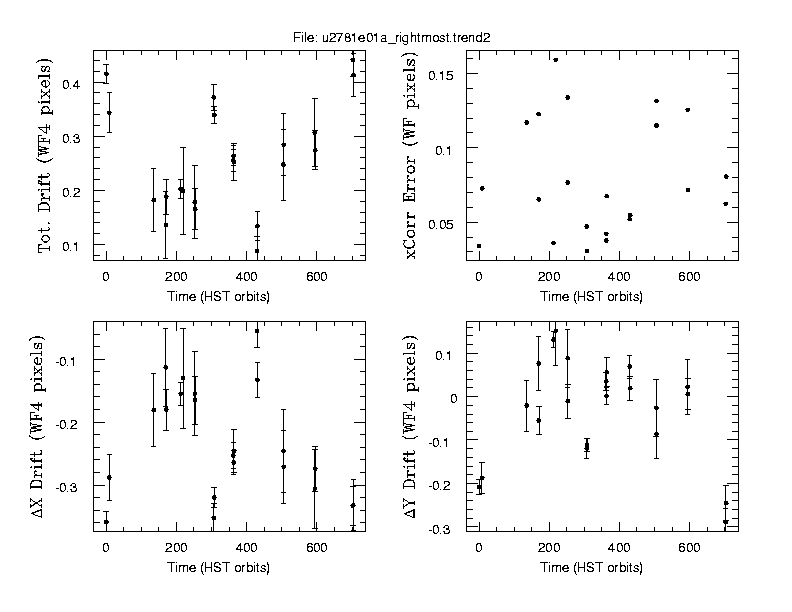

Click on the image for higher resolution
Click on the image for higher resolution
| Observation Start Time (seconds from 1-1-1980) | Association file | WFPC2 Dataset Name | Jitter Reliability (P-OK, G-NOK) | sub group id in the jitter association | Distance (X-Corr shift, Jitter shift) [SEE PLOT] | X-Corr Error [SEE PLOT] | Y-shift [X-Corr] | X-shift [X-Corr] | Y-shift [Jitter] | X-shift [Jitter] | DY [SEE PLOT] | DX [SEE PLOT] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 471307997 | u2781e01a.asn | U2781F01T | P | 5. | 0.4149 | 0.0339 | 0.018 | 0.039 | -0.19 | -0.32 | -0.208 | -0.359 |
| 471356597 | u2781e01a.asn | U2781F02T | P | 5. | 0.34338 | 0.0728 | -0.013 | -0.032 | -0.2 | -0.32 | -0.187 | -0.288 |
| 472089077 | u2781e01a.asn | U2781G02T | P | 7. | 0.18221 | 0.117 | -0.209 | 0.111 | -0.23 | -0.07 | -0.021 | -0.181 |
| 472286597 | u2781e01a.asn | U2781H01T | P | 2. | 0.13618 | 0.1227 | -0.096 | -0.007 | -0.02 | -0.12 | 0.076 | -0.113 |
| 472291457 | u2781e01a.asn | U2781H02T | P | 2. | 0.18822 | 0.0653 | 0.035 | 0.07 | -0.02 | -0.11 | -0.055 | -0.18 |
| 472529417 | u2781e01a.asn | U2781I02T | P | 3. | 0.20294 | 0.0361 | -0.061 | 0.005 | 0.07 | -0.15 | 0.131 | -0.155 |
| 472567277 | u2781e01a.asn | U2781I01T | P | 1. | 0.19925 | 0.1593 | -0.051 | 0. | 0.1 | -0.13 | 0.151 | -0.13 |
| 472761497 | u2781e01a.asn | U2781J01T | P | 3. | 0.17824 | 0.1339 | -0.008 | 0.015 | 0.08 | -0.14 | 0.088 | -0.155 |
| 472766297 | u2781e01a.asn | U2781J02T | P | 3. | 0.16537 | 0.0767 | 0.051 | -0.005 | 0.04 | -0.17 | -0.011 | -0.165 |
| 473074217 | u2781e01a.asn | U2781K01T | P | 2. | 0.37157 | 0.047 | 0.109 | 0.222 | -0.01 | -0.13 | -0.119 | -0.352 |
| 473079077 | u2781e01a.asn | U2781K02T | P | 2. | 0.33903 | 0.0306 | 0.072 | 0.18 | -0.04 | -0.14 | -0.112 | -0.32 |
| 473392757 | u2781e01a.asn | U2781L02T | P | 1. | 0.25541 | 0.0422 | 0.095 | 0.133 | 0.13 | -0.12 | 0.035 | -0.253 |
| 473397557 | u2781e01a.asn | U2781L03T | P | 1. | 0.264 | 0.0377 | 0.129 | 0.144 | 0.13 | -0.12 | 0.001 | -0.264 |
| 473405117 | u2781e01a.asn | U2781L06T | P | 1. | 0.25229 | 0.0674 | 0.084 | 0.136 | 0.14 | -0.11 | 0.056 | -0.246 |
| 473780417 | u2781e01a.asn | U2781M01T | P | 4. | 0.08824 | 0.0521 | 0.071 | 0.075 | 0.14 | 0.02 | 0.069 | -0.055 |
| 473785577 | u2781e01a.asn | U2781M02T | P | 4. | 0.13435 | 0.0548 | 0.111 | 0.153 | 0.13 | 0.02 | 0.019 | -0.133 |
| 474214937 | u2781e01a.asn | U2781N01T | P | 1. | 0.24737 | 0.1315 | 0.156 | 0.116 | 0.13 | -0.13 | -0.026 | -0.246 |
| 474219857 | u2781e01a.asn | U2781N02T | P | 1. | 0.28432 | 0.1151 | 0.206 | 0.131 | 0.12 | -0.14 | -0.086 | -0.271 |
| 474730337 | u2781e01a.asn | U2781O01M | P | 1. | 0.30679 | 0.1258 | 0.138 | 0.176 | 0.16 | -0.13 | 0.022 | -0.306 |
| 474735197 | u2781e01a.asn | U2781O02N | P | 1. | 0.27405 | 0.0716 | 0.165 | 0.144 | 0.17 | -0.13 | 0.005 | -0.274 |
| 475355117 | u2781e01a.asn | U2781P01T | P | 2. | 0.44092 | 0.0624 | 0.229 | 0.173 | -0.06 | -0.16 | -0.289 | -0.333 |
| 475360697 | u2781e01a.asn | U2781P02T | P | 2. | 0.41261 | 0.0806 | 0.175 | 0.172 | -0.07 | -0.16 | -0.245 | -0.332 |
