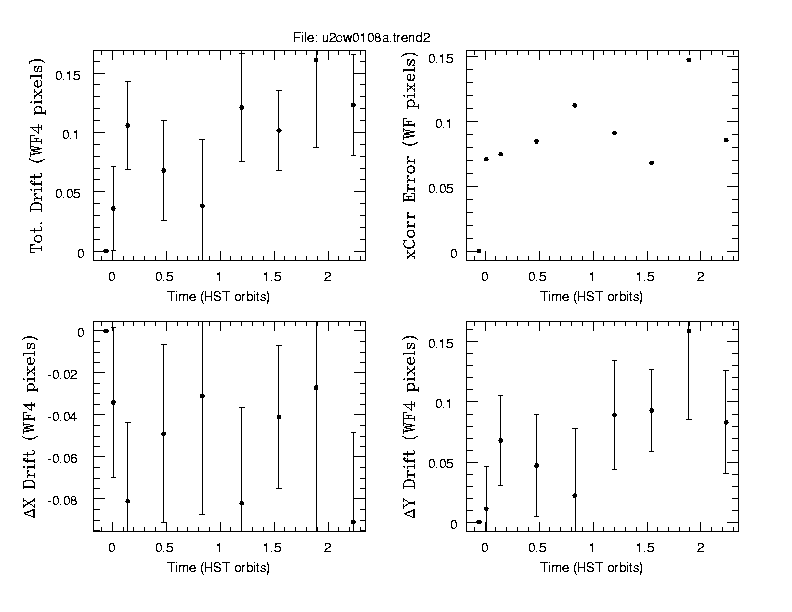

Click on the image for higher resolution

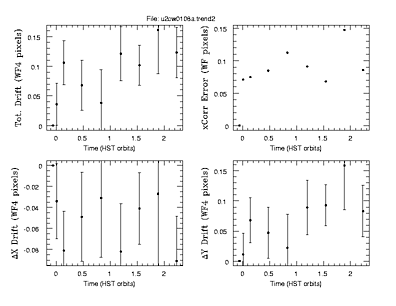

Click on the image for higher resolution
| Observation Start Time (seconds from 1-1-1980) | Association file | WFPC2 Dataset Name | Jitter Reliability (P-OK, G-NOK) | sub group id in the jitter association | Distance (X-Corr shift, Jitter shift) [SEE PLOT] | X-Corr Error [SEE PLOT] | Y-shift [X-Corr] | X-shift [X-Corr] | Y-shift [Jitter] | X-shift [Jitter] | DY [SEE PLOT] | DX [SEE PLOT] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 456463697 | u2cw0108a.asn | U2CW0108T | P | 1. | 0. | 5.00E-4 | 0. | 0. | 0. | 0. | 0. | 0. |
| 456464057 | u2cw0108a.asn | U2CW0109T | P | 1. | 0.03574 | 0.0711 | -0.011 | 0.024 | 0. | -0.01 | 0.011 | -0.034 |
| 456464777 | u2cw0108a.asn | U2CW010BT | G | 0. | 0.10576 | 0.0748 | -0.068 | 0.071 | 0. | -0.01 | 0.068 | -0.081 |
| 456466757 | u2cw0108a.asn | U2CW010CT | P | 1. | 0.0679 | 0.0848 | -0.057 | 0.029 | -0.01 | -0.02 | 0.047 | -0.049 |
| 456468737 | u2cw0108a.asn | U2CW010DT | P | 1. | 0.03801 | 0.1124 | -0.022 | 0.021 | 0. | -0.01 | 0.022 | -0.031 |
| 456470897 | u2cw0108a.asn | U2CW010ET | P | 1. | 0.12102 | 0.091 | -0.089 | 0.072 | 0. | -0.01 | 0.089 | -0.082 |
| 456472877 | u2cw0108a.asn | U2CW010FT | P | 1. | 0.10164 | 0.0682 | -0.103 | 0.021 | -0.01 | -0.02 | 0.093 | -0.041 |
| 456474857 | u2cw0108a.asn | U2CW010GT | P | 1. | 0.16128 | 0.1473 | -0.159 | 0.017 | 0. | -0.01 | 0.159 | -0.027 |
| 456476837 | u2cw0108a.asn | U2CW010HT | P | 1. | 0.12317 | 0.0856 | -0.093 | 0.071 | -0.01 | -0.02 | 0.083 | -0.091 |
