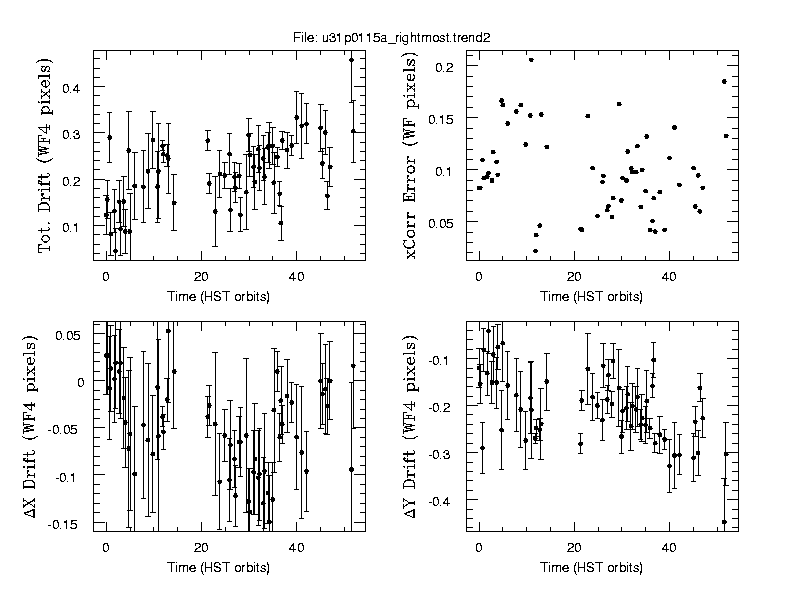

Click on the image for higher resolution

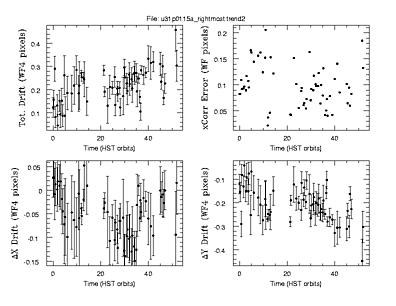

Click on the image for higher resolution
| Observation Start Time (seconds from 1-1-1980) | Association file | WFPC2 Dataset Name | Jitter Reliability (P-OK, G-NOK) | sub group id in the jitter association | Distance (X-Corr shift, Jitter shift) [SEE PLOT] | X-Corr Error [SEE PLOT] | Y-shift [X-Corr] | X-shift [X-Corr] | Y-shift [Jitter] | X-shift [Jitter] | DY [SEE PLOT] | DX [SEE PLOT] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 504367097 | u31p0115a.asn | U31P0701T | P | 2. | 0.123 | 0.0828 | 0.1 | 0.003 | -0.02 | 0.03 | -0.12 | 0.027 |
| 504368477 | u31p0115a.asn | U31P0702T | P | 2. | 0.15635 | 0.0827 | 0.134 | 0.003 | -0.02 | 0.03 | -0.154 | 0.027 |
| 504371237 | u31p0115a.asn | U31P0708T | P | 2. | 0.29011 | 0.1095 | 0.26 | 0.048 | -0.03 | 0.04 | -0.29 | -0.008 |
| 504372677 | u31p0115a.asn | U31P0709T | P | 2. | 0.08204 | 0.0918 | 0.081 | 0.027 | 0. | 0.04 | -0.081 | 0.013 |
| 504376937 | u31p0115a.asn | U31P070BT | P | 2. | 0.13102 | 0.0934 | 0.111 | 0.038 | -0.02 | 0.04 | -0.131 | 0.002 |
| 504378497 | u31p0115a.asn | U31P070CT | P | 2. | 0.04519 | 0.0968 | 0.041 | 0.011 | 0. | 0.03 | -0.041 | 0.019 |
| 504382757 | u31p0115a.asn | U31P070ET | P | 2. | 0.15133 | 0.0898 | 0.141 | 0.03 | -0.01 | 0.04 | -0.151 | 0.01 |
| 504384197 | u31p0115a.asn | U31P070FT | P | 2. | 0.09296 | 0.1169 | 0.091 | 0.011 | 0. | 0.03 | -0.091 | 0.019 |
| 504388457 | u31p0115a.asn | U31P070HT | P | 2. | 0.15207 | 0.1077 | 0.141 | 0.058 | -0.01 | 0.04 | -0.151 | -0.018 |
| 504389897 | u31p0115a.asn | U31P070IT | P | 2. | 0.08695 | 0.0953 | 0.075 | 0.074 | 0. | 0.03 | -0.075 | -0.044 |
| 504394397 | u31p0115a.asn | U31P070LT | P | 3. | 0.26208 | 0.1664 | -6.698 | 18.422 | -6.95 | 18.35 | -0.252 | -0.072 |
| 504395837 | u31p0115a.asn | U31P070MT | P | 3. | 0.08732 | 0.1622 | -6.873 | 18.406 | -6.94 | 18.35 | -0.067 | -0.056 |
| 504401537 | u31p0115a.asn | U31P070PT | P | 3. | 0.18561 | 0.1445 | -6.783 | 18.449 | -6.94 | 18.35 | -0.157 | -0.099 |
| 504411977 | u31p0115a.asn | U31P070VT | P | 3. | 0.1841 | 0.1558 | -6.762 | 18.397 | -6.94 | 18.35 | -0.178 | -0.047 |
| 504417617 | u31p0115a.asn | U31P070YT | P | 3. | 0.21733 | 0.1622 | -6.722 | 18.403 | -6.93 | 18.34 | -0.208 | -0.063 |
| 504423497 | u31p0115a.asn | U31P0710T | P | 3. | 0.28489 | 0.1243 | -6.656 | 18.418 | -6.93 | 18.34 | -0.274 | -0.078 |
| 504429197 | u31p0115a.asn | U31P0712T | P | 3. | 0.18413 | 0.1523 | -6.746 | 18.357 | -6.93 | 18.35 | -0.184 | -0.007 |
| 504430157 | u31p0115a.asn | U31P0713T | P | 3. | 0.21717 | 0.2057 | -6.711 | 18.409 | -6.92 | 18.35 | -0.209 | -0.059 |
| 504435317 | u31p0115a.asn | U31P0715T | P | 9. | 0.27266 | 0.0219 | 11.93 | 4.898 | 11.66 | 4.86 | -0.27 | -0.038 |
| 504436157 | u31p0115a.asn | U31P0716T | P | 9. | 0.25381 | 0.037 | 11.908 | 4.924 | 11.66 | 4.87 | -0.248 | -0.054 |
| 504440657 | u31p0115a.asn | U31P0718T | P | 9. | 0.2518 | 0.0463 | 11.901 | 4.88 | 11.65 | 4.86 | -0.251 | -0.02 |
| 504442037 | u31p0115a.asn | U31P0719T | P | 9. | 0.24481 | 0.1532 | 11.899 | 4.807 | 11.66 | 4.86 | -0.239 | 0.053 |
| 504449057 | u31p0115a.asn | U31P070ST | P | 3. | 0.14934 | 0.1219 | -6.801 | 18.34 | -6.95 | 18.35 | -0.149 | 0.01 |
| 504489977 | u31p0115a.asn | U31P071BT | P | 9. | 0.28356 | 0.0433 | 11.921 | 4.908 | 11.64 | 4.87 | -0.281 | -0.038 |
| 504491417 | u31p0115a.asn | U31P071CT | P | 9. | 0.19078 | 0.0419 | 11.839 | 4.886 | 11.65 | 4.86 | -0.189 | -0.026 |
| 504498677 | u31p0115a.asn | U31P0806T | P | 3. | 0.13038 | 0.1516 | -6.838 | 18.436 | -6.96 | 18.39 | -0.122 | -0.046 |
| 504504377 | u31p0115a.asn | U31P0809T | P | 13. | 0.21112 | 0.1015 | -6.778 | 18.507 | -6.96 | 18.4 | -0.182 | -0.107 |
| 504510257 | u31p0115a.asn | U31P080BT | P | 6. | 0.20824 | 0.0553 | -9.55 | 3.018 | -9.75 | 2.96 | -0.2 | -0.058 |
| 504516137 | u31p0115a.asn | U31P080DT | P | 6. | 0.25374 | 0.0884 | -9.529 | 3.055 | -9.76 | 2.95 | -0.231 | -0.105 |
| 504517097 | u31p0115a.asn | U31P080ET | P | 6. | 0.1336 | 0.094 | -9.635 | 3.018 | -9.75 | 2.95 | -0.115 | -0.068 |
| 504522017 | u31p0115a.asn | U31P080GT | P | 6. | 0.20459 | 0.0611 | -9.583 | 3.033 | -9.77 | 2.95 | -0.187 | -0.083 |
| 504523157 | u31p0115a.asn | U31P080HT | P | 6. | 0.18196 | 0.065 | -9.625 | 3.072 | -9.76 | 2.95 | -0.135 | -0.122 |
| 504527777 | u31p0115a.asn | U31P080JT | P | 6. | 0.20745 | 0.0547 | -9.583 | 3.025 | -9.78 | 2.96 | -0.197 | -0.065 |
| 504529157 | u31p0115a.asn | U31P080KT | P | 6. | 0.12349 | 0.0727 | -9.665 | 3.025 | -9.77 | 2.96 | -0.105 | -0.065 |
| 504536237 | u31p0115a.asn | U31P0803T | P | 3. | 0.17207 | 0.163 | -6.798 | 18.448 | -6.96 | 18.39 | -0.162 | -0.058 |
| 504539357 | u31p0115a.asn | U31P080TT | P | 5. | 0.29519 | 0.0706 | -1.604 | 11.888 | -1.87 | 11.76 | -0.266 | -0.128 |
| 504540797 | u31p0115a.asn | U31P080UT | P | 5. | 0.25267 | 0.0921 | -1.649 | 11.899 | -1.86 | 11.76 | -0.211 | -0.139 |
| 504545297 | u31p0115a.asn | U31P080WT | P | 5. | 0.22679 | 0.0897 | -1.655 | 11.857 | -1.86 | 11.76 | -0.205 | -0.097 |
| 504546737 | u31p0115a.asn | U31P080XT | P | 5. | 0.19459 | 0.1177 | -1.674 | 11.843 | -1.85 | 11.76 | -0.176 | -0.083 |
| 504550757 | u31p0115a.asn | U31P080ZT | P | 5. | 0.26485 | 0.1013 | -1.616 | 11.873 | -1.86 | 11.77 | -0.244 | -0.103 |
| 504552197 | u31p0115a.asn | U31P0810T | P | 5. | 0.22406 | 0.0976 | -1.649 | 11.859 | -1.85 | 11.76 | -0.201 | -0.099 |
| 504556877 | u31p0115a.asn | U31P0812T | P | 5. | 0.24528 | 0.0978 | -1.652 | 11.9 | -1.86 | 11.77 | -0.208 | -0.13 |
| 504558317 | u31p0115a.asn | U31P0813T | P | 5. | 0.20577 | 0.1227 | -1.668 | 11.856 | -1.85 | 11.76 | -0.182 | -0.096 |
| 504562637 | u31p0115a.asn | U31P0815T | P | 5. | 0.26878 | 0.0643 | -1.619 | 11.879 | -1.86 | 11.76 | -0.241 | -0.119 |
| 504564077 | u31p0115a.asn | U31P0816T | P | 5. | 0.27208 | 0.0998 | -1.623 | 11.91 | -1.85 | 11.76 | -0.227 | -0.15 |
| 504568397 | u31p0115a.asn | U31P0818T | P | 4. | 0.27195 | 0.0793 | 1.551 | 23.296 | 1.31 | 23.17 | -0.241 | -0.126 |
| 504569837 | u31p0115a.asn | U31P0819T | P | 4. | 0.19251 | 0.1319 | 1.51 | 23.201 | 1.32 | 23.17 | -0.19 | -0.031 |
| 504573737 | u31p0115a.asn | U31P081BT | P | 4. | 0.2482 | 0.0419 | 1.548 | 23.17 | 1.3 | 23.18 | -0.248 | 0.01 |
| 504576857 | u31p0115a.asn | U31P080MT | P | 6. | 0.16901 | 0.0508 | -9.622 | 3.02 | -9.78 | 2.96 | -0.158 | -0.06 |
| 504578297 | u31p0115a.asn | U31P080NT | P | 6. | 0.10512 | 0.0727 | -9.667 | 2.981 | -9.77 | 2.96 | -0.103 | -0.021 |
| 504579797 | u31p0115a.asn | U31P081DT | P | 4. | 0.28375 | 0.0406 | 1.58 | 23.226 | 1.3 | 23.18 | -0.28 | -0.046 |
| 504585617 | u31p0115a.asn | U31P081FT | P | 4. | 0.26249 | 0.0785 | 1.572 | 23.186 | 1.31 | 23.17 | -0.262 | -0.016 |
| 504591317 | u31p0115a.asn | U31P081HT | P | 4. | 0.27297 | 0.0423 | 1.592 | 23.193 | 1.32 | 23.17 | -0.272 | -0.023 |
| 504597197 | u31p0115a.asn | U31P081JT | P | 8. | 0.33344 | 0.1114 | -11.952 | 16.37 | -12.28 | 16.31 | -0.328 | -0.06 |
| 504603257 | u31p0115a.asn | U31P081LT | P | 8. | 0.3153 | 0.1408 | -11.974 | 16.396 | -12.28 | 16.32 | -0.306 | -0.076 |
| 504609077 | u31p0115a.asn | U31P081OT | P | 8. | 0.31975 | 0.0856 | -11.985 | 16.416 | -12.29 | 16.32 | -0.305 | -0.096 |
| 504626417 | u31p0115a.asn | U31P081XT | P | 15. | 0.311 | 0.1015 | 0.251 | 0.07 | -0.06 | 0.07 | -0.311 | 0. |
| 504628337 | u31p0115a.asn | U31P081ZT | P | 2. | 0.23442 | 0.0646 | 0.204 | 0.084 | -0.03 | 0.07 | -0.234 | -0.014 |
| 504631817 | u31p0115a.asn | U31P0822T | P | 2. | 0.30113 | 0.0946 | 0.261 | 0.079 | -0.04 | 0.07 | -0.301 | -0.009 |
| 504634157 | u31p0115a.asn | U31P0824T | P | 2. | 0.16423 | 0.06 | 0.152 | 0.087 | -0.01 | 0.06 | -0.162 | -0.027 |
| 504637637 | u31p0115a.asn | U31P0827T | P | 2. | 0.227 | 0.0828 | 0.197 | 0.07 | -0.03 | 0.07 | -0.227 | 0. |
| 504663437 | u31p0115a.asn | U31P081TT | P | 8. | 0.45776 | 0.1851 | -11.862 | 16.414 | -12.31 | 16.32 | -0.448 | -0.094 |
| 504665717 | u31p0115a.asn | U31P081VT | P | 8. | 0.30342 | 0.1326 | -11.997 | 16.294 | -12.3 | 16.31 | -0.303 | 0.016 |
