Project pipeline.tpr

Mon Jul 26 18:08:33 GMT+04:30 1999

Diagrams List

Class diagram pipeline

Class diagram pil

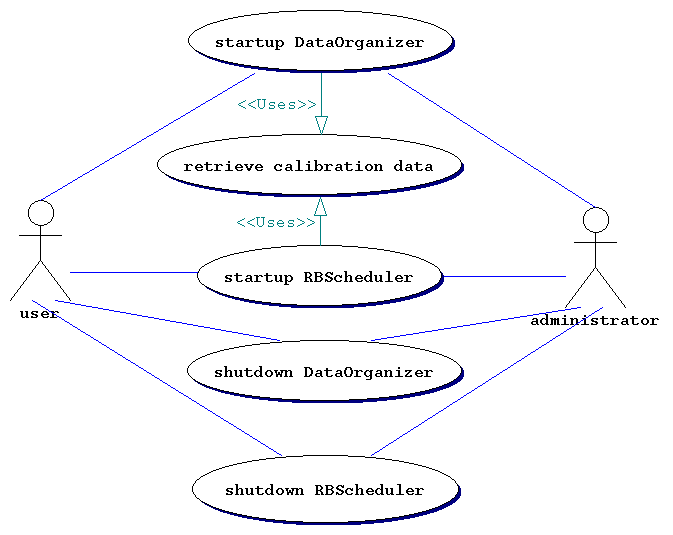

UseCase diagram UseCase1

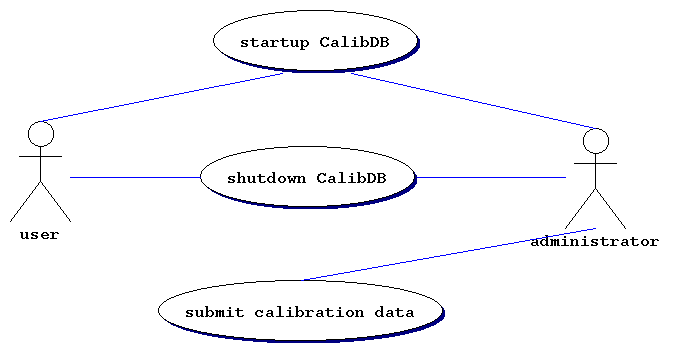

UseCase diagram UseCase11

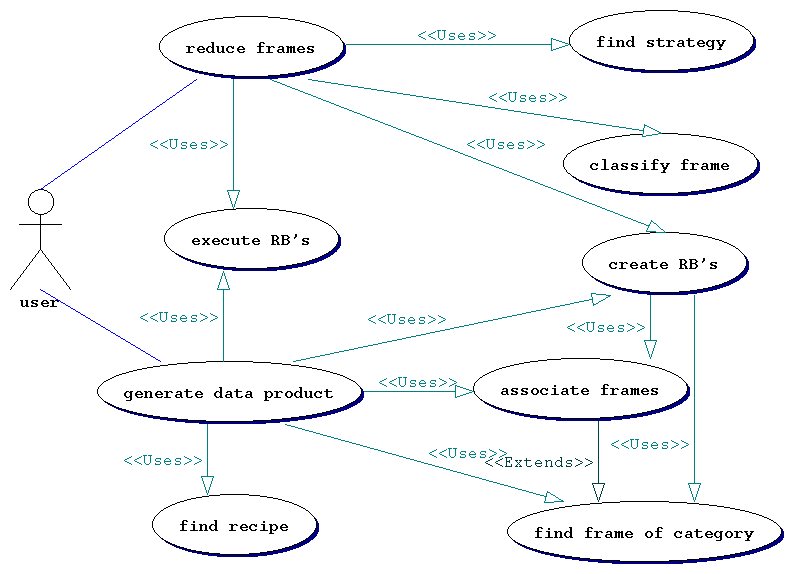

UseCase diagram UseCase2

Class diagram pil.cdb

Class diagram pil.pdo

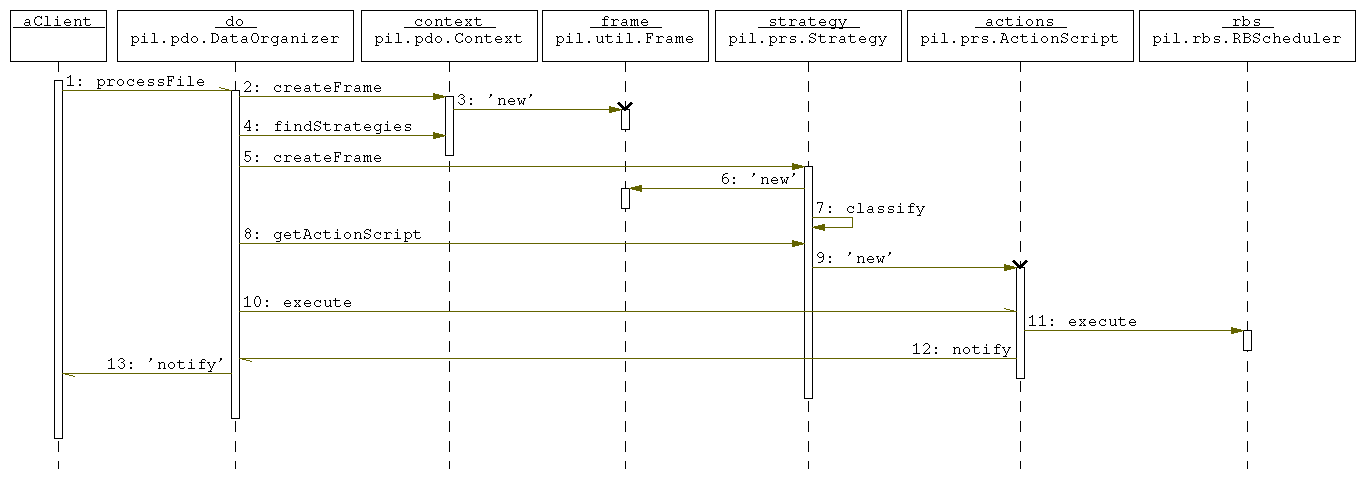

Interaction diagram Reduction

Interaction diagram initiation

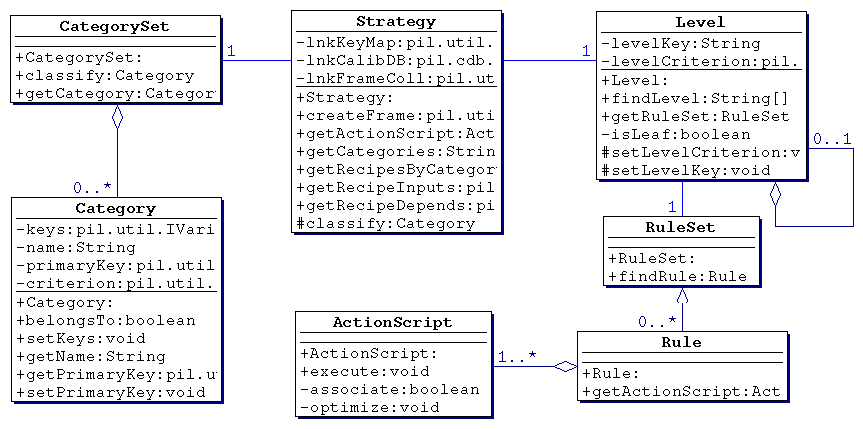

Class diagram pil.prs

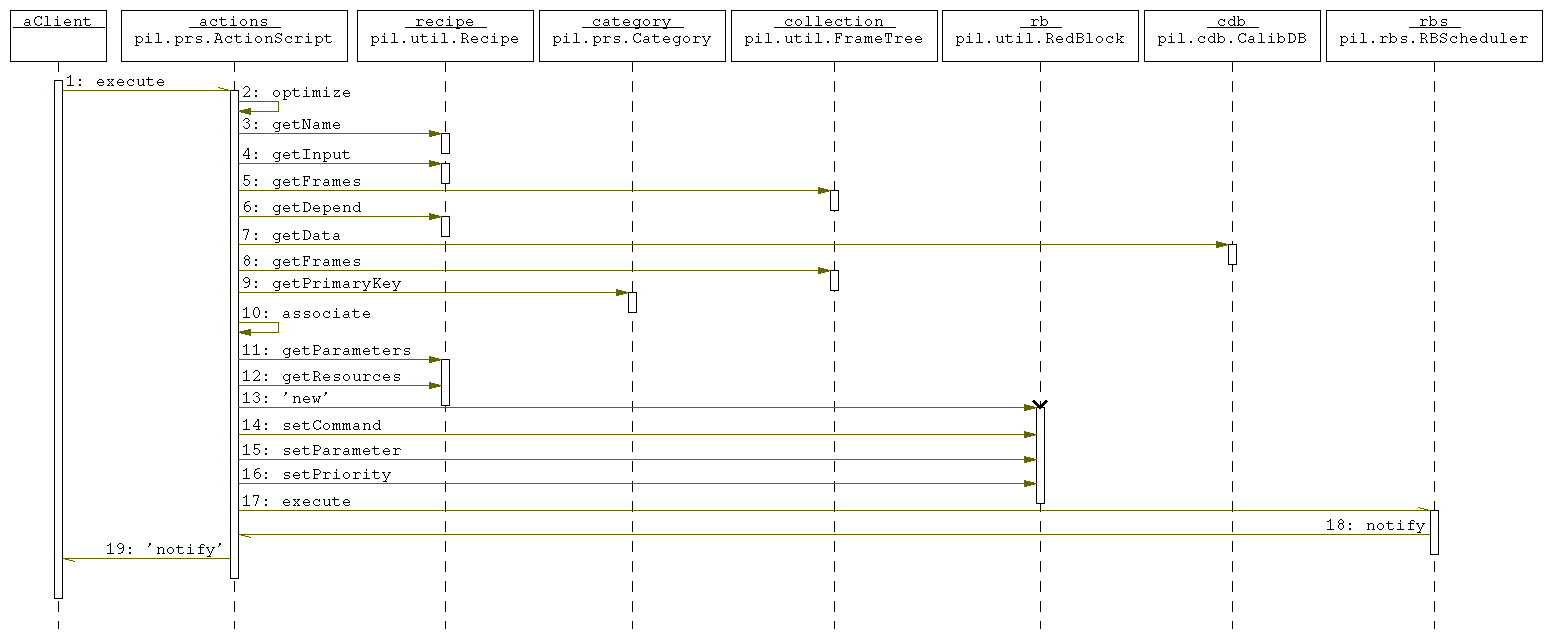

Interaction diagram Execution

Interaction diagram Initiation

Interaction diagram Product

Interaction diagram Reduction

Class diagram pil.rbs

Interaction diagram Execute

Interaction diagram Initiation

Class diagram pil.rsw

Interaction diagram Initiation

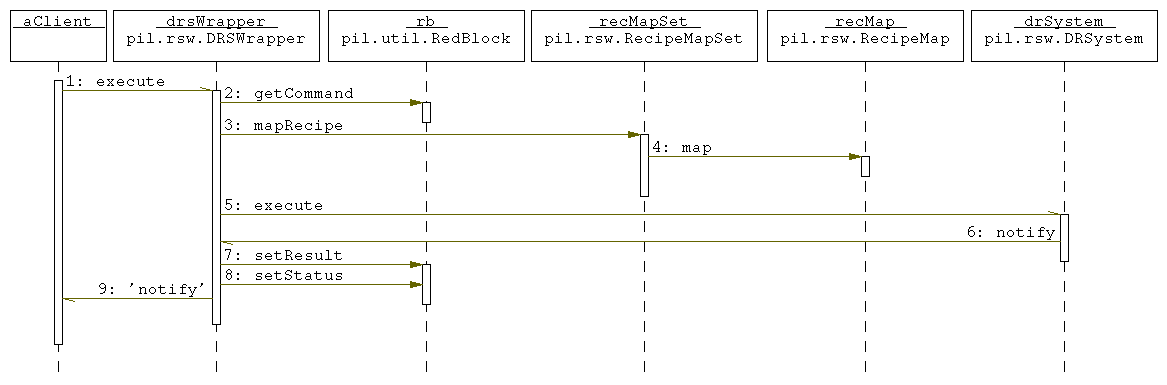

Interaction diagram execute

Class diagram pil.util

Diagrams Descriptions

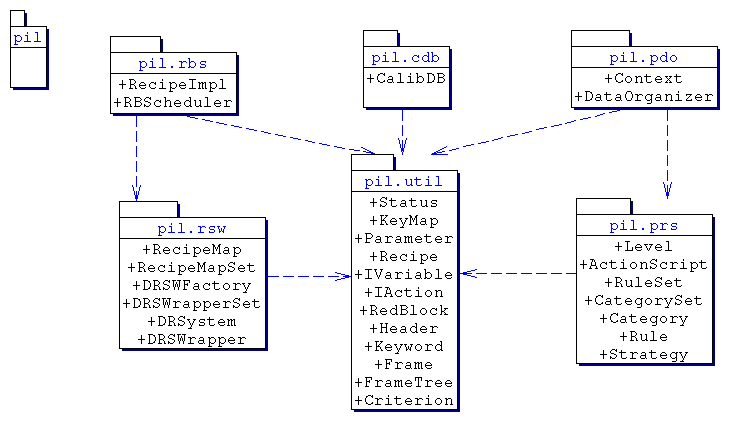

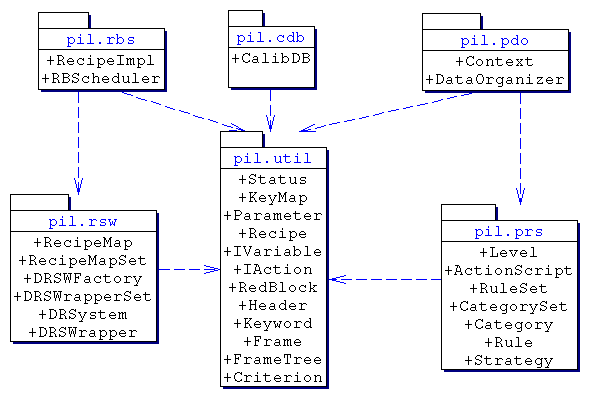

Class diagram pipeline

Default.Default

Packages

Package pil

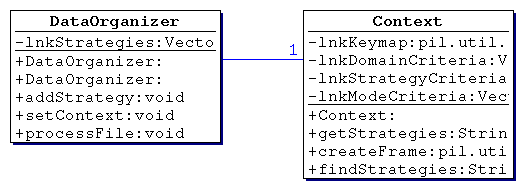

Package pil.pdo

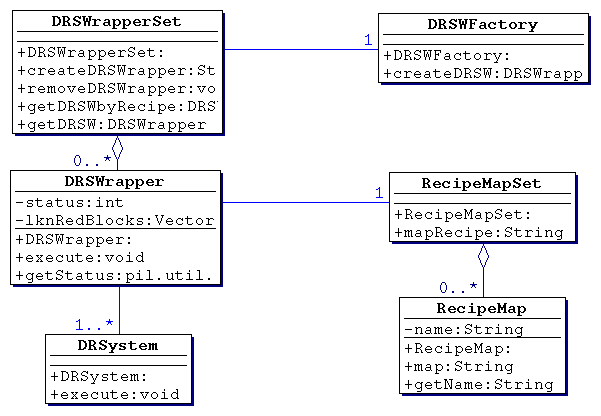

Package pil.rsw
Package pil.prs
Package pil.rbs
Package pil.cdb
Package pil.util

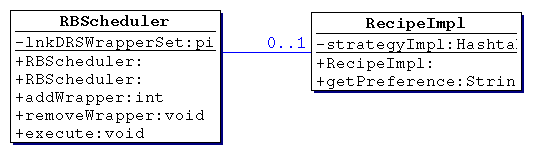

Class diagram pil.rbs

pil.rbs.Default.Default

Classes

Class RBScheduler
Class RecipeImpl

Declaration: public class pil.rbs.RBScheduler

Documentation: RBScheduler performs the high level administration of Data
Reduction Systems (DRS) available to reduce Reduction Blocks. It
finds the DRS which can reduce a RB and submits the RB to it
for execution. The DRS's are accessed through wrappers which
provide a homogeneous interface to any DRS.

Operations

public void execute(pil.util.RedBlock redBlock)

Documentation: Executes a Reduction Block by finding the appropriate system
and requesting it to actually perform the reductions.

public void removeWrapper(String name)

Documentation: Removes a DRS wrapper from the current list.

public int addWrapper(String system, String[] resources)

Documentation: Adds a DRS wrapper to the active systems.

public RBScheduler(File config)

Documentation: Class constructor specifying the configuration file.

public RBScheduler()

Documentation: Default class constructor.

Attributes

private pil.rsw.DRSWrapper lnkDRSWrapperSet

supplierCardinality: 0..*

Association links

RecipeImpl lnkRecImpl

supplierCardinality

0..1

Declaration: public class pil.rbs.RecipeImpl

Documentation: RecipeImpl defines the order of preference for executing a recipe by
specific Data Reduction Systems.

Operations

public String[] getPreference(String strategy, String recipe)

Documentation: Gets a list of systems in order of preference which can
execute the recipe of a given strategy.
return: Array of strings with names of Data Reduction Systems
in order or preference.

public RecipeImpl(File recImpl)

Documentation: Class constructor specifying the configuration file.

Attributes

: private Hashtable strategyImpl

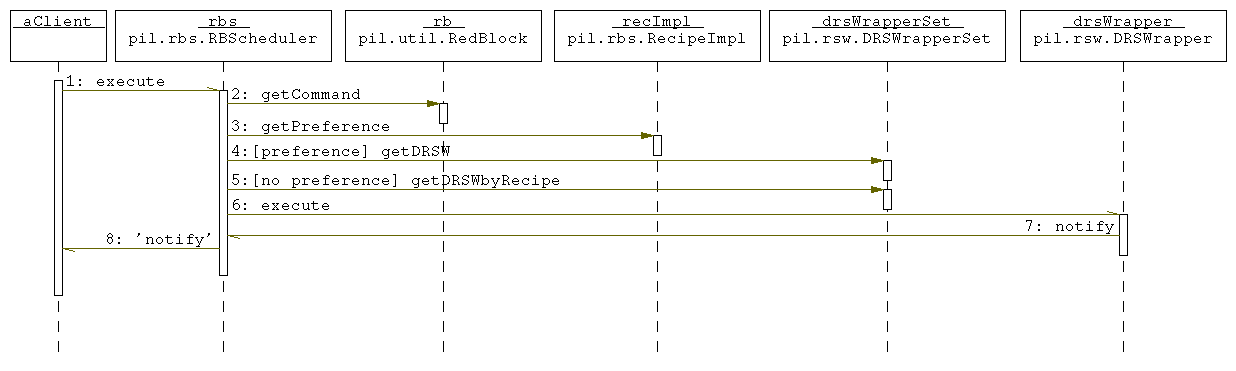

Interaction diagram Execute

pil.rbs.Execute.Execute

aClient

persistence: transitory
name: aClient
positions: 25,35,96,350,1

rbs ClassOfInstance RBScheduler

persistence: transitory
name: rbs
positions: 130,35,216,350,1

recImpl ClassOfInstance RecipeImpl

persistence: transitory
name: recImpl
positions: 569,35,206,350,1

drsWrapperSet ClassOfInstance DRSWrapperSet

persistence: transitory
name: drsWrapperSet
positions: 784,35,236,350,1

drsWrapper ClassOfInstance DRSWrapper

persistence: transitory
name: drsWrapper
positions: 1035,35,206,350,1

rb ClassOfInstance RedBlock

persistence: transitory
name: rb
positions: 360,35,196,350,1

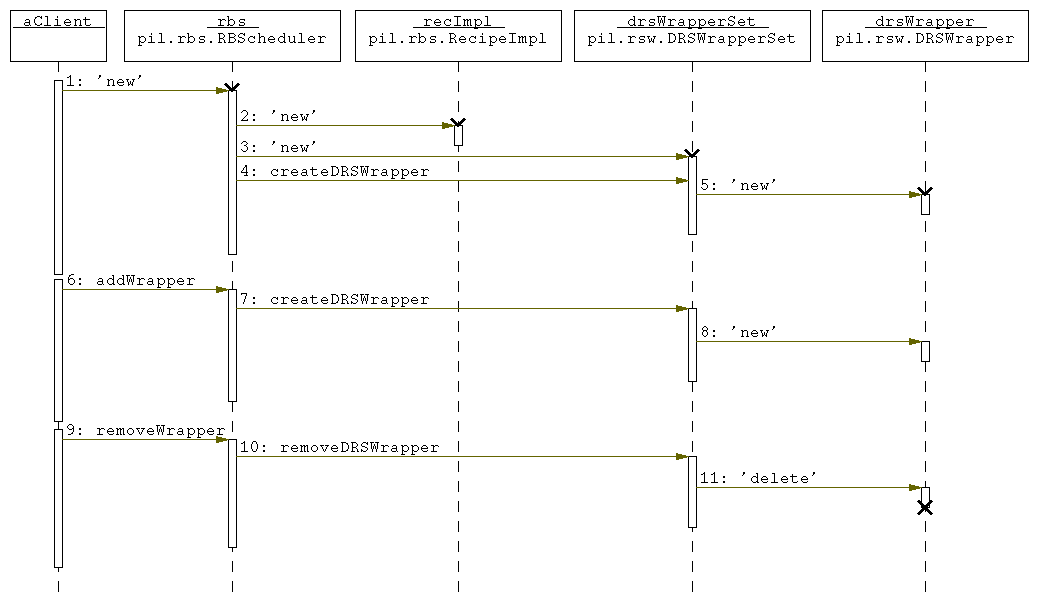

Interaction diagram Initiation

pil.rbs.Initiation.Initiation

Objects

aClient
rbs
recImpl
drsWrapper
drsWrapperSet

aClient

persistence: transitory
name: aClient
positions: 18,35,96,587,1

rbs ClassOfInstance RBScheduler

name: rbs
created
persistence: persistent
positions: 132,35,216,587,1

recImpl ClassOfInstance RecipeImpl

persistence: transitory
name: recImpl
created
positions: 363,35,206,587,1

drsWrapper ClassOfInstance DRSWrapper

persistence: transitory
name: drsWrapper
multipleInstance
created
destroyed
positions: 830,35,206,587,1

drsWrapperSet ClassOfInstance DRSWrapperSet

persistence: transitory
created
positions: 582,35,236,587,1
name: drsWrapperSet

Class diagram pil.cdb

pil.cdb.Default.Default

Classes

Class CalibDB

Declaration: public class pil.cdb.CalibDB

Documentation: CalibDb is a proxy class which provides access to calibration
data used by the pipeline. It either uses a Database server or
a simple directory structure to find the data. It returns strings
with URI addresses of the calibration files requested.

Operations

public void disconnect()

Documentation: Disconnects from the server. After this call, data cannot be
obtained and all request will return an empty string array.

public boolean connect(String database)

Documentation: Connects to a database server or directory.
param: database The database server or directory given as a
string with the URI address.
return: The status of the connection - true if established

public String[] getDataSince(String instrument, String type, String mode, Date date, Date since)

Documentation: Gets all calibration data fulfilling the criteria with a creation
data later than a specified time.
param: instrument The instrument for the calibration data
param: type The type of data such as CALIB or PHYS
param: mode The data mode such as IMAG or LSS
param: date The date for which the calibration should
should be found
param: since Calibration data only after this date are
retrieved
return: Array URI addresses as strings

public String[] getData(String instrument, String type, String mode, Date date)

Documentation: Gets all calibration data which fulfill the specifications
param: instrument The instrument for the calibration data
param: type The type of data such as CALIB or PHYS
param: mode The data mode such as IMAG or LSS
param: date The date for which the calibration should
should be found
return: Array with URI addresses

public CalibDB(String database)

Documentation: Class constructor specifying the database server or directory
containing the calibration files.
param: database The URI address.

public CalibDB()

Documentation: Default class constructor

Attributes

: private Object dbServer

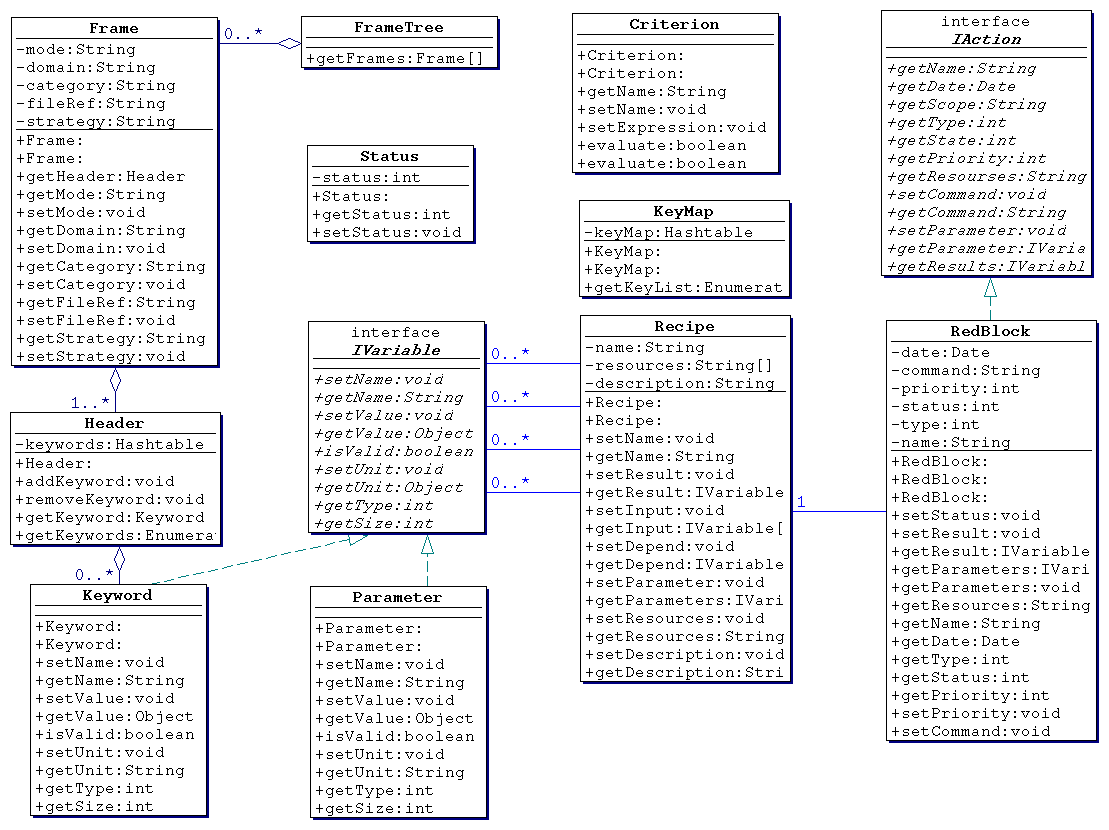

Class diagram pil.util

pil.util.Default.Default

Classes

Class Criterion
Class FrameTree
Class Frame
Class Keyword
Class Header
Class RedBlock
Class Recipe
Class Parameter
Class KeyMap
Class Status

Declaration: public class pil.util.Criterion

Documentation: Criterion defines a logical expression between internal
pipeline frame variable. It is used for classification and
association of frames.

Operations

public boolean evaluate(Header keys, Header ref)

Documentation: Computes the boolean value of the expression using a set of keys
and keys from a reference frame.
param: keys The header for which the expression is computed
param: ref The header for reference frame

public boolean evaluate(Header keys)

Documentation: Computes the boolean value of the expression using a set of keys.
param: keys The frame header for which the expression is computed

public void setExpression(String expr)

Documentation: Sets the boolean expression of the criterion.

public void setName(String name)

Documentation: Sets name of criterion.

public String getName()

Documentation: Gets name of criterion.

public Criterion(String name, String expr)

Documentation: Class contructor specifying name and boolean expression.

public Criterion()

Documentation: Default class constructor.

Declaration: public class pil.util.FrameTree extends DefaultMutableTreeModel

Documentation: FrameTree keeps a collection of Frames using a hierarchical
structure defined by the strategy levels.

Operations

public Frame[] getFrames(String[] level, String category)

Documentation: Gets set of frames at hierarchical level with given category.
param: level The hierarchical level for frames
param: category The category of frames

Aggregation links

Vector lnkFrames

associates

Frame
supplierCardinality

0..*

Declaration: public class pil.util.Frame implements TreeNode

Documentation: Frame is the class which gives a strategy specific view of
a data frame, typically a FITS file. It contains information
of the strategy, category, mode and domain associated to
frame. In addition, a link to the original data file is
kept. A Frame contains a set of headers corresponding to
FITS extension. Each of the headers has a set of keywords
associated to it. The keywords are translated from the
original FITS keywords using a strategy specific map.

Operations

public void setStrategy(String strategy)

Documentation: Sets strategy which created frame
tgSet

public String getStrategy()

Documentation: Gets strategy for which frame was created
tgGet

public void setFileRef(String fileRef)

Documentation: Sets URI address of original data file
tgSet

public String getFileRef()

Documentation: Gets URI address of original data file
tgGet

public void setCategory(String category)

Documentation: Sets frame category
tgSet

public String getCategory()

Documentation: Gets frame category of frame as defined by strategy
tgGet

public void setDomain(String domain)

Documentation: Sets data domain for frame
tgSet

public String getDomain()

Documentation: Gets data domain such as visual or infra-red
tgGet

public void setMode(String mode)

Documentation: Sets operational mode of frame
tgSet

public String getMode()

Documentation: Gets operational mode such as on-line or service
tgGet

public Header getHeader(int no)

Documentation: Gets header associated to frame
param: no The index of header

public Frame(Object fitsFile, KeyMap map)

Documentation: Class constructor specifying FITS file and keyword map.
param: fitsFile The data file in FITS format
param: map The map to translate FITS keywords to internal
variables

public Frame()

Documentation: Default Class constructor

Attributes

: private String strategy

private String fileRef

private String category

private String domain

private String mode

Aggregation links

Header[] lnkKeyset

supplierCardinality

1..*

Declaration: public class pil.util.Keyword implements IVariable

Documentation: Keyword defines a name/value pair. A unit may be associated to
the value which also has a type. Values consisting of an array of
values of the same type are supported.

Operations

public int getSize()

Documentation: Gets no. of single scalers in value for arrays.
For normal scaler values, one is returned.

public int getType()

Documentation: Gets data type of value field

public String getUnit()

Documentation: Gets unit for value of variable

public void setUnit(String unit)

Documentation: Sets unit of value field

public boolean isValid()

Documentation: Checks if variable has a valid value

public Object getValue()

Documentation: Gets value of variable

public void setValue(Object value)

Documentation: Sets value field of variable

public String getName()

Documentation: Gets name of variable

public void setName(String name)

Documentation: Sets name of variable

public Keyword(String name, Object value)

Documentation: Class constructor specifying name and value
param: name The name of the keyword
param: value The keyword value given as an object

public Keyword()

Documentation: Default Class constructor

Implementation links

to IVariable

Declaration: public class pil.util.Header

Documentation: Header is a class containing Header information of FITS prime unit
or its extensions. It keeps a set of keywords translated from
the FITS keywords using a strategy specific keyword map.

Operations

public Enumeration getKeywords()

Documentation: Gets enumeration to list of keywords in header

public Keyword getKeyword(String name)

Documentation: Gets keyword through its name

public void removeKeyword(Keyword key)

Documentation: Removes given keyword from header.

public void addKeyword(Keyword key)

Documentation: Adds keyword to header.

public Header()

Documentation: Default Class constructor

Attributes

: private Hashtable keywords

Aggregation links

Vector lnkKeywords

associates

Keyword
supplierCardinality

0..*

Declaration: public class pil.util.RedBlock implements IAction

Documentation: RedBlock defines a pipeline Reduction Block which is a special
data reduction action. It carries information of the recipe
to be executed and its parameters. It also kepts the results
of the execution.

Operations

public void setCommand(String command)

Documentation: Sets name of recipe to execute.
tgSet

public void setPriority(int priority)

Documentation: Sets execution priority.
tgSet

public int getPriority()

Documentation: Gets execution priority.
tgGet

public int getStatus()

Documentation: Gets status of Reduction Block.
tgGet

public int getType()

Documentation: Gets type of action.
tgGet

public Date getDate()

Documentation: Gets date of creation of Reduction Block.
tgGet

public String getName()

Documentation: Gets unique name of reduction block.
tgGet

public String[] getResources()

Documentation: Gets resources required for execution.

public void getParameters(IVariable[] parms)

Documentation: Sets parameters associated to recipe.

public IVariable[] getParameters()

Documentation: Gets parameters associated to recipe.

public IVariable[] getResult()

Documentation: Gets results of execution.

public void setResult(IVariable[] result)

Documentation: Sets results obtained through execution.

public void setStatus(int status)

Documentation: Sets status of Reduction Block.

public RedBlock(String name, Recipe recipe)

Documentation: Class constructor giving name and recipe.

public RedBlock(String name)

Documentation: Class constructor specifying its name.

public RedBlock()

Documentation: Default class constructor.

Attributes

: private String name

private int type

private int status

private int priority

private String command

private Date date

Association links

Recipe lnkRecipe

supplierCardinality

1

Implementation links

to IAction

Declaration: public class pil.util.Recipe

Documentation: Recipe defines a data reduction algorithm including its signature
and return values.

Operations

public String getDescription()

Documentation: Gets description of recipe.

public void setDescription(String desc)

Documentation: Sets description of recipe.

public String[] getResources()

Documentation: Gets resources required for the execution of recipe.

public void setResources(String[] resource)

Documentation: Sets resources required for the execution of recipe.

public IVariable[] getParameters()

Documentation: Gets list of general parameters needed for recipe.

public void setParameter(IVariable[] input)

Documentation: Sets list of general parameters needed for recipe.

public IVariable[] getDepend()

Documentation: Gets list of input parameters depending on input parameters.

public void setDepend(IVariable[] input)

Documentation: Sets list of input parameters depending on input parameters.

public IVariable[] getInput()

Documentation: Gets list of independent input parameters required by recipe.

public void setInput(IVariable[] input)

Documentation: Sets list of independent input parameters required by recipe.

public IVariable[] getResult()

Documentation: Gets list of result values which will be returned as result.

public void setResult(IVariable[] result)

Documentation: Sets list of result values which will be returned.

public String getName()

Documentation: Gets name of recipe

public void setName(String name)

Documentation: Sets name of recipe

public Recipe(String recipe)

Documentation: Class constructor specifying the persistent form of the recipe

public Recipe()

Documentation: Default class constructor

Attributes

: private String description

private String[] resources

private String name

Association links

IVariable[] parameters
IVariable[] depends
IVariable[] inputs
IVariable[] results

Declaration: public class pil.util.Parameter implements IVariable

Documentation: Parameter defines a name/value pair. A unit may be
associated to the value which also has a type. Values
consisting of an array of values of the same type are supported.

Operations

public int getSize()

Documentation: Gets no. of single scalers in value for arrays.
For normal scaler values, one is returned.

public int getType()

Documentation: Gets data type of value field

public String getUnit()

Documentation: Gets unit for value of variable

public void setUnit(String unit)

Documentation: Sets unit of value field

public boolean isValid()

Documentation: Checks if variable has a valid value

public Object getValue()

Documentation: Gets value of variable

public void setValue(Object value)

Documentation: Sets value field of variable

public String getName()

Documentation: Gets name of variable

public void setName(String name)

Documentation: Sets name of variable

public Parameter(String name, Object value)

Documentation: Class constructor giving name and value

public Parameter()

Documentation: Default class constructor

Implementation links

to IVariable

Declaration: public class pil.util.KeyMap

Documentation: KeyMap defines translation from extranal FITS keywords to internal
pipeline variables

Operations

public Enumeration getKeyList(String name)

Documentation: Gets list of FITS keywords which may be mapped to the given
internal variable.
param: name The name of internal pipeline keyword

public KeyMap(File keymap)

Documentation: Class constructor using file with the map specifications

public KeyMap()

Documentation: Default Class constructor

Attributes

: private Hashtable keyMap

Declaration: public class pil.util.Status

Documentation: Status keeps inforamation of state associated to
execution of actions.

Operations

public void setStatus(int status)

Documentation: Sets execution status.
tgSet

public int getStatus()

Documentation: Gets execution status.
tgGet

public Status()

Documentation: Default class constructor

Attributes

: private int status

Interfaces

Interface IAction
Interface IVariable

Declaration: public abstract interface pil.util.IAction

Documentation: IAction is an interface defining a generic data reduction action
for the Pipeline system.

Operations

IVariable[] getResults()

Documentation: Gets results created by action

IVariable getParameter(String name)

Documentation: Gets value of named parameter

void setParameter(String name, IVariable var)

Documentation: Sets value of named parameter

String getCommand()

Documentation: Gets name of command or recipe to execute action.

void setCommand(String name)

Documentation: Sets name of command or recipe to execute action.

String[] getResourses()

Documentation: Gets resourses required to execute action.

int getPriority()

Documentation: Gets priority of action.

int getState()

Documentation: Gets current state of action.

int getType()

Documentation: Gets type ofaction.

String getScope()

Documentation: Gets scope of action.

Date getDate()

Documentation: Gets date/time when action was created.

String getName()

Documentation: Gets name of action. This name is unique within the scope.

Declaration: public abstract interface pil.util.IVariable

Documentation: IVariable is an interface defining a generic data variable
for the Pipeline system.

Operations

int getSize()

Documentation: Gets no. of single scalers in value for arrays

int getType()

Documentation: Gets data type of value field

Object getUnit()

Documentation: Gets unit for value of variable

void setUnit(String unit)

Documentation: Sets unit of value field

boolean isValid()

Documentation: Checks if variable has a valid value

Object getValue()

Documentation: Gets value of variable

void setValue(Object value)

Documentation: Sets value field of variable

String getName()

Documentation: Gets name of variable

void setName(String name)

Documentation: Sets name of variable

Class diagram pil.prs

pil.prs.Default.Default

Classes

Class Strategy
Class Rule
Class Category
Class CategorySet
Class RuleSet
Class ActionScript
Class Level

Declaration: public class pil.prs.Strategy

Documentation: Strategy defines the reduction strategy to be followed for
the pipeline reduction of data frames. As part of this strategy
all data are classified in unique categories (using a CategorySet)
and grouped in to a hierarchical structure. A set of reduction
rules are specified to determine the action to be performed on a
set of data depending on their category, level, mode and domain.

Operations

protected Category classify(pil.util.Frame frame)

Documentation: Classifies frame according to strategy categories.
param: frame The frame to be classified
return: Category of frame

public pil.util.Frame[] getRecipeDepends(String recipe, pil.util.Frame[] input)

Documentation: Gets list of all calibration frame which can be used for a
recipe with a given set of input frames.
param: recipe The recipe name
param: input The frames to be used as input for recipe
return: Array of frames which can be used for calibration

public pil.util.Frame[] getRecipeInputs(String recipe)

Documentation: Gets list of all frames in the strategy frame collection which
can be used as input for a recipe.
param: recipe The recipe name
return: Array of frames which can be used as input

public String[] getRecipesByCategory(String category)

Documentation: Gets list of all recipes which can produce a specified category.
param: category The name of the category
return: Array of recipe identifiers

public String[] getCategories(String type)

Documentation: Gets list of all categories defined by strategy.
param: type The type of categories such as RAW, CALIB or PHYS
return: Array of category identifiers

public ActionScript getActionScript(pil.util.Frame[] coll)

Documentation: Gets actions to be performed to process a set of frames.
param: coll The set of frames to be processed
return: The actions which should be performed to reduce
the set of frames

public pil.util.Frame createFrame(Object fitsFile, String mode, String domain)

Documentation: Creates frame using strategy specific keyword map.
The frame is added to the strategy collection of frames.
param: fitsFile The FITS file object to be mapped
param: mode The operational mode of file
param: domain The observation domain of file
return: The frame mapped using strategy. If no
category can be found null is returned.

public Strategy(File config)

Documentation: Class constructor specifying its configuration file.

Attributes

private pil.util.FrameTree lnkFrameColl

private pil.cdb.CalibDB lnkCalibDB

private pil.util.KeyMap lnkKeyMap

supplierCardinality: 1

Association links

Level lnkGrouping

supplierCardinality

1
CategorySet lnkCategories

supplierCardinality

1

Declaration: public class pil.prs.Rule

Documentation: Rule defines reduction actions required to pipeline process
a set of frames.

Operations

public ActionScript getActionScript(pil.util.Frame[] coll)

Documentation: Gets actions to be execution for a set of frames to reduce
them.
return: Action script which specifies reduction steps.

public Rule()

Documentation: Default class constructor.

Aggregation links

Vector lnkScripts

associates

ActionScript
supplierCardinality

1..*

Declaration: public class pil.prs.Category

Documentation: Category defines a category of frames within a reduction strategy.
A category has a unique name and a criterion defined as a boolean
expression of frame keywords which is true for frames belonging to
it. Further, it defined a primary key used for association of
calibration data and a list of required keywords. The structure
of the frame may also be specified.

Operations

public void setPrimaryKey(pil.util.IVariable[] primaryKey)

Documentation: Sets primary key for category.
tgSet

public pil.util.IVariable[] getPrimaryKey()

Documentation: Gets primary key used for association of calibration frames.
tgGet

public String getName()

Documentation: Gets name of category.
tgGet

public void setKeys(pil.util.IVariable[] keys)

Documentation: Sets keys which must be defined for frame belonging to
category.
tgSet

public boolean belongsTo(pil.util.Frame frame)

Documentation: Determines if a frame belongs to the category.
return: True if frame belongs to category.

public Category(String name, pil.util.Criterion criterion)

Documentation: Class constructor specifying its name and criterion.

Attributes

: private pil.util.Criterion criterion

private pil.util.IVariable[] primaryKey

private String name

private pil.util.IVariable[] keys

Declaration: public class pil.prs.CategorySet

Documentation: CategorySet contains collection of Category objects for a
reduction strategy. It is used to classify frame into unique
categories within the strategy.

Operations

public Category getCategory(String name)

Documentation: Gets category by its name.

public Category classify(pil.util.Frame frame)

Documentation: Classifies frame into a category defined by strategy.
return: The category object for frame. If no category
was found null is returned.

public CategorySet(File categories)

Documentation: Class constructor specifying the configuration file.

Aggregation links

Vector lnkCategories

associates

Category
supplierCardinality

0..*

Declaration: public class pil.prs.RuleSet

Documentation: RuleSet is a collection of reduction rules for a strategy.
It is used to locate the reduction rule for a given level.

Operations

public Rule findRule(pil.util.Frame[] frames)

Documentation: Finds reduction rule associated to a set of frames.

public RuleSet(File rules)

Documentation: Class constructure specifying configuration file.

Aggregation links

Vector lnkUnnamed

associates

Rule
supplierCardinality

0..*

Declaration: public class pil.prs.ActionScript

Documentation: ActionScript specifies set of reduction actions which must be
executed to perform pipeline processing of a set of frames.

Operations

private void optimize()

Documentation: Optimizes sequence of actions define by script.

private boolean associate(pil.util.Frame frame, pil.util.Frame ref)

Documentation: Associates calibration frames to input frames specified
for recipe.

public void execute()

Documentation: Executes actions specified by script. The script is
first optimized after which all actions are analyzed and
converted into specific Reduction Blocks. The Reduction
Blocks are then send to the Reduction Block Scheduler for
execution.

public ActionScript(String script)

Documentation: Class constructor giving the script.

Declaration: public class pil.prs.Level

Documentation: Level defines hierarachical location of frame in strategy.

Operations

protected void setLevelKey(String levelKey)

Documentation: Sets name of keyword used to identify node at this level.
tgSet

protected void setLevelCriterion(pil.util.Criterion levelCriterion)

Documentation: Sets criterion for hierarchical levels of frames in to a
tree.
param: levelCriterion The criterion for this hierarchical level
tgSet

private boolean isLeaf()

Documentation: Check if level is bottom level that is with no children.

public RuleSet getRuleSet(String[] level)

Documentation: Gets RuleSet corresponding to specific level.

public String[] findLevel(pil.util.Frame frame)

Documentation: Determines hierarchical location of frame within
level structure of strategy. A null is returned if no level can
be found due criteria are not fulfilled or identifier keyword is
not present.
return: Array of strings defining the hierachical level within
stratefy frame collection

public Level()

Documentation: Default class constructor

Attributes

: private pil.util.Criterion levelCriterion

private String levelKey

Association links

RuleSet lnkRuleSet

supplierCardinality

1

Aggregation links

Level lnkLevel

associates

Level
supplierCardinality

0..1

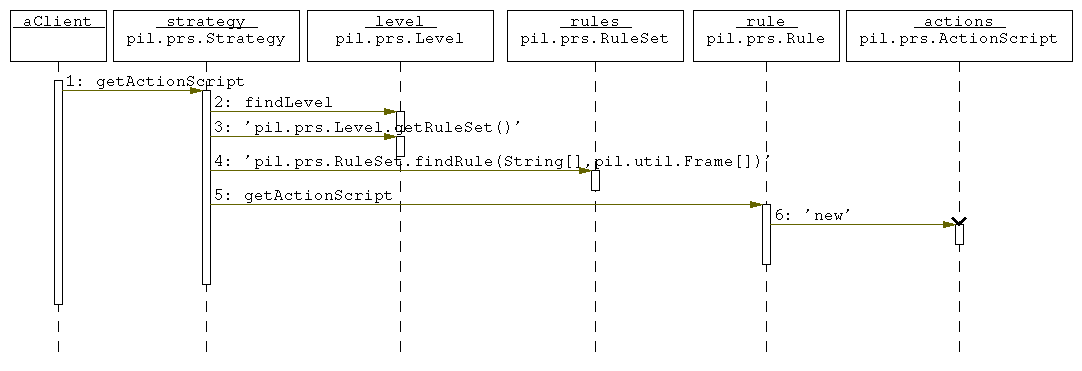

Interaction diagram Reduction

pil.prs.Reduction.Reduction

Objects

aClient
strategy
actions
rules
rule
level

aClient

persistence: transitory
name: aClient
positions: 4,35,96,350,1

strategy ClassOfInstance Strategy

persistence: transitory
name: strategy
positions: 107,35,186,350,1

actions ClassOfInstance ActionScript

persistence: transitory
name: actions
created
positions: 840,35,226,350,1

rules ClassOfInstance RuleSet

persistence: transitory
name: rules
positions: 501,35,176,350,1

rule ClassOfInstance Rule

persistence: transitory
name: rule
positions: 687,35,146,350,1

level ClassOfInstance Level

persistence: transitory
name: level
positions: 301,35,186,350,1

Interaction diagram Product

pil.prs.Product.Product

Objects

aClient
strategy
recipe
collection
cdb
rb
rbs

aClient

persistence: transitory
name: aClient
positions: 4,35,96,524,1

strategy ClassOfInstance Strategy

persistence: transitory
name: strategy
positions: 105,35,186,524,1

recipe ClassOfInstance Recipe

persistence: transitory
name: recipe
positions: 298,35,176,524,1

collection ClassOfInstance FrameTree

persistence: transitory
name: collection
positions: 481,35,206,524,1

cdb ClassOfInstance CalibDB

persistence: transitory
name: cdb
positions: 694,35,176,524,1

rb ClassOfInstance RedBlock

persistence: transitory
name: rb
created
positions: 879,35,196,524,1

rbs ClassOfInstance RBScheduler

persistence: transitory
name: rbs
positions: 1082,35,216,524,1

Interaction diagram Execution

pil.prs.Execution.Execution

Objects

aClient
actions
rb
recipe
collection
cdb
rbs
category

aClient

persistence: transitory
name: aClient
positions: 7,35,96,618,1

actions ClassOfInstance ActionScript

persistence: transitory
name: actions
positions: 118,35,226,618,1

rb ClassOfInstance RedBlock

persistence: transitory
name: rb
created
positions: 939,35,196,618,1

recipe ClassOfInstance Recipe

persistence: transitory
name: recipe
positions: 354,35,176,618,1

collection ClassOfInstance FrameTree

persistence: transitory
name: collection
positions: 728,35,206,618,1

cdb ClassOfInstance CalibDB

persistence: transitory
name: cdb
positions: 1141,35,176,618,1

rbs ClassOfInstance RBScheduler

persistence: transitory
name: rbs
positions: 1323,35,216,618,1

category ClassOfInstance Category

persistence: transitory
name: category
positions: 536,35,0,618,1

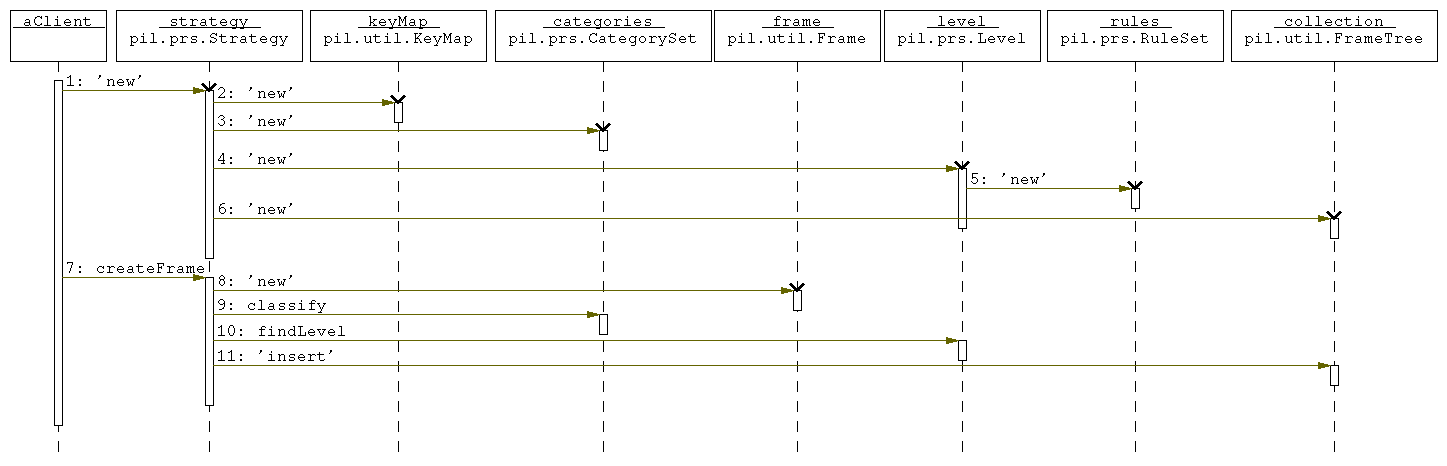

Interaction diagram Initiation

pil.prs.Initiation.Initiation

Objects

aClient
strategy
keyMap
categories
rules
collection
frame
level

aClient

persistence: transitory
name: aClient
positions: 14,35,96,445,1

strategy ClassOfInstance Strategy

persistence: transitory
name: strategy
created
positions: 120,35,186,445,1

keyMap ClassOfInstance KeyMap

persistence: transitory
name: keyMap
created
positions: 314,35,176,445,1

categories ClassOfInstance CategorySet

persistence: transitory
name: categories
created
positions: 499,35,126,445,1

rules ClassOfInstance RuleSet

persistence: transitory
name: rules
created
positions: 1051,35,176,445,1

collection ClassOfInstance FrameTree

persistence: transitory
name: collection
created
positions: 1235,35,206,445,1

frame ClassOfInstance Frame

persistence: transitory
name: frame
created
positions: 718,35,0,445,1

level ClassOfInstance Level

persistence: transitory
name: level
created
positions: 888,35,0,445,1

Class diagram pil

pil.Default.Default

Packages

Package pil.pdo
Package pil.rsw
Package pil.prs
Package pil.rbs
Package pil.cdb
Package pil.util

UseCase diagram UseCase11

pil.UseCase11.UseCase11

Usecases

startup CalibDB
shutdown CalibDB
submit calibration data

UseCase startup CalibDB Documentation The Calibration database server is started.. The configuration is read and connection to a DB engine is established after which the Calibration Database server is activated. name startup CalibDB

Communications

to administrator

UseCase shutdown CalibDB Documentation Calibration Database server is terminated after all pending requests have been served and resources be freed. name shutdown CalibDB

Communications

to administrator

UseCase submit calibration data Documentation Calibration data are submitted to the Calibration Database. Type and format of the data are checked. The data are then copied to the database and internal tables updated. name submit calibration data

Actors

user
administrator

Actor user

name: user

Communication

shutdown CalibDB
startup CalibDB

Actor administrator

name: administrator

Communication

submit calibration data

UseCase diagram UseCase1

pil.UseCase1.UseCase1

Usecases

startup DataOrganizer
startup RBScheduler
shutdown RBScheduler
shutdown DataOrganizer
retrieve calibration data

UseCase startup DataOrganizer Documentation The Data Organizer server is started. This involves reading its configuration and initiating reduction strategies and frame collection as specified. If required, a connection to the CalibDB server is opened to retrieve data. Calibration data are obtained and added to the appropriate frame collections. Finally, the DO server is started and ready to receive requests. name startup DataOrganizer

Communications

to administrator

UsesRelationships

to retrieve calibration data

UseCase startup RBScheduler Documentation The Reduction Block Scheduler is started. After reading its configuration, a requested set of Reduction Systems are started and connected to the Scheduler. The Scheduler is made active ready to receive requests. name startup RBScheduler

Communications

to user
to administrator

UsesRelationships

to retrieve calibration data

UseCase shutdown RBScheduler Documentation The Reduction Block Scheduler is terminated after it has finished processing all pending requests and freed its resources. name shutdown RBScheduler

Communications

to user
to administrator

UseCase shutdown DataOrganizer Documentation The Data Organizer server is terminated after all outstanding requests have been served and resources released. name shutdown DataOrganizer

Communications

to user
to administrator

UseCase retrieve calibration data Documentation The request for retrieval of data from the Calibration Database is converted to a Database specific query and send to the DB engine. The result of the query is translated and returned. name retrieve calibration data

Actors

user
administrator

Actor user

name: user

Communication

startup DataOrganizer

Actor administrator

name: administrator

UseCase diagram UseCase2

pil.UseCase2.UseCase2

Usecases

reduce frames
find strategy
classify frame
create RB's
execute RB's
generate data product
find recipe
find frame of category
associate frames

UseCase reduce frames Documentation A set of frames is reduced according to rule defined by a given strategy. The frames are first associated to a reduction strategy and then classified by its rules. The specific reduction recipes to be applied are given by the strategy. Corresponding to the recipes, Reduction Blocks are created and executed. The results are returned to the client. name reduce frames

UsesRelationships

to find strategy
to classify frame
to create RB's
to execute RB's

UseCase find strategy Documentation The reduction strategy applicable to a given frame is found by checking the frame header information and operational mode. name find strategy

UseCase classify frame Documentation A frame is classified according to rules given a reduction strategy and its category is returned. name classify frame

UseCase create RB's Documentation A set of Reduction Blocks is created based on the recipes specified by rules for a given frame category of a strategy. For each recipe, the signature is retrieved and calibration frames of the specified categories are found. These frames are then associated to the frames to be reduced to identify proper matches. With the information, the Reduction Blocks are created and returned. name create RB's

UsesRelationships

to associate frames
to find frame of category

UseCase execute RB's Documentation A set of Reduction Blocks are executed by submitting them to the Reduction Block Scheduler. It identifies the appropriate Reduction System for each RB and converts the RB to a system specific script which then is forwarded to the reduction system for actual execution. The results are obtained from the Reduction System and returned to the client. name execute RB's

UseCase generate data product Documentation A specified data product is generated for a given strategy. First all possible recipe which can make the product are identified after which data required for the processing are found. This is done by finding frame of the appropriate categories and associating calibration data to them. Finally, Reduction Blocks are created and executed. The results are returned to the client. name generate data product

UsesRelationships

to find recipe
to create RB's
to find frame of category
to execute RB's
to associate frames

UseCase find recipe Documentation All recipes which can produce a specific data product are found by scanning the recipe signatures. name find recipe

UseCase find frame of category Documentation All frame of a given category are found by searching the frame collections specified. name find frame of category

UseCase associate frames Documentation Frames of a given category are associated to another frame by comparing the primary key defined in the respective categories. First all frames of the given category are found after which the comparison is made. name associate frames

ExtendsRelationships

to find frame of category

Actors

user

Actor user

name: user

Communication

generate data product
reduce frames

Class diagram pil.pdo

pil.pdo.Default.Default

Classes

Class DataOrganizer
Class Context

Declaration: public class pil.pdo.DataOrganizer

Documentation: DataOrganizer is the class responsible to the high level
administration of data files to be processed by the pipeline. It
determines the context (such as operational mode and observing
domain) for the data and identifies which reduction strategies
available can perform the actual processing. All strategy
which can reduce a file are used in the order specified.

Operations

public void processFile(File file)

Documentation: Processes data file. The mode and domain or the file
is found by using the context definition which also
determines the reduction strategies able to process it.
Each or these strategies is then used to do the actual
reduction of the file.
param: file The file in FITS format to be processed

public void setContext(File context)

Documentation: Sets context used by dataorganizer.
param: context The configuration file for context

public void addStrategy(pil.prs.Strategy strategy)

Documentation: Adds reduction strategy.

public DataOrganizer(File context)

Documentation: Class constructor specifying its context
param: context The configuration file for context

public DataOrganizer()

Documentation: Default class constructor

Attributes

private Vector lnkStrategies

associates: pil.prs.Strategy
supplierCardinality: 1..*

Association links

Context lnkContext

supplierCardinality

1

Declaration: public class pil.pdo.Context

Documentation: Context specifies the opeartional mode and observation domain
of data files. Further, it defines the criteria after which
a given data file should be processed by a reduction strategy.
Header information of data files are accessed through a keyword map.

Operations

public String[] findStrategies(pil.util.Frame frame)

Documentation: Finds all strategies which should be used for processing of
frame. The frame must be cerated by the same context
with the same keyword map.
param: frame The frame for which reduction strategies
should be found
return: Array of strategy identifiers

public pil.util.Frame createFrame(Object fitsFile)

Documentation: Creates frame object from a FITS file using context
keyword map. Mode and domain are stored in frame.
param: fitsFile The FITS file which context should be found
return: Frame with mode and domain attributes

public String[] getStrategies()

Documentation: Gets all reduction strategies specified by the context.
return: Array of strategy identifiers

public Context(File context)

Documentation: Class constructor specifying configuration file

Attributes

private Vector lnkModeCriteria

associates: pil.util.Criterion
supplierCardinality: 0..*

private Vector lnkStrategyCriteria

associates: pil.util.Criterion

private Vector lnkDomainCriteria

associates: pil.util.Criterion

private pil.util.KeyMap lnkKeymap

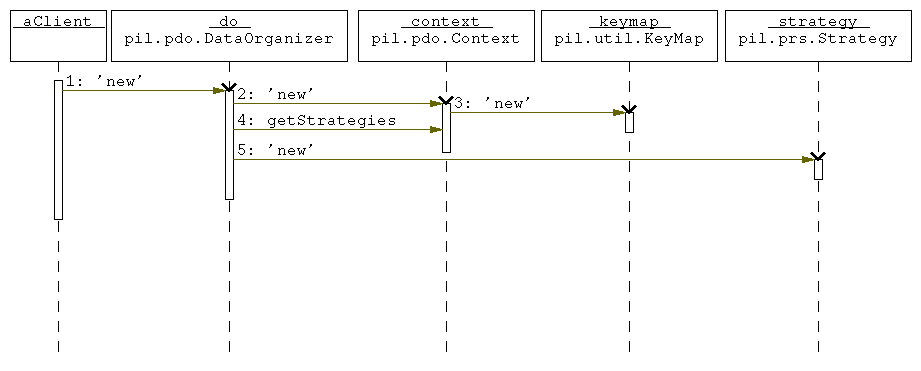

Interaction diagram initiation

pil.pdo.initiation.initiation

Objects

aClient
do
context
strategy
keymap

aClient

persistence: transitory
name: aClient
positions: 8,35,96,350,1

do ClassOfInstance DataOrganizer

persistence: transitory
name: do
created
positions: 109,35,236,350,1

context ClassOfInstance Context

persistence: transitory
name: context
created
positions: 356,35,176,350,1

strategy ClassOfInstance Strategy

persistence: transitory
name: strategy
created
positions: 723,35,186,350,1

keymap ClassOfInstance KeyMap

persistence: transitory
name: keymap
created
positions: 539,35,176,350,1

Interaction diagram Reduction

pil.pdo.Reduction.Reduction

Objects

aClient
do
context
strategy
rbs
frame
actions

aClient

persistence: transitory
name: aClient
positions: 12,35,96,458,1

do ClassOfInstance DataOrganizer

persistence: transitory
name: do
positions: 119,35,236,458,1

context ClassOfInstance Context

persistence: transitory
name: context
positions: 363,35,176,458,1

strategy ClassOfInstance Strategy

persistence: transitory
name: strategy
positions: 717,35,186,458,1

rbs ClassOfInstance RBScheduler

persistence: transitory
name: rbs
positions: 1141,35,216,458,1

frame ClassOfInstance Frame

persistence: transitory
name: frame
created
positions: 544,35,0,458,1

actions ClassOfInstance ActionScript

persistence: transitory
name: actions
created
positions: 909,35,226,458,1

Class diagram pil.rsw

pil.rsw.Default.Default

Classes

Class DRSWrapper
Class DRSystem
Class DRSWrapperSet
Class DRSWFactory
Class RecipeMapSet
Class RecipeMap

Declaration: public class pil.rsw.DRSWrapper

Documentation: DRSWrapper provides an adaptor to a specific Data Reduction System.
It keeps the mapping of abstract Reduction Block specification into
scripts for the DRS.

Operations

public pil.util.Status getStatus()

Documentation: Gets status of wrapper.
tgGet

public void execute(pil.util.RedBlock redBlock)

Documentation: Executes Reduction Block by wrapper DRS.

public DRSWrapper(String system, File recipeMap)

Documentation: Class constructor specifying Data Reduction System and
associated mapping of recipes.

Attributes

private Vector lknRedBlocks

associates: pil.util.RedBlock

private int status

Association links

RecipeMapSet lnkRecipeMap

supplierCardinality

1
DRSystem lnkSystem

supplierCardinality

1..*

Declaration: public class pil.rsw.DRSystem

Documentation: DRSystem is an interface class which connects to a specific
Data Reduction System. The class handles all specific
communication to the DRS.

Operations

public void execute(String script)

Documentation: Executes script in specific DRS.

public DRSystem()

Documentation: Default class constructor.

Declaration: public class pil.rsw.DRSWrapperSet

Documentation: DRSWrapperSet contains a collection of active Data Reduction
Systems represented through wrappers. It can create new
wrappers using a facroty class.

Operations

public DRSWrapper getDRSW(String name)

Documentation: Gets DRS wrapper with given name.

public DRSWrapper getDRSWbyRecipe(String recName)

Documentation: Gets DRS wrapper which is willing to execute given recipe.

public void removeDRSWrapper(String name)

Documentation: Removes name wrapper.

public String createDRSWrapper(String system, String resource)

Documentation: Creates new wrapper for specific Data Reduction System with
give resources using Fractory.
return: Name of new DRS wrapper.

public DRSWrapperSet()

Documentation: Default class constructor.

Association links

DRSWFactory lnkFactory

supplierCardinality

1

Aggregation links

Vector lnkWrappers

associates

DRSWrapper
supplierCardinality

0..*

Declaration: public class pil.rsw.DRSWFactory

Documentation: DRSWFacroty is a factory class which creates new Data Reduction
System wrapper after a set of specifications.

Operations

public DRSWrapper createDRSW(String system, String version, String resource)

Documentation: Creates new DRSWrapper object for specific DRS.
param: system The name of the Data Reduction System.
param: version The version of the DRS.
param: resource The resources required for the DRS instance.
return: DRSWrapper instance or null if the wrapper
could not be created.

public DRSWFactory()

Documentation: Default class constructor.

Declaration: public class pil.rsw.RecipeMapSet

Documentation: RecipeMapSet is a collection of all recipe maps for a specific
Data Reduction System. The class maps a Reduction Block to a
script by first finding the map of the recipe and asking it to
create the script.

Operations

public String mapRecipe(pil.util.RedBlock rb)

Documentation: Maps Reduction Block into DRS specific script.
return: String containing script.

public RecipeMapSet()

Documentation: Default class constructor.

Aggregation links

Hashtable lnkMaps

associates

RecipeMap
supplierCardinality

0..*

Declaration: public class pil.rsw.RecipeMap

Documentation: RecipeMap defines mapping of abstract recipe to system
specific script.

Operations

public String getName()

Documentation: Gets name of recipe.
tgGet

public String map(pil.util.RedBlock rb)

Documentation: Maps Reduction Block into system specific script.

public RecipeMap(File map)

Documentation: Class constructor specifying configuration file.

Attributes

: private String name

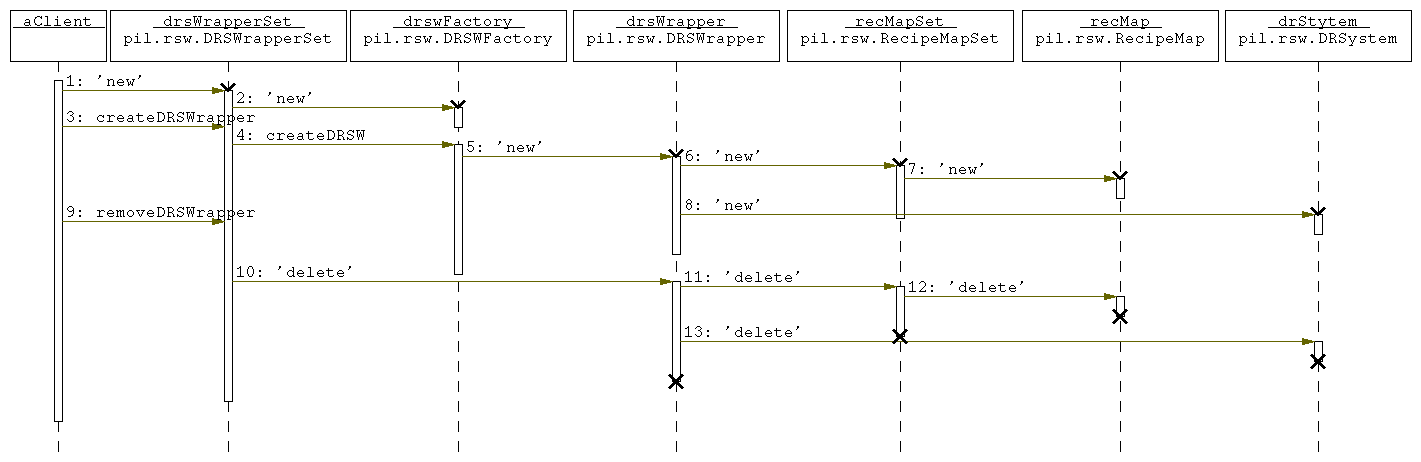

Interaction diagram Initiation

pil.rsw.Initiation.Initiation

Objects

aClient
drsWrapperSet
drswFactory
drsWrapper
recMap
recMapSet
drStytem

aClient

persistence: transitory
name: aClient
positions: 18,35,96,441,1

drsWrapperSet ClassOfInstance DRSWrapperSet

persistence: transitory
name: drsWrapperSet
created
positions: 118,35,236,441,1

drswFactory ClassOfInstance DRSWFactory

persistence: transitory
name: drswFactory
created
positions: 358,35,216,441,1

drsWrapper ClassOfInstance DRSWrapper

persistence: transitory
name: drsWrapper
created
destroyed
positions: 581,35,206,441,1

recMap ClassOfInstance RecipeMap

persistence: transitory
name: recMap
multipleInstance
created
destroyed
positions: 1030,35,196,441,1

recMapSet ClassOfInstance RecipeMapSet

persistence: transitory
name: recMapSet
created
destroyed
positions: 795,35,226,441,1

drStytem ClassOfInstance DRSystem

persistence: transitory
name: drStytem
created
destroyed
positions: 1233,35,186,441,1

Interaction diagram execute

pil.rsw.execute.execute

Objects

aClient
drsWrapper
recMapSet
recMap
drSystem
rb

aClient

persistence: transitory
positions: 9,35,96,364,1
name: aClient

drsWrapper ClassOfInstance DRSWrapper

persistence: transitory
name: drsWrapper
positions: 112,35,206,364,1

recMapSet ClassOfInstance RecipeMapSet

persistence: transitory
name: recMapSet
positions: 530,35,226,364,1

recMap ClassOfInstance RecipeMap

persistence: transitory
name: recMap
positions: 766,35,196,364,1

drSystem ClassOfInstance DRSystem

persistence: transitory
name: drSystem
positions: 970,35,186,364,1

rb ClassOfInstance RedBlock

persistence: transitory
name: rb
positions: 327,35,196,364,1

Project pipeline.tpr

Diagrams List

Class diagram pipeline

Class diagram pil

UseCase diagram UseCase1

UseCase diagram UseCase11

UseCase diagram UseCase2

Class diagram pil.cdb

Class diagram pil.pdo

Interaction diagram Reduction

Interaction diagram initiation

Class diagram pil.prs

Interaction diagram Execution

Interaction diagram Initiation

Interaction diagram Product

Interaction diagram Reduction

Class diagram pil.rbs

Interaction diagram Execute

Interaction diagram Initiation

Class diagram pil.rsw

Interaction diagram Initiation

Interaction diagram execute

Class diagram pil.util

Diagrams Descriptions

Class diagram pipeline

Packages

Class diagram pil.rbs

Classes

RBScheduler

Declaration

Documentation

Operations

public void execute(pil.util.RedBlock redBlock)

Documentation

public void removeWrapper(String name)

Documentation

public int addWrapper(String system, String[] resources)

Documentation

public RBScheduler(File config)

Documentation

public RBScheduler()

Documentation

Attributes

private pil.rsw.DRSWrapper lnkDRSWrapperSet

supplierCardinality

Association links

supplierCardinality

RecipeImpl

Declaration

Documentation

Operations

public String[] getPreference(String strategy, String recipe)

Documentation

return

public RecipeImpl(File recImpl)

Documentation

Attributes

private Hashtable strategyImpl

Interaction diagram Execute

Objects

aClient

persistence

name

positions

rbs ClassOfInstance RBScheduler

persistence

name

positions

recImpl ClassOfInstance RecipeImpl

persistence

name

positions

drsWrapperSet ClassOfInstance DRSWrapperSet

persistence

name

positions

drsWrapper ClassOfInstance DRSWrapper

persistence

name

positions
