| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | qc_SCI_PAW.sh | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- 2006-10-11 2.0 -- 2008-06-10 2.1 -- 2010-01-28 | ||||||||||||||||||||||||||||
| SYNTAX | SHELL | ||||||||||||||||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/STD/$DATE as: CALL_SYNTAX STD 0000.fits &&qc_SCI_PAW -a $AB -u vircam -e 0 -level 2 2\>\&1 \> $DFS_LOG/$AB.qclog&& | ||||||||||||||||||||||||||||
| INSTRUMENT | VIRCAM | ||||||||||||||||||||||||||||
| RAWTYPE | SCI_PAW | ||||||||||||||||||||||||||||
| PURPOSE |
quality control script for VIRCAM science product frames level 0 : Reads QC parameters from product fits headers and writes them into the QC1 DB (using -level 0). level 0 : generate plot with FWHM=f(r) | ||||||||||||||||||||||||||||
| PROCINPUT |
-a AB -e extension -level level | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vircam_scipaw | ||||||||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | ||||||||||||||||||||||||||||
| QC1PAGE | trending | associated documentation: none | ||||||||||||||||||||||||||||
| QC1PLOTS top |

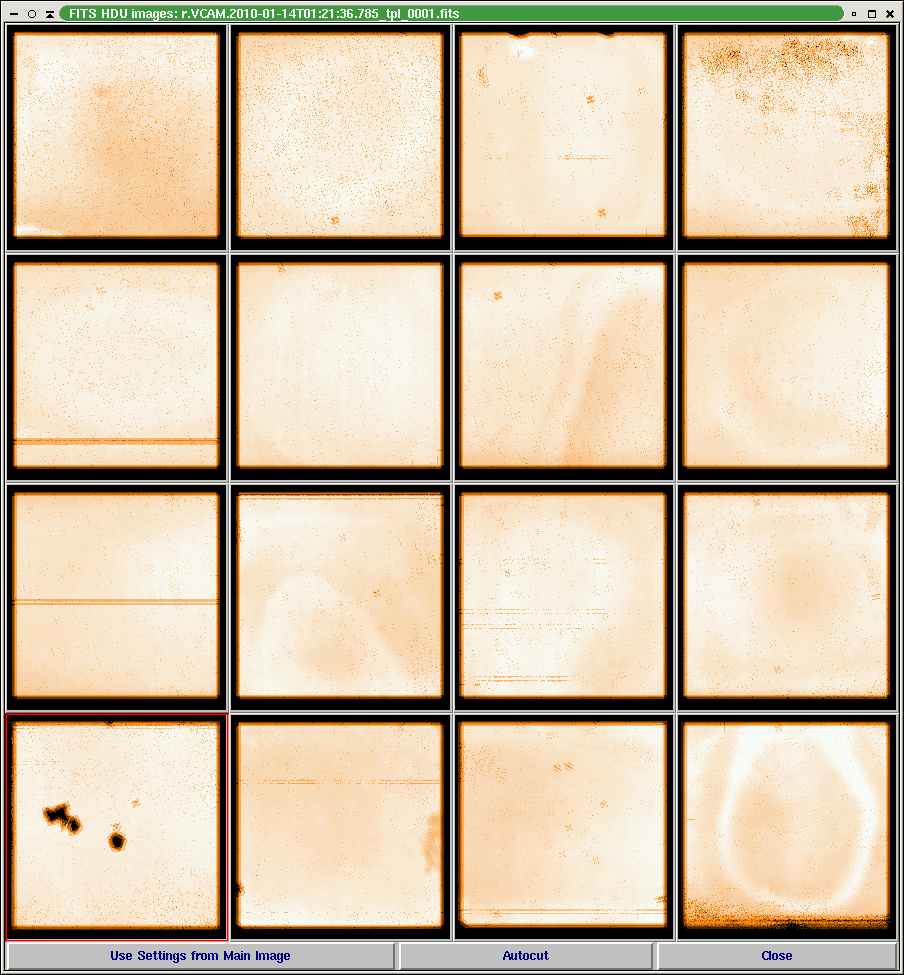

scipaw_combined.png science image product scipaw_confidencemap.png confidence map of science product image scipaw_sky.png sky image used to reduce science raw frames scipaw_qcreport_0.png upper left box: image quality (red dots) and individual point source IQ parametersin sigma units. upper right box: as UL but in FWHM units and per detector lower left box: ellipticity as a function of distance from FOV center lower right box: position angle as a function of distance from FOV center | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table (selection): QC.WCS_RMS , wcs_rms QC.MAGZPT , qc_magzpt QC.MAGZERR , qc_magzerr QC.MAGNZPT , qc_magnzp QC.ZPT_2MASS , qc_zpt_2mass QC_COUNTS_C14 , qc_counts_C14 QC.MEAN_SKY , qc_mean_sky QC.IMAGE_SIZE , qc_image_size QC.ELLIPTICITY , qc_ellipticity | ||||||||||||||||||||||||||||
| ALGORITHM | Details are given in the pipeline manual | ||||||||||||||||||||||||||||
| CERTIF | |||||||||||||||||||||||||||||
| COMMENTS | |||||||||||||||||||||||||||||
