Device: Network Port

Class Name:  <<Device>>lsfNetwork

Description:  Control of the Network Port used by a sub-system.

Inheritance:  LCU Server Framework <<Device>>lsfDEVICE

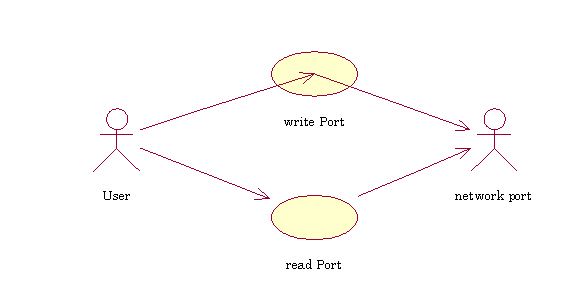

Use Case diagram:

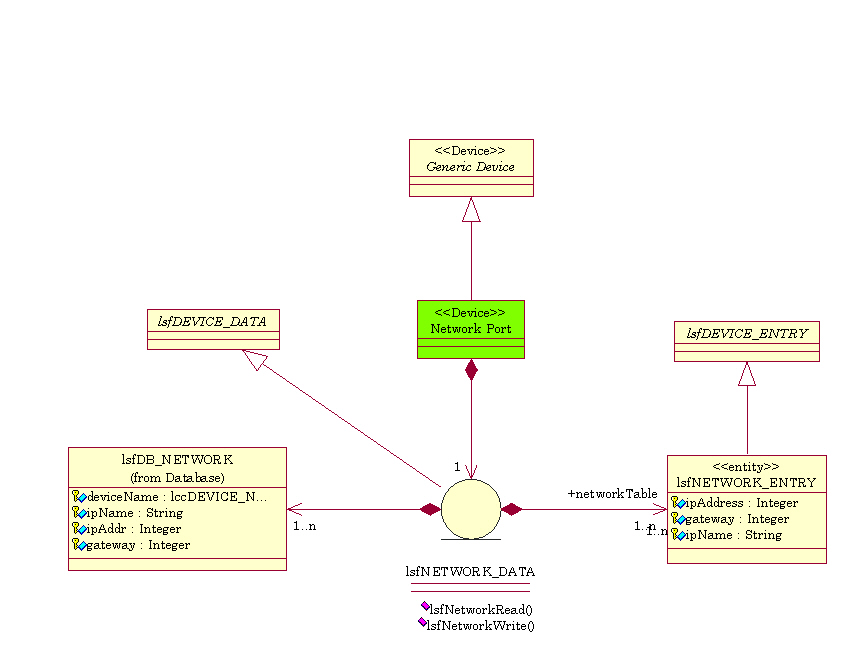

Class diagram:

Architecture:

The <<Device>> class Network Port is based on the device driver net01.

The public methods are:

• readPort(): read data from the Network port.
• writePort(): write data to the Network port.

The protected methods are:

• openPort(): open Network port.
• closePort(): close Network port.
• configPort(): configure the Network port according to its settings.

The signals are configured during the Initialization of the device according to the database attributes.

The public attributes are:

• ipAddress: IP address of the port.
• gateway: opt. gateway IP address.

Related Packages:

• lcc: The LCU Common Software
• and the associated driver (net01).

Issues to be Determined or Resolved: None
