Device: Task Device

Class Name:  <<Device>>lsfTASKDEV

Description:  Control of the Task Devices used by a sub-system.

Inheritance:  LCU Server Framework <<Device>>lsfDEVICE

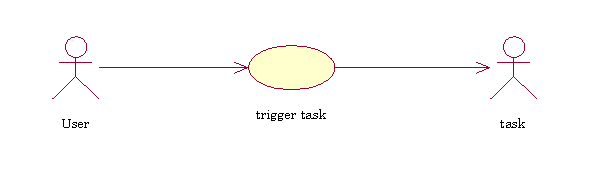

Use Case diagram:

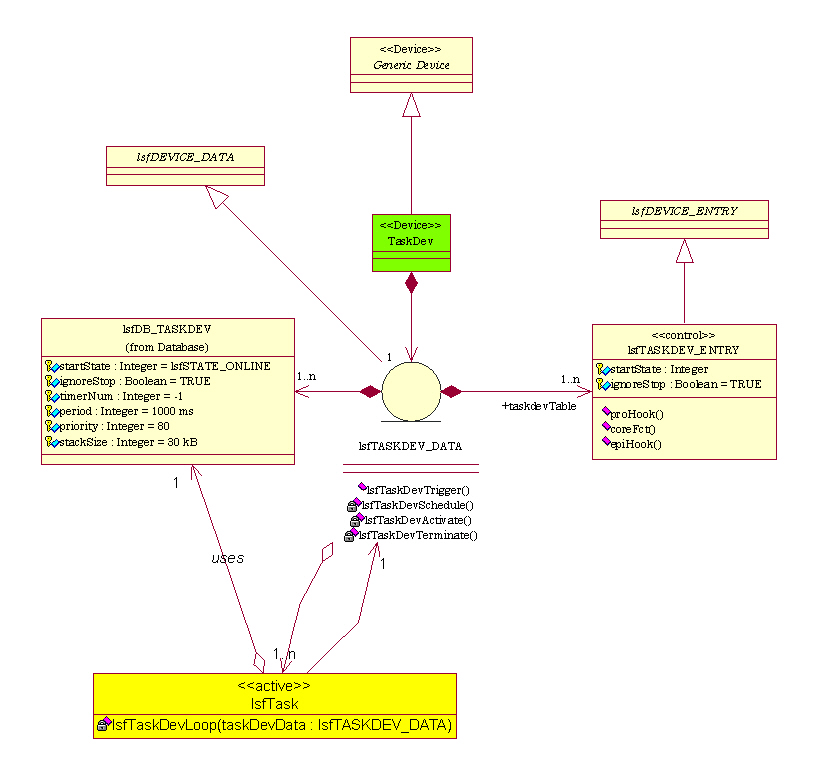

Class diagram:

Architecture:

The <<Device>> class Taskdev is based on the LCC Task handling (lccTaskLib).

The public methods are:

• lsfTaskDevTrigger ( const char *taskDevName ): asynchronous triggering of the task device; the core function will be invoked once. If the period is based on a TIM timer, the overall periodicity will not be affected otherwise the next periodic activation will be one full period later (pseudo periodicity).
• <app><taskName>ProHook():
• <app><taskName>EpiHook(): are the two optional hooks (application specific) that are invoked resp. at activation and termination of the task.

The protected methods are:

• lsfTaskDevConstructor(): this method allocates all the resources needed by the device. Especially it resolves the addresses of the optional hook functions, allocates the task TCB and the checks the presence of the TIM device when timers are required.
• lsfTaskDevDestructor(): this method releases all the allocated resources.
• lsfTaskDevInit():
• lsfTaskDevStandby():
• lsfTaskDevOnline():
• lsfTaskDevStop():
• lsfTaskDevOff():
• lsfTaskDevExit():
• lsfTaskDevSimulat():
• lsfTaskDevStopsim():
• lsfTaskDevSelftest():
• lsfTaskDevTest(): these methods implement the minimum behaviour associated to the Standard Commands for this type of device.

The private methods are:

• lsfTaskDevLoop(): is the function running as a task in the system; it is pending on a semaphore either given by the TIM timer or released on timeout. It shall invoke the core function declared as a (lsfTASKDEV_HOOK. *)<app><taskName>().
• lsfTaskDevActivate(): activate the task.
• lsfTaskDevTerminate(): terminate the task.
• lsfTaskDevSchedule(): check the task device state and activate resp. terminate the task according to the configuration start state.

The task TCB is created once at device construction according to the database attributes.

The public attributes are: None

The private attributes are:

• startState: minimum state at which the task shall be activated
• ignoreStop: when set the task is not terminated on reception of the STOP command (default).
• timerNum: associated timer number; when -1 the CPU system clocks is used (10ms ticks). The timers 6 and 7 are bound to the TRS and correspond resp. to the built-in OneSecond and 10MilliSeconds timers.
• period: task period in milli-seconds; when zero, the task is pending forever until explicitely triggered..
• priority : task priority (from 2 to 255).
• stackSize: stack size in [kB] (cannot be redefined at run-time).
