Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
502 |
pixel |
none | |
5 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, SPLIT polarisation, low resolution |
| 2 |
• | QC1DB |
MEDIAN |
1.03e+03 |
pixel |
none | |
29 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, SPLIT polarisation, medium resolution |
| 3 |
• | QC1DB |
MEDIAN |
630 |
pixel |
none | |
18 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, SPLIT polarisation, high resolution |
| 4 |
• | QC1DB |
MEDIAN |
0.921 |
pixel |
none | |
52 |
refpos1_ft1 |
this |
last_yr |
all
|
position of reference wavelength 1, Fringe Tracker (FT) detector, SPLIT polarisation |
| 5 |
• | QC1DB |
MEDIAN |
502 |
pixel |
none | |
11 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, COMBINED polarisation, low resolution |
| 6 |
• | QC1DB |
MEDIAN |
1.03e+03 |
pixel |
none | |
35 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, COMBINED polarisation, medium resolution |
| 7 |
• | QC1DB |
MEDIAN |
629 |
pixel |
none | |
21 |
refpos1_sc1 |
this |
last_yr |
all
|
position of reference wavelength 1, Science Camera (SC) detector, COMBINED polarisation, high resolution |
| 8 |
• | QC1DB |
MEDIAN |
1.13 |
pixel |
none | |
67 |
refpos1_ft1 |
this |
last_yr |
all
|
position of reference wavelength 1, Fringe Tracker (FT) detector, COMBINED polarisation |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
| Plot 1 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 502 | pixel |
| thresholds: | none | |
| N_data plotted: | 5 |
| [click plot for closeup] |
| Plot 2 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 1.03e+03 | pixel |
| thresholds: | none | |
| N_data plotted: | 29 |
| [click plot for closeup] |
| Plot 3 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 630 | pixel |
| thresholds: | none | |
| N_data plotted: | 18 |
| [click plot for closeup] |
| Plot 4 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_ft1 | • |
| median: | 0.921 | pixel |
| thresholds: | none | |
| N_data plotted: | 52 |
| [click plot for closeup] |
| Plot 5 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 502 | pixel |
| thresholds: | none | |
| N_data plotted: | 11 |
| [click plot for closeup] |
| Plot 6 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 1.03e+03 | pixel |
| thresholds: | none | |
| N_data plotted: | 35 |
| [click plot for closeup] |
| Plot 7 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_sc1 | • |
| median: | 629 | pixel |
| thresholds: | none | |
| N_data plotted: | 21 |
| [click plot for closeup] |
| Plot 8 | | data source: | gravity_p2vm
(QC1 database) |
| dataset: | refpos1_ft1 | • |
| median: | 1.13 | pixel |
| thresholds: | none | |
| N_data plotted: | 67 |
| [click plot for closeup] |

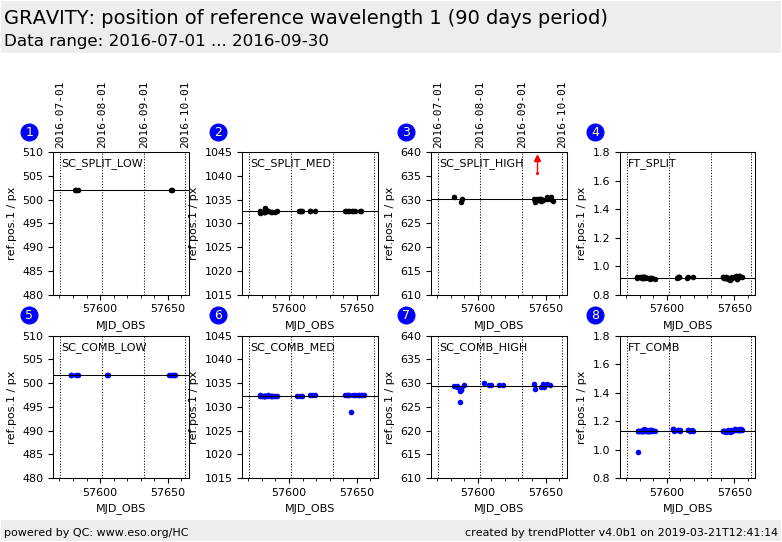

Trending plot for wavelength calibration.
The positions of two reference wavelengths (2.099 and 2.314 microns) on the detectors are trended for
the lowest spectrum on the detector. Scoring thresholds have been set up
provisionally to +/-2 pixels around the median (for SC high
resolution) and +/-1 pixel for SC low and medium resolution.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
