7. Telemetry

Document ID:

Revision:

2.1

Last modification:

July 15, 2025

Status:

DRAFT

Repository:

https://gitlab.eso.org/cii/srv/cii-srv

File:

telemetry.rst

Project:

ELT CII

Owner:

Marcus Schilling

Document History

Revision

Date

Changed/ reviewed

Section(s)

Modification

0.1

09.03.2020

smarincek, jpribosek, dsoklic

All

Document creation.

1.0

06.05.2020

dsoklic/bte rpinc

All

Review updates. Released document.

1.1

17.6.2020

jpribosek

All

Updating manual after receiving support questions.

1.2

7.7.2020

jpribosek

All

Updating manual according to raised LAT issues.

1.3

30.7.2020

jpribosek

All

Updating manual according to raised LAT issues.

1.4

27.8.2020

jpribosek

All

Updating manual according to raised LAT issues.

1.5

3.9.2020

jpribosek

All

Updating manual according to raised LAT issues. Added additional section for setting up OLDB simulator.

1.6

24.9.2020

jpribosek

All

Updating manual according to raised LAT issues.

1.7

06.10.2020

jpribosek

All

Updating manual according to the review comments.

1.8

18.03.2024

mschilli

0

CII v4: public doc

2.0

24.01.2025

mschilli

All

CII v5.0: document restarted

2.1

15.07.2025

mschilli

All

add design description, guidelines

Confidentiality

This document is classified as Public.

Scope

This document is a manual for the Telemetry system of the ELT Core Integration Infrastructure software.

Audience

This document is aimed at Users and Maintainers of the ELT Core Integration Infrastructure software.

Glossary of Terms

API

Application Programming Interface

CII

Core Integration Infrastructure

CLI

Command Line Interface

DP

Data Point

EA

Engineering Archive

OLDB

Online Database

References

  1. Logging Manual: https://www.eso.org/projects/elt/develop/cii/srv/latest/manuals/html/log.html

7.1. Overview

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

NOTE: DRAFT STATUS

THIS DOCUMENT IS UNDERGOING A COMPLETE REWRITE.

MANY SECTIONS ARE INCOMPLETE AT THIS TIME.

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

This document is a user manual for usage of the CII Telemetry system. It explains how to use the Telemetry API and the available tools.

All examples in this manual will be also presented in the telemetry-examples module.

7.2. Introduction

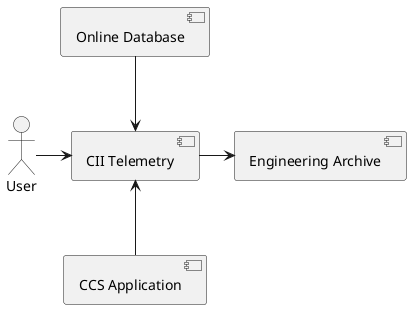

The purpose of the CII Telemetry system is archiving periodic, event-based and ad-hoc data that will be used for calculation of statistics, and the long-term trends and performance of the ELT telescope.


' CII Telemetry <-> other modules

[CII Telemetry]
actor User
User -right-> [CII Telemetry]
[CCS Application] -up-> [CII Telemetry]
[Online Database] -down-> [CII Telemetry]
[CII Telemetry] -right-> [Engineering Archive]

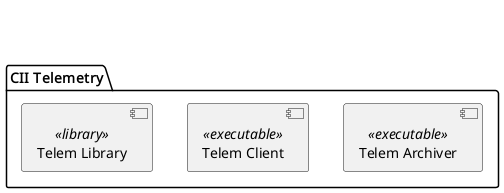

CII Telemetry consists of:

  • a client-side library with APIs for recording, retrieval, management

  • a command-line client for bulk recording

  • an autonomous daemon for un-supervised recording


' Components of CII Telemetry

package "CII Telemetry" {
  [Telem Library] <<library>>
  [Telem Client] <<executable>>
  [Telem Archiver] <<executable>>

  ' layout hack with no semantic meaning:
  ' forces horizontal layout on all three
  [Telem Library] -[hidden] [Telem Archiver]
  [Telem Library] -[hidden] [Telem Client]
}

7.2.1. Terminology

  • (Time)Series - a sequence of measured values over time, plus description

  • (Ts)Metadata - descriptive info about a time series

  • (Ts)Point - a single measured value with timestamp

  • (Telem)Recorder - client-side API for appending points to a series

  • (Telem)Archiver - daemon that autonomously measures and records values

  • Data Source - where values originate from

  • Data Sink - where values are stored to

7.3. Concepts and Design

7.3.1. Telem Library

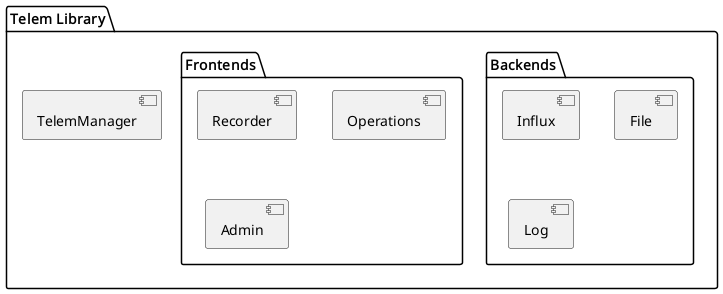

The CII Telemetry Library separates Frontends from Backends. Additionally it contains the TelemManager.


' Components of CII Telemetry Library

package "Telem Library" {

  [TelemManager]

  package "Backends" {
    [Influx]
    [File]
    [Log]
  }

  package "Frontends" {
    [Recorder]
    [Operations]
    [Admin]
  }

}

7.3.1.1. Frontends

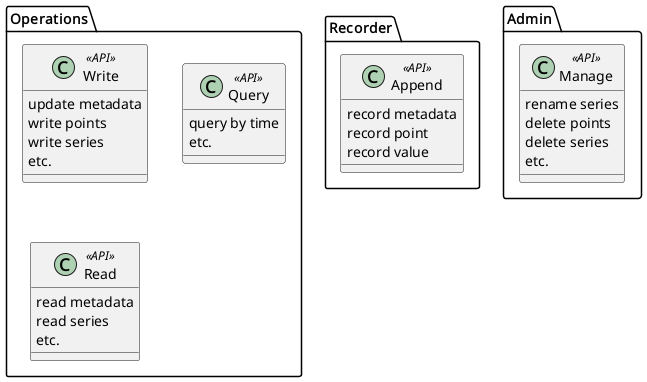

Frontends provide high-level APIs for applications/users.

' Library / Frontends / APIs / Functions

package Recorder {

    class Append <<API>> {
        record metadata
        record point
        record value
    }

}

package Operations {

    class Write <<API>> {
        update metadata
        write points
        write series
        etc.
    }

    class Query <<API>>{
        query by time
        etc.
    }

    class Read <<API>> {
        read metadata
        read series
        etc.
    }

}


Package Admin {

    class Manage <<API>> {
        rename series
        delete points
        delete series
        etc.
    }
}

An Application uses a Frontend to interact with the Telemetry Library, e.g.

std::shared_ptr<cii::telem::TelemRecorder> recorder;
[...]
recorder->RecordValue (456);
Frontend availability per language

Frontend

Python

C++

Recorder

yes

yes

Operations

planned

no

Admin

planned

no

All Frontends in Python and C++ share the same abstraction over a time series.

7.3.1.1.1. Time Series

A time series is comprised of:

  1. Time Series Metadata

  2. Collection of Time Series Points

7.3.1.1.2. Time Series Metadata

Metadata provides a description of a time series. It is crucial for a successful data analysis of series recorded by many applications in an environment that changes over time.

Field

Type

Description

Example

tsid

string

Perpetual ID

abc-xyz-123-127

tsname

string

Time Series Name

/tel/m2/coeff

btype

string

CII Basic Type

UINT16

units

string

SI Unit

m/s

origin

string

producer

m2-sa-est

serial

string

device S/N

inventory-ms123

role

string

purpose

cabinet heat

comment

string

human readable

<text>

json

string

full metadata

<json text>

Code Reference: ciiTelemApi.hpp - TsMetadata

7.3.1.1.3. Time Series Point

A point is one measurement of a value at one moment in time.

Field

Type

Description

Example

value

string|num|bool

measured value

127.0

mtime

string

measure time

2025-07-15T11:11:00+00:00

Code Reference: ciiTelemApi.hpp - TsPoint

Note: the addition of a “trustlevel” (a.k.a. “quality”) field is planned.

7.3.1.2. Backends

A Backend represents a Data Sink (typically a database), e.g.,

  • InfluxDB : InfluxDB installation as supported by ELT DevEnv

  • FileDB : a CII-internal product based on CSV-files and pandas

  • Log-Stream : a write-only data sink based on CII logging

A backend uses datasink-specific data structures and runs on datasink-specific configuration.

An application only deals with a backend directly when configuring datasink-specific options, e.g.

backends.log.config["logger"] = "mylogger"
backends.log.config["level"]  = "INFO"

Internally, the backend implementations share a similar design. A backend usually has:

  • Configuration

  • Converter

  • Backend Data Format

  • Connection Manager

The Converter translates between the frontend data format (TsMetadata, TsPoint) and the backend’s own datasink-specific data format (e.g. called DbPoint). During a write operation, the data path usually looks like this:

Frontend Data Format -> Converter -> Backend Data Format -> Connection -> Data Sink

These details are in most cases of no concern to the application using the telemetry library, but in some scenarios, they do become relevant:

  • a unit test wants to mock the backend’s database connection

  • an application cannot use the telemetry frontend, and has to interact with the backend directly.

7.3.1.3. Frontend x Backend

The following combinations of Frontends x Backends are available. The table also shows availability per language and current implementation status.

Frontend x Backend

Frontend

Backend

Python

C++

Recorder

Log

yes

yes

Influx

planned

planned

File

planned

planned

Operations

Log

no

no

Influx

planned

no

File

planned

no

Admin

Log

no

no

Influx

planned

no

File

planned

no

7.3.1.4. Telem Manager

The TelemManager provides Frontends and Backends, and simplifies the act of wiring a Frontend with a Backend. Also provides some conveniences like factory methods and caching of Frontends.

TelemManager telman{};
telman.CreateTelemRecorder( "reco1", telman.backends.log );

7.3.2. Telem Client

A command-line client for storing points or series. Supports the upload of a previously recorded series, uses the Operations API.

7.3.3. Telem Archiver

A stand-alone, continously running process that listens on a data source (OLDB, DDS, potentially OPC UA), and records points to a data sink, uses the Recorder API.

Configurable options:

  • trigger

  • threshold

  • periodicity

  • burstfilter

7.4. Topology

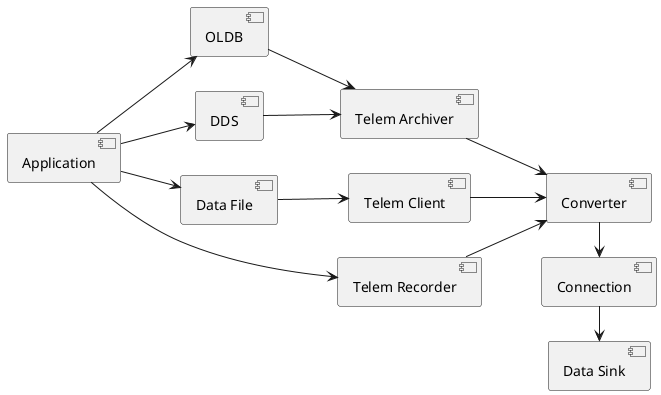

The following topologies are foreseen/possible:

7.4.1. Storage


' High-level Dataflows

left to right direction

[Application]
[OLDB]
[DDS]
[Data File]
[Telem Archiver]
[Telem Client]
[Telem Recorder]
[Converter]
[Connection]
[Data Sink]

' S1
[Application] --> [OLDB]
[OLDB] -down-> [Telem Archiver]

' S2
[Application] --> [DDS]
[DDS] -down-> [Telem Archiver]

' S3
[Application] ---> [Telem Recorder]

' S4
[Application] --> [Data File]
[Data File] -down-> [Telem Client]

' Common to the above
[Telem Client] -down-> [Converter]
[Telem Recorder] --> [Converter]
[Telem Archiver] --> [Converter]
[Converter] -> [Connection]
[Connection] -> [Data Sink]

Under certain circumstances, an application may be unable to use the Frontend APIs. By using (parts of) the backend directly, it can ensure to write the data in the same storage format as the Frontend APIs.


' High-level Dataflow with External

left to right direction

[Converter]
[Data Sink]
[External Data Source]
[External Archiver]
[External Connection]

[External Data Source] --> [External Archiver]
[External Archiver] --> [Converter]
[Converter] --> [External Connection]
[External Connection] --> [Data Sink]

7.4.2. Retrieval

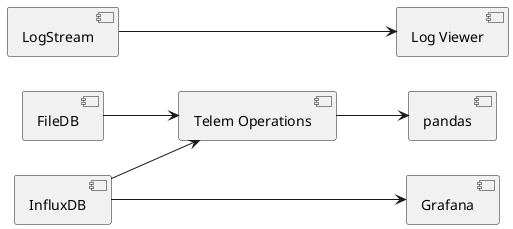

The possible topologies for retrieval depend to a large extent on the actual type of Data Sink, in other words: which database (LogStream, FileDB, InfluxDB, …) was used for storing the series.


' High-level Dataflow from Data Sink

left to right direction

[InfluxDB]
[FileDB]
[LogStream]

[Telem Operations]
[Grafana]
[pandas]
[Log Viewer]

[InfluxDB] ---> [Grafana]
[InfluxDB] --> [Telem Operations]
[Telem Operations] --> [pandas]

[FileDB] --> [Telem Operations]
[LogStream] ---> [Log Viewer]

7.5. Usage Guidelines

7.5.1. Append/Write

Use of the telemetry frontend APIs shields the application to a high degree from changes in the backends. Should the observatory adopt a different database product, an additional backend implementation would cover this change, and the application would need little to no porting.

Use of the telemetry frontend APIs also ensures that all series stored to a given backend are stored in a consistent manner and follow the same storage model.

As previously described, the data flow of a write operation is:

Frontend Data Format -> Converter -> Backend Data Format -> Connection -> Data Sink

Every backend comes with a Converter, and its purpose is to translate from the (generic, high-level) frontend data format to the (backend-specific, low-level) backend data format. Thereby, it is foremost the Converter that governs the storage format of a backend.

If an application, e.g. an External Archiver, is unable to use the Frontend APIs, it can (must) at least use the Backend directly, so it ends up writing data in the same storage format as the Frontend APIs would.

Correct metadata for series is of utmost importance for long-term data analysis. An application wanting to append/write a series needs to keep the metadata of its series up-to-date, i.e.:

  • check for existing metadata

  • create metadata

  • update metadata

7.5.2. Query/Read

  1. via Operations Frontend

The Operations Query API offers some frequently needed queries, abstracting from the concrete backend. Use of it requires no understanding of the backend, and the application needs little to no porting when moving to a different backend. The Operations Read API offers retrieval of series in frontend data format. It additionally offers retrieval of series in pandas dataframe format, a de-facto standard in Python. Note that the Read and Query APIs are available only in Python. Dataframes can be processed further in a variety of ways, e.g. with Python’s matplotlib.

  1. via 3rd-party software (e.g. Influx Web UI, Grafana)

If the Functions provided by the Operations Frontend are not enough, data is alternatively queried, retrieved and visualised through 3rd-party software operating directly on the backend’s database. At this time, ELT Control Software is using Grafana as the primary tool for time series analysis and visualisation, other tools (e.g. Tableau, Databricks) are not in use. When using a 3rd-party software, the porting effort for switching to a different backend (thus: underlying database) is on the application/user.

7.6. Dependencies

Use of the …

requires …

Operations frontend

Python

FileDB backend

Python

InfluxDB backend

InfluxDB

Telem Archiver

OLDB or DDS

7.7. API

7.7.1. Import/includes

7.7.1.1. Python

wscript

def configure(cnf):
  cnf.check_python_module('cii.telem')

code

import cii.telem

7.7.1.2. C++

wscript

def configure(cnf):
   cnf.check_wdep(
      wdep_name='cii-services-telemetry.cpp.telem',
      uselib_store='cii-services-telemetry.cpp.telem'
   )

code

#include <ciiTelem.hpp>

7.8. Append API

The Recorder frontend provides convenient access to the Append API from C++ and Python.

7.8.1. Recorder Example

7.8.1.1. Python

# Acquire API
# ----------------
cii.telem.TelemManager.get_instance()
recorder = telman.create_telem_recorder("m2rec", telman.backends.log)

# Specify metadata
# ----------------
tsmeta = tel.TsMetadata()
tsmeta.tsname  = "/elt/tel/m2/lsv/m2saest/mon/sv_force_correction"
tsmeta.comment = "Tel M2 force correction"
tsmeta.origin  = "m2saest"
tsmeta.btype   = "DOUBLE"
recorder.record_metadata (tsmeta)

# Record points
# -------------
recorder.record_point (tel.TsPoint(123))
recorder.record_value (            456 )
recorder.record_point (tel.TsPoint(789))

7.8.1.2. C++

std::shared_ptr<cii::telem::TelemManager> shared_tm = cii::telem::TelemManager::GetInstance();

// Acquire API
// -----------
std::shared_ptr<cii::telem::TelemRecorder> recorder;
recorder = telman.CreateTelemRecorder("m2rec", telman.backends.log);

 // Specify metadata
 // ----------------
 cii::telem::TsMetadata tsmeta {};
 tsmeta.tsname  = "/elt/tel/m2/lsv/m2saest/mon/sv_force_correction";
 tsmeta.comment = "Tel M2 force correction";
 tsmeta.origin  = "m2saest";
 tsmeta.btype   = "DOUBLE";
 recorder->RecordMetadata (tsmeta);

 // Record points
 // -------------
 recorder->RecordPoint (cii::telem::TsPoint(123));
 recorder->RecordValue (                    456 );
 recorder->RecordPoint (cii::telem::TsPoint(789));

7.9. Write API

7.9.1. Store points

PENDING

7.9.2. Store series

PENDING

7.10. Query API

7.10.1. Query by time

PENDING

7.11. Read API

7.11.1. Read series

PENDING

7.12. Management API

7.12.1. Rename series

PENDING

7.12.2. Delete points

PENDING

7.12.3. Delete series

PENDING

7.13. Telem Client

Telem Client is under development, and not part of the current release.

7.14. Telem Archiver

Telem Archiver is under development, and not part of the current release.

7.14.1. Deployment

PENDING

7.14.2. Configuration

PENDING

7.15. Appendix: Design Decisions

7.15.1. Statefulness

The Recorder frontend is stateful. A recorder is bound to one series.
Rationale: The recorder is a convenience feature, with a flat learning curve, limited capabilities, and ease of use. Keeping state allows for that.
The Operations frontend is stateless. The information needed by a function is always fully passed as arguments to the function.
Rationale: The Operations frontend offers many functions, and managing state would introduce massive accidental complexity. But even more importantly, the functions would reflect assumptions about how the data gets stored, and that would strip the backend off its full control over the storage model.

7.15.2. Thread-safety

All APIs are thread-safe.

7.16. Appendix: InfluxDB Backend

7.16.1. Db Point Format

Field

Type

Description

Example

table

string

table of series

cabinet-sensors

mtime

string

measure time

2025-07-15T11:11:00+00:00

meas

string:string

measured values

heat1:1.11

tags

string:string

static labels

role#heat1:cpu1-tempsens

7.16.2. Multi-series measurements

The underlying database supports storage of points from multiple series simultaneously under one common timestamp. This feature comes in very handy when those series are to be time-correlated later. The backend will store multiple series together this way if they participate in a common naming scheme, and points have a common timestamp.

md1 = TsMetadata()
md2 = TsMetadata()
md1.tsname = "cabinet-sensors#heat1"
md2.tsname = "cabinet-sensors#heat2"
md1.role   = "cpu1-tempsens"
md2.role   = "cpu2-tempsens"

ti = "2025-07-15T11:11:00+00:00"
p1 = TsPoint( 1.11, ti )
p2 = TsPoint( 2.22, ti )

pp = [ (md1,p1), (md2,p2) ]
operations.write_points( pp )

7.16.3. Storing Metadata

The underlying database has no support for storing metadata separately. The backend therefore uses the available tag-feature to store metadata together with the series points.

Note: this approach has its disadvantages, and may change in the future.

7.16.4. Supported data types

The underlying database supports neither arrays/sequences nor strings longer than 64 KB. The backend does not make up for, or work around, these limitations.
