Quality Control and
Data Processing

HC PLOTS
Flat flux level
Flat flux level YJHK band
Flat flux level L band
Flat flux level M band
QC1 database (advanced users): browse | plot

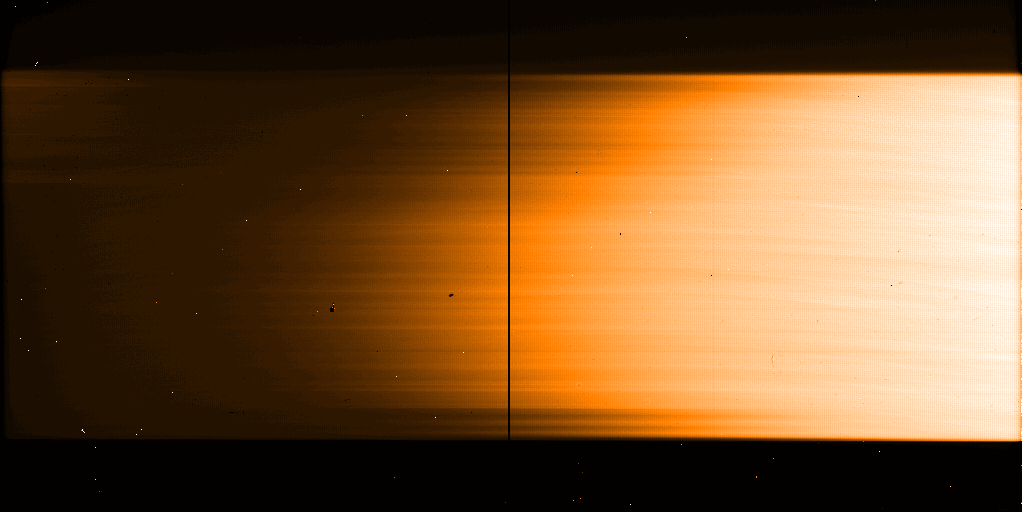

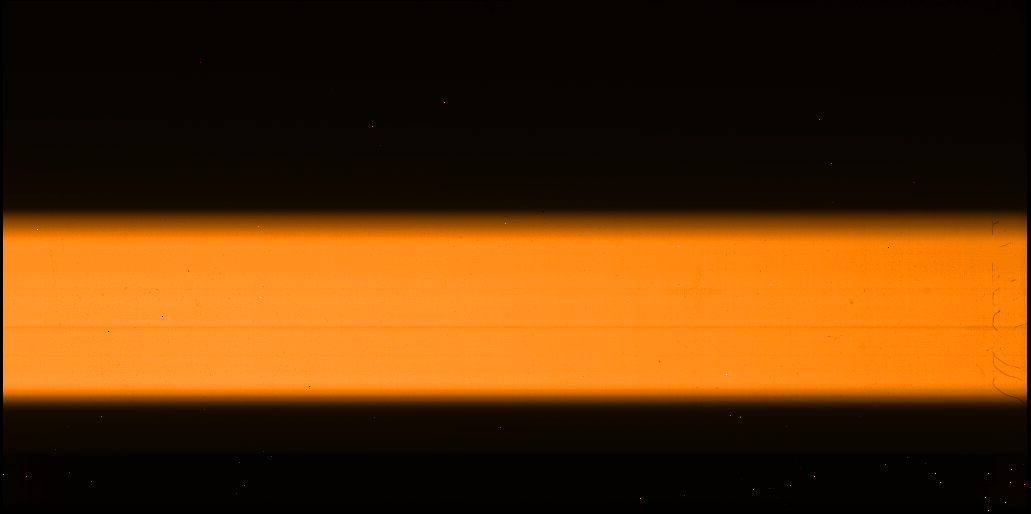

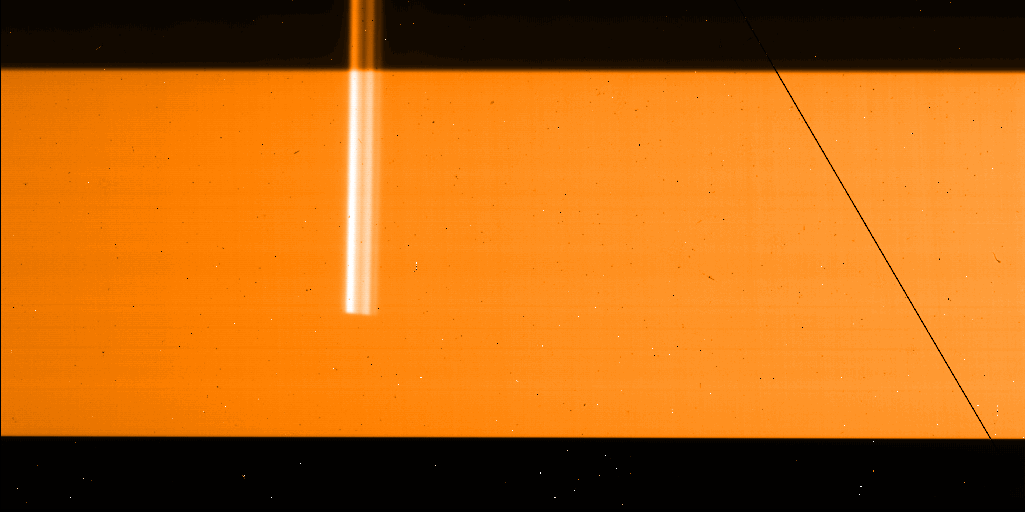

Lamp flats are taken daily, as part of the calibration plan. Flats in specific setups: INS.WLEN.ID=Y1029, J1232, H1559, K2217, L3377, M4266 are taken every day as health checks. Frames in other setups are only obtained when they are triggered by settings of science data observed during the night.

Information about the Quality Control performed utilizing lamp flat frames of the instrument BEFORE the upgrade (before 2021-09) can be found here.

QC1_parameters

FITS key	QC1 database: table, name	definition	class*	HC_plot**	more docu
QC.FLAT.FLUX	criresp_flat..flat_flux	mean flux of the 1st input RAW frame per DIT (level/DIT)	HC		[docuSys coming]
*Class: KPI - instrument performance; HC - instrument health; CAL - calibration quality; ENG - engineering parameter **There might be more than one.

Trending

The flux level per DIT [ADU/s] and RMS [ADU] for selected INS.WLEN.ID are monitored.

Scoring&thresholds LAMP FLAT flux level

The thresholds are set to ensure optimal flux on the detectors and to warn about malfunction of the lamp.

History

Date	event
2021-10-01	beginning of operations

Algorithm LAMP FLAT flux level

Load the images list; Apply the detlin / dark / bpm calibrations; Average the images; Compute the traces; Compute the master flat and bpm
