Sequencer GUI

The sequencer GUI allows to load and execute Python sequences and OBs (JSON format still TBD).

Note

Do not rely on standard output to debug/check sequencer scripts.

Warning

Since the server is the responsible of executing sequencer scripts, therefore standard output is swallowed by the server.

Overview

The sequencer GUI requires its own special purpose server and a REDIS server instance.

The server spawns and controls a seq shell process. The client(s) (seq gui in this case) talks to the server which relays the commands to the underlying shell process. This is one way communication from the client to the server.

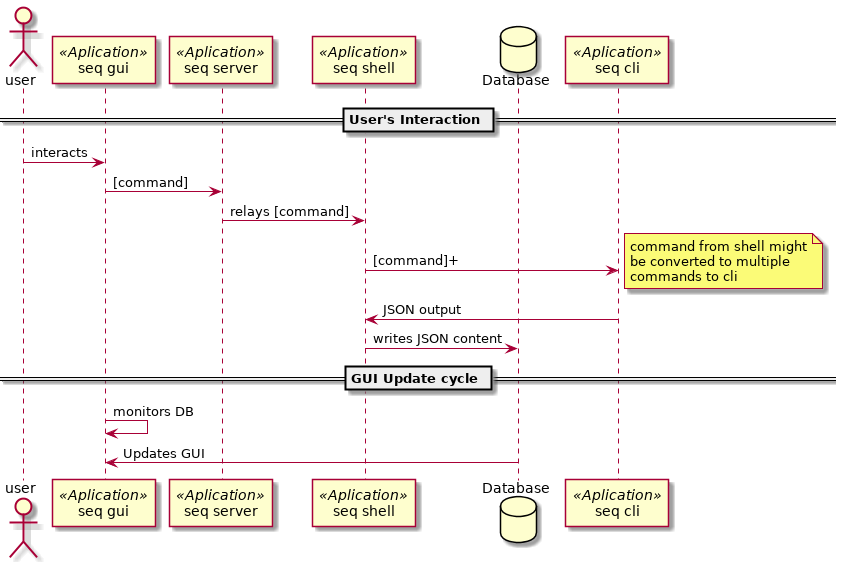

However, the seq shell publishes the state of the Sequencer script execution, the modules loaded, state updates and more on REDIS. Allowing interested parties, namely seq gui or many instances of the seq gui to display the state Sequencer Graph. Figure figure-interaction.

Sequencer server

The Sequencer GUI requires REDIS and the sequencer server to be up and running in order to work.

To start redis:

$ redis-server

The sequencer server is started as:

$ seq server

Usage, seq server [options]:

$ seq server --help
Usage: seq server [OPTIONS]

  Starts the Sequencer Server, a socket server for the sequencer.

  It listens on the "address" for commands and applies them to its own
  instance of sequencer (seq shell).

  If you need multiple instances of the sequencer server, please start them in
  their own port and provide their own instance of redis.

Options:
  --address TEXT                  Sequencer server address [HOST:]PORT
                                  [default: 8000]
  --redis TEXT                    Redis server address [HOST:]PORT  [default:
                                  6379]
  --log-level [DEBUG|INFO|WARN|CRITICAL|ERROR]
                                  Will present logs at this level of higher
                                  [default: INFO]
  --help                          Show this message and exit.

The theory is that one can have a sequencer server running on a different host than the GUI.

The server address is given as [HOST:]PORT, the same syntax is used to connect to the REDIS server.

Using the Sequencer GUI

Starting the sequencer GUI is done as follows:

$ seq gui

One can pass change the defaults values for hosts and ports using the following options.:

$ seq gui --help
Usage: seq gui [OPTIONS] [SCRIPT]...

  Client application for the Sequencer that allows to load OBs and execute
  scripts and monitor their progress.

Options:
  --address TEXT                  Sequencer server address [HOST:]PORT
                                  [default: 8000]
  --redis TEXT                    Redis server address [HOST:]PORT  [default:
                                  6379]
  --logs TEXT                     Sequencer logs address [HOST:]PORT
                                  [default: 8113]
  --log-level [DEBUG|INFO|WARN|CRITICAL|ERROR]
                                  Will present logs at this level of higher
                                  [default: INFO]
  --help                          Show this message and exit.

The defaults values used by the sequencer server, redis and the sequencer gui will suffice to run all of this in the same machine.

If any port clash is forseen, please use the command line options to change port values to suitable ones.

The GUI opens the following window.

The GUI will try to automatically connect on start to redis, the sequencer server, and its logs.

The GUI is divided in three parts.

1. The toolbar, displays button to open Observing Blocks, manipulate the OB, its steps, and filter logs.

2. The Sequence tree. For each sequence step, displays three columns: name, state and a description in case provided.

3. The logs and OB variables tabs:

• OB variables presents and allows edition of variables for the block.

• Logs shows entries beloging to the Observing Block, and its steps, that are logged using python logging module.

The Toolbar

The GUI toolbar sports the following buttons and options.

Append OB

Loads and append to the sequencer server the selected OB in json format. When pressed, a file selection dialog will appear. The user may select an OB file.

Run

Executes the scripts loaded into the sequencer.

Continue

A script(s) execution can be aborted or paused. The execution resumes with the Continue button.

Abort

Stop a script that is currently in execution.

Reset

Cleans the execution tree and restarts the execution engine.

Pause

Sets the selected node to pause when reached. The same button may be used to unpause a step.

Skip

Marks the selected node to be skipped when reached. The same button may be used to toggle this option off.

Logs Filter

This dropbox applies a filter to the logs (section 3 in the GUI).

• Sequence: shows logs produced by the explicit calls to the logger by

the author of the sequence.

• seq.lib: shows internal logs produced by the sequencer.

• seq.user: shows logs that describes the changes in state of the sequence.

The toolbar commands can also be given directly on the input widget.

The Tree Window

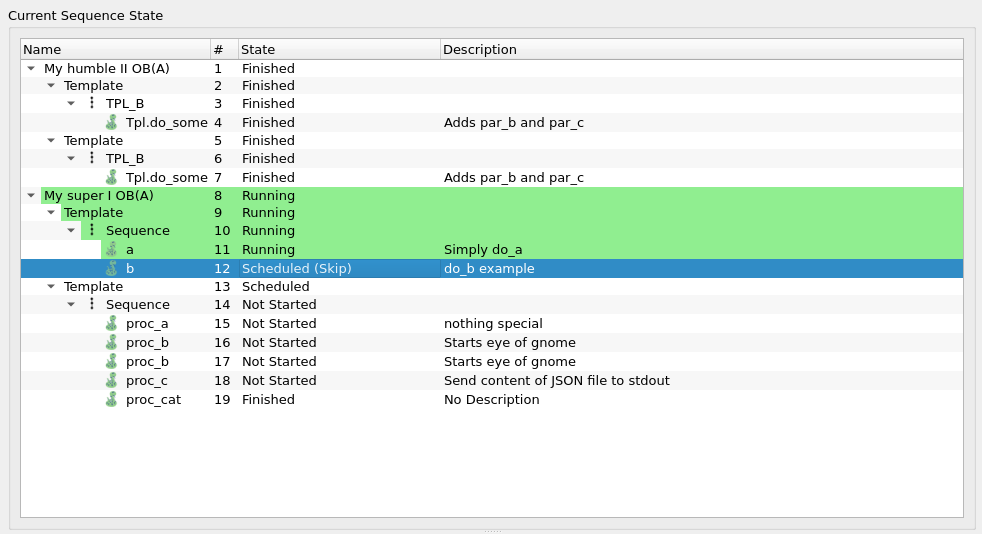

The tree window shows the loaded scripts in a tree widget. The script and its components can be expanded or collapsed. Each column shows a single node with its name, state and doc string (from python).

Note

The mouse secondary button displays a context menu that allows to Pause/UnPause or Skip/UnSkip the selected node.

Along the node number an icon is displayed, which depends on the node type to help identify their intent.

Marks action nodes (actual python code).

Marks Sequence nodes.

Marks Parallel nodes.

Marks Loop nodes.

The state column displays not only the node state but also if the node has been marked to pause or to skip its execution. Pause and Skip are runtime flags, which extend the description of the state for a given node. Node states can be one of the following:

Not Started

Node has not been started yet.

Scheduled

Script execution started. The node will be executed at some point.

Running

Node is currently executing.

Finished

Node has completed its execution. A finished node can be in any of the following substates:

Skip

Node is considered finished because it was purposedly skipped (Skip runtime flag).

Error

The node raised a runtime exception and has finished with error.

Cancelled

Node execution has been cancelled. This happens when some other node, down the tree has finished with error.

Paused

The execution of the tree is paused in the node mark with Pause runtime flag. A paused script can be resumed by removing the Pause flag from the node. This is done with the right mouse button menu and select Pause/UnPause node, or by selected the node, and using the Pause Button in the toolbar.

When the sequence starts (by pressing the Run Button on the toolbar), this view will automatically scroll to the latest node with Running state. Also, they will be highlighted in light green color while the node is in Running state.

Logs

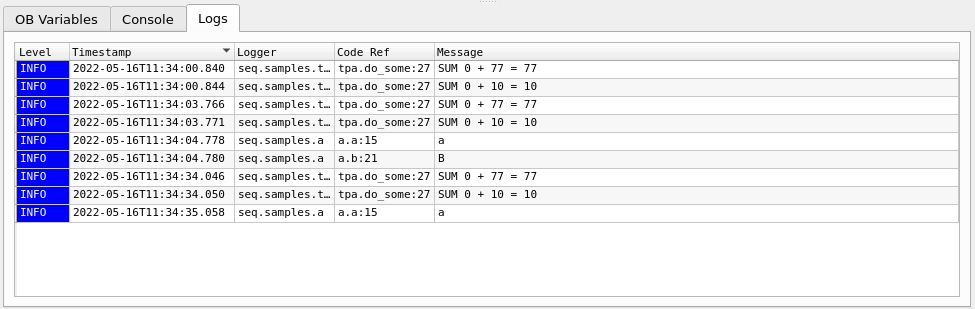

This view presents a table with logs produced by the sequencer. The table contains a row for each log, with the following columns:

Level

The log type, or level, which can be DEBUG, INFO, ERROR, CRITICAL, EXCEPTION and FATAL. The colors helps to state the importance of the log entries.

Timestamp

Date and time of the log entry, up to milliseconds, using the sequencer server reported time.

Logger

Name of the logger used to produce the entry. For developers of sequences is important to use names that do not start with seq.lib or seq.user.

Code Ref

Combines the name of the python module that defines the step, the method name, and the line of code. Useful for debugging.

Message

The log entry in question.

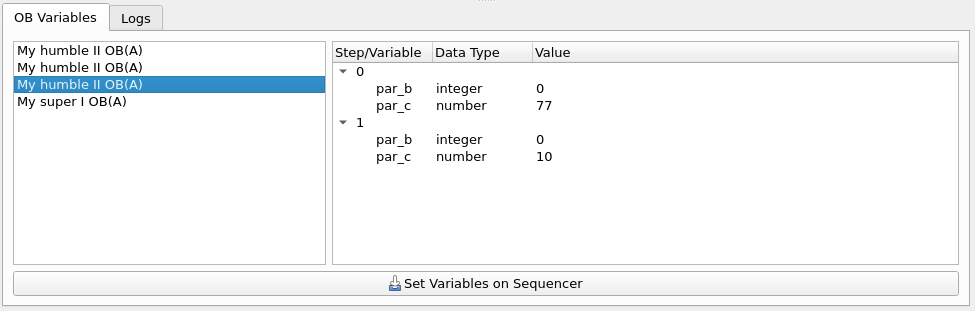

OB Variables

Variables for Observing Blocks can be set through this Tab.

The left side of the Tab shows the different OBs loaded in the sequencer server, while the right side display the variables. Variables are grouped by the node in which they are required, and display the name of the variable, the data type expected, and its current value.

Double clicking on a particular value edits the existing value.

Once a user is satisfied with the changes, they can be applied back to the sequencer server by using Set Variables on Sequencer Button.

Note

Variables are saved back to the server per OB, so if changes were made for more than one OB, the user needs to select that particular OB, and press the Set Variables on Sequencer.

Error Handling

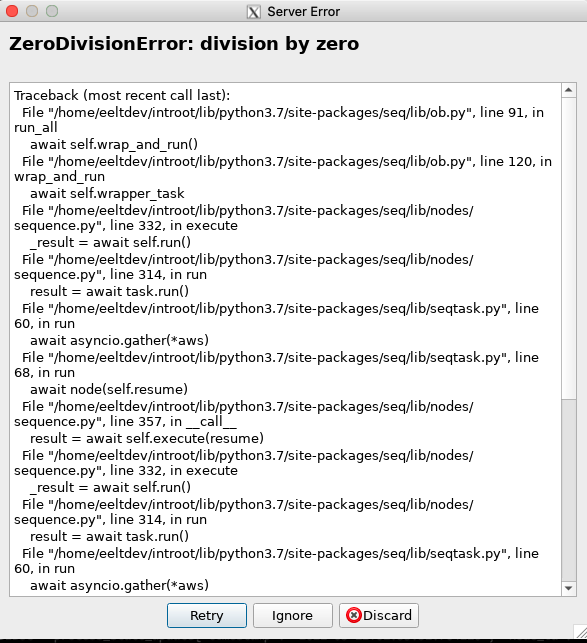

When a script aborts with an error (some exception was raised) a dialog window appears and displays the python traceback.

The dialog presents three buttons that allows to:

1. Retry the failed node.

2. Ignore the error and resume script execution.

3. Discard the error window and reflect on what just happened.

In addition, an aborted script can be continued (skipping the failed node) by means of the continue button in the toolbar.

One can retry the failed node typing the retry command and using the node serial number.

Advanced: Debug Mode

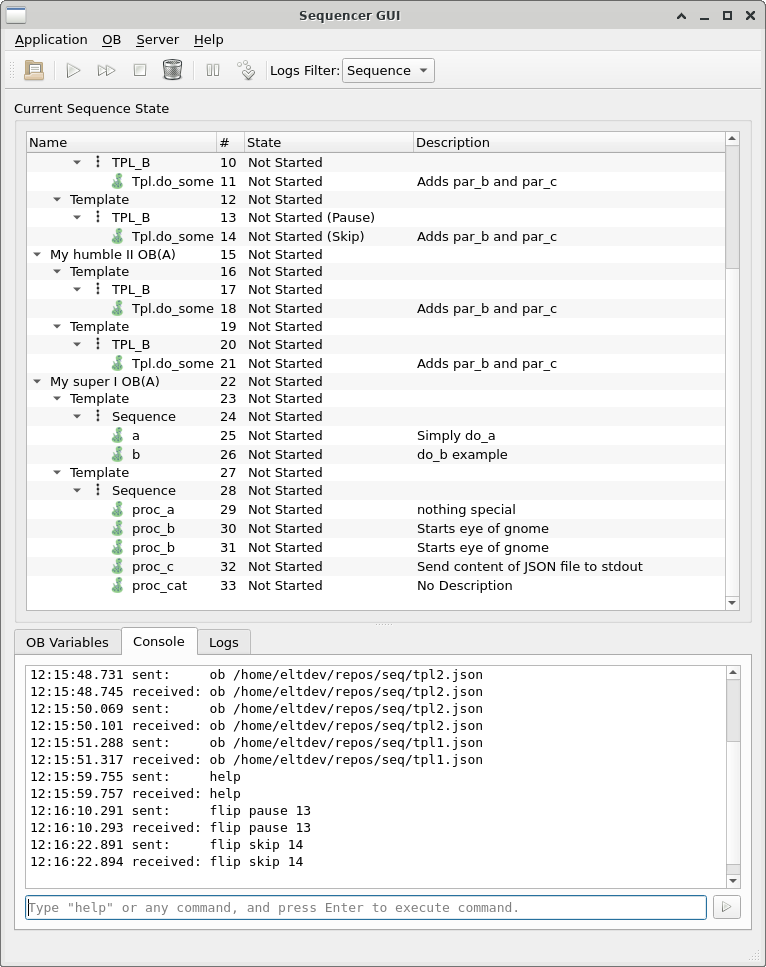

The Application Menu hold the Debug Mode option. When clicked, it will present more options oriented at developers of sequences.

The Nodes Treeview in section 2 of the GUI will display one more column: the internal serial number assigned to the step (column #).

The Tabs in section 3 of the GUI will display one more Tab named Console

The console is a direct communication line with the sequencer server, in which the user can execute commands. This is not intended for final users and commands entered here will not display its output on the same console.

It accepts the same commands for the sequencer kernel or shell. For feedback please see the standard output on the sequencer server.
