Coccato, L., Sarzi, M., Pizzella, A., Corsini, E. M., Dalla Bonta', E., & Bertola, F. 2006, MNRAS 366, 1050. NGC 4435: a bulge dominated galaxy with an unforeseen low mass central black hole. MNRAS paper

We got HST/STIS long slit data for NGC 4435 ([NII] emission line) along 4 slit positions

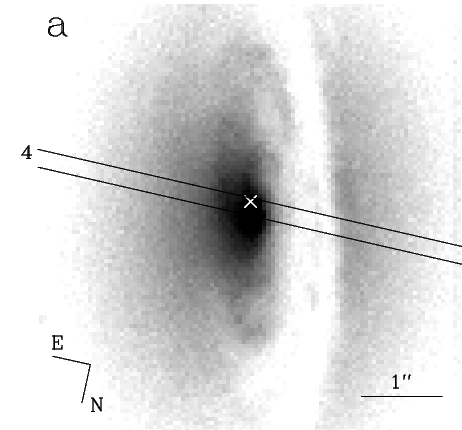

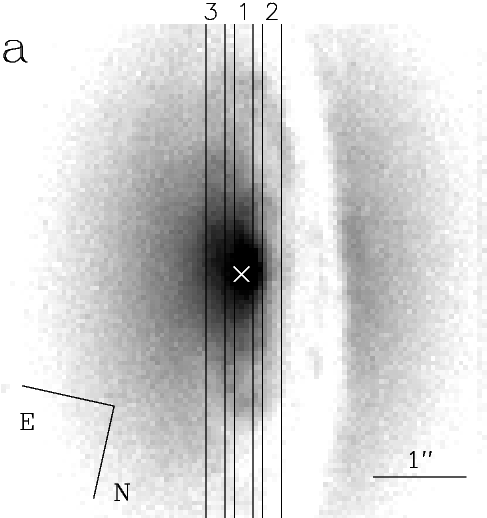

STIS acquisition images for NGC 4435 with the slit position superimposed and the centre marked with a white cross.

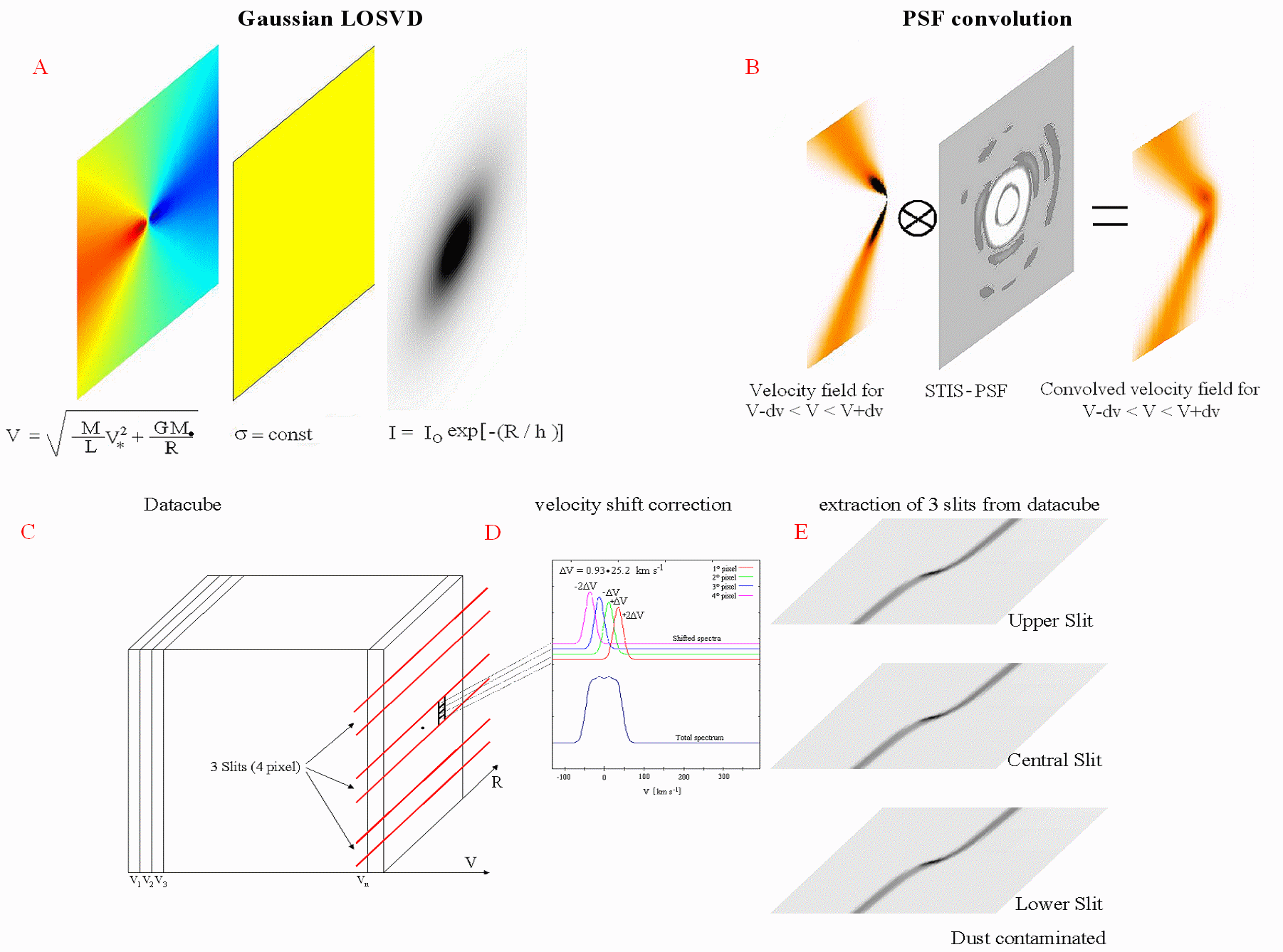

We performed a 3D model according to the following scheme... (The slit along the minor axis is not drawn just for clarity, but it has been obviously taken into account)

RESULTS:

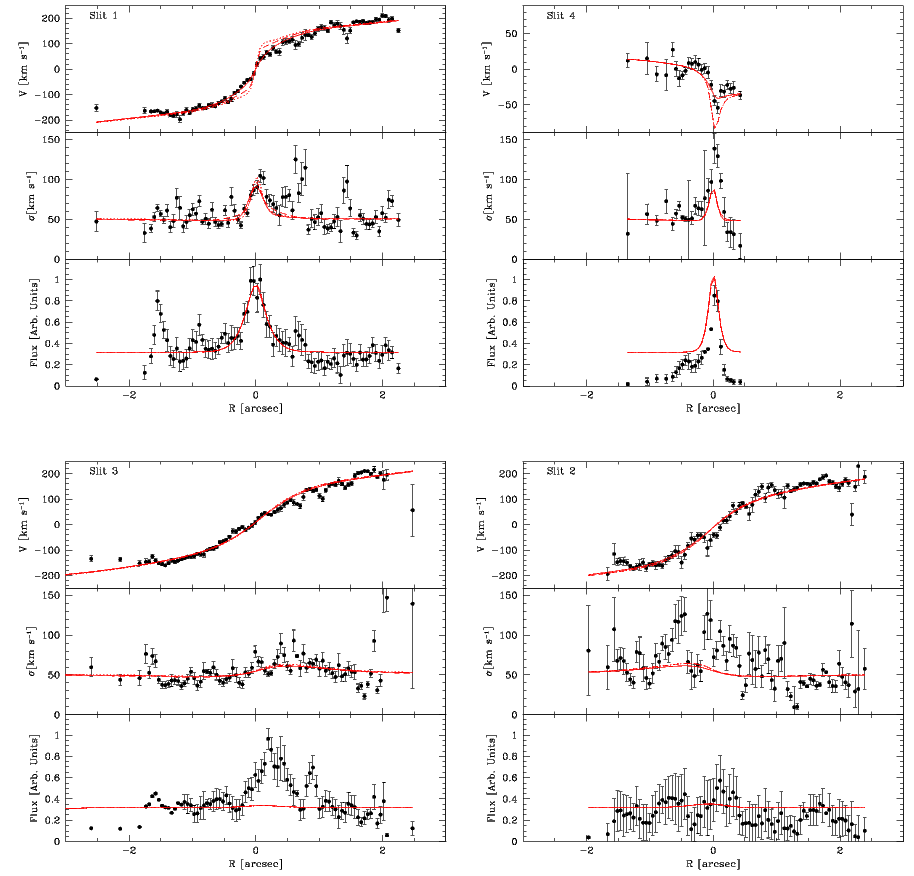

Observed [NII] kinematics (filled circles) along with the best-fitting model (solid line) and
model predictions for the SMBH masses of NGC 4435&nbsp; from the M_smbh- sigma relation
by Ferrarese & Ford (2005, M_bh = 5e7 Msun, dotted line) and from the near-infrared
M_bh-L_bulge relation by Marconi et al. (2003, M_smbh = 4e7 Msun , dashed line). The observed
and modeled velocity curve (top panel), velocity dispersion radial profile (middle panel) and flux radial
profile (bottom panel) are shown for slit along the major axis (slit #1, {upper left panels), close to minor axis
(slit #4, upper right panel), along eastern offset (slit #3, lower left panel), and western
offset (slit #2, lower right panel)

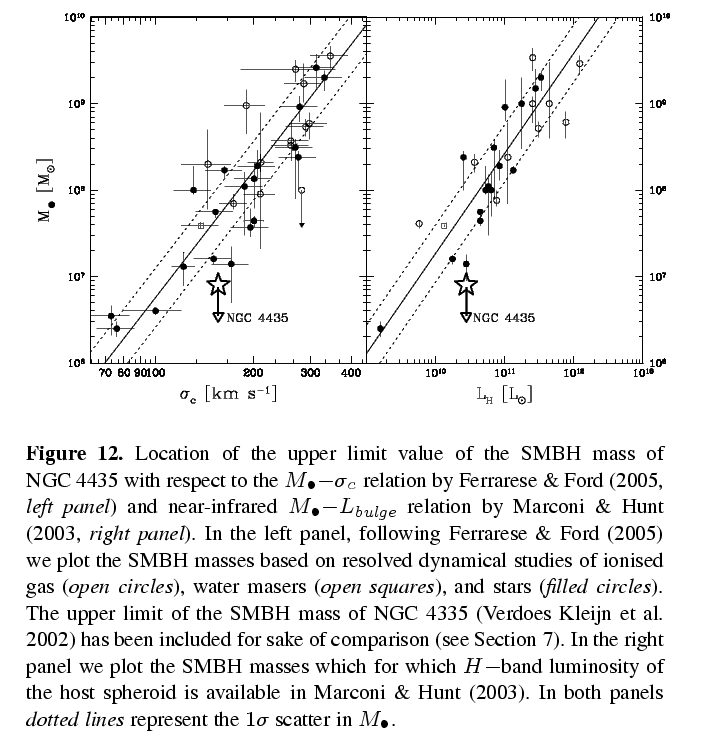

Location of our SMBH mass estimatge in scaling relations:
