AMBER trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-09-03T00:15:08 (UT)
  | now: 2014-09-03T01:03:35 (UT) muc05 QC pipeline: amber-4.3.1 (installed 2014-03-19)
same group: RMNREC_missing RMNREC RMNREC_night OPT_vs_AMBER
General news:
AMBER news:
Report news:
DATE*: [?] 2014-08-27
report | NLT
2014-08-28
report | NLT
2014-08-29
report | NLT
2014-08-30
report | NLT
2014-08-31
report | NLT
2014-09-01
report | NLT
2014-09-02
no data | NLT
P...
Product quality:
no products products products no products no products no products no products
  no OPSLOG data

scores&comments | FULL | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB no none   NONE VAL0.9,1.1 119 rmnrec_flag this | last_yr | all SCORED: Calib_only_with FT_FINITO
2 QC1DB no none   NONE VAL0.9,1.1 0 rmnrec_flag this | last_yr | all Calib_science_with_FT_FINITO
3 QC1DB no none   NONE VAL0.9,1.1 119 rmnrec_flag this | last_yr | all Calib_only_with FT_FINITO
3 QC1DB no none   NONE VAL0.9,1.1 59 rmnrec_flag this | last_yr | all Calib_only_with_FT_NONE
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: 10|
data source:amber_calibrators_filtered_K
(QC1 database)
dataset:rmnrec_flag
average:none
fixed thresholds:0.9...1.1NONE
N_data plotted:119
[click on plot for closeup]
Plot 2
scores: not implemented
data source:amber_rmnrec
(QC1 database)
dataset:rmnrec_flag
average:none
fixed thresholds:0.9...1.1NONE
N_data plotted:0
[click on plot for closeup]
Plot 3
scores: not implemented
data source:amber_calibrators_filtered_K
(QC1 database)
dataset:
(numbers below apply to this dataset)
rmnrec_flag
average:none
fixed thresholds:0.9...1.1NONE
N_data plotted:119
[click on plot for closeup]
This plot

Since P88, RMNREC data are recorded in the AMBER files as a set of additionnal tables (FNT1, FNT2, OPDC1, OPDC2)
These tables and the keyword PCR ACQ START and PCR ACQ END should be present in the AMBER FITS files if DEL FT SENSOR is set to FINITO and DEL FT STATUS is set to ON.
In some cases, these PCR keywords have been missing as well as the additional tables (PPRS-042856).

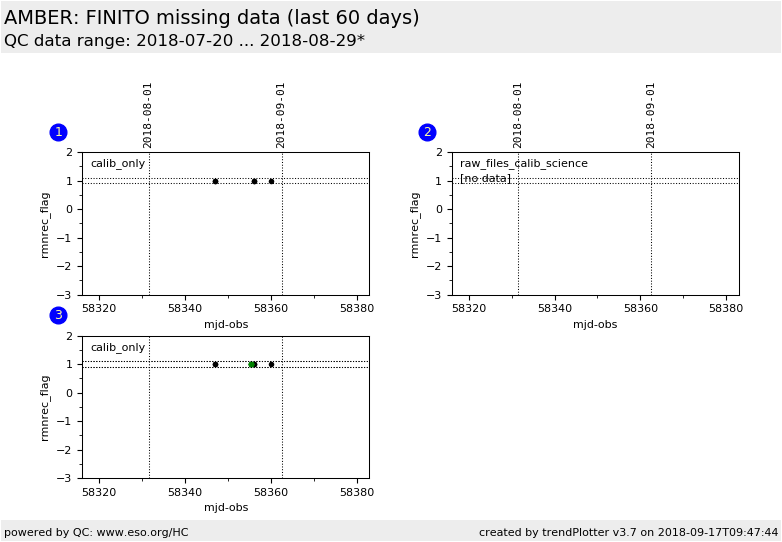

The HC plot 1 and 3 shows the presence or not of these keywords and extension tables in the calib fits files (processed by QC). The differences between plot 1 and plot 3 is that plot 1 shows only calib with FINITO ON, plot 3 shows all calib processed data FNT ON (black) and FNT OFF (green).
Plot 1 is scored.
The flag can be: 1, 0:
1 : plots 1 and 3: the file is with FINITO, the keywords PCR and tables FNT and OPDC are present, plot3: file is without FNT (green points)
0 : plots 1 and 3: there is a problem with the file, PCR ACQ keywords and/or the RMNREC tables (FNT and OPDC) are missing

The HC plot 2 shows the presence or not of these keywords and extension tables in the raw fits files (CALIB and SCIENCE).
The flag can be: 1, 0, -1, -2 and the coding is the following:
1 : keywords PCR and tables FNT and OPDC are present
0 : keywords PCR are in the file, tables FNT and OPDC are missing
-1 : keywords PCR are missing and tables FNT and OPDC are present
-2 : keywords PCR and tables FNT and OPDC are missing


For more parameters concerning the RMNREC data (such as FNT and AMBER fluxes, optimal DIT), or concerning the observation (OBSID and target info) go to the amber_rmnrec qc1database.



General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
