FORS2 Pipeline:
Recipe for Imaging Screen Flats

CAL | HC | refs | QC
QUALITY CONTROL
    HOME
FORS2 QC
Trending & QC1
History
Pipeline
calib data
Data Packages
Data Management
QC links:
  • recipe name: FORS_IMG_SCREEN_FLAT
  • input frames: SCREEN_FLAT_IMG
  • associated templates: FORS2_img_cal_scrflat
purpose: Creates a master screen flat from a set of screenflat images.

description: After bias subtraction, the input frames are averaged. The overscan regions, if present, are removed from the result. The combined frame is then normalised dividing it by its large scale illumination trend. The large scale trend is obtained by applying a median filter with a large kernel. The master frame has 2 extensions, with the actual product being in the first extension and its errors being in the second extension.

At the end, the new master frame is compared with the corresponding certified master frame from the calibration database.

products:

Master PS GIF Header
F2_MSFI_080406A_USPECIAL_C1lo_2x2s

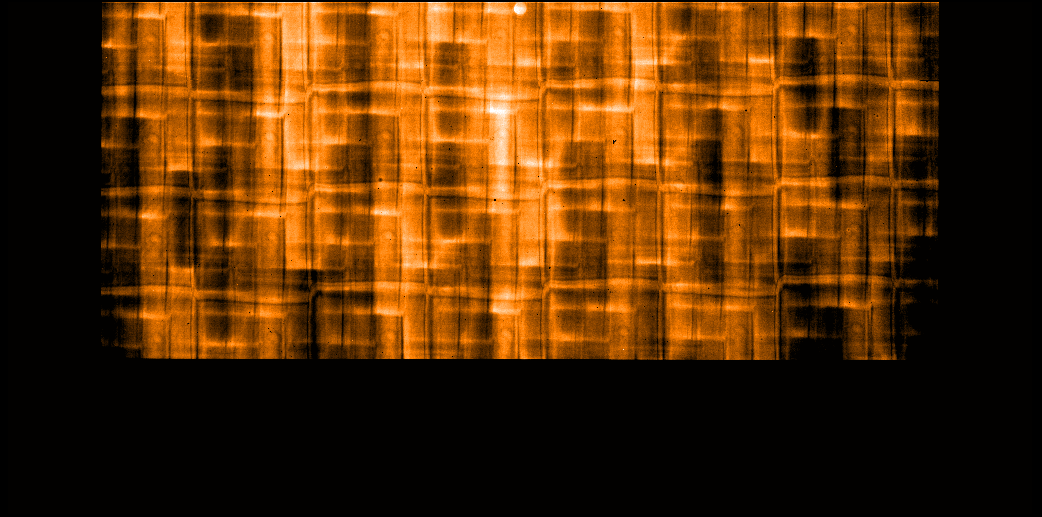

F2_MSFI_080406A_USPECIAL_C2lo_2x2s
