GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-01-21T18:35:45 (UT)
  | now: 2022-01-22T04:00:07 (UT) muc05 QC pipeline: gravity-1.5.0 (installed 2021-09-01)
same group: AT_SC_low AT_SC_med AT_SC_high AT_FT   UT_SC_low UT_SC_med UT_SC_high UT_FT
General news:
GRAVITY news:
Report news:
DATE*: [?] 2022-01-15
report | NLT
2022-01-16
report | NLT
2022-01-17
report | NLT
2022-01-18
report | NLT
2022-01-19
report | NLT
2022-01-20
report | NLT
2022-01-21
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN -10.5 degrees none  89 phasediff_sc12 this | last_yr | all calibrator phase difference, ATs, base line 12, SC, MEDIUM resolution
2 QC1DB MEDIAN -47.3 degrees none  89 phasediff_sc13 this | last_yr | all calibrator phase difference, ATs, base line 13, SC, MEDIUM resolution
3 QC1DB MEDIAN -15.2 degrees none  89 phasediff_sc14 this | last_yr | all calibrator phase difference, ATs, base line 14, SC, MEDIUM resolution
4 QC1DB MEDIAN -36.6 degrees none  89 phasediff_sc23 this | last_yr | all calibrator phase difference, ATs, base line 23, SC, MEDIUM resolution
5 QC1DB MEDIAN -6.54 degrees none  89 phasediff_sc24 this | last_yr | all calibrator phase difference, ATs, base line 24, SC, MEDIUM resolution
6 QC1DB MEDIAN 31 degrees none  89 phasediff_sc34 this | last_yr | all calibrator phase difference, ATs, base line 34, SC, MEDIUM resolution
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc12
median:-10.5degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 2
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc13
median:-47.3degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 3
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc14
median:-15.2degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 4
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc23
median:-36.6degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 5
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc24
median:-6.54degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
Plot 6
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:phasediff_sc34
median:31degrees
thresholds:none
N_data plotted:89
[click plot for closeup]
This plot

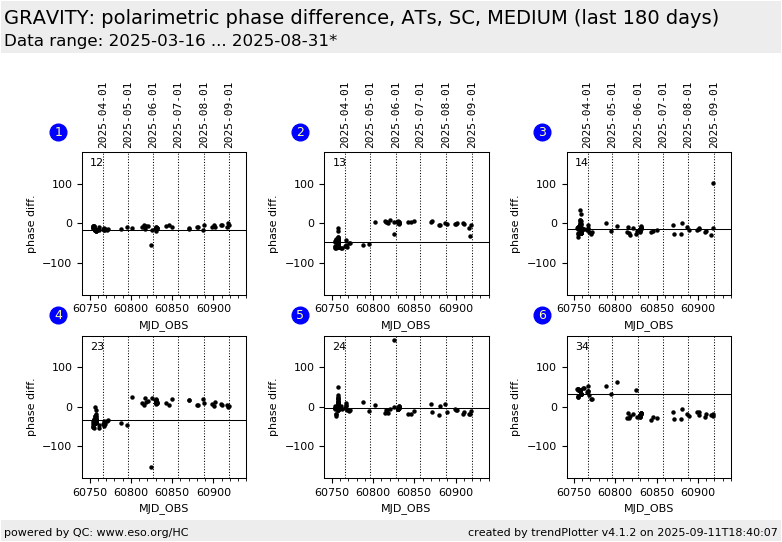

Phase difference in calibrator observation of the two polarimetric beams for all six baselines. Only for SPLIT polarimetry mode.

There are separate plots for AT and UT observations.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
