GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-05-16T18:31:17 (UT)
  | now: 2022-05-17T08:57:18 (UT) muc05 QC pipeline: gravity-1.5.4 (installed 2022-03-24)
same group: SC_low SC_med SC_high FT
General news:
GRAVITY news:
Report news:
DATE*: [?] 2022-05-10
report | NLT
2022-05-11
report | NLT
2022-05-12
report | NLT
2022-05-13
report | NLT
2022-05-14
report | NLT
2022-05-15
report | NLT
2022-05-16
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 0.875 none VAL0.85,1.0 139 mincoher_ft12 this | last_yr | all minimum coherence, base line 12, FT, SPLIT polarimetry
2 QC1DB MEDIAN 0.899 none VAL0.85,0.97 139 mincoher_ft13 this | last_yr | all minimum coherence, base line 13, FT, SPLIT polarimetry
3 QC1DB MEDIAN 0.907 none VAL0.84,0.96 139 mincoher_ft14 this | last_yr | all minimum coherence, base line 14, FT, SPLIT polarimetry
4 QC1DB MEDIAN 0.928 none VAL0.85,0.975 139 mincoher_ft23 this | last_yr | all minimum coherence, base line 23, FT, SPLIT polarimetry
5 QC1DB MEDIAN 0.929 none VAL0.85,0.975 139 mincoher_ft24 this | last_yr | all minimum coherence, base line 24, FT, SPLIT polarimetry
6 QC1DB MEDIAN 0.928 none VAL0.85,0.965 139 mincoher_ft34 this | last_yr | all minimum coherence, base line 34, FT, SPLIT polarimetry
7 QC1DB MEDIAN 0.922 none VAL0.88,1.0 89 mincoher_ft12 this | last_yr | all minimum coherence, base line 12, FT, COMBINED polarimetry
8 QC1DB MEDIAN 0.937 none VAL0.89,0.97 89 mincoher_ft13 this | last_yr | all minimum coherence, base line 13, FT, COMBINED polarimetry
9 QC1DB MEDIAN 0.884 none VAL0.80,0.91 89 mincoher_ft14 this | last_yr | all minimum coherence, base line 14, FT, COMBINED polarimetry
10 QC1DB MEDIAN 0.946 none VAL0.85,0.98 89 mincoher_ft23 this | last_yr | all minimum coherence, base line 23, FT, COMBINED polarimetry
11 QC1DB MEDIAN 0.925 none VAL0.85,0.95 89 mincoher_ft24 this | last_yr | all minimum coherence, base line 24, FT, COMBINED polarimetry
12 QC1DB MEDIAN 0.918 none VAL0.85,1.0 89 mincoher_ft34 this | last_yr | all minimum coherence, base line 34, FT, COMBINED polarimetry
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft12
median:0.875none
fixed thresholds:0.85...1.0none
N_data plotted:139
[click plot for closeup]
Plot 2
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft13
median:0.899none
fixed thresholds:0.85...0.97none
N_data plotted:139
[click plot for closeup]
Plot 3
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft14
median:0.907none
fixed thresholds:0.84...0.96none
N_data plotted:139
[click plot for closeup]
Plot 4
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft23
median:0.928none
fixed thresholds:0.85...0.975none
N_data plotted:139
[click plot for closeup]
Plot 5
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft24
median:0.929none
fixed thresholds:0.85...0.975none
N_data plotted:139
[click plot for closeup]
Plot 6
scores: 11|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft34
median:0.928none
fixed thresholds:0.85...0.965none
N_data plotted:139
[click plot for closeup]
Plot 7
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft12
median:0.922none
fixed thresholds:0.88...1.0none
N_data plotted:89
[click plot for closeup]
Plot 8
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft13
median:0.937none
fixed thresholds:0.89...0.97none
N_data plotted:89
[click plot for closeup]
Plot 9
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft14
median:0.884none
fixed thresholds:0.8...0.91none
N_data plotted:89
[click plot for closeup]
Plot 10
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft23
median:0.946none
fixed thresholds:0.85...0.98none
N_data plotted:89
[click plot for closeup]
Plot 11
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft24
median:0.925none
fixed thresholds:0.85...0.95none
N_data plotted:89
[click plot for closeup]
Plot 12
scores: 4|
data source:gravity_p2vm
(QC1 database)
dataset:mincoher_ft34
median:0.918none
fixed thresholds:0.85...1.0none
N_data plotted:89
[click plot for closeup]
This plot

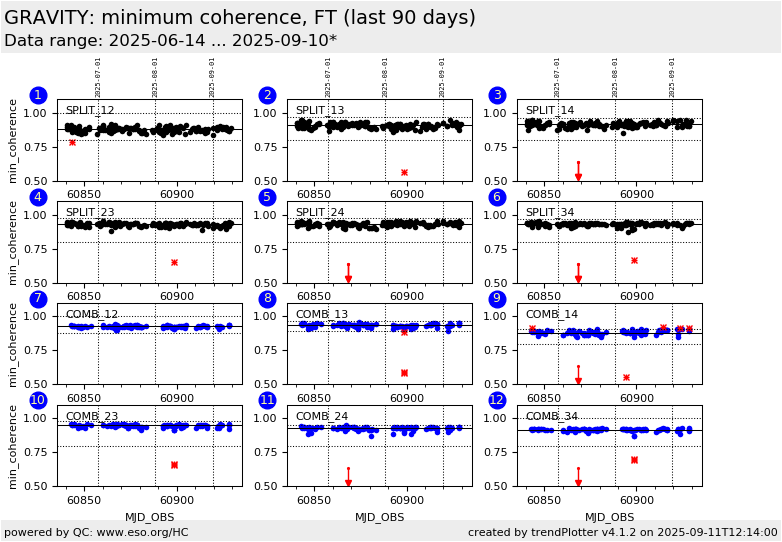

Trending plots for normalized coherence from P2VM calibrations for each baseline.

Note about LOW resolution: with pipeline version 1.2.x, installed 2019-03-25 for QC, some QC parameters for P2VM do not give meaningful values. This includes the coherence for individual baselines. Plotting of these parameters and scoring has therefore been stopped for LOW resolution.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
