GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-17T18:30:02 (UT)
  | now: 2024-04-18T01:08:26 (UT) muc05 QC pipeline: gravity-1.5.4 (installed 2022-03-24)
same group: SC_low SC_med SC_high
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
GRAVITY news:
Report news:
DATE*: [?] 2024-04-11
report | NLT
2024-04-12
report | NLT
2024-04-13
report | NLT
2024-04-14
report | NLT
2024-04-15
report | NLT
2024-04-16
report | NLT
2024-04-17
no data | NLT
r...
Raw CAL displays:
no CAL raw files raw raw no CAL raw files raw raw no CAL raw files
P...
CAL product quality:
no CAL products products products no CAL products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 12.7 pixel VAL12.60,12.90 92 profile_center_sc1 this | last_yr | all center of 1st flat-field profile, SPLIT polarisation
2 QC1DB MEDIAN 160 pixel none  92 profile_center_sc13 this | last_yr | all center of 13th flat-field profile, SPLIT polarisation
3 QC1DB MEDIAN 0.606 pixel VAL0.59,0.61 92 profile_width_sc1 this | last_yr | all width of 1st flat-field profile, SPLIT polarisation
4 QC1DB MEDIAN 0.556 pixel none  92 profile_width_sc13 this | last_yr | all width of 13th flat-field profile, SPLIT polarisation
5 QC1DB MEDIAN 4.67 pixel VAL4.6,4.8 57 profile_center_sc1 this | last_yr | all center of 1st flat-field profile, COMBINED polarisation
6 QC1DB MEDIAN 150 pixel none  57 profile_center_sc13 this | last_yr | all center of 13th flat-field profile, COMBINED polarisation
7 QC1DB MEDIAN 0.615 pixel VAL0.60,0.62 57 profile_width_sc1 this | last_yr | all width of 1st flat-field profile, COMBINED polarisation
8 QC1DB MEDIAN 0.535 pixel none  57 profile_width_sc13 this | last_yr | all width of 13th flat-field profile, COMBINED polarisation
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 6|
data source:gravity_p2vm
(QC1 database)
dataset:profile_center_sc1
median:12.7pixel
fixed thresholds:12.6...12.9pixel
N_data plotted:92
[click plot for closeup]
Plot 2
scores: not implemented
data source:gravity_p2vm
(QC1 database)
dataset:profile_center_sc13
median:160pixel
thresholds:none
N_data plotted:92
[click plot for closeup]
Plot 3
scores: 6|
data source:gravity_p2vm
(QC1 database)
dataset:profile_width_sc1
median:0.606pixel
fixed thresholds:0.59...0.61pixel
N_data plotted:92
[click plot for closeup]
Plot 4
scores: not implemented
data source:gravity_p2vm
(QC1 database)
dataset:profile_width_sc13
median:0.556pixel
thresholds:none
N_data plotted:92
[click plot for closeup]
Plot 5
scores: 3|
data source:gravity_p2vm
(QC1 database)
dataset:profile_center_sc1
median:4.67pixel
fixed thresholds:4.6...4.8pixel
N_data plotted:57
[click plot for closeup]
Plot 6
scores: not implemented
data source:gravity_p2vm
(QC1 database)
dataset:profile_center_sc13
median:150pixel
thresholds:none
N_data plotted:57
[click plot for closeup]
Plot 7
scores: 3|
data source:gravity_p2vm
(QC1 database)
dataset:profile_width_sc1
median:0.615pixel
fixed thresholds:0.6...0.62pixel
N_data plotted:57
[click plot for closeup]
Plot 8
scores: not implemented
data source:gravity_p2vm
(QC1 database)
dataset:profile_width_sc13
median:0.535pixel
thresholds:none
N_data plotted:57
[click plot for closeup]
This plot

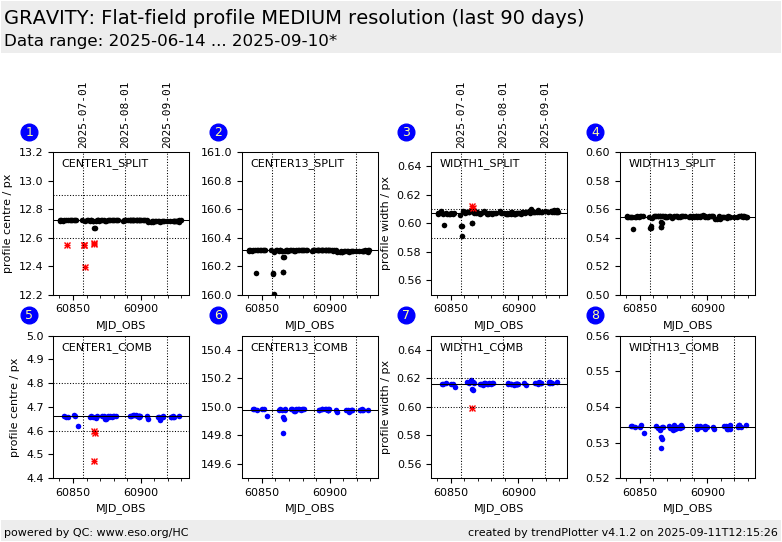

Cross-dispersion profiles in flat fields: central position and width of the 1st and 13th profile.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
