GRAVITY trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2022-01-21T18:36:54 (UT)
  | now: 2022-01-22T01:53:24 (UT) muc05 QC pipeline: gravity-1.5.0 (installed 2021-09-01)
same group: AT_SC_low AT_SC_med AT_SC_high AT_FT   UT_SC_med UT_SC_high UT_FT
General news:
GRAVITY news:
Report news:
DATE*: [?] 2022-01-15
report | NLT
2022-01-16
report | NLT
2022-01-17
report | NLT
2022-01-18
report | NLT
2022-01-19
report | NLT
2022-01-20
report | NLT
2022-01-21
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 1.64 % none  78 trans_sc1 this | last_yr | all SC transmission, Tel 1 = AT 4, MEDIUM resolution, SPLIT polarisation
2 QC1DB MEDIAN 1.36 % none  78 trans_sc2 this | last_yr | all SC transmission, Tel 2 = AT 3, MEDIUM resolution, SPLIT polarisation
3 QC1DB MEDIAN 1.47 % none  78 trans_sc3 this | last_yr | all SC transmission, Tel 3 = AT 2, MEDIUM resolution, SPLIT polarisation
4 QC1DB MEDIAN 1.4 % none  78 trans_sc4 this | last_yr | all SC transmission, Tel 4 = AT 1, MEDIUM resolution, SPLIT polarisation
5 QC1DB MEDIAN 1.49 % none  48 trans_sc1 this | last_yr | all SC transmission, Tel 1 = AT 4, MEDIUM resolution, COMBINED polarisation
6 QC1DB MEDIAN 1.32 % none  48 trans_sc2 this | last_yr | all SC transmission, Tel 2 = AT 3, MEDIUM resolution, COMBINED polarisation
7 QC1DB MEDIAN 1.36 % none  48 trans_sc3 this | last_yr | all SC transmission, Tel 3 = AT 2, MEDIUM resolution, COMBINED polarisation
8 QC1DB MEDIAN 1.43 % none  48 trans_sc4 this | last_yr | all SC transmission, Tel 4 = AT 1, MEDIUM resolution, COMBINED polarisation
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc1
median:1.64%
thresholds:none
N_data plotted:78
[click plot for closeup]
Plot 2
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc2
median:1.36%
thresholds:none
N_data plotted:78
[click plot for closeup]
Plot 3
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc3
median:1.47%
thresholds:none
N_data plotted:78
[click plot for closeup]
Plot 4
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc4
median:1.4%
thresholds:none
N_data plotted:78
[click plot for closeup]
Plot 5
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc1
median:1.49%
thresholds:none
N_data plotted:48
[click plot for closeup]
Plot 6
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc2
median:1.32%
thresholds:none
N_data plotted:48
[click plot for closeup]
Plot 7
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc3
median:1.36%
thresholds:none
N_data plotted:48
[click plot for closeup]
Plot 8
scores: not implemented
data source:gravity_vis
(QC1 database)
dataset:trans_sc4
median:1.43%
thresholds:none
N_data plotted:48
[click plot for closeup]

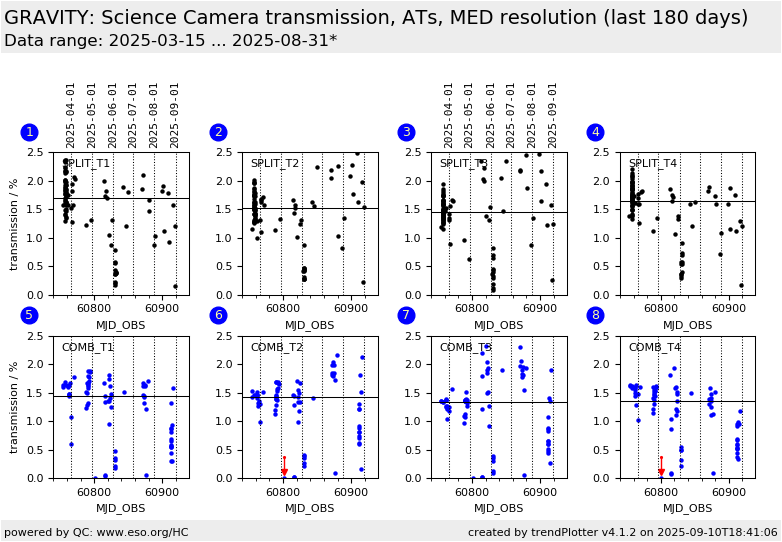

This plot

Total transmission (in percent) from source to detector using calibrator observations.

Please note that only very few data points exist for the transmission in low resolution with the UTs. This plot is therefore not implemented.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
