KMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-16T15:30:02 (UT)
  | now: 2024-04-16T16:50:46 (UT) muc01 QC pipeline: kmos-4.0.3 (installed 2022-03-28)
same group: X_IFU01-08 X_IFU09-16 X_IFU17-24   Y_IFU01-08 Y_IFU09-16 Y_IFU17-24
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
KMOS news:
Report news:
DATE*: [?] 2024-04-09
report | NLT
2024-04-10
report | NLT
2024-04-11
report | NLT
2024-04-12
report | NLT
2024-04-13
no data | NLT
2024-04-14
report | NLT
2024-04-15
report | NLT
r...
Raw CAL displays:
raw raw raw raw no CAL raw files no CAL raw files raw
P...
CAL product quality:
products products products products no CAL products no CAL products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 6.93 px none  127 xcenter_ifu01 this | last_yr | all x centroid of object, ifu 01
2 QC1DB MEDIAN 7.56 px none  127 xcenter_ifu02 this | last_yr | all x centroid of object, ifu 02
3 QC1DB MEDIAN 7.41 px none  130 xcenter_ifu03 this | last_yr | all x centroid of object, ifu 03
4 QC1DB MEDIAN 7.23 px none  126 xcenter_ifu04 this | last_yr | all x centroid of object, ifu 04
5 QC1DB MEDIAN 7.09 px none  127 xcenter_ifu05 this | last_yr | all x centroid of object, ifu 05
6 QC1DB MEDIAN 6.96 px none  127 xcenter_ifu06 this | last_yr | all x centroid of object, ifu 06
7 QC1DB MEDIAN 7.39 px none  130 xcenter_ifu07 this | last_yr | all x centroid of object, ifu 07
8 QC1DB MEDIAN   px none  0 xcenter_ifu08 this | last_yr | all x centroid of object, ifu 08
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu01
median:6.93px
thresholds:none
N_data plotted:127
[click plot for closeup]
Plot 2
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu02
median:7.56px
thresholds:none
N_data plotted:127
[click plot for closeup]
Plot 3
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu03
median:7.41px
thresholds:none
N_data plotted:130
[click plot for closeup]
Plot 4
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu04
median:7.23px
thresholds:none
N_data plotted:126
[click plot for closeup]
Plot 5
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu05
median:7.09px
thresholds:none
N_data plotted:127
[click plot for closeup]
Plot 6
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu06
median:6.96px
thresholds:none
N_data plotted:127
[click plot for closeup]
Plot 7
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu07
median:7.39px
thresholds:none
N_data plotted:130
[click plot for closeup]
Plot 8
scores: not implemented
data source:kmos_acq
(QC1 database)
dataset:xcenter_ifu08
median:no datapx
thresholds:none
N_data plotted:0
[click plot for closeup]

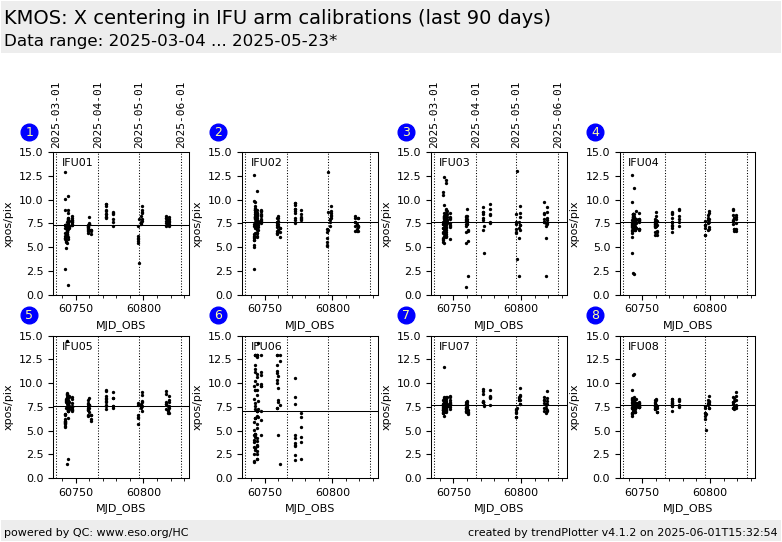

This plot

Accuracy of IFU postioning (LUT calibrations) as derived from observations of astrometric fields.

The dotted red line indicates the center (at x, y = 7.5 px); the solid black line is the median of the measurements. The median should match with the center.

NOTE: Data points earlier then August 2014 have not been stored in the QC1 database. The median is calculated only for data from August 2014 and later.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
