KMOS trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-16T15:26:35 (UT)
  | now: 2024-04-16T18:24:00 (UT) muc01 QC pipeline: kmos-4.0.3 (installed 2022-03-28)
same group: IZ_width YJ_width H_width HK_width K_width   num_ifu badpix
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
KMOS news:
Report news:
DATE*: [?] 2024-04-09
report | NLT
2024-04-10
report | NLT
2024-04-11
report | NLT
2024-04-12
report | NLT
2024-04-13
no data | NLT
2024-04-14
report | NLT
2024-04-15
report | NLT
r...
Raw CAL displays:
raw raw raw raw no CAL raw files no CAL raw files raw
P...
CAL product quality:
products products products products no CAL products no CAL products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 13.5 pix VAL12.25,15.75 25 slit_wid_mean_0 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
2 QC1DB MEDIAN 13.5 pix VAL12.25,15.75 24 slit_wid_mean_0 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
3 QC1DB MEDIAN 13.4 pix VAL12.25,15.75 25 slit_wid_mean_0 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
4 QC1DB none   pix none  25 slit_wid_mean_1 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
4 QC1DB none   pix none  25 slit_wid_mean_2 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
4 QC1DB none   pix none  25 slit_wid_mean_3 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
4 QC1DB none   pix none  25 slit_wid_mean_4 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
4 QC1DB none   pix none  25 slit_wid_mean_5 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
4 QC1DB none   pix none  25 slit_wid_mean_6 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 1
5 QC1DB none   pix none  24 slit_wid_mean_1 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
5 QC1DB none   pix none  24 slit_wid_mean_2 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
5 QC1DB none   pix none  24 slit_wid_mean_3 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
5 QC1DB none   pix none  24 slit_wid_mean_4 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
5 QC1DB none   pix none  22 slit_wid_mean_5 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
5 QC1DB none   pix none  24 slit_wid_mean_6 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 2
6 QC1DB none   pix none  25 slit_wid_mean_1 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
6 QC1DB none   pix none  25 slit_wid_mean_2 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
6 QC1DB none   pix none  25 slit_wid_mean_3 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
6 QC1DB none   pix none  25 slit_wid_mean_4 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
6 QC1DB none   pix none  25 slit_wid_mean_5 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
6 QC1DB none   pix none  25 slit_wid_mean_6 this | last_yr | all mean width of slitlets, IZ band, 0 degree rotator angle, detector 3
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 3|
data source:kmos_flat
(QC1 database)
dataset:slit_wid_mean_0
median:13.5pix
fixed thresholds:12.25...15.75pix
N_data plotted:25
[click plot for closeup]
Plot 2
scores: 3|
data source:kmos_flat
(QC1 database)
dataset:slit_wid_mean_0
median:13.5pix
fixed thresholds:12.25...15.75pix
N_data plotted:24
[click plot for closeup]
Plot 3
scores: 3|
data source:kmos_flat
(QC1 database)
dataset:slit_wid_mean_0
median:13.4pix
fixed thresholds:12.25...15.75pix
N_data plotted:25
[click plot for closeup]
Plot 4
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
slit_wid_mean_1
average:none
thresholds:none
N_data plotted:25
[click plot for closeup]
Plot 5
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
slit_wid_mean_1
average:none
thresholds:none
N_data plotted:24
[click plot for closeup]
Plot 6
scores: not implemented
data source:kmos_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
slit_wid_mean_1
average:none
thresholds:none
N_data plotted:25
[click plot for closeup]

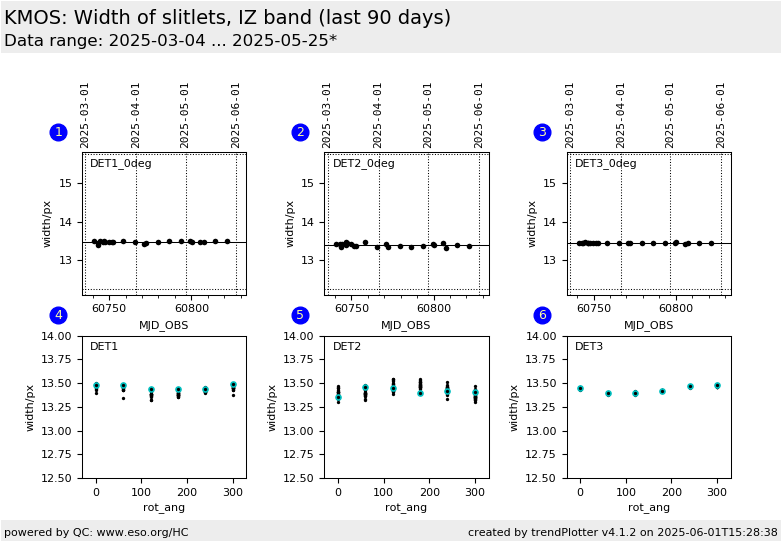

This plot

Mean width of the slitlets in flat-field exposures.

The upper row shows the trending versus time for calibrations with 0 degree rotator angle. These values are scored. The lower row shows the dependency against rotator angle. The latest data points are marked; scoring is not applied.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
