MUSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2023-10-01T16:15:45 (UT)
  | now: 2023-10-01T22:31:51 (UT) muc09 QC pipeline: muse-2.8.8 (installed 2023-06-22)
same group: ARC_wavecal-N ARC_wavecal-E ARC_wavecal-NFM RESOL_det RESOL_temp ARC_fit-N ARC_fit-E ARC_fit-NFM ARC_flux
General news: NOTE: The Health Check and calChecker services will be moved to qcFlow in the course of 2023 on an instrument by instrument basis. The current pages will then not be updated any longer.
MUSE news:
Report news:
DATE*: [?] 2023-09-24
report | NLT
2023-09-25
report | NLT
2023-09-26
report | NLT
2023-09-27
report | NLT
2023-09-28
report | NLT
2023-09-29
report | NLT
2023-09-30
report | NLT
2023-10-01
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products products no CAL products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   counts none  86 slice20_lamp3_peak_mean this | last_yr | all mean flux of the Ne lamp arc averaged across all IFUs
2 QC1DB none   counts none  86 slice20_lamp4_peak_mean this | last_yr | all mean flux of the Xe lamp arc averaged across all IFUs
3 QC1DB none   counts none  86 slice20_lamp5_peak_mean this | last_yr | all mean flux of the HgCd lamp arc averaged across all IFUs
4 QC1DB none   counts VAL15000,37000 86 slice20_lamp3_peak_max this | last_yr | all max flux of the Ne lamp arc averaged across all IFUs
5 QC1DB none   counts VAL40000,55000 86 slice20_lamp4_peak_max this | last_yr | all max flux of the Xe lamp arc averaged across all IFUs
6 QC1DB none   counts VAL40000,68000 86 slice20_lamp5_peak_max this | last_yr | all max flux of the HgCd lamp arc averaged across all IFUs
7 QC1DB none   NONE VAL0,15 85 nsaturated_lamp3 this | last_yr | all # saturated pixels from the Ne lamp averaged across all IFUs
8 QC1DB none   NONE VAL0,15 85 nsaturated_lamp4 this | last_yr | all no of saturated pixels from the Xe lamp averaged across all IFUs
9 QC1DB none   NONE VAL0,15 85 nsaturated_lamp5 this | last_yr | all no of saturated pixels from the HgCd lamp averaged across all IFUs
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp3_peak_mean
average:none
thresholds:none
N_data plotted:86
[click plot for closeup]
Plot 2
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp4_peak_mean
average:none
thresholds:none
N_data plotted:86
[click plot for closeup]
Plot 3
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp5_peak_mean
average:none
thresholds:none
N_data plotted:86
[click plot for closeup]
Plot 4
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp3_peak_max
average:none
fixed thresholds:15000...37000counts
N_data plotted:86
[click plot for closeup]
Plot 5
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp4_peak_max
average:none
fixed thresholds:40000...55000counts
N_data plotted:86
[click plot for closeup]
Plot 6
scores: no current data
data source:muse_wave
(QC1 database)
dataset:slice20_lamp5_peak_max
average:none
fixed thresholds:40000...68000counts
N_data plotted:86
[click plot for closeup]
Plot 7
scores: no current data
data source:muse_wave
(QC1 database)
dataset:nsaturated_lamp3
average:none
fixed thresholds:0...15NONE
N_data plotted:85
[click plot for closeup]
Plot 8
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:nsaturated_lamp4
average:none
fixed thresholds:0...15NONE
N_data plotted:85
[click plot for closeup]
Plot 9
scores: not implemented
data source:muse_wave
(QC1 database)
dataset:nsaturated_lamp5
average:none
fixed thresholds:0...15NONE
N_data plotted:85
[click plot for closeup]
This plot

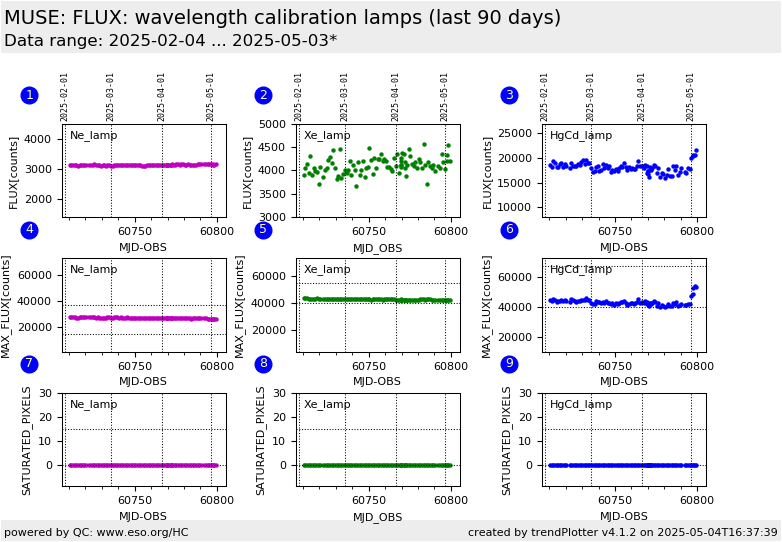

This is MUSE ARC_flux health check plot. It monitors status of the wave calibration lamps: Ne, Xe and HgCd by tracing mean and maximum flux of the arc lines generated by each lamp. The lines are measured on slice20 of each IFU (detector). Only data points determined from ARC calibrations taken in the instrumental mode (INS.MODE) WFM-NOAO-N and the read out mode (DET.READ.CURNAME) SCI1.0 were selected. The data for each slice are averaged across all detectors (CHANELs).

The ARC calibration data are taken with template TPL.ID=MUSE_wfm_cal_wave


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
