MUSE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-04-21T16:00:26 (UT)
  | now: 2024-04-21T18:51:36 (UT) muc09 QC pipeline: muse-2.8.8 (installed 2023-06-22)
same group: FLAT_mean FLAT_algnm FLAT_algnm_temp TRACE_lxpos TRACE_rxpos TRACE_tilt TRACE_width TRACE_vignet
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
MUSE news:
Report news:
DATE*: [?] 2024-04-14
no data | NLT
2024-04-15
report | NLT
2024-04-16
report | NLT
2024-04-17
report | NLT
2024-04-18
report | NLT
2024-04-19
report | NLT
2024-04-20
report | NLT
r...
Raw CAL displays:
no CAL raw files raw raw raw raw raw raw
P...
CAL product quality:
no CAL products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 2.14e+04 ADU VAL20000.,27000. 52 flat_mean this | last_yr | all average of the lamp FLAT flux WFM-NOAO-N mode
2 QC1DB MEDIAN 759 ADU VAL700.,1000. 52 flat_mean this | last_yr | all rms of the average lamp FLAT flux WFM-NOAO-N mode
3 QC1DB MEDIAN 2.17e+04 ADU VAL20000.,27000. 80 flat_mean this | last_yr | all average of the lamp FLAT flux WFM-NOAO-E mode
4 QC1DB MEDIAN 757 ADU VAL700.,1000. 80 flat_mean this | last_yr | all rms of the average lamp FLAT flux WFM-NOAO-E mode
5 QC1DB MEDIAN 2.08e+04 ADU VAL17000.,28000. 20 flat_mean this | last_yr | all average of the lamp FLAT flux NFM-AO-N mode
6 QC1DB MEDIAN 847 ADU VAL700.,1200. 20 flat_mean this | last_yr | all rms of the average lamp FLAT flux NFM-AO-N mode
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 6|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:2.14e+04ADU
fixed thresholds:20000.0...27000.0ADU
N_data plotted:52
[click plot for closeup]
Plot 2
scores: 6|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:759ADU
fixed thresholds:700.0...1000.0ADU
N_data plotted:52
[click plot for closeup]
Plot 3
scores: 6|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:2.17e+04ADU
fixed thresholds:20000.0...27000.0ADU
N_data plotted:80
[click plot for closeup]
Plot 4
scores: 6|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:757ADU
fixed thresholds:700.0...1000.0ADU
N_data plotted:80
[click plot for closeup]
Plot 5
scores: 2|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:2.08e+04ADU
fixed thresholds:17000.0...28000.0ADU
N_data plotted:20
[click plot for closeup]
Plot 6
scores: 2|
data source:muse_lampflat
(QC1 database)
dataset:flat_mean
median:847ADU
fixed thresholds:700.0...1200.0ADU
N_data plotted:20
[click plot for closeup]

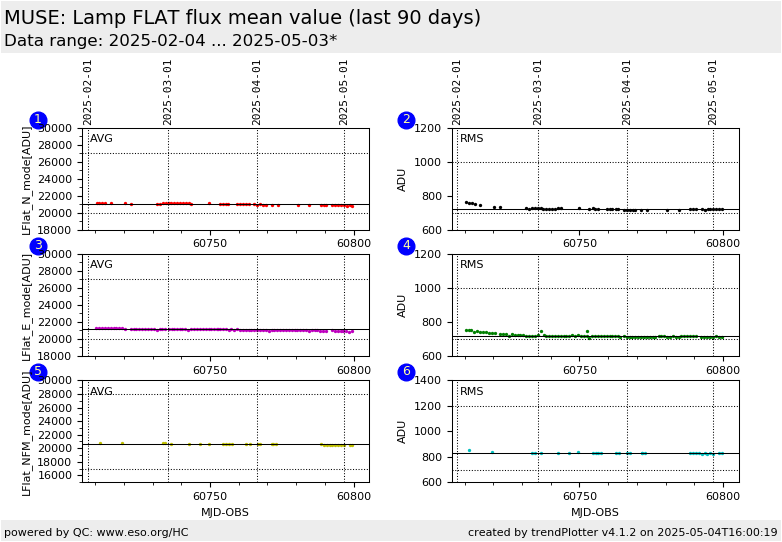

This plot

This is the MUSE FLAT_mean health check plot. The left panels show the average value (averaged over all detectors) of the lamp flat flux before normalization as estimated from the master LAMP_FLAT calibrations. The right panels contain rms of the average values. Data taken in the Nominal instrumental mode (INS.MODE) (red/black) and Extended mode (magenta/green), and NFM mode (green/turquoise) are plotted. Only data taken with the read out mode (DET.READ.CURNAME) SCI1.0 are selected.

The LAMP_FLAT calibration data are taken with template TPL.ID=MUSE_wfm_cal_specflat, MUSE_nfm_cal_specflat


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
