Plot
? |
Symb
? |
Source
* |
OPS?
** |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
no |
MEDIAN |
3.125 |
ADU |
VAL | 0,100 |
26 |
qc_dome_medrng |
this |
last_yr |
all
|
DOMERAWRANGE, average over all 16 detectors |
| 2 |
• | QC1DB |
no |
MEDIAN |
4.0 |
ADU |
VAL | 0,100 |
146 |
qc_dome_medrng |
this |
last_yr |
all
|
DOMERAWRANGE, values of all detetcors |
| 3 |
• | QC1DB |
no |
MEDIAN |
1.67332 |
ADU |
VAL | 0,20 |
26 |
qc_dome_medrng |
this |
last_yr |
all
|
DOMERAWRANGE, stdev over all detectors |
| 4 |
■ | LOCAL |
no |
none |
|
ADU |
none | |
400 |
qc_dome_medrng |
n/a |
|
| 4 |
■ | LOCAL |
no |
none |
|
ADU |
none | |
0 |
qc_dome_medrng |
n/a |
DOMERAWRANGE, outlier detector |
| 4 |
. | LOCAL |
no |
none |
|
ADU |
none | |
400 |
qc_dome_medrng |
n/a |
|
| 4 |
. | LOCAL |
no |
none |
|
ADU |
none | |
0 |
qc_dome_medrng |
n/a |
|
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
|
Plot 1
scores: no current data
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_dome_medrng | • |
| median: | 3.125 | ADU |
| fixed thresholds: | 0.0...100.0 | ADU |
| N_data plotted: | 26 |
| [click on plot for closeup] |
Plot 2
scores: not implemented
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_dome_medrng | • |
| median: | 4.0 | ADU |
| fixed thresholds: | 0.0...100.0 | ADU |
| N_data plotted: | 146 |
| [click on plot for closeup] |
Plot 3
scores: no current data
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_dome_medrng | • |
| median: | 1.67332 | ADU |
| fixed thresholds: | 0.0...20.0 | ADU |
| N_data plotted: | 26 |
| [click on plot for closeup] |
Plot 4
scores: not implemented
| | data source: | local text file
|
dataset:
(numbers below apply to this dataset) | qc_dome_medrng | ■ |
| average: | none |
| thresholds: | none |
| N_data plotted: | 400 |
| [click on plot for closeup] |

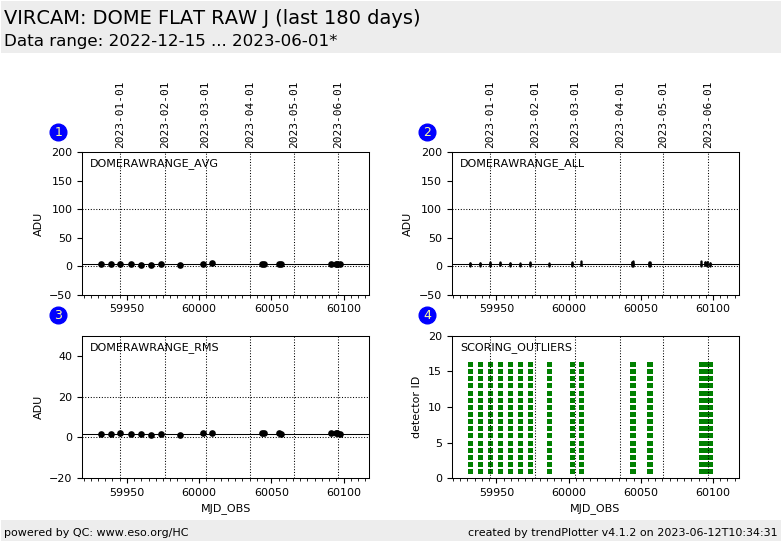

Trending plot for Range of raw frame medians.
QC parameters is derived from the raw frame input stack.
Name:QC_RAWRNG_AVG
Fits header: QC.FLAT.RNG
QC1 DB: qc_dome_medrng
Description:
Retrieve from each raw frame the median of the flux level. Take the range of all raw frame medians.
Setup:
INS.FILT1.NAME = H
These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters.
Green = within the acceptance thresholds.
Red = beyond the acceptance thresholds.
Find more information on the VIRCAM DOME FLAT tutorial page.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
