VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-07-22T21:37:50 (UT)
  | now: 2014-07-22T22:44:06 (UT) muc07 QC pipeline: vcam-1.3.3 (installed 2014-03-19)
same group: IQ_NB118 IQ_Z IQ_Y IQ_J IQ_H IQ_K
General news:
VIRCAM news: 2014-07-15: VIRCAM is not in operation from 2014-07-15 to 2014-07-24
Report news:
DATE*: [?] 2014-07-15
no data | NLT
2014-07-16
no data | NLT
2014-07-17
no data | NLT
2014-07-18
no data | NLT
2014-07-19
no data | NLT
2014-07-20
no data | NLT
2014-07-21
no data | NLT
2014-07-22
no data | NLT
P...
Product quality:
no products no products no products no products no products no products no products no products
  last OPSLOG data:
2014-07-13*

last files ...
monitor

scores&comments | FULL | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • 2009-05-28: Scoring (red/green squares in the group bar and in the navigation bar) is on the detector average (Fig. 1) and detector rms (Fig. 3) values alone.
  • 2009-05-28: Scores of individual detector values (Fig. 4) are for detailed analysis but do not contribute to the overall instrument score.
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN 0.934 arcsec VAL0.51,1.7 5 qc_image_size this | last_yr | all IQ in arcsec H, average over all 16 detectors
2 QC1DB yes (0) MEDIAN 0.929 arcsec VAL0.51,1.7 80 qc_image_size this | last_yr | all IQ in arcsec H, values of all detectors
3 QC1DB yes (0) MEDIAN 0.0355 arcsec VAL0.0,0.2 5 qc_image_size this | last_yr | all IQ in arcsec H, stdev over all detectors
4 LOCAL no none   arcsec none  64 qc_image_size n/a Score per Detector: Green = within the thresholds
4 LOCAL no none   arcsec none  16 qc_image_size n/a Score per Detector: Red = beyond thresholds
4 .LOCAL no none   arcsec none  64 qc_image_size n/a Score per Detector: Green = within the thresholds
4 .LOCAL no none   arcsec none  16 qc_image_size n/a Score per Detector: Red = beyond thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

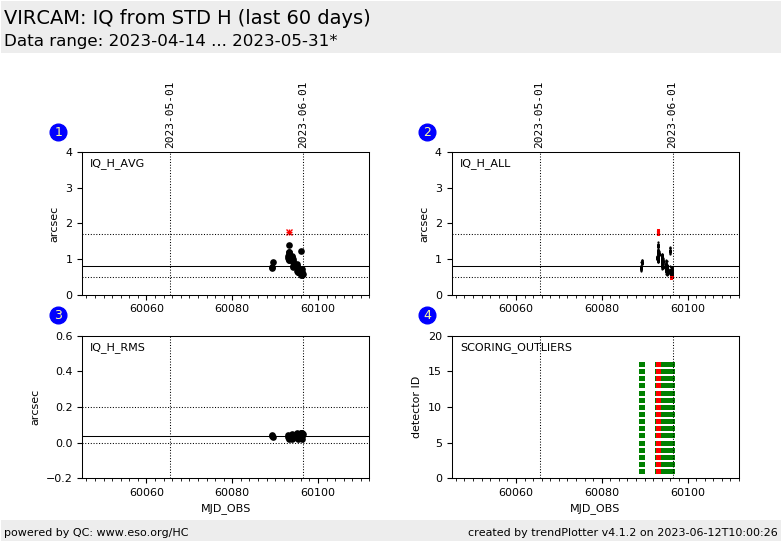

Plot 1
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_image_size
median:0.934arcsec
fixed thresholds:0.51...1.7arcsec
N_data plotted:5
[click on plot for closeup]
Plot 2
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_image_size
median:0.929arcsec
fixed thresholds:0.51...1.7arcsec
N_data plotted:80
[click on plot for closeup]
Plot 3
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_image_size
median:0.0355arcsec
fixed thresholds:0.0...0.2arcsec
N_data plotted:5
[click on plot for closeup]
Plot 4
scores: not implemented
data source:local text file
dataset:
(numbers below apply to this dataset)
qc_image_size
average:none
thresholds:none
N_data plotted:64
[click on plot for closeup]
This plot

Trending plot for image quality.

QC parameters is derived from each detector of daily photometric standard star calibrations.

Name:
Fits header: QC.IMAGE_SIZE,
QC1 DB: qc_image_size

Description:
The median of the sample of sources FWHM.

Setup:
INS.FILT1.NAME = H

These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors. This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters. Green = within the acceptance thresholds. Red = beyond the acceptance thresholds.

Find more information on the VIRCAM STD tutorial page.




General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
