Plot
? |
Symb
? |
Source
* |
OPS?
** |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
yes (2) |
MEDIAN |
1431.27002 |
ADU/sec |
VAL | 800,1700 |
24 |
qc_flux |
this |
last_yr |
all
|
LFLUX, average over all 16 detectors |
| 2 |
• | QC1DB |
yes (32) |
MEDIAN |
1453.19995 |
ADU/sec |
VAL | 800,2000 |
383 |
qc_flux |
this |
last_yr |
all
|
LFLUX, values of all detetcors |
| 3 |
• | QC1DB |
yes (2) |
MEDIAN |
199.57201 |
ADU/sec |
VAL | 100,250 |
24 |
qc_flux |
this |
last_yr |
all
|
LFLUX, stdev over all detectors |
| 4 |
■ | LOCAL |
no |
none |
|
ADU/sec |
none | |
368 |
qc_flux |
n/a |
Score per Detector: Green = within the thresholds |
| 4 |
■ | LOCAL |
no |
none |
|
ADU/sec |
none | |
0 |
qc_flux |
n/a |
Score per Detector: Red = beyond thresholds |
| 4 |
. | LOCAL |
no |
none |
|
ADU/sec |
none | |
368 |
qc_flux |
n/a |
Score per Detector: Green = within the thresholds |
| 4 |
. | LOCAL |
no |
none |
|
ADU/sec |
none | |
0 |
qc_flux |
n/a |
Score per Detector: Red = beyond thresholds |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: to indicate that OPSLOG data are included
|

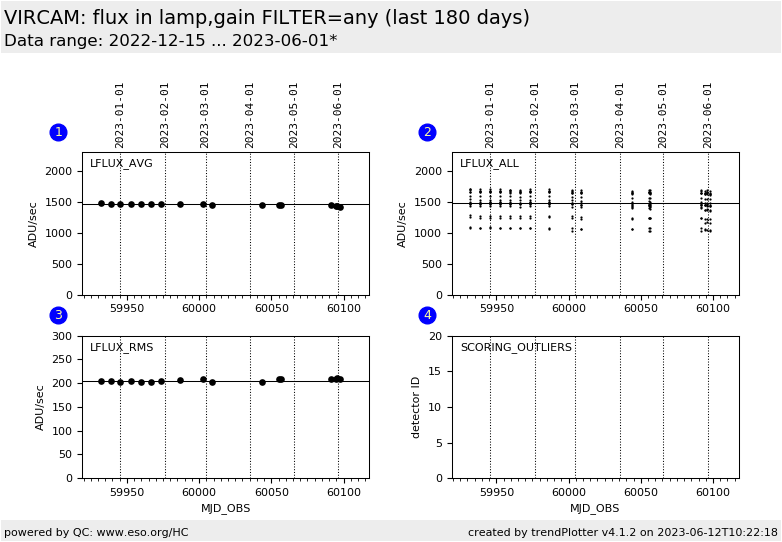

Plot 1
scores:  2|
| | data source: | vircam_gain
(QC1 database) |
| dataset: | qc_flux | • |
| median: | 1431.27002 | ADU/sec |
| fixed thresholds: | 800.0...1700.0 | ADU/sec |
| N_data plotted: | 24 |
| [click on plot for closeup] |
Plot 2
scores: not implemented
| | data source: | vircam_gain
(QC1 database) |
| dataset: | qc_flux | • |
| median: | 1453.19995 | ADU/sec |
| fixed thresholds: | 800.0...2000.0 | ADU/sec |
| N_data plotted: | 383 |
| [click on plot for closeup] |
Plot 3
scores: 2|
| | data source: | vircam_gain
(QC1 database) |
| dataset: | qc_flux | • |
| median: | 199.57201 | ADU/sec |
| fixed thresholds: | 100.0...250.0 | ADU/sec |
| N_data plotted: | 24 |
| [click on plot for closeup] |
Plot 4
scores: not implemented
| | data source: | local text file
|
dataset:
(numbers below apply to this dataset) | qc_flux | ■ |
| average: | none |
| thresholds: | none |
| N_data plotted: | 368 |
| [click on plot for closeup] |
Trending plot for lamp flux in ADU/sec in the flats used for gain.
QC parameters are derived from the gain data set, which consists of two flats
and two dark frames.
Name:
Fits header: not available
QC1 DB: qc_flux
Description:
The parameter measures the lamp flux in ADU/sec in the dark subtracted lamp flat frames used for the gain determination.
Setup:
These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
if available:
Fig. 4. Scoring View: Scoring values of all 16 QC parameters.
Green = within the acceptance thresholds.
Red = beyond the acceptance thresholds.
Note that following DICD:
[GAIN] = ADU/e-
[CONAD] = e-/ADU
Find more information on the VIRCAM GAIN tutorial page.
General information
Click on any of the plots to see a close-up version.
If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
