Plot 1
scores:  1|
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_ratiodome_rms | • |
| median: | 0.00475 | fraction |
| fixed thresholds: | 0.0001...0.02 | fraction |
| N_data plotted: | 28 |
| [click on plot for closeup] |
Plot 2
scores: not implemented
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_ratiodome_rms | • |
| median: | 0.00488 | fraction |
| fixed thresholds: | 0.0001...0.02 | fraction |
| N_data plotted: | 400 |
| [click on plot for closeup] |
Plot 3
scores: 1|
| | data source: | vircam_domeflat
(QC1 database) |
| dataset: | qc_ratiodome_rms | • |
| median: | 0.00112 | fraction |
| fixed thresholds: | 0.0001...0.02 | fraction |
| N_data plotted: | 28 |
| [click on plot for closeup] |
Plot 4
scores: not implemented
| | data source: | local text file
|
dataset:
(numbers below apply to this dataset) | qc_ratiodome_rms | ■ |
| average: | none |
| thresholds: | none |
| N_data plotted: | 416 |
| [click on plot for closeup] |

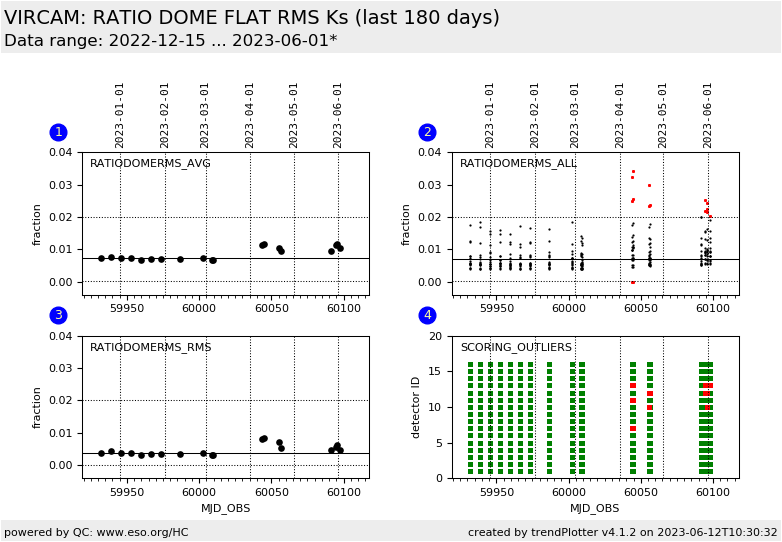

Trending plot for RMS from ratio of two MASTER_DOME_FLAT frames.
QC parameters is derived from two master dome flat frames per detector.
Name:
Fits header: QC.FLATRATIO_RMS,
QC1 DB: qc_ratiodome_rms
Description:
The master dome flat is divided by a reference dome flat. The RMS is taken.
Setup:
INS.FILT1.NAME = Ks
These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors.
This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors.
This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters.
Green = within the acceptance thresholds.
Red = beyond the acceptance thresholds.
Find more information on the VIRCAM DOME FLAT tutorial page.
General information
Click on any of the plots to see a close-up version.
If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
