VIRCAM trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2014-07-26T00:44:49 (UT)
  | now: 2014-07-26T01:42:47 (UT) muc07 QC pipeline: vcam-1.3.3 (installed 2014-03-19)
same group: ZP_NB118 ZP_Z ZP_Y ZP_J ZP_H ZP_K
General news:
VIRCAM news: 2014-07-15: VIRCAM is not in operation from 2014-07-15 to 2014-07-24
Report news:
DATE*: [?] 2014-07-19
no data | NLT
2014-07-20
no data | NLT
2014-07-21
no data | NLT
2014-07-22
no data | NLT
2014-07-23
no data | NLT
2014-07-24
no data | NLT
2014-07-25
report | NLT
P...
Product quality:
no products no products no products no products no products no products products
  last OPSLOG data:
2014-07-26*

last files ...
monitor

scores&comments | FULL | history ... | plot tutorial ... | contact                 daily/often; important to check     [?]
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • 2009-05-28: Scoring (red/green squares in the group bar and in the navigation bar) is on the detector average (Fig. 1) and detector rms (Fig. 3) values alone.
  • 2009-05-28: Scores of individual detector values (Fig. 4) are for detailed analysis but do not contribute to the overall instrument score.
  • 2010-02-25 detector average and RMS photometric zeropoints will no longer be scored.
Plot
?
Symb
?
Source
*
OPS?
**
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB yes (0) MEDIAN   MAG VAL19.83,21.83 0 qc_magzpt this | last_yr | all Photometric Zeropoint NB118, average over all 16 detectors
2 QC1DB yes (0) MEDIAN   MAG VAL19.83,21.83 0 qc_magzpt this | last_yr | all Photometric Zeropoint NB118, values of all detetcors
3 QC1DB yes (0) MEDIAN   MAG VAL0.001,0.4 0 qc_magzpt this | last_yr | all Photometric Zeropoint NB118, stdev over all detectors
4 LOCAL no none   MAG none  0 qc_magzpt n/a Score per Detector: Green = within the thresholds
4 LOCAL no none   MAG none  0 qc_magzpt n/a Score per Detector: Red = beyond thresholds
4 .LOCAL no none   MAG none  0 qc_magzpt n/a Score per Detector: Green = within the thresholds
4 .LOCAL no none   MAG none  0 qc_magzpt n/a Score per Detector: Red = beyond thresholds
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included

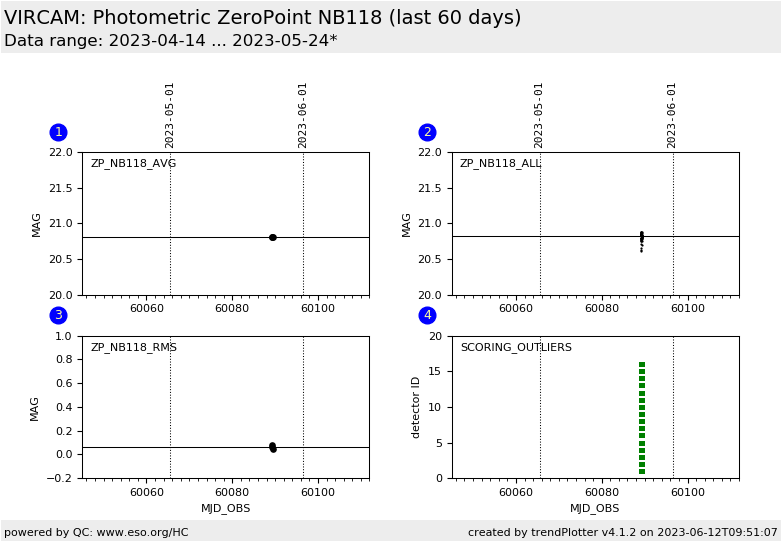

Plot 1
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_magzpt
median:no dataMAG
fixed thresholds:19.83...21.83MAG
N_data plotted:0
[click on plot for closeup]
Plot 2
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_magzpt
median:no dataMAG
fixed thresholds:19.83...21.83MAG
N_data plotted:0
[click on plot for closeup]
Plot 3
scores: not implemented
data source:vircam_photstd
(QC1 database)
dataset:qc_magzpt
median:no dataMAG
fixed thresholds:0.001...0.4MAG
N_data plotted:0
[click on plot for closeup]
Plot 4
scores: not implemented
data source:local text file
dataset:
(numbers below apply to this dataset)
qc_magzpt
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]
This plot

Trending plot for photometric zeropoint.

QC parameters is derived from each detector of daily standard star calibrations.

Name:
Fits header: QC.MAGZPT,
QC1 DB: qc_magzpt

Description:
Photometric zeropoint (A measured flux of 1 ADU/sec on the detector corresponds to a source brightness of QC.MAGZP magnitudes). The values are corrected for extinction at X=1.

Setup:
INS.FILT1.NAME = NB118

These plots describe:
Fig. 1. Average view: The QC parameter averaged over all detectors. This view is sensitive to common changes.
Fig. 2. Resolved View: The QC parameter resolved for all detectors.
Fig. 3. Scatter View: The standard deviation of the QC parameter, obtained from the sample of all detectors. This view is sensitive changes of individual detectors.
Fig. 4. Scoring View: Scoring values of all 16 QC parameters. Green = within the acceptance thresholds. Red = beyond the acceptance thresholds.

Find more information on the VIRCAM STD tutorial page.




General information

Click on any of the plots to see a close-up version.

If applicable, the latest values from Paranal ops logs are plotted as blue dots. More information about those values, including a download option, is available in the OPS column.

The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
