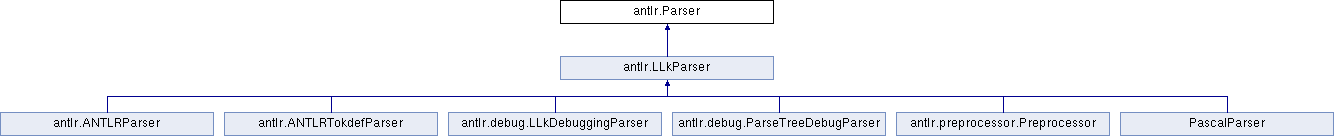

Inheritance diagram for antlr.Parser:

Public Member Functions
	Parser ()
	Parser (ParserSharedInputState state)
Hashtable	getTokenTypeToASTClassMap ()
void	addMessageListener (MessageListener l)
void	addParserListener (ParserListener l)
void	addParserMatchListener (ParserMatchListener l)
void	addParserTokenListener (ParserTokenListener l)
void	addSemanticPredicateListener (SemanticPredicateListener l)
void	addSyntacticPredicateListener (SyntacticPredicateListener l)
void	addTraceListener (TraceListener l)
abstract void	consume () throws TokenStreamException
void	consumeUntil (int tokenType) throws TokenStreamException
void	consumeUntil (BitSet set) throws TokenStreamException
AST	getAST ()
ASTFactory	getASTFactory ()
String	getFilename ()
ParserSharedInputState	getInputState ()
void	setInputState (ParserSharedInputState state)
String	getTokenName (int num)
String[]	getTokenNames ()
boolean	isDebugMode ()
abstract int	LA (int i) throws TokenStreamException
abstract Token	LT (int i) throws TokenStreamException
int	mark ()
void	match (int t) throws MismatchedTokenException, TokenStreamException
void	match (BitSet b) throws MismatchedTokenException, TokenStreamException
void	matchNot (int t) throws MismatchedTokenException, TokenStreamException
void	removeMessageListener (MessageListener l)
void	removeParserListener (ParserListener l)
void	removeParserMatchListener (ParserMatchListener l)
void	removeParserTokenListener (ParserTokenListener l)
void	removeSemanticPredicateListener (SemanticPredicateListener l)
void	removeSyntacticPredicateListener (SyntacticPredicateListener l)
void	removeTraceListener (TraceListener l)
void	reportError (RecognitionException ex)
void	reportError (String s)
void	reportWarning (String s)
void	recover (RecognitionException ex, BitSet tokenSet) throws TokenStreamException
void	rewind (int pos)
void	setASTFactory (ASTFactory f)
void	setASTNodeClass (String cl)
void	setASTNodeType (String nodeType)
void	setDebugMode (boolean debugMode)
void	setFilename (String f)
void	setIgnoreInvalidDebugCalls (boolean value)
void	setTokenBuffer (TokenBuffer t)
void	traceIndent ()
void	traceIn (String rname) throws TokenStreamException
void	traceOut (String rname) throws TokenStreamException
Static Public Member Functions
static void	panic ()
Protected Member Functions
void	defaultDebuggingSetup (TokenStream lexer, TokenBuffer tokBuf)
Protected Attributes
ParserSharedInputState	inputState
String[]	tokenNames
AST	returnAST
ASTFactory	astFactory = null
Hashtable	tokenTypeToASTClassMap = null
int	traceDepth = 0

Constructor & Destructor Documentation

antlr.Parser.Parser ( )

antlr.Parser.Parser ( ParserSharedInputState state )

References antlr.Parser.inputState.

Member Function Documentation

void antlr.Parser.addMessageListener ( MessageListener l )

void antlr.Parser.addParserListener ( ParserListener l )

void antlr.Parser.addParserMatchListener ( ParserMatchListener l )

void antlr.Parser.addParserTokenListener ( ParserTokenListener l )

void antlr.Parser.addSemanticPredicateListener ( SemanticPredicateListener l )

void antlr.Parser.addSyntacticPredicateListener ( SyntacticPredicateListener l )

void antlr.Parser.addTraceListener ( TraceListener l )

abstract void antlr.Parser.consume ( ) throws TokenStreamException [pure virtual]

Get another token object from the token stream

Implemented in antlr.LLkParser.

Referenced by antlr.Parser.consumeUntil(), antlr.Parser.match(), antlr.Parser.matchNot(), and antlr.Parser.recover().

void antlr.Parser.consumeUntil ( int tokenType ) throws TokenStreamException

Consume tokens until one matches the given token

References antlr.Parser.consume(), and antlr.Parser.LA().

void antlr.Parser.consumeUntil ( BitSet set ) throws TokenStreamException

Consume tokens until one matches the given token set

References antlr.Parser.consume(), and antlr.Parser.LA().

void antlr.Parser.defaultDebuggingSetup	(	TokenStream	lexer,
		TokenBuffer	tokBuf
	)			`[protected]`

AST antlr.Parser.getAST ( )

Get the AST return value squirreled away in the parser

References antlr.Parser.returnAST.

Referenced by PascalParser.parseFile().

ASTFactory antlr.Parser.getASTFactory ( )

References antlr.Parser.astFactory.

String antlr.Parser.getFilename ( )

References antlr.ParserSharedInputState.filename, and antlr.Parser.inputState.

ParserSharedInputState antlr.Parser.getInputState ( )

References antlr.Parser.inputState.

Referenced by antlr.ANTLRParser.fileOptionsSpec().

String antlr.Parser.getTokenName ( int num )

References antlr.Parser.tokenNames.

String [] antlr.Parser.getTokenNames ( )

References antlr.Parser.tokenNames.

Referenced by PascalParser.parseFile().

Hashtable antlr.Parser.getTokenTypeToASTClassMap ( )

If the user specifies a tokens{} section with heterogeneous AST node types, then ANTLR generates code to fill this mapping.

References antlr.Parser.tokenTypeToASTClassMap.

Referenced by PascalParser.PascalParser().

boolean antlr.Parser.isDebugMode ( )

abstract int antlr.Parser.LA ( int i ) throws TokenStreamException [pure virtual]

Return the token type of the ith token of lookahead where i=1 is the current token being examined by the parser (i.e., it has not been matched yet).

Implemented in antlr.LLkParser.

Referenced by antlr.Parser.consumeUntil(), antlr.Parser.match(), and antlr.Parser.matchNot().

abstract Token antlr.Parser.LT ( int i ) throws TokenStreamException [pure virtual]

Return the ith token of lookahead

Implemented in antlr.LLkParser.

Referenced by antlr.Parser.match(), antlr.Parser.matchNot(), antlr.Parser.traceIn(), and antlr.Parser.traceOut().

int antlr.Parser.mark ( )

References antlr.ParserSharedInputState.input, antlr.Parser.inputState, and antlr.TokenBuffer.mark().

Referenced by antlr.ANTLRParser.classDef().

void antlr.Parser.match ( int t ) throws MismatchedTokenException, TokenStreamException

Make sure current lookahead symbol matches token type t. Throw an exception upon mismatch, which is catch by either the error handler or by the syntactic predicate.

Reimplemented in antlr.debug.ParseTreeDebugParser.

References antlr.Parser.consume(), antlr.Parser.getFilename(), antlr.Parser.LA(), antlr.Parser.LT(), and antlr.Parser.tokenNames.

void antlr.Parser.match ( BitSet b ) throws MismatchedTokenException, TokenStreamException

Make sure current lookahead symbol matches the given set Throw an exception upon mismatch, which is catch by either the error handler or by the syntactic predicate.

Reimplemented in antlr.debug.ParseTreeDebugParser.

References antlr.Parser.consume(), antlr.Parser.getFilename(), antlr.Parser.LA(), antlr.Parser.LT(), and antlr.Parser.tokenNames.

void antlr.Parser.matchNot ( int t ) throws MismatchedTokenException, TokenStreamException

Reimplemented in antlr.debug.ParseTreeDebugParser.

References antlr.Parser.consume(), antlr.Parser.getFilename(), antlr.Parser.LA(), antlr.Parser.LT(), and antlr.Parser.tokenNames.

static void antlr.Parser.panic ( ) [static]

Deprecated:: as of 2.7.2. This method calls System.exit() and writes directly to stderr, which is usually not appropriate when a parser is embedded into a larger application. Since the method is static, it cannot be overridden to avoid these problems. ANTLR no longer uses this method internally or in generated code.

void antlr.Parser.recover	(	RecognitionException	ex,
		BitSet	tokenSet
	)			throws TokenStreamException

References antlr.Parser.consume(), and antlr.Parser.consumeUntil().

void antlr.Parser.removeMessageListener ( MessageListener l )

void antlr.Parser.removeParserListener ( ParserListener l )

void antlr.Parser.removeParserMatchListener ( ParserMatchListener l )

void antlr.Parser.removeParserTokenListener ( ParserTokenListener l )

void antlr.Parser.removeSemanticPredicateListener ( SemanticPredicateListener l )

void antlr.Parser.removeSyntacticPredicateListener ( SyntacticPredicateListener l )

void antlr.Parser.removeTraceListener ( TraceListener l )

void antlr.Parser.reportError ( String s )

Parser error-reporting function can be overridden in subclass

References antlr.Parser.getFilename().

void antlr.Parser.reportError ( RecognitionException ex )

Parser error-reporting function can be overridden in subclass

void antlr.Parser.reportWarning ( String s )

Parser warning-reporting function can be overridden in subclass

References antlr.Parser.getFilename().

void antlr.Parser.rewind ( int pos )

References antlr.ParserSharedInputState.input, antlr.Parser.inputState, and antlr.TokenBuffer.rewind().

Referenced by antlr.ANTLRParser.classDef().

void antlr.Parser.setASTFactory ( ASTFactory f )

Specify an object with support code (shared by Parser and TreeParser. Normally, the programmer does not play with this, using setASTNodeType instead.

References antlr.Parser.astFactory.

void antlr.Parser.setASTNodeClass ( String cl )

References antlr.Parser.astFactory, and antlr.ASTFactory.setASTNodeType().

Referenced by PascalParser.parseFile(), and antlr.Parser.setASTNodeType().

void antlr.Parser.setASTNodeType ( String nodeType )

Specify the type of node to create during tree building; use setASTNodeClass now to be consistent with Token Object Type accessor.

Deprecated:: since 2.7.1

References antlr.Parser.setASTNodeClass().

void antlr.Parser.setDebugMode ( boolean debugMode )

void antlr.Parser.setFilename ( String f )

References antlr.ParserSharedInputState.filename, and antlr.Parser.inputState.

Referenced by antlr.Tool.doEverything(), antlr.ImportVocabTokenManager.ImportVocabTokenManager(), and antlr.preprocessor.Hierarchy.readGrammarFile().

void antlr.Parser.setIgnoreInvalidDebugCalls ( boolean value )

void antlr.Parser.setInputState ( ParserSharedInputState state )

References antlr.Parser.inputState.

void antlr.Parser.setTokenBuffer ( TokenBuffer t )

Set or change the input token buffer

References antlr.ParserSharedInputState.input, and antlr.Parser.inputState.

Referenced by antlr.LLkParser.LLkParser().

void antlr.Parser.traceIn ( String rname ) throws TokenStreamException

Reimplemented in antlr.debug.ParseTreeDebugParser, and antlr.LLkParser.

References antlr.ParserSharedInputState.guessing, antlr.Parser.inputState, antlr.Parser.LT(), antlr.Parser.traceDepth, and antlr.Parser.traceIndent().

void antlr.Parser.traceIndent ( )

References antlr.Parser.traceDepth.

Referenced by antlr.Parser.traceIn(), and antlr.Parser.traceOut().

void antlr.Parser.traceOut ( String rname ) throws TokenStreamException

Reimplemented in antlr.debug.ParseTreeDebugParser, and antlr.LLkParser.

References antlr.ParserSharedInputState.guessing, antlr.Parser.inputState, antlr.Parser.LT(), antlr.Parser.traceDepth, and antlr.Parser.traceIndent().

Member Data Documentation

ASTFactory antlr.Parser.astFactory = null [protected]

AST support code; parser delegates to this object. This is set during parser construction by default to either "new ASTFactory()" or a ctor that has a token type to class map for hetero nodes.

Referenced by PascalParser.actualParameter(), PascalParser.arrayType(), PascalParser.assignmentStatement(), PascalParser.baseType(), PascalParser.block(), PascalParser.caseListElement(), PascalParser.caseStatement(), PascalParser.componentType(), PascalParser.compoundStatement(), PascalParser.conditionalStatement(), PascalParser.constant(), PascalParser.constantChr(), PascalParser.constantDefinition(), PascalParser.constantDefinitionPart(), PascalParser.constList(), PascalParser.element(), PascalParser.elementList(), PascalParser.expression(), PascalParser.factor(), PascalParser.fieldList(), PascalParser.fileType(), PascalParser.finalValue(), PascalParser.fixedPart(), PascalParser.forList(), PascalParser.formalParameterList(), PascalParser.formalParameterSection(), PascalParser.forStatement(), PascalParser.functionDeclaration(), PascalParser.functionDesignator(), PascalParser.functionType(), antlr.Parser.getASTFactory(), PascalParser.gotoStatement(), PascalParser.identifier(), PascalParser.identifierList(), PascalParser.ifStatement(), PascalParser.indexType(), PascalParser.initialValue(), PascalParser.label(), PascalParser.labelDeclarationPart(), PascalParser.parameterGroup(), PascalParser.parameterList(), PascalParser.PascalParser(), PascalParser.pointerType(), PascalParser.procedureAndFunctionDeclarationPart(), PascalParser.procedureDeclaration(), PascalParser.procedureOrFunctionDeclaration(), PascalParser.procedureStatement(), PascalParser.procedureType(), PascalParser.program(), PascalParser.programHeading(), PascalParser.recordSection(), PascalParser.recordType(), PascalParser.recordVariableList(), PascalParser.repeatStatement(), PascalParser.repetetiveStatement(), PascalParser.resultType(), PascalParser.scalarType(), PascalParser.set(), antlr.Parser.setASTFactory(), antlr.Parser.setASTNodeClass(), PascalParser.setType(), PascalParser.sign(), PascalParser.signedFactor(), PascalParser.simpleExpression(), PascalParser.simpleStatement(), PascalParser.simpleType(), PascalParser.statement(), PascalParser.statements(), PascalParser.string(), PascalParser.stringtype(), PascalParser.structuredStatement(), PascalParser.structuredType(), PascalParser.subrangeType(), PascalParser.tag(), PascalParser.term(), PascalParser.type(), PascalParser.typeDefinition(), PascalParser.typeDefinitionPart(), PascalParser.typeIdentifier(), PascalParser.typeList(), PascalParser.unlabelledStatement(), PascalParser.unpackedStructuredType(), PascalParser.unsignedConstant(), PascalParser.unsignedInteger(), PascalParser.unsignedNumber(), PascalParser.unsignedReal(), PascalParser.usesUnitsPart(), PascalParser.variable(), PascalParser.variableDeclaration(), PascalParser.variableDeclarationPart(), PascalParser.variant(), PascalParser.variantPart(), PascalParser.whileStatement(), and PascalParser.withStatement().
