cl::utfsm::samplingSystemUI::DataPrinter Class Reference

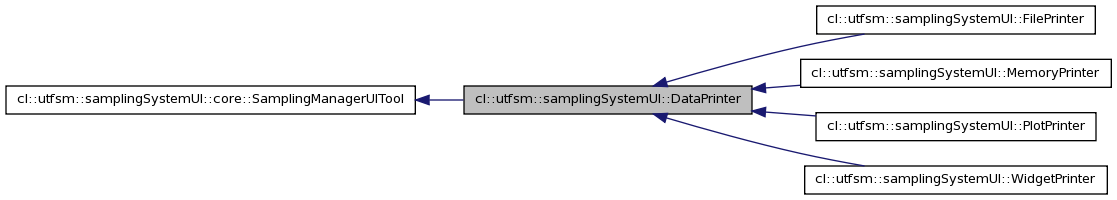

Inheritance diagram for cl::utfsm::samplingSystemUI::DataPrinter:

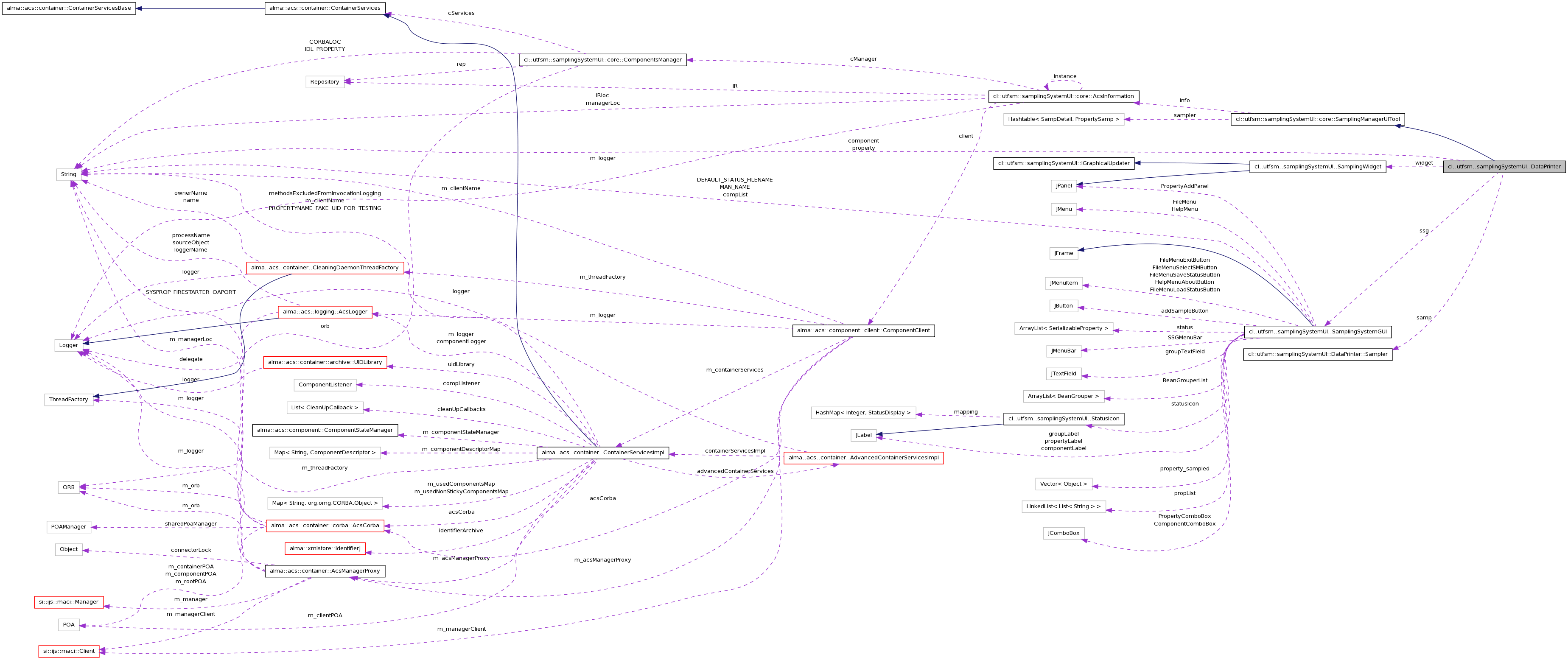

Collaboration diagram for cl::utfsm::samplingSystemUI::DataPrinter:

Classes
class	Sampler
Public Member Functions
	DataPrinter (SamplingSystemGUI ssg)
double	getFrecuency ()
long	getReportRate ()
String	getComponent ()
String	getProperty ()
void	setComponent (String component)
void	setProperty (String property)
void	setFrecuency (double f)
void	setReportRate (long reportRate)
IGraphicalUpdater	getWidget ()
abstract ArrayList< DataItem >	getSamples ()
abstract void	postProcessing ()
void	startSample () throws CouldntAccessComponentEx, TypeNotSupportedEx , CouldntAccessPropertyEx, SamplingManagerException
void	stopSampling ()
void	pauseSampling (boolean p)
void	finalize ()
void	setComponentAvailable (boolean available, String reason)
boolean	isComponentAvailable ()
SerializableProperty	getSerializableProperty ()
Protected Member Functions
abstract void	updateValue (DataItem item)
Protected Attributes
long	frecuency = 1000000
long	reportRate = 1
String	component
String	property
SamplingWidget	widget
Private Attributes
Sampler	samp
boolean	componentAvailable = true
SamplingSystemGUI	ssg = null
Static Private Attributes
static int	initializations = 0

Constructor & Destructor Documentation

cl::utfsm::samplingSystemUI::DataPrinter::DataPrinter ( SamplingSystemGUI ssg ) [inline]

Member Function Documentation

void cl::utfsm::samplingSystemUI::DataPrinter::finalize ( ) [inline]

References initializations, stopSampling(), and cl::utfsm::samplingSystemUI::core::SamplingManagerUITool::tearDown().

String cl::utfsm::samplingSystemUI::DataPrinter::getComponent ( ) [inline]

References component.

Referenced by getSerializableProperty().

double cl::utfsm::samplingSystemUI::DataPrinter::getFrecuency ( ) [inline]

References frecuency.

Referenced by getSerializableProperty(), cl::utfsm::samplingSystemUI::PlotPrinter::openFile(), and cl::utfsm::samplingSystemUI::FilePrinter::openFile().

String cl::utfsm::samplingSystemUI::DataPrinter::getProperty ( ) [inline]

References property.

Referenced by getSerializableProperty().

long cl::utfsm::samplingSystemUI::DataPrinter::getReportRate ( ) [inline]

References reportRate.

abstract ArrayList<DataItem> cl::utfsm::samplingSystemUI::DataPrinter::getSamples ( ) [pure virtual]

Implemented in cl::utfsm::samplingSystemUI::FilePrinter, cl::utfsm::samplingSystemUI::MemoryPrinter, cl::utfsm::samplingSystemUI::PlotPrinter, and cl::utfsm::samplingSystemUI::WidgetPrinter.

SerializableProperty cl::utfsm::samplingSystemUI::DataPrinter::getSerializableProperty ( ) [inline]

References getComponent(), getFrecuency(), getProperty(), cl::utfsm::samplingSystemUI::SerializableProperty::setComponent(), cl::utfsm::samplingSystemUI::SerializableProperty::setFrequency(), and cl::utfsm::samplingSystemUI::SerializableProperty::setProperty().

IGraphicalUpdater cl::utfsm::samplingSystemUI::DataPrinter::getWidget ( ) [inline]

Reimplemented in cl::utfsm::samplingSystemUI::WidgetPrinter.

References widget.

Referenced by cl::utfsm::samplingSystemUI::BeanGrouper::addSamp().

boolean cl::utfsm::samplingSystemUI::DataPrinter::isComponentAvailable ( ) [inline]

References componentAvailable.

void cl::utfsm::samplingSystemUI::DataPrinter::pauseSampling ( boolean p ) [inline]

Pauses/unpauses the displaying of the sampling process

Parameters:

p

Pause status

References componentAvailable, samp, and cl::utfsm::samplingSystemUI::DataPrinter::Sampler::setPause().

abstract void cl::utfsm::samplingSystemUI::DataPrinter::postProcessing ( ) [pure virtual]

Do a post processing once stop all samplings threads. The child class must implement it if is necessary do a post processing on samplings data stored.

See also:: Sampler

Implemented in cl::utfsm::samplingSystemUI::FilePrinter, cl::utfsm::samplingSystemUI::MemoryPrinter, cl::utfsm::samplingSystemUI::PlotPrinter, and cl::utfsm::samplingSystemUI::WidgetPrinter.

Referenced by stopSampling().

void cl::utfsm::samplingSystemUI::DataPrinter::setComponent ( String component ) [inline]

Reimplemented in cl::utfsm::samplingSystemUI::FilePrinter, cl::utfsm::samplingSystemUI::MemoryPrinter, cl::utfsm::samplingSystemUI::PlotPrinter, and cl::utfsm::samplingSystemUI::WidgetPrinter.

void cl::utfsm::samplingSystemUI::DataPrinter::setComponentAvailable	(	boolean	available,
		String	reason
	)			`[inline]`

Allows to handle whether a component is or isn't available to be sampled.

Parameters:

	available	True if the component is currently available.
	reason	A explanation of the cause why the component isn't available.

Reimplemented in cl::utfsm::samplingSystemUI::FilePrinter, cl::utfsm::samplingSystemUI::MemoryPrinter, and cl::utfsm::samplingSystemUI::PlotPrinter.

References componentAvailable.

Referenced by startSample().

void cl::utfsm::samplingSystemUI::DataPrinter::setFrecuency ( double f ) [inline]

References frecuency.

void cl::utfsm::samplingSystemUI::DataPrinter::setProperty ( String property ) [inline]

Reimplemented in cl::utfsm::samplingSystemUI::FilePrinter, cl::utfsm::samplingSystemUI::MemoryPrinter, cl::utfsm::samplingSystemUI::PlotPrinter, and cl::utfsm::samplingSystemUI::WidgetPrinter.

void cl::utfsm::samplingSystemUI::DataPrinter::setReportRate ( long reportRate ) [inline]

void cl::utfsm::samplingSystemUI::DataPrinter::startSample ( ) throws CouldntAccessComponentEx, TypeNotSupportedEx , CouldntAccessPropertyEx, SamplingManagerException [inline]

Starts the sampling, connecting to ACS Manager and the Sampling Manager.

Exceptions:

	CouldntAccessComponentEx	Component wasn't available at the time.
	TypeNotSupportedEx	Sampling Manager specific exception. Some types are currently not supported in acssamp.
	CouldntAccessPropertyEx

Reimplemented in cl::utfsm::samplingSystemUI::FilePrinter, and cl::utfsm::samplingSystemUI::PlotPrinter.

References component, frecuency, initializations, cl::utfsm::samplingSystemUI::SamplingSystemGUI::MAN_NAME, property, reportRate, samp, setComponentAvailable(), cl::utfsm::samplingSystemUI::core::SamplingManagerUITool::spinUp(), and ssg.
