mswMOD_LIST_COMMAND Class Reference

See man page mswMOD_LIST_COMMAND(4)

More...

#include <mswMOD_LIST_COMMAND.h>

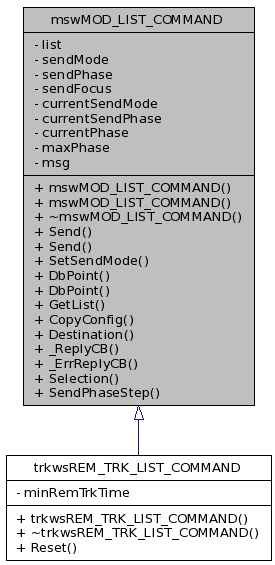

Inheritance diagram for mswMOD_LIST_COMMAND:

[legend]

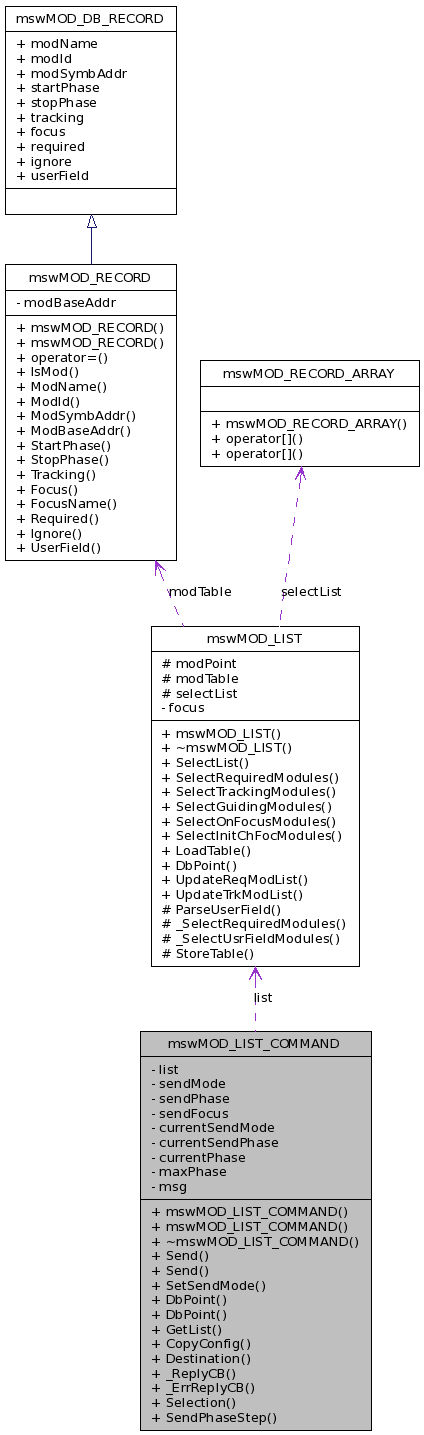

Collaboration diagram for mswMOD_LIST_COMMAND:

[legend]

List of all members.

Public Member Functions
	mswMOD_LIST_COMMAND ()
	mswMOD_LIST_COMMAND (const dbSYMADDRESS dbPoint)
	~mswMOD_LIST_COMMAND ()
virtual ccsCOMPL_STAT	Send (msgMESSAGE &msg)
virtual ccsCOMPL_STAT	Send (msgMESSAGE &msg, const vltINT8 mode, const vltINT8 phase=mswSEND_NO_PHASE, const vltINT8 focus=0)
ccsCOMPL_STAT	SetSendMode (const vltINT8 mode, const vltINT8 phase=mswSEND_NO_PHASE, const vltINT8 focus=0)
virtual const char *	DbPoint ()
virtual ccsCOMPL_STAT	DbPoint (const dbSYMADDRESS dbPoint)
mswMOD_LIST *	GetList ()
virtual ccsCOMPL_STAT	CopyConfig (evhDB_COMMAND &cmd)
virtual const char *	Destination ()
virtual fndStdObjectDef(mswMOD_LIST_COMMAND, evhDB_LIST_COMMAND) protected int	_ReplyCB (msgMESSAGE &msg, void *udata)
virtual int	_ErrReplyCB (msgMESSAGE &msg, void *udata)
ccsCOMPL_STAT	Selection ()
ccsCOMPL_STAT	SendPhaseStep ()
Private Attributes
mswMOD_LIST *	list
vltINT8	sendMode
vltINT8	sendPhase
vltINT8	sendFocus
vltINT8	currentSendMode
vltINT8	currentSendPhase
vltINT8	currentPhase
vltINT8	maxPhase
msgMESSAGE	msg

Detailed Description

See man page mswMOD_LIST_COMMAND(4)

Manpage of mswMOD_LIST_COMMAND

mswMOD_LIST_COMMAND

Section: Devices and Network Interfaces (4)
Updated: 2012-04-23 10:09
Index Return to man pages list

NAME

mswMOD_LIST_COMMAND - Basic class to broadcast commands to a
set of modules described in the mode switching list

SYNOPSIS


class mswMOD_LIST_COMMAND : public evhDB_LIST_COMMAND
{
  public:
    mswMOD_LIST_COMMAND(const dbSYMADDRESS  dbPoint = dbEMPTY);
    ~mswMOD_LIST_COMMAND();

    virtual ccsCOMPL_STAT   Send(msgMESSAGE &msg);
    virtual ccsCOMPL_STAT   Send(msgMESSAGE &msg,
                                 const vltINT8 mode,
                                 const vltINT8 phase = mswSEND_NO_PHASE,
                                 const vltINT8 focus = 0);

    ccsCOMPL_STAT           SetSendMode(const vltINT8 mode,
                                        const vltINT8 phase= mswSEND_NO_PHASE,
                                        const vltINT8 focus = 0);

    virtual const char     *DbPoint();
    virtual ccsCOMPL_STAT   DbPoint(const dbSYMADDRESS  dbPoint);

    mswMOD_LIST *GetList();

    virtual ccsCOMPL_STAT CopyConfig(evhDB_COMMAND &cmd);

    fndStdObjectDef(mswMOD_LIST_COMMAND, evhDB_LIST_COMMAND)

  protected:
    virtual  mswMOD_LIST     *CreateList();
    virtual  int              _ReplyCB(msgMESSAGE &msg, void *udata);

    ccsCOMPL_STAT SendPhaseStep();

  private:
    mswMOD_LIST     *list;
    vltINT8          sendMode;
    vltINT8          sendPhase;
    vltINT8          sendFocus;

    vltINT8          currentSendMode;
    vltINT8          currentSendPhase;
    vltINT8          currentPhase;
    vltINT8          maxPhase;
    msgMESSAGE       msg;
};

PARENT CLASS


evhDB_LIST_COMMAND

DESCRIPTION


    These classes are part of the public msw library.

    mswMOD_LIST_COMMAND requires a database
    support point where the list is stored and can be accessed.
    Typically this will be the msw list point in the standard TCS
    mode switching database branch, i.e. ":Appl_data:TCS:msw:list".
    The default value is built assuming a standard TCS database
    and using the tcsDbRoot(3) function.

    The Send() method is used to send commands to the units described in
    the msw table, according to the selected mode and phase selection
    criteria.
    The mode selection identifies which modules will get the command (all
    required modules, tracking module, guiding modules....)
    The phase selection identify in which order. By default all commands
    are sent in parallel, but it is possible to define in the table
    a START and/or STOP phase. In this case the phase is defined by
    an integer >= 0. All commands in the same phase are sent in parallel
    and the system waits for completion of all commands in a phase before
    sending the commands in higher phases.

PUBLIC METHODS


    mswMOD_LIST_COMMAND::mswMOD_LIST_COMMAND();
    mswMOD_LIST_COMMAND::mswMOD_LIST_COMMAND(const dbSYMADDRESS dbPoint);
      Creates the object and initialize data.
      Two constructors are provided.
      The first one defines the online database support point calling
      the standard tcsDbRoot(4) function and appenting the
      default relative path from the TCS database root point,
      assuming a complete default TCS database structure.
      This is what will be generally used.
      The second one receives as parameter the symbolic address of
      online database support point for the object, i.e. the point
      where the object can find configuration and run time values.
      This will be typically used for testing purposes.

    mswMOD_LIST_COMMAND::~mswMOD_LIST_COMMAND();

    ccsCOMPL_STAT mswMOD_LIST_COMMAND::CopyConfig(evhDB_COMMAND &cmd);
       Overloading of a basic method inherited evhDB_LIST_COMMAND.
       It is internally used by the evhDB_CMD_xxx classes to make
       copies of the configuration of a COMMAND class. It behaves
       like a copy constructor, but copies only the internal
       configuration of the object, without allocating any memory.

    ccsCOMPL_STAT mswMOD_LIST_COMMAND::Send(msgMESSAGE &msg);
    ccsCOMPL_STAT mswMOD_LIST_COMMAND::Send(msgMESSAGE &msg,
                       const vltINT8 mode,
                       const vltINT8 phase = mswSEND_NO_PHASE);
       Broadcasts the message to all modules in the list according
       to filtering criteria and send phase.
       Default is all required modules and NO send phase
       The filtering criteria and send phase can be changed by
       the SetSendMode method.

    mswMOD_LIST *mswMOD_LIST_COMMAND::GetList();
       Gets the module list

    ccsCOMPL_STAT  mswMOD_LIST_COMMAND::SetSendMode(const vltINT8 mode,
                               const vltINT8 phase = mswSEND_NO_PHASE);
       Sets the filtering criteria and send phase for the Send() method
       according to mode.
       Currently the following values for mode are valid:
          mswSEND_REQUIRED - to send to all required modules
          mswSEND_TRACKING - to send to all required tracking modules
          mswSEND_GUIDING  - to send to all required modules for GUIDING
                             (see MOD_LIST for definition of this)
       Currently the following values for the send phase are valid:
          mswSEND_NO_PHASE    - to send all commands at the same time
          mswSEND_START_PHASE - to send commands as in START PHASE
          mswSEND_STOP_PHASE  - to send commands as in STOP PHASE
       When a new mode is set, it is applied to the next actually sent
       command. An on-going command is not disturbed by the setting of
       new criteria.

    ccsCOMPL_STAT mswMOD_LIST_COMMAND::DbPoint(const dbSYMADDRESS point)
       Defines a new database root point for the list, reloading it if
       necessary.

    const char *mswMOD_LIST_COMMAND::DbPoint()
       Returns the DbPoint.

PROTECTED METHODS


    mswMOD_LIST *mswMOD_LIST_COMMAND::CreateList();
       Creates the module list object (class mswMOD_LIST)

    int  mswMOD_LIST_COMMAND::_ReplyCB(msgMESSAGE &msg, void *udata);
       Overwrite the correponding method of the evhDB_COMMAND base class to handle
       command send phases.

    ccsCOMPL_STAT mswMOD_LIST_COMMAND::SendPhaseStep();
       Sends all commands for the next phase.

PRIVATE DATA MEMBERS


    mswMOD_LIST     *list;
       pointer to module list

    vltINT8          sendMode;
    vltINT8          sendPhase;
       filtering criteria for Send() methods mode and phase.

    The following data members are internally used to handle an
    on-going command:

    vltINT8          currentSendMode;
    vltINT8          currentSendPhase;
       filtering for mode and phase used in the currently on-going
       command
    vltINT8          currentPhase;
       current phase for the on-going command. when all commands
       in the current phase are completed, the ones in the next
       phase are sent
    vltINT8          maxPhase;
       maximin phase in the table for the on-going command
    msgMESSAGE       msg;
       message corresponding to the on-going command

ON LINE DATABASE


  The class will tipically point to an instance of the mswMOD_LIST_MANAGER
  database class, but it just assumes that the given database point
  contains the attribute:

     ATTRIBUTE Table  modules(mswNO_OF_MODULES,
                              BYTES32  modName,
                              BYTES32  modId,
                              BYTES256 modSymbAddr,
                              INT8     startPhase,
                              INT8     stopPhase,
                              INT8     tracking,
                              INT8     focus,
                              BOOLEAN  required,
                              BOOLEAN  ignore,
                              BYTES256 userField)

EXAMPLES


  Could add here code from trkws using libmsw

This document was created by man2html, using the manual pages.
Time: 10:09:27 GMT, April 23, 2012

Definition at line 47 of file mswMOD_LIST_COMMAND.h.

Constructor & Destructor Documentation

mswMOD_LIST_COMMAND::mswMOD_LIST_COMMAND ( )

mswMOD_LIST_COMMAND::mswMOD_LIST_COMMAND ( const dbSYMADDRESS dbPoint )

Definition at line 315 of file mswMOD_LIST_COMMAND.C.

References currentPhase, currentSendMode, currentSendPhase, list, maxPhase, mswSEND_NO_PHASE, mswSEND_REQUIRED, sendFocus, sendMode, and sendPhase.

mswMOD_LIST_COMMAND::~mswMOD_LIST_COMMAND ( )

Definition at line 339 of file mswMOD_LIST_COMMAND.C.

References list.

Member Function Documentation

int mswMOD_LIST_COMMAND::_ErrReplyCB	(	msgMESSAGE &	msg,
		void *	udata
	)			`[virtual]`

Definition at line 797 of file mswMOD_LIST_COMMAND.C.

References mswMOD.

Referenced by _ReplyCB().

int mswMOD_LIST_COMMAND::_ReplyCB	(	msgMESSAGE &	msg,
		void *	udata
	)			`[virtual]`

Definition at line 750 of file mswMOD_LIST_COMMAND.C.

References _ErrReplyCB(), currentPhase, currentSendPhase, maxPhase, mswMOD, mswSEND_NO_PHASE, Selection(), SendPhaseStep(), and TRUE.

ccsCOMPL_STAT mswMOD_LIST_COMMAND::CopyConfig ( evhDB_COMMAND & cmd ) [virtual]

Definition at line 350 of file mswMOD_LIST_COMMAND.C.

References currentPhase, currentSendMode, currentSendPhase, maxPhase, msg, sendFocus, sendMode, and sendPhase.

ccsCOMPL_STAT mswMOD_LIST_COMMAND::DbPoint ( const dbSYMADDRESS dbPoint ) [virtual]

Definition at line 716 of file mswMOD_LIST_COMMAND.C.

References mswMOD_LIST::DbPoint(), DbPoint(), list, mswDB_ENTRY_POINT, mswDB_LIST_POINT, and tcsDbRoot().

const char * mswMOD_LIST_COMMAND::DbPoint ( ) [virtual]

Definition at line 745 of file mswMOD_LIST_COMMAND.C.

Referenced by mswMOD_LIST_MANAGER::ConstructorInit(), DbPoint(), and Send().

const char * mswMOD_LIST_COMMAND::Destination ( ) [virtual]

Definition at line 806 of file mswMOD_LIST_COMMAND.C.

mswMOD_LIST * mswMOD_LIST_COMMAND::GetList ( )

Definition at line 640 of file mswMOD_LIST_COMMAND.C.

References list.

Referenced by mswMOD_LIST_MANAGER::ConstructorInit(), Selection(), Send(), and SendPhaseStep().

ccsCOMPL_STAT mswMOD_LIST_COMMAND::Selection ( )

Definition at line 369 of file mswMOD_LIST_COMMAND.C.

References currentSendMode, GetList(), mswERR_ILLEGAL_SEND_MODE, mswMOD, mswSEND_GUIDING, mswSEND_INITCHFOC, mswSEND_ONFOCUS, mswSEND_REQUIRED, mswSEND_TRACKING, mswMOD_LIST::SelectGuidingModules(), mswMOD_LIST::SelectInitChFocModules(), mswMOD_LIST::SelectOnFocusModules(), mswMOD_LIST::SelectRequiredModules(), mswMOD_LIST::SelectTrackingModules(), and sendFocus.

Referenced by _ReplyCB(), and Send().

ccsCOMPL_STAT mswMOD_LIST_COMMAND::Send	(	msgMESSAGE &	msg,
		const vltINT8	mode,
		const vltINT8	phase = `mswSEND_NO_PHASE`,
		const vltINT8	focus = `0`
	)			`[virtual]`
