prsAH_GUIDE_VLT Class Reference

See man page prsAH_GUIDE_VLT(4)

More...

#include <prsAH_GUIDE_VLT.h>

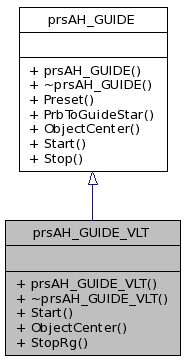

Inheritance diagram for prsAH_GUIDE_VLT:

[legend]

Collaboration diagram for prsAH_GUIDE_VLT:

[legend]

List of all members.

Public Member Functions
	prsAH_GUIDE_VLT (const dbSYMADDRESS dbPoint)
virtual	~prsAH_GUIDE_VLT ()
virtual ccsCOMPL_STAT	Start (oslxSETUP &setup, evhDB_SEND_ID *sendId, evhDB_SEND_ID waitId)
virtual ccsCOMPL_STAT	ObjectCenter (oslxSETUP &setup, evhDB_SEND_ID *sendId=NULL, evhDB_SEND_ID waitId=0)
virtual ccsCOMPL_STAT	StopRg (evhDB_SEND_ID *sendId=NULL, evhDB_SEND_ID waitId=0)

Detailed Description

See man page prsAH_GUIDE_VLT(4)

Manpage of prsAH_GUIDE_VLT

prsAH_GUIDE_VLT

Section: Devices and Network Interfaces (4)
Updated: 2012-04-23 10:10
Index Return to man pages list

NAME

prsAH_GUIDE_VLT - prsAction program, class to comunicate with
                  Auto Guide (and Field Stabilization) module.
                  Specific VLT implementation
                  The class is now empty.

SYNOPSIS


#include "prsAH_GUIDE_VLT.h"

class prsAH_GUIDE_VLT : public prsAH_GUIDE
{
  public:
    prsAH_GUIDE_VLT(const dbSYMADDRESS  dbPoint);
   ~prsAH_GUIDE_VLT();

  protected:

  private:
}

PARENT CLASS


prsAH_GUIDE

DESCRIPTION


This class is used to send commands to Auto Guide or Field Stabilization.
Commands are serialized, i.e. they are put in a queue and sent only
as soon as the previous one has been succesfully completed.
When it is created it registers the callbacks for the supported
commands and reads from the online database the configuration parameters.
Whenever one of these commands is received, the corresponding action is
issued.

The class is currently empty. All VLT specificities hav been removed.

PUBLIC METHODS


prsAH_GUIDE_VLT(const dbSYMADDRESS  dbPoint)

  The constructor receives as parameter the symbolic address of
  online database support point for the object, i.e. the point
  where the object can find configuration and run time values.

~prsAH_GUIDE_VLT()

ON LINE DATABASE


The following database branch in the preset structure pertains
to the instance of prsAH_GUIDE_VLT:

         CLASS prsAH_GUIDE prsAH_GUIDE_VLT
         BEGIN                                              \\
         END                                                \\
