tcsSELF_CMD Class Reference

See man page tcsSELF_CMD(4)

#include <tcsSELF_CMD.h>

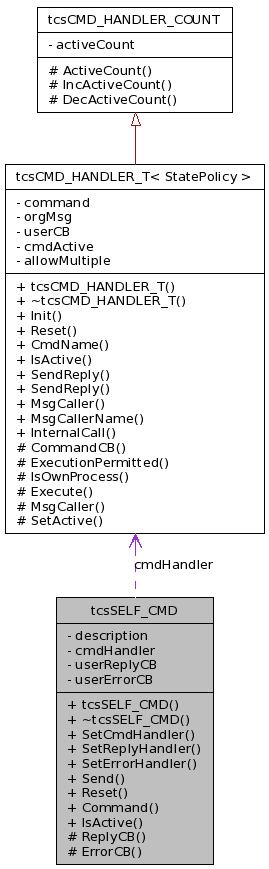

Collaboration diagram for tcsSELF_CMD:

Public Member Functions
	tcsSELF_CMD ()
	~tcsSELF_CMD ()
ccsCOMPL_STAT	SetCmdHandler (tcsCMD_HANDLER handler, const char description="")
ccsCOMPL_STAT	SetReplyHandler (evhCALLBACK &cb)
ccsCOMPL_STAT	SetErrorHandler (evhCALLBACK &cb)
ccsCOMPL_STAT	Send (const msgCMD cmdName, const char *format,...)
ccsCOMPL_STAT	Reset ()
const char *	Command () const
vltLOGICAL	IsActive ()
Protected Member Functions
evhCB_COMPL_STAT	ReplyCB (msgMESSAGE &msg, void *)
evhCB_COMPL_STAT	ErrorCB (msgMESSAGE &msg, void *)
Private Attributes
fndSTRING	description
tcsCMD_HANDLER *	cmdHandler
evhCALLBACK *	userReplyCB
evhCALLBACK *	userErrorCB

Detailed Description

See man page tcsSELF_CMD(4)

Manpage of tcsSELF_CMD

tcsSELF_CMD

Section: Devices and Network Interfaces (4)
Updated: 2012-04-23 10:08
Index Return to man pages list

NAME

tcsSELF_CMD - send command to own process

SYNOPSIS


#include <tcsSELF_CMD.h>
tcsSELF_CMD selfCmd();

PARENT CLASS


evhCOMMAND

DESCRIPTION


In complex modules it is often the case that there are low level commands,
providing some basic functionality and high level commands, executing by
using sequences of low level commands. One way to implement this is to let
high level command handlers send low level commands to the own process.

This class provides an easy way to send a command to the own process and
handle the replies.

The self-command may complete whith either a normal reply or an error
reply. A timeout makes no sense for a self-command, because the low level
command already has one and returns an error reply on expiration.

The class offers two ways how to process the replies to the self-command:
1. The user specifies a callback which shall be invoked.
2. The user provides a command handler thru which the class sends a default
   reply. This is for the case where the only action of the self-command
   reply handler is to send a reply to its (high level command) originator.
   The default reply is tcsOK_MSG for a normal reply to a self-command and
   an tcsERR_SEND_COMMAND for an error reply to a self-command.

PUBLIC METHODS


tcsSELF_CMD();
~tcsSELF_CMD();
ccsCOMPL_STAT SetCmdHandler(tcsCMD_HANDLER *handler, const char * description);
    Specify a command handler which shall be used to send default replies
    if no user reply callbacks are installed. On sending an error reply the
    given description is built into the error message to describe what
    failed.

ccsCOMPL_STAT SetReplyHandler(evhCALLBACK &cd);
ccsCOMPL_STAT SetErrorHandler(evhCALLBACK &cd);
    Defines the user installable callbacks to be
    run when the normal or error replies for self
    commands are received.

void Send(const msgCMD cmdName, const char *format, ...);
    Build a parameter buffer from the given format and parameters (like in
    printf) and send it with the given command to the own process.

ccsCOMPL_STAT Reset();
    Resets the command if it is active by de-installing the reply handlers,
    i.e. replies to that command are simply ignored. After that the object
    is ready to send a new command.

vltLOGICAL IsActive();
    Returns ccsTRUE if a command is currently active, i.e. replies are
    pending.
const char *Command() const;
   Access method to get the command name

PROTECTED METHODS


evhCB_COMPL_STAT ReplyCB(msgMESSAGE &msg, void *);
evhCB_COMPL_STAT ErrorCB(msgMESSAGE &msg, void *);
    Handlers for normal and error replies to the self-command. If user
    reply callbacks are installed they are invoked by these handlers,
    otherwise a normal or error reply is passed on to the given command
    handler.

PRIVATE DATA MEMBERS


fndSTRING         description; // description of purpose for error logging
tcsCMD_HANDLER *cmdHandler;  // command handler to be used for replies
evhCALLBACK      *userReplyCB; // user's reply handler
evhCALLBACK      *userErrorCB; // user's error reply handler
