Horologium: ESO CCD Test Report

EEV 44-82 -1-A57
CCD name : Horologium
Serial number : 00151-11-01
Type : Backside, Single layer AR Pixel size 15x15 µm
Number of photosensitive pixels 2048 x 4102 [HxV]
Number of outputs : 2
Overall rating :

Measurement made by Fabrice Christen the: 23-26 of July 2001
Data reduced by Fabrice Christen the: November 15th November 2001

Quantum Efficiency, PRNU

Clock mode: 225kpx/rr/HG/512
Conversion Factor=   0.52625e-/ADU ±0.001835     for 24719.2ADU
RMS noise        =   3.5845e-      ±0.1748

CCD temperature : -120 Cº


Window area is : X1= 2200 X2= 4170 Y1= 7 Y2= 512
Bandwidth 5nm

Wav.

Qe Horologium

Error

PRNU RMS (%)

Phase

320

44.6

1.3

3.22

6.53

330

48.8

1.4

3.04

6.47

340

51.4

1

2.95

6.44

350

49.4

0.48

2.98

6.46

360

54.7

0.54

2.97

6.45

370

59.0

0.58

2.66

6.35

380

66.7

0.66

1.98

6.05

390

73.4

0.75

1.57

5.82

400

76.6

0.78

1.35

5.66

420

79.1

0.8

1.21

5.55

440

80.3

0.8

1.2

5.54

450

79.9

0.8


5.51

460

79.5

0.8

1.14

5.49

480

78.7

0.79

1.14

5.49

500

78.5

0.6

1.17

5.52

520

78.2

0.79

1.1

5.46

540

77.3

0.78

1.1

5.45

550

76.6

0.77


5.49

560

75.9

0.76

1.18

5.53

580

76.0

0.76

1.08

5.44

600

75.3

0.57

1.11

5.47

620

74.6

0.73

1.06

5.42

640

73.9

0.72

1.06

5.42

650

73.5

0.72


5.39

660

73.0

0.71

1

5.36

680

71.7

0.68

1.03

5.39

700

68.8

0.64

1.06

5.42

720

65.8

0.6

1.13

5.49

740

62.7

0.57

1.08

5.45

750

61.1

0.55


5.46

760

59.4

0.53

1.11

5.47

780

56.2

0.49

1.18

5.54

800

52.2

0.45

1.25

5.6

820

48.4

0.41

1.3

5.64

840

44.4

0.37

1.49

5.77

850

42.1

0.35


5.73

860

39.7

0.33

1.36

5.68

880

34.4

0.28

1.51

5.78

900

28.9

0.23

2

6.07

920

23.0

0.18

3.01

6.45

940

17.7

0.14

4.34

6.76

950

15.3

0.12


6.84

960

12.8

0.1

5.5

6.93

980

8.4

0.06

6.79

7.12

1000

4.9

0.04

8.07

7.26

1040

0.8

0.01

8.33

7.34

1100

0.1

0.001

9.99

7.65

Table 1: Measurement of the Quantum Efficiency.

Quantum efficiency, comparison

In this section you can compare the QE we measured with the testbench and:

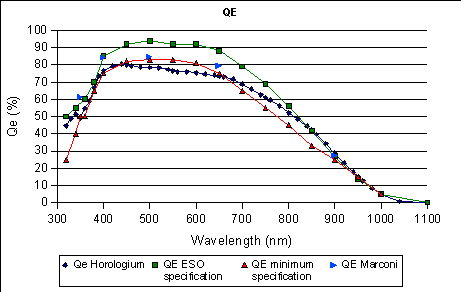

Figure 1: Comparison between the QE measured by ESO, the QE measured by Marconi, ESO specification and minimum specification.

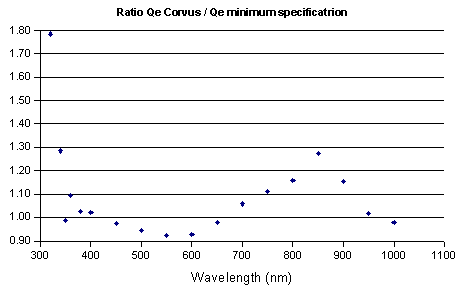

Figure 2: Ratio between the ESO measurements and the ESO minimum specification.


Quantum efficiency, special specification



Special specification

Wavelength(nm)

Minimum spec. (%)

ESO measurements (%)

Result

350

50

49.4

Under the minimum spec.

400

80

76.6

Under the minimum spec.

650

80

73.5

Under the minimum spec.

900

25

28.9

OK

Conclusion:

No this ccd is not in the 25%

Table 2: Minimum specification for 25% of the ccds.

Difference between QE measurements made by ESO and Marconi.



Comparison QE ESO and QE Marconi

Wavelength (nm)

QE ESO (%)

Qe Marconi (%)

Difference (Eso - Marc. %)

Relative difference (Marconi as reference %)

Ratio QE ESO / QE Marconi

350

49.4

61.3

-11.9

-19.4

0.81

400

76.6

84.2

-7.6

-9.0

0.91

500

78.45

84.6

-6.15

-7.3

0.93

650

73.5

79.3

-5.8

-7.4

0.93

900

28.9

27.6

1.3

4.7

1.05

Table 3: Difference and relative difference between ESO measurements and Marconi.

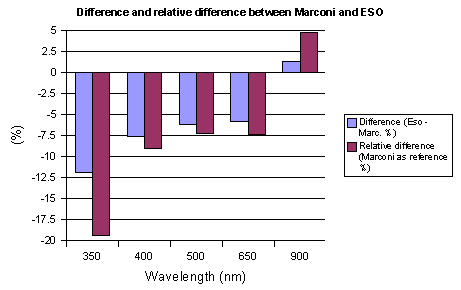

Figure 3: Graphic representation of the difference and the relative difference.

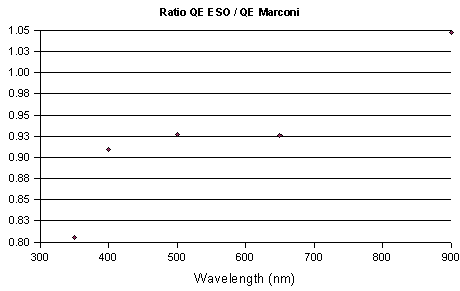

Figure 4: Ratio between the ESO measurements and the Marconi measurements


PRNU

In this section you can compare the PRNU we measured at ESO and:

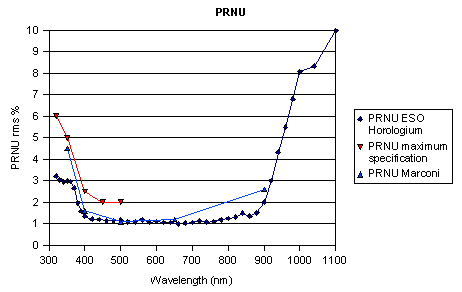

Figure 5: Comparison between the PRNU measured by ESO, the PRNU measured by Marconi, and the maximum specification.

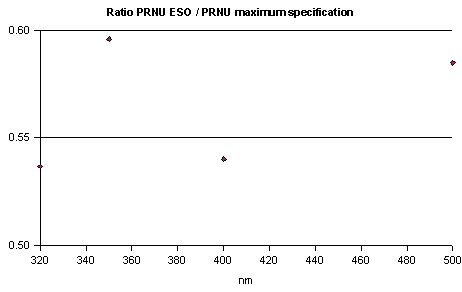

Figure 6: Ratio between the ESO measurements and the Maximum specification.

Figure 7: Graphic representation of the difference and the relative difference.

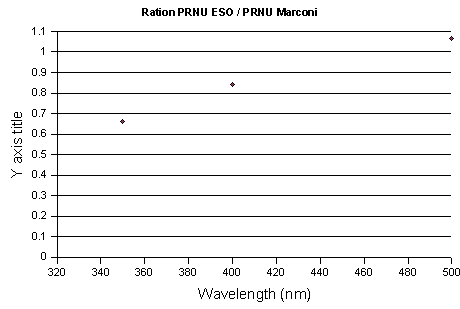

Figure 8: Ratio between the ESO measurements and the Marconi measurements.





Comparison QE ESO and QE Marconi

Wavelength (nm)

PRNU ESO (rms %)

Maximum spec.

PRNU Marconi

Difference (ESO – Marc.)

Relative difference (Marc. as reference)

Ratio PRNU ESO / PRNU Marconi

320

3.22

6





350

2.98

5

4.5

-1.52

-33.78

0.66

400

1.35

2.5

1.6

-0.25

-15.63

0.84

500

1.17

2

1.1

0.07

6.36

1.06

Table 4: Difference and relative difference between ESO measurements and Marconi.

Comparison with the contract

In this section you will see the if the values we have measured for the QE and the PRNU are in accordance with the contract.



Wavelength (nm)

Qe

PRNU

320

OK

OK

340

OK


350

Below the specification

OK

360

OK


380

OK


400

OK

OK

450

Below the specification

OK

500

Below the specification

OK

550

Below the specification


600

Below the specification


650

Below the specification


700

OK


750

OK


800

OK


850

OK


900

OK


950

OK


1000

Below the specification


Table 5: Comparison between the values we have measured and the specifications in the contract.

Cosmetic

flat field

For the flat field we use three wavelengths, 350nm, 600nm and 900nm. For each wavelength we make two images, high level (45000 ADU) and low level (1000 ADU).

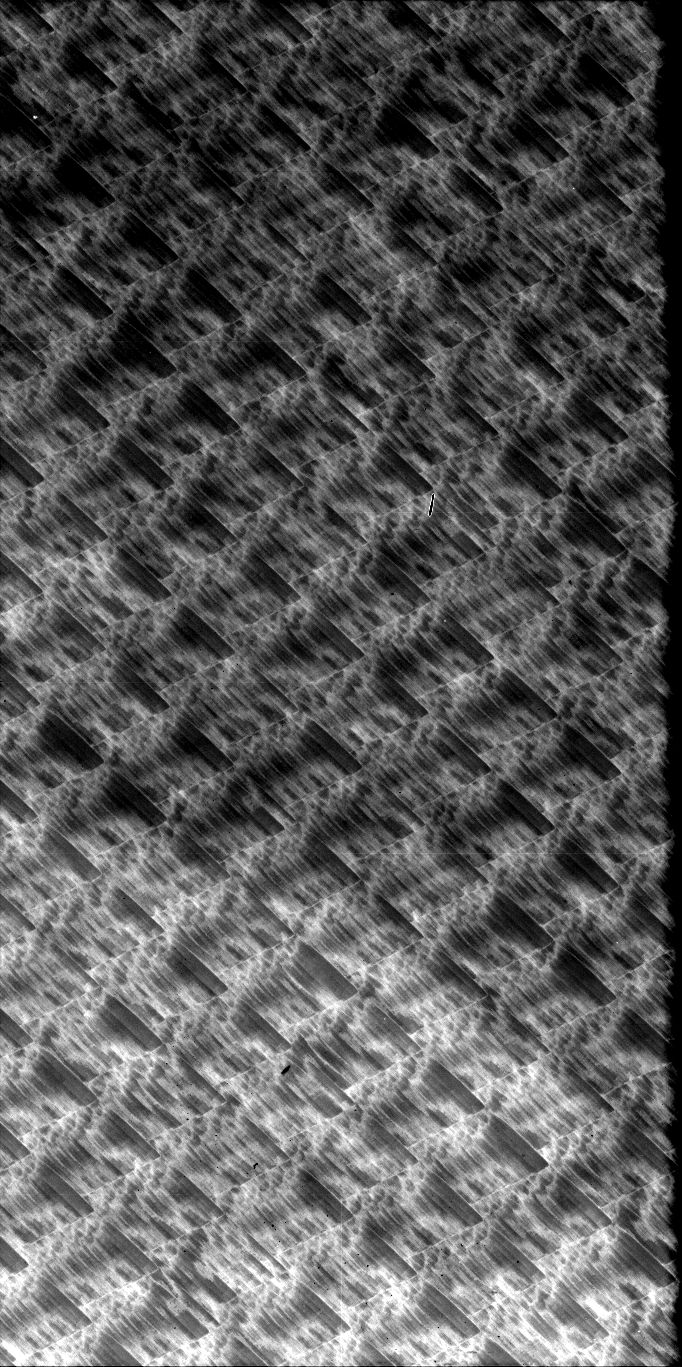

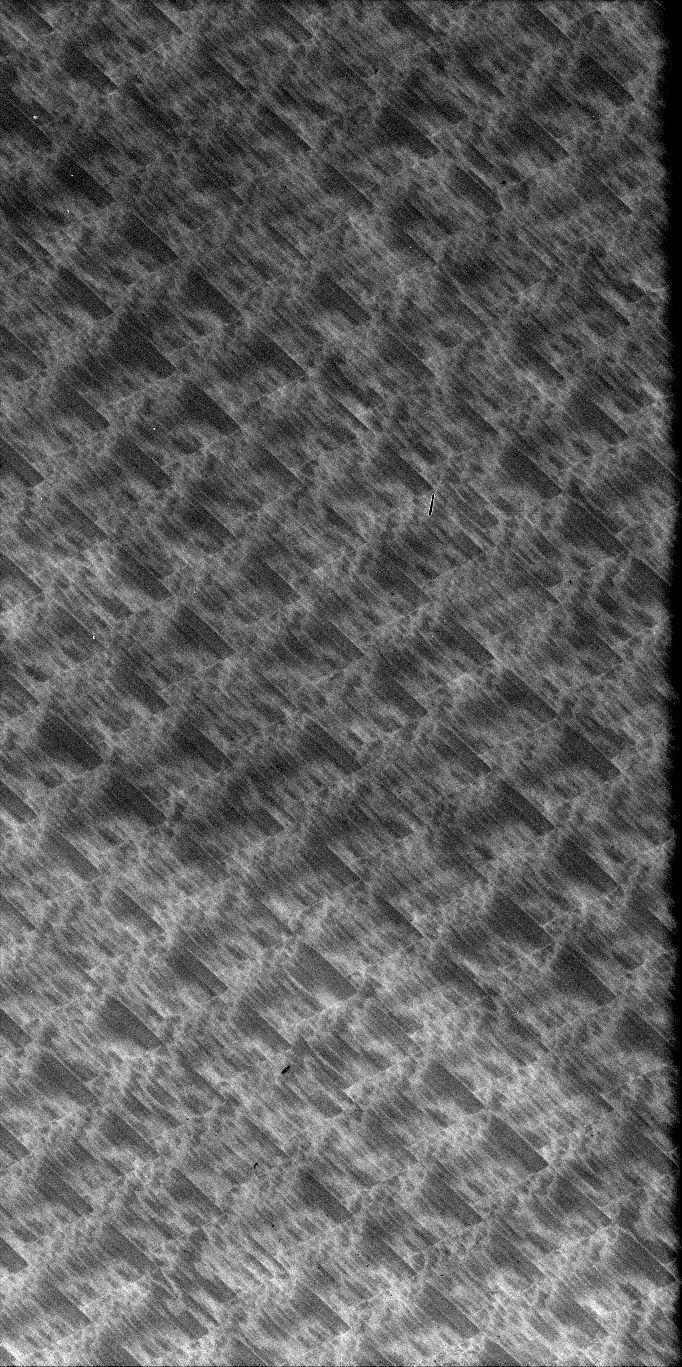

350nm (UV), bandwidth 5nm

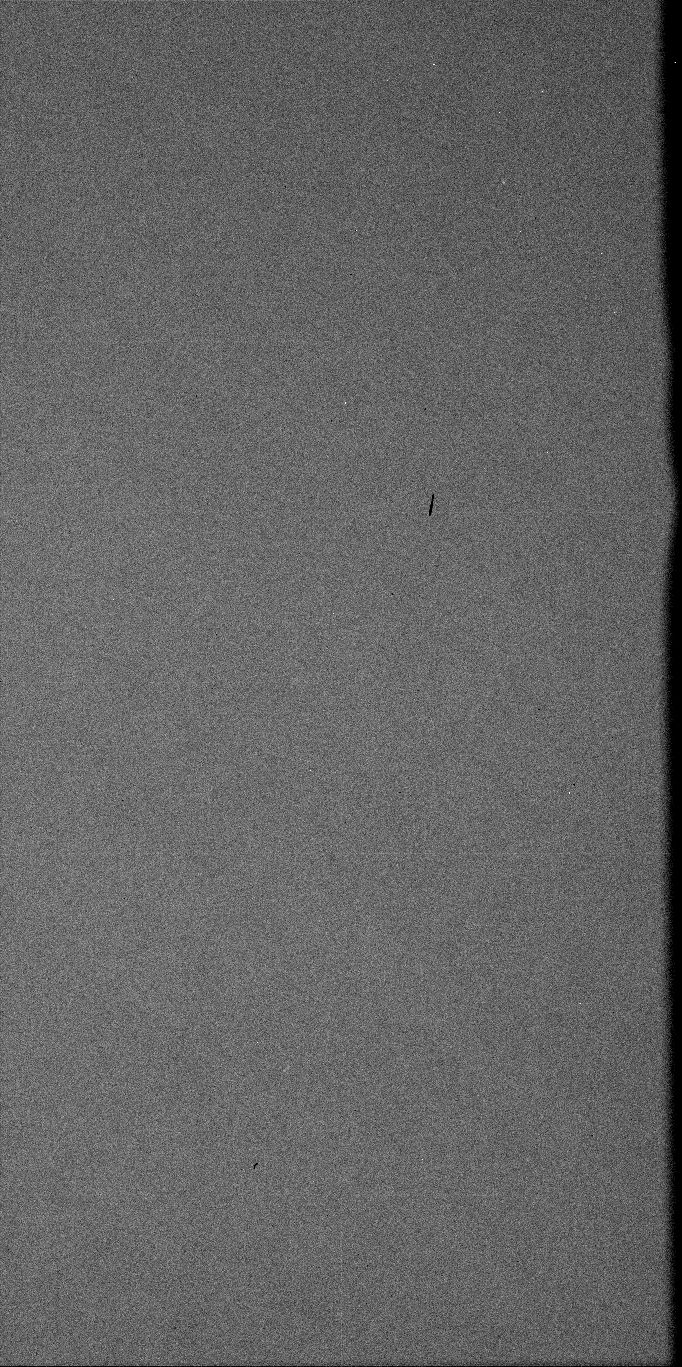

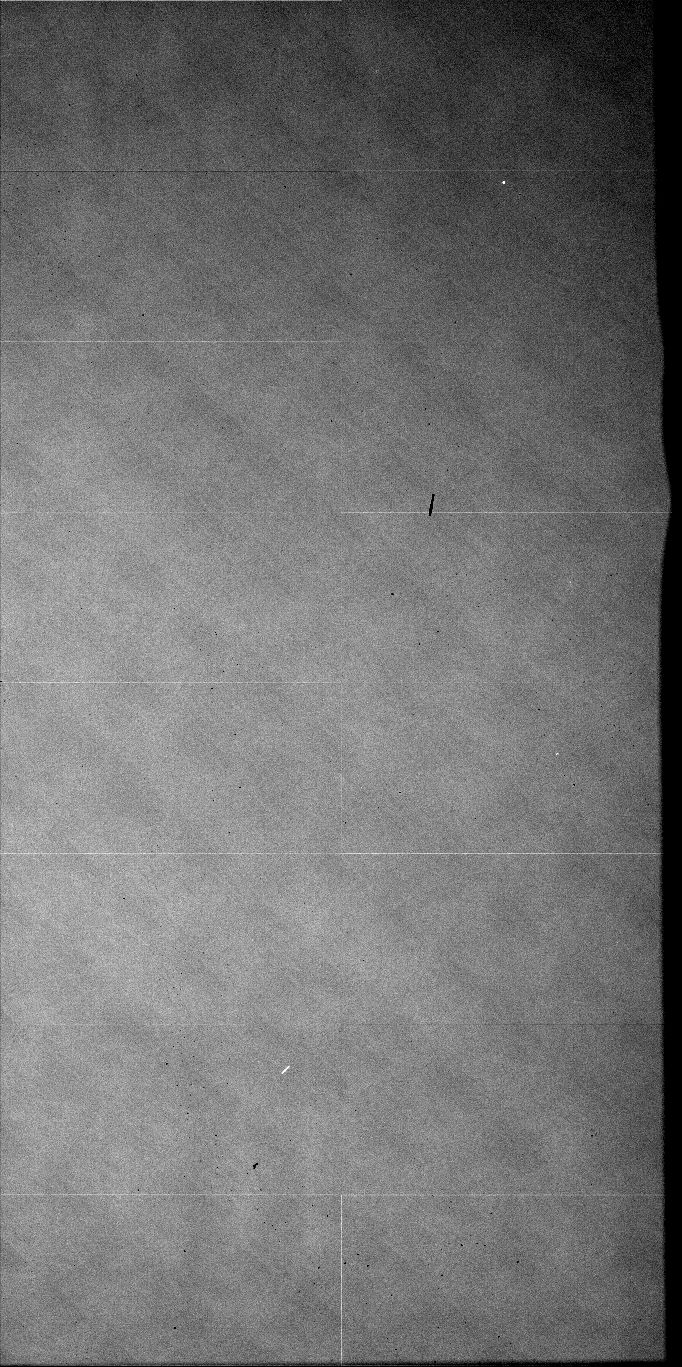

600nm, bandwidth 5nm

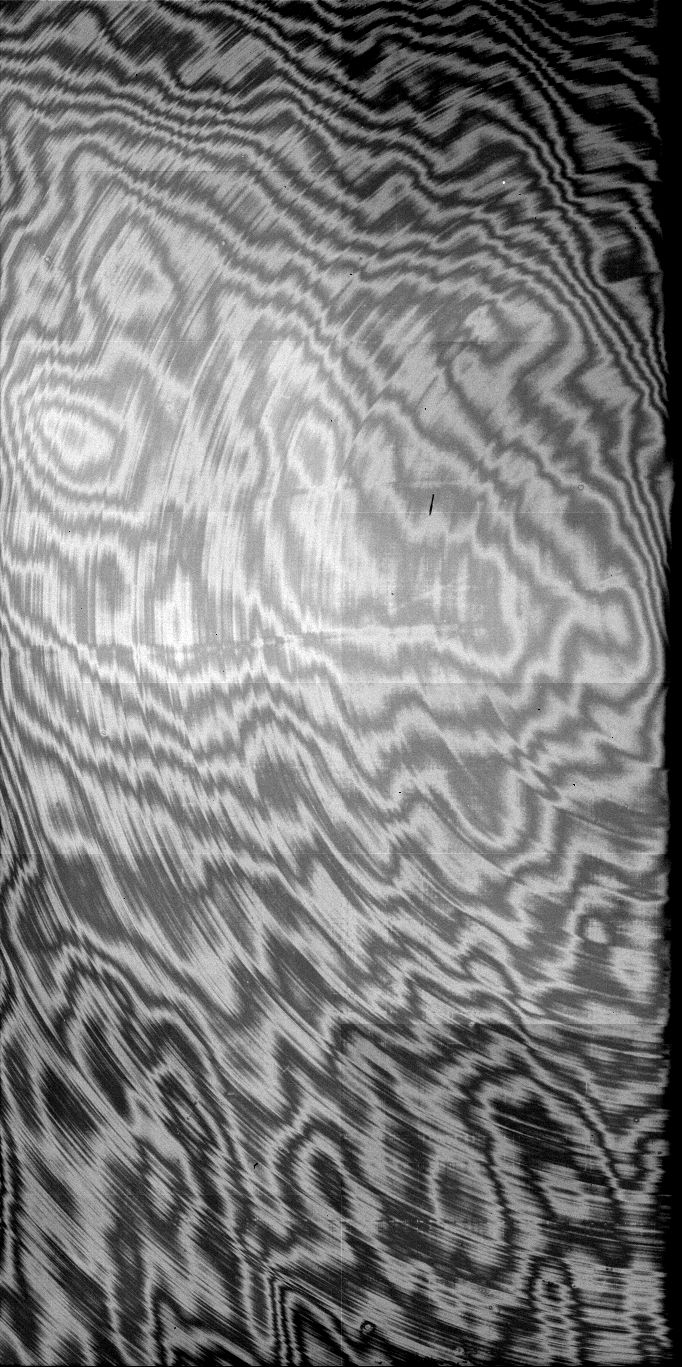

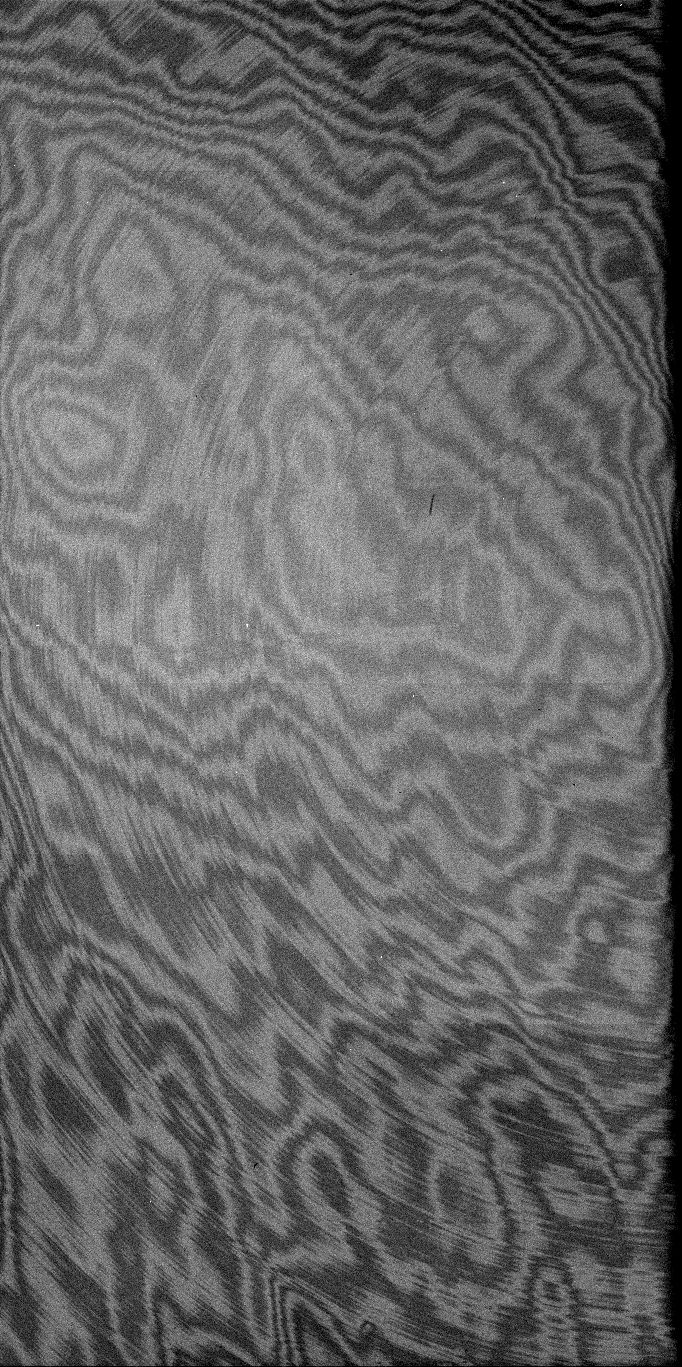

900nm, bandwidth 5nm

High level
Low level
High level
Low level
High level
Low level

Table 6: Flat field for three wavelengths.

Bias and dark

The time exposure, for the long dark exposure, is 3600 seconds.

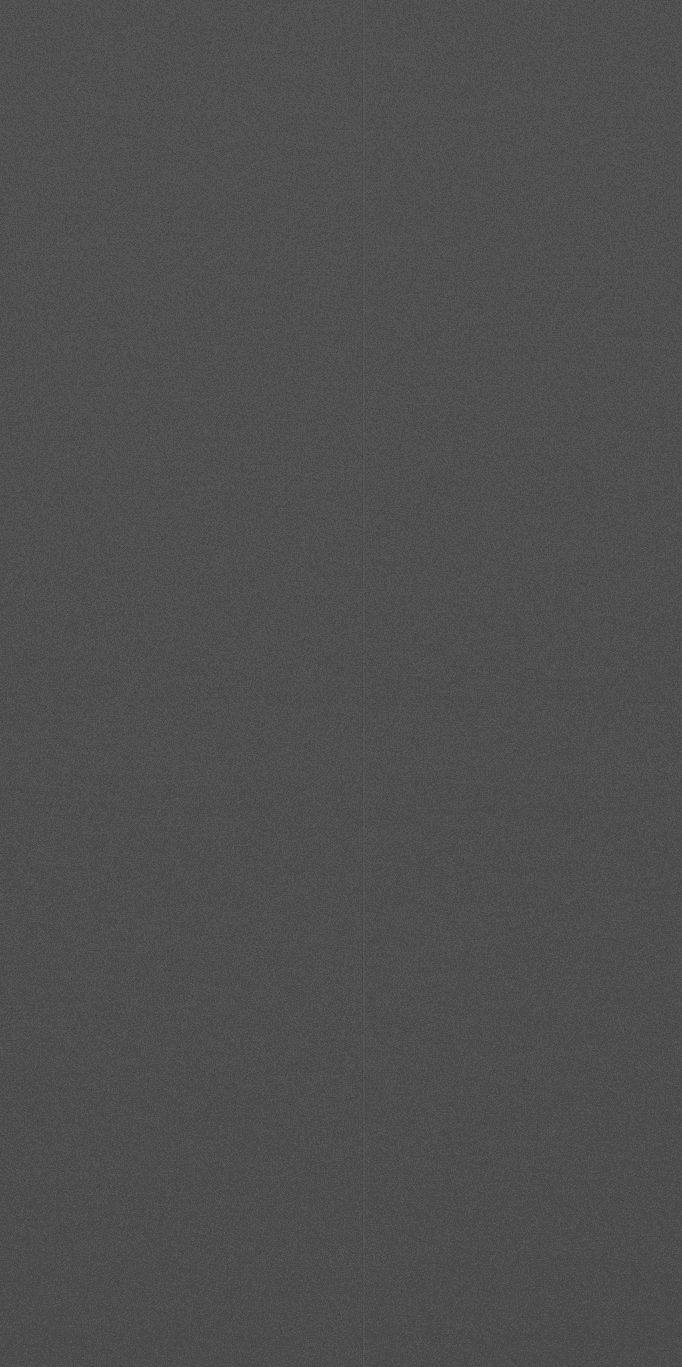

Bias

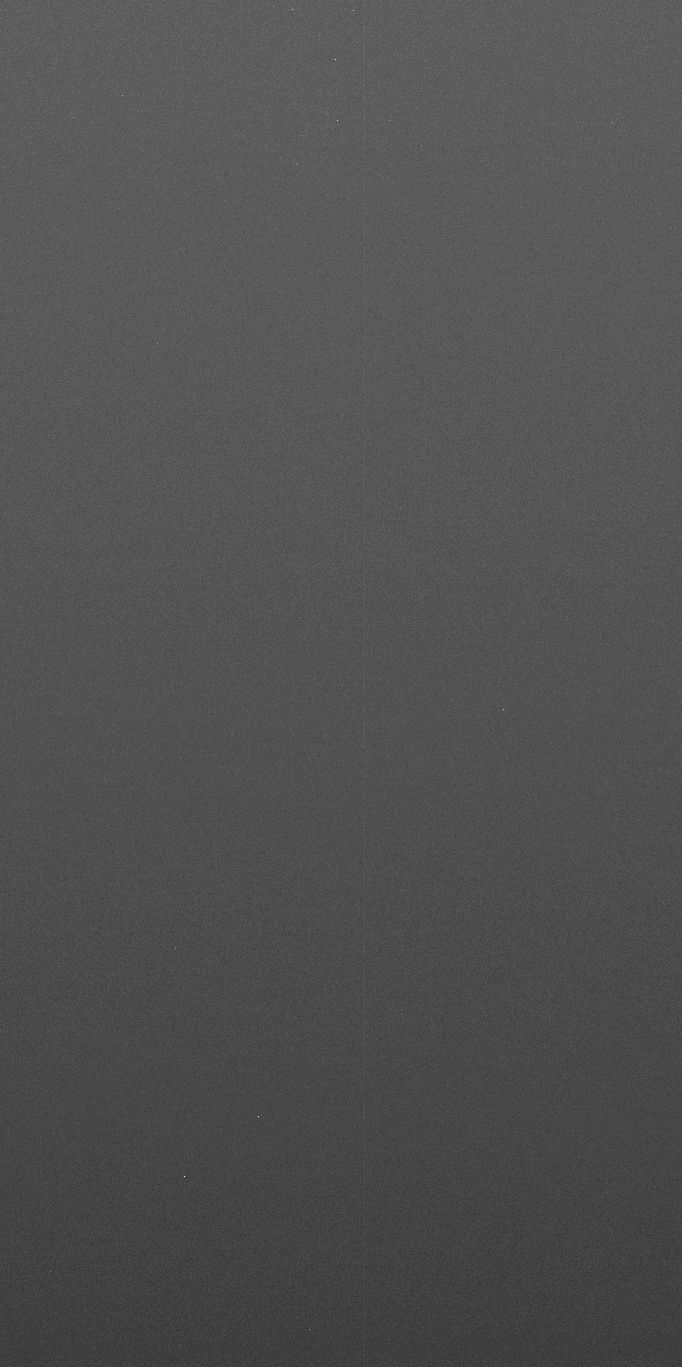

Long exposure dark image

Table 7: Bias and dark.

Readout noise/Conversion factor

Clock mode: 50kpx/rlrl/HG/512
CCD B Horologium Left port
Conversion Factor=   0.49157e-/ADU ±0.001547     for 20530.5ADU
RMS noise        =   2.5451e-      ±0.1342

CCD B Horologium Right port
Conversion Factor=   0.5073e-/ADU  ±0.001871     for 19690.1ADU
RMS noise        =   2.5485e-      ±0.1269

Clock mode: 225kpx/rlrl/HG/512

CCD B Horologium Left Port
Conversion Factor=   0.50712e-/ADU ±0.001743     for 20449ADU
RMS noise        =   3.6504e-      ±0.1819


CCD B Horologium Right Port
Conversion Factor=   0.52635e-/ADU ±0.001777     for 19559.8ADU
RMS noise        =   3.7956e-      ±0.1817



Linearity (TDI method)

RMS non linearity (%)         =  0.44
Peak to peak non linearity (%)=  1.31

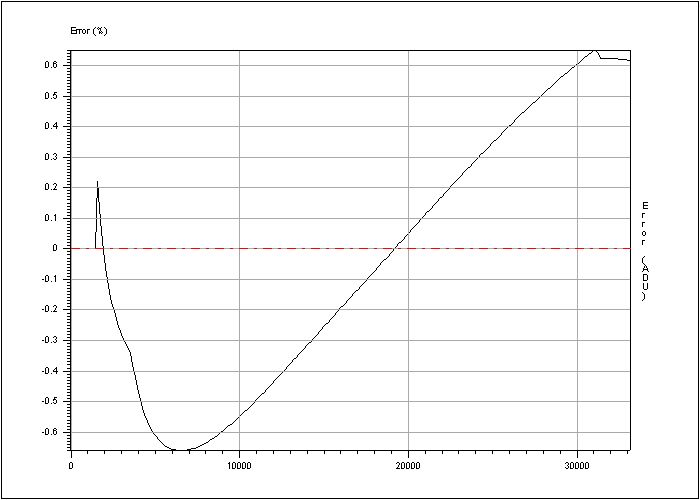

Figure 9: Error of linearity

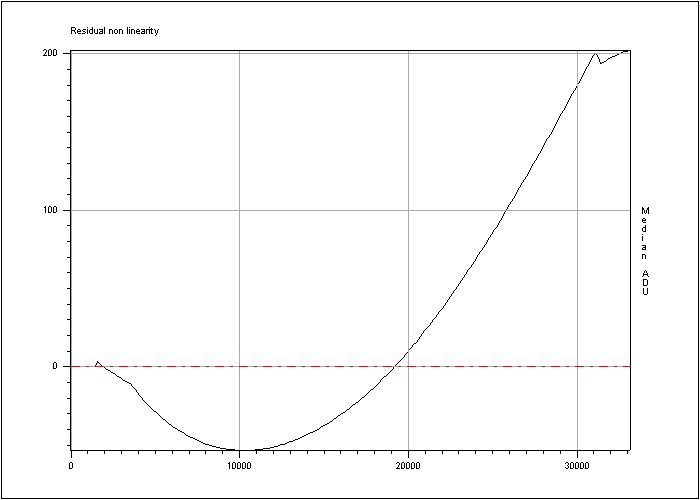

Figure 10: Residual non linearity.

Dark current

Exposure time (s) = 3600
Temperature = -120 deg
Dark current : 0.27 ± 0.04 ADU/hour/pixel
Dark current : 0.15 ± 0.02 e-/hour/pixel

Charge Transfer Efficiency (CTE) Not available

Dark current : Value ± Value e-/hour/pixel
Low level (Around 2500 ADU)
Horizontal CTE =  Value
Vertical CTE   =  Value

High level (Around 25000 ADU)
Horizontal CTE =  Value
Vertical CTE   =  Value

Cosmetic defects

In this section we expose the hot pixel, the dark pixel, the trap and the very large trap we found.

Hot pixel

A hot pixel provides a signal of > 60 e- / pixel / hour.


Result: 13 hot points.

Very bright pixel

a very bright pixel provides a signal of > 200000 e-/pixel/hour


Result: 0 very bright pixel.

Dark pixel

A dark pixel is one with 50% or less than the average output for uniform intensity light level, measured with a flat field level around 500 photo-electrons.


Result: 1 dark pixels detected.

Trap

A trap is defined as a pixel that captures more than 10 electrons, measured with a flat field level around 500 photo-electrons.


Result: 4 traps

Very large trap

A very large trap is defined as a pixel that captures more than 10 000 electrons, measured with a flat field level around 90% of full well capability.


Result: 0 very large trap.


Very difficult to have this value at the moment due to a problem of shadow on the right corner.


Bad column

A bad column is 10 or more contiguous hot or dark pixels in a single column or a very bright pixel or a very large trap.


Result: 0 bad columns.

Conclusion

Here is a summary of cosmetic defects:

Hot pixel

Dark pixel

A very bright pixel (a)

Trap

Very large trap (b)

Sup. 10 contiguous pixels (c)

Total bad column (a+b+c)

ESO

13

1

0

4

0

0

0

Marconi

9

3

1

0

0

3

Table 8: Summary of cosmetic defects.


Voltage table

###############################################################################
#Author:        Cyril CAVADORE
#CAMERA:        Double Marconi   ( Mosaic 2 Marconi/EEV )
#Purpose:       This is the global voltage definition table micro sequences
#               European Southern Observatory (ESO)
#Date:          20.11.00
###############################################################################
#  GOBAL VOLTAGE DEFINITION TABLE
#
# This table defines the voltages which will be applied to peripherals
# at initialisation time. It also defines the high and low limits which may
# be set for these voltages
###############################################################################
# BRD_ID  PERIPH_ID                LOW    HIGH   TOLERANCE   INIT_VAL
#
# Anabias voltages are in 0.001 volts
#
###############################################################################
#  BIASBRD 1 is for the EEV CCD-44 in the mosaic
###############################################################################
# BRD_ID  PERIPH_ID                LOW    HIGH   TOLERANCE   INIT_VAL


BRD_ANABIAS1 ANB_PRESET_VOLT_A   -3500   -1000       10000      -3500 #OG1R  VOG1
BRD_ANABIAS1 ANB_PRESET_VOLT_B   -2500   -1000       10000      -2500 #OG2R  VOG2
BRD_ANABIAS1 ANB_PRESET_VOLT_C    2000   25000       10000      24300 #ODR   VOD
BRD_ANABIAS1 ANB_PRESET_VOLT_D    2000   15000       10000      13150 #RDR   VRD
BRD_ANABIAS1 ANB_PRESET_VOLT_E    2000   25000       10000      24000 #JDR   JFETVoltage
BRD_ANABIAS1 ANB_PRESET_VOLT_F       0       0           0          0 #not used
BRD_ANABIAS1 ANB_PRESET_VOLT_G       0       0           0          0 #not used
BRD_ANABIAS1 ANB_PRESET_VOLT_H       0       0           0          0 #not used

# CONNECTOR PO - B

BRD_ANABIAS1 ANB_PRESET_VOLT_I   -3500   -1000       10000      -3500 #OG1L  VOG1
BRD_ANABIAS1 ANB_PRESET_VOLT_J   -2500   -1000       10000      -2500 #OG2L  VOG2
BRD_ANABIAS1 ANB_PRESET_VOLT_K    2000   25000       10000      24300 #ODL   VOD
BRD_ANABIAS1 ANB_PRESET_VOLT_L    2000   15000       10000      13150 #RDL   VRD
BRD_ANABIAS1 ANB_PRESET_VOLT_M    2000   25000       10000      24000 #JDL
BRD_ANABIAS1 ANB_PRESET_VOLT_N       0       0           0          0 #not used
BRD_ANABIAS1 ANB_PRESET_VOLT_O    2000   19000       10000      18000 #DDLR  VDD
BRD_ANABIAS1 ANB_PRESET_VOLT_P       0       0           0          0 #not used

#The anabias board also has an opto isolated peripheral
BRD_ANABIAS1 ANB_OPTOOUT             0   32767           4        255


#
################################################################################
# Clock driver rail voltages are in 0.001 volts
#
################################################################################
#CLOCKDRIVER BOARD 1 is for the EEV CCD44 in the mosaic
################################################################################
#
#
# BRD_ID       PERIPH_ID        LOW        HIGH     TOLERANCE   INIT_VAL
#
#   CONNECTOR PO-A
#
BRD_CLKDRV1 CLKDRV_DAC0_LO     -5000      -5000     1000       -5000 #SWL  VRPhi
BRD_CLKDRV1 CLKDRV_DAC0_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC1_LO     -5000      -5000     1000       -5000 #SWR  VRPhi
BRD_CLKDRV1 CLKDRV_DAC1_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC2_LO     -5000      -5000     1000       -5000 #RF3  VRPhi
BRD_CLKDRV1 CLKDRV_DAC2_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC3_LO     -5000      -5000     1000       -5000 #RF2L VRPhi
BRD_CLKDRV1 CLKDRV_DAC3_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC4_LO     -5000      -5000     1000       -5000 #RF1L VRPhi
BRD_CLKDRV1 CLKDRV_DAC4_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC5_LO     -5000      -5000     1000       -5000 #RF2R VRPhi
BRD_CLKDRV1 CLKDRV_DAC5_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC6_LO     -5000      -5000     1000       -5000 #RF1R VRPhi
BRD_CLKDRV1 CLKDRV_DAC6_HI      5000       5000     1000        5000
BRD_CLKDRV1 CLKDRV_DAC7_LO     -6000      -6000     1000       -6000 #DG VDG
BRD_CLKDRV1 CLKDRV_DAC7_HI      6000       6000     1000        6000
#
#     CONNECTOR PO-B
#
BRD_CLKDRV1 CLKDRV_DAC8_LO    -12000      -4000     1000       -7000 #IF1 VIPhi
BRD_CLKDRV1 CLKDRV_DAC8_HI     -2000       3000     1000        3000
BRD_CLKDRV1 CLKDRV_DAC9_LO    -12000      -4000     1000       -7000 #IF2 VIPhi
BRD_CLKDRV1 CLKDRV_DAC9_HI     -2000       3000     1000        3000
BRD_CLKDRV1 CLKDRV_DAC10_LO   -12000      -4000     1000       -7000 #IF3 VIPhi
BRD_CLKDRV1 CLKDRV_DAC10_HI    -2000       3000     1000        3000
BRD_CLKDRV1 CLKDRV_DAC11_LO    -0000      -0000     1000       -0000 #empty
BRD_CLKDRV1 CLKDRV_DAC11_HI     0000       0000     1000        0000
BRD_CLKDRV1 CLKDRV_DAC12_LO    -6000      -4000     1000       -6000 #FRL
BRD_CLKDRV1 CLKDRV_DAC12_HI     6000       8000     1000        6000
BRD_CLKDRV1 CLKDRV_DAC13_LO    -6000      -4000     1000       -6000 #FRR
BRD_CLKDRV1 CLKDRV_DAC13_HI     6000       8000     1000        6000


#
# Gain should be interpreted as follows
# There are two gains, gain1 is on the preamp, gain2 is on the video board.

# Gain1 =
#     3 == 1.5
#     1 == 2.25
#     0 == 3.0
#
# Gain2 =
#     0 = Minimum (2.5)
#     1 = Maximum (12.5)
#
# BRD_ID  PERIPH_ID             LOW    HIGH   TOLERANCE       INIT_VAL
BRD_VIDBRD0 VID_GAIN1_CHAN0       0       3       0               1
BRD_VIDBRD0 VID_GAIN1_CHAN1       0       3       0               1
BRD_VIDBRD0 VID_GAIN1_CHAN2       0       3       0               1
BRD_VIDBRD0 VID_GAIN1_CHAN3       0       3       0               1

BRD_VIDBRD0 VID_GAIN2_CHAN0       0       1       0               0
BRD_VIDBRD0 VID_GAIN2_CHAN1       0       1       0               0
BRD_VIDBRD0 VID_GAIN2_CHAN2       0       1       0               0
BRD_VIDBRD0 VID_GAIN2_CHAN3       0       1       0               0

BRD_VIDBRD0 VID_FILT_CHAN0        0       3       0               0
BRD_VIDBRD0 VID_FILT_CHAN1        0       3       0               0
BRD_VIDBRD0 VID_FILT_CHAN2        0       3       0               0
BRD_VIDBRD0 VID_FILT_CHAN3        0       3       0               0

BRD_VIDBRD0 VID_TESTVID_CHAN0     0       1       0               0
BRD_VIDBRD0 VID_TESTVID_CHAN1     0       1       0               0
BRD_VIDBRD0 VID_TESTVID_CHAN2     0       1       0               0
BRD_VIDBRD0 VID_TESTVID_CHAN3     0       1       0               0

#
# Video Offsets are in 0.001 volts
#
# BRD_ID  PERIPH_ID           LOW    HIGH   TOLERANCE    INIT_VAL
#


BRD_VIDBRD0 VID_OFFSET_CHAN0    0   65535    6553            0
BRD_VIDBRD0 VID_OFFSET_CHAN1    0   65535    6553            0
BRD_VIDBRD0 VID_OFFSET_CHAN2    0   65535    6553            0
BRD_VIDBRD0 VID_OFFSET_CHAN3    0   65535    6553            0

Back to the overview page ESO Test Reports for the OmegaCAM CCDs
