Test Reports for the OmegaCAM CCDs

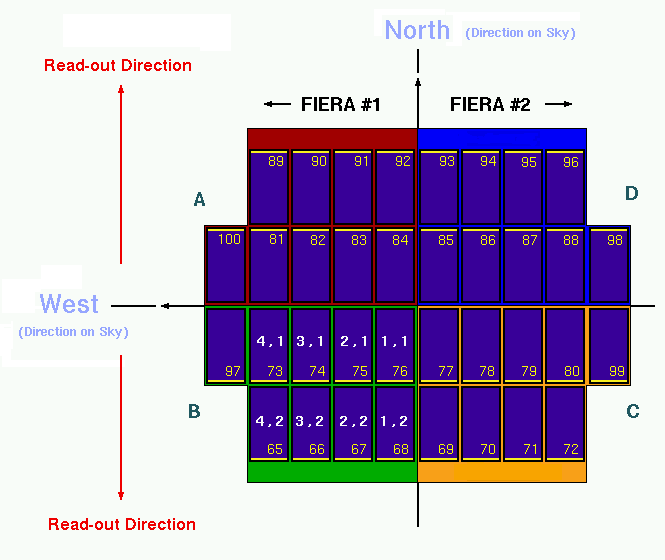

Focal plane simulation
Two FIERAs drive the 32 CCDs of the mosaic:
FIERA 1 controls quadrants A and B;
FIERA 2 controls quadrants C and D.
The output selected for all CCDs is on the left (when read-out register is at the bottom).
Table 1: Quadrant A (FIERA #1)
| ESO CCD # | CCD Nickname | Chan. Pot. Min. [V] | Chan. Pot. Max. [V] | Range [V] | Mean [V] | Flatness [μ] | Position Coordinates within quadrant |
| 84 | Centaurus | 11.5 | 11.7 | 0.2 | 11.6 | -9, +3 | 1, 1 |
| 83 | Apus | 10.9 | 11.7 | 0.8 | 11.3 | -10, +8 | 2, 1 |
| 82 | Circinus | 11.5 | 11.7 | 0.2 | 11.6 | -3, +2 | 3, 1 |
| 81 | Ara | 10.9 | 11.7 | 0.8 | 11.3 | -9, +10 | 4, 1 |
| 92 | Canis Major | 10.9 | 11.5 | 0.6 | 11.2 | -9, +1 | 1, 2 |
| 91 | Antlia | 10.9 | 11.7 | 0.8 | 11.3 | -12, -1 | 2, 2 |
| 90 | Caelum | 11.1 | 11.4 | 0.3 | 11.25 | -9, +2 | 3, 2 |
| 89 | Carina | 10.9 | 11.5 | 0.6 | 11.2 | -5, +3 | 4, 2 |
Table 2: Quadrant B (FIERA #1)
| ESO CCD # | CCD Nickname | Chan. Pot. Min. [V] | Chan. Pot. Max. [V] | Range [V] | Mean [V] | Flatness [μ] | Position Coordinates within quadrant |
| 76 | Pyxis | 10.9 | 11.2 | 0.3 | 11.05 | -6, +6 | 1, 1 |
| 75 | Puppis | 10.9 | 11.2 | 0.3 | 11.05 | -4, +4 | 2, 1 |
| 74 | Telescopium | 10.9 | 11.2 | 0.3 | 11.05 | -10, +7 | 3, 1 |
| 73 | Horologium | n/a | n/a | n/a | 11.15 | -9, +9 | 4, 1 |
| 68 | Pavo | 10.4 | 10.8 | 0.4 | 10.6 | 0, +9 | 1, 2 |
| 67 | Phoenix II | 10.9 | 11.2 | 0.3 | 11.05 | +3, +12 | 2, 2 |
| 66 | Gemini II | n/a | n/a | n/a | 11.25 | n/a | 3, 2 |
| 65 | Pictor | 10.9 | 11.1 | 0.2 | 11 | -8, +2 | 4, 2 |
Table 3: Quadrant C (FIERA #2)
| ESO CCD # | CCD Nickname | Chan. Pot. Min. [V] | Chan. Pot. Max. [V] | Range [V] | Mean [V] | Flatness [μ] | Position Coordinates within quadrant |
| 77 | Octans III | 10.0 | 10.5 | 0.5 | 10.25 | -5, +4 | 1, 1 |
| 78 | Vela | 10.4 | 10.7 | 0.3 | 10.55 | 0, +6 | 2, 1 |
| 79 | Volans | 10.0 | 10.5 | 0.5 | 10.25 | -3, +4 | 3, 1 |
| 80 | Tucana | 10.0 | 10.5 | 0.5 | 10.25 | 0, +6 | 4, 1 |
| 69 | Musca Australis II | 8.5 | 9.2 | 0.7 | 8.85 | -3, +12 | 1, 2 |
| 70 | Corvus II | 8.5 | 9.2 | 0.7 | 8.85 | -1, +9 | 2, 2 |
| 71 | Microscopium II | 8.5 | 9.2 | 0.7 | 8.85 | -2, +4 | 3, 2 |
| 72 | Columba II | 8.5 | 9.2 | 0.7 | 8.85 | -3, +12 | 4, 2 |
Table 4: Quadrant D (FIERA #2)
| ESO CCD # | CCD Nickname | Chan. Pot. Min. [V] | Chan. Pot. Max. [V] | Range [V] | Mean [V] | Flatness [μ] | Position Coordinates |
| 85 | Mensa | n/a | n/a | n/a | 8.7 | -5, +8 | 1, 1 |
| 86 | Lupus | n/a | n/a | n/a | 8.7 | -5, -2 | 2, 1 |
| 87 | Lepus | n/a | n/a | n/a | 8.7 | -9, +3 | 3, 1 |
| 88 | Dorado | 8.4 | 9 | 0.6 | 8.7 | -1, +7 | 4, 1 |
| 93 | Grus | 8.4 | 9 | 0.6 | 8.7 | -5, +7 | 1, 2 |
| 94 | Hydrus | n/a | n/a | n/a | 8.7 | -7, +7 | 2, 2 |
| 95 | Fornax | 8.4 | 9 | 0.6 | 8.7 | -9, -1 | 3, 2 |
| 96 | Corona Australis II | 8.5 | 9.2 | 0.7 | 8.85 | +1, +5 | 4, 2 |
Table 5: Auxilliary CCDs
| CCD Nickname | Chan. Pot. Min. [V] | Chan. Pot. Max. [V] | Chan. Pot. Mean [V] | Flatness [μ] | Position |
| Ancha | 11.1 | 11.4 | 11.25 | -6, +6 | A |
| Antonio | n/a | n/a | n/a | n/a | B |
| Albali | 11.1 | 11.4 | 11.25 | -9, +10 | C |
| Rachel | n/a | n/a | n/a | n/a | D |
